NRE161-AEXNB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1503-1710)4D

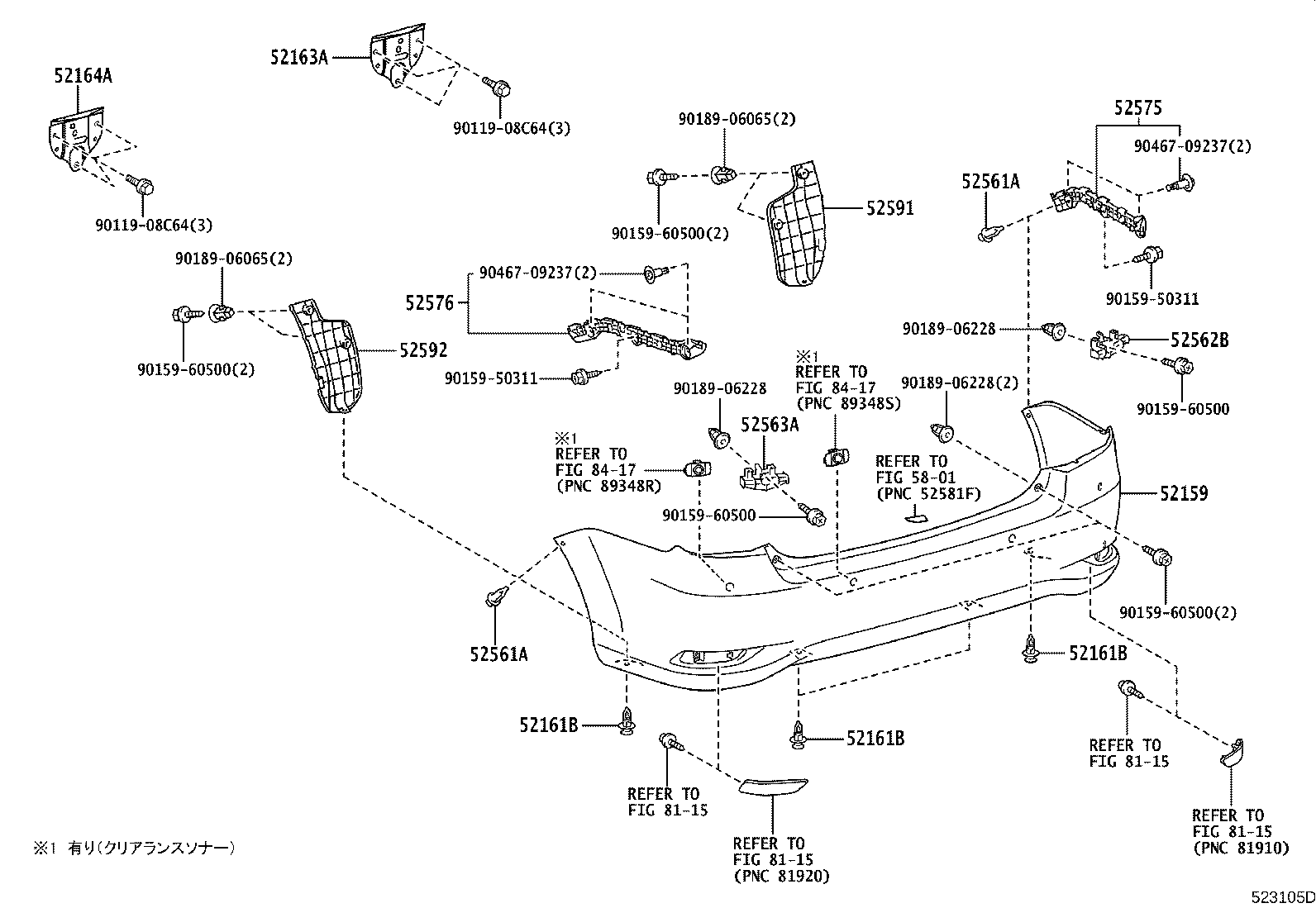

Click highlighted areas on diagram

diagram 52159 52161B 52161B 52161B 52163A 52164A 52561A 52561A 52562B 52563A 52575 52576 52591 52592 5801 8115 8115 8115 8115 8417 8417 9011908C64 9011908C64 9015950311 9015950311 9015960500 9015960500 9015960500 9015960500 9015960500 9018906065 9018906065 9018906228 9018906228 9018906228 9046709237 9046709237
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-12C20A0

NKE165,NRE16#,NZE16#..4D

SUPER WHITE 2,040

 1
52159-12C20B0

NKE165,NRE16#,NZE16#..4D

SILVER ME.,1F7

 1
52159-12C20E1

NKE165,NRE16#,NZE16#..4D

VINTAGE BROWN PEARL CS.,4X4

 1
52159-12C20B1

NKE165,NRE16#,NZE16#..4D

MELLOW SILVER ME.,1J5

 1
52159-12C20A1

NKE165,NRE16#,NZE16#..4D

WHITE PEARL CS.,070

 1
52159-12C20C0

NKE165,NRE16#,NZE16#..4D

BLACK MC.,209

 1
52159-12C20J1

NKE165,NRE16#,NZE16#..4D

DK.BLUE MC.,8S6

 1
52161B - PIECE, REAR BUMPER
52161-16010

NKE165,NRE16#,NZE16#,ZRE162

 4
52161B - PIECE, REAR BUMPER
52161-16010

NKE165,NRE16#,NZE16#,ZRE162

 4
52161B - PIECE, REAR BUMPER
52161-16010

NKE165,NRE16#,NZE16#,ZRE162

 4
52163A - PLATE, REAR BUMPER, RH
52163-52080

NKE165,NRE16#,NZE16#,ZRE162

 1
52164A - PLATE, REAR BUMPER, LH
52164-52080

NKE165,NRE16#,NZE16#,ZRE162

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-05170

NKE165,NRE16#,NZE16#,ZRE162

 2
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-05170

NKE165,NRE16#,NZE16#,ZRE162

 2
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-12190

NKE165,NRE16#,NZE16#..4D

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-12110

NKE165,NRE16#,NZE16#..4D

 1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-12220

NKE165,NRE16#,NZE16#..4D

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-12220

NKE165,NRE16#,NZE16#..4D

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12320

NKE165,NRE16#,NZE16#,ZRE162

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-12240

NKE165,NRE16#,NZE16#,ZRE162

 1
Common parts
90119-08C64
90159-50311
90159-60500
90189-06065
90189-06228
90467-09237
