NRE161-AEXNB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )2NRFKE

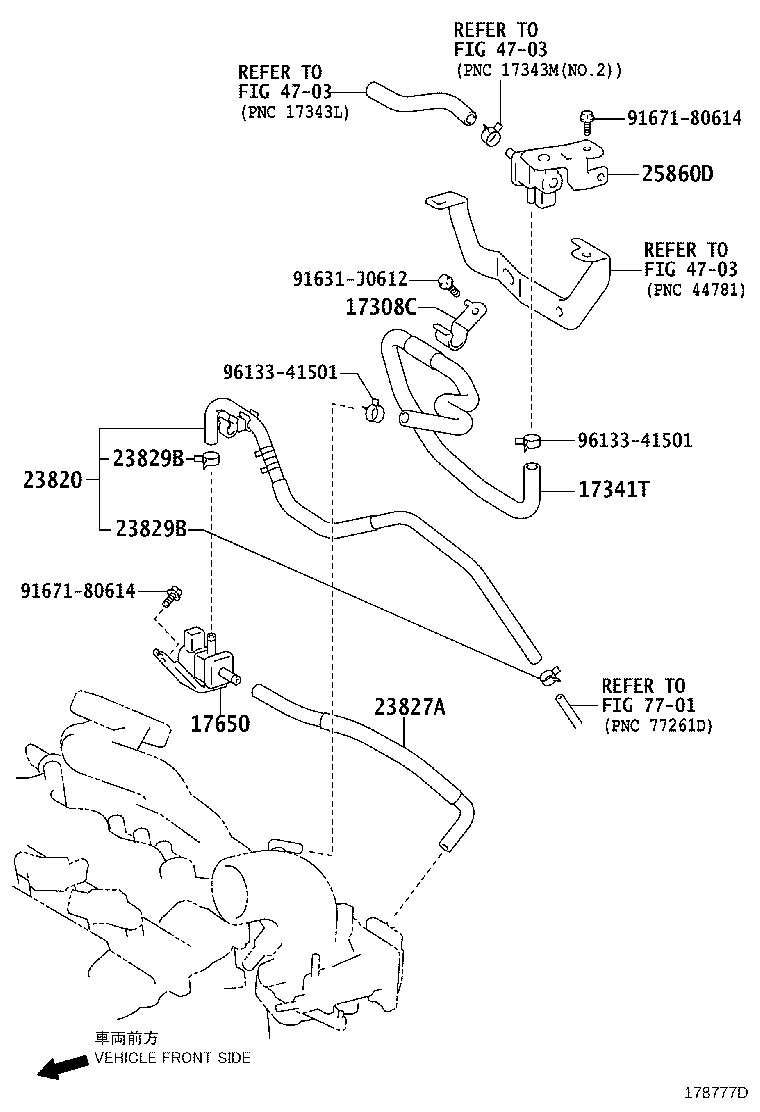

Click highlighted areas on diagram

diagram 17308C 17341T 17650 23820 23827A 23829B 23829B 25860D 4703 4703 4703 7701 91631J0612 9167180614 9167180614 9613341501 9613341501
Part # Description Qty Price
17308C - CLAMP(FOR VACUUM HOSE)
44783-52070

2NRFKE..NRE161

 1
17341T - HOSE, AIR, NO.1
44726-12030

2NRFKE..NRE161

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-47030

2NRFKE..NRE161

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-47040

2NRFKE..NRE161

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-47090

2NRFKE..NRE161

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-11003

2NRFKE..NRE161

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
90466-11003

2NRFKE..NRE161

 2
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-47040

2NRFKE..NRE161

 1
Common parts
91631-J0612
91671-80614
96133-41501
Linked diagrams
4703
7701
