NRE161-AEXNB (2015)
Toyota Corolla Axio/Fielder

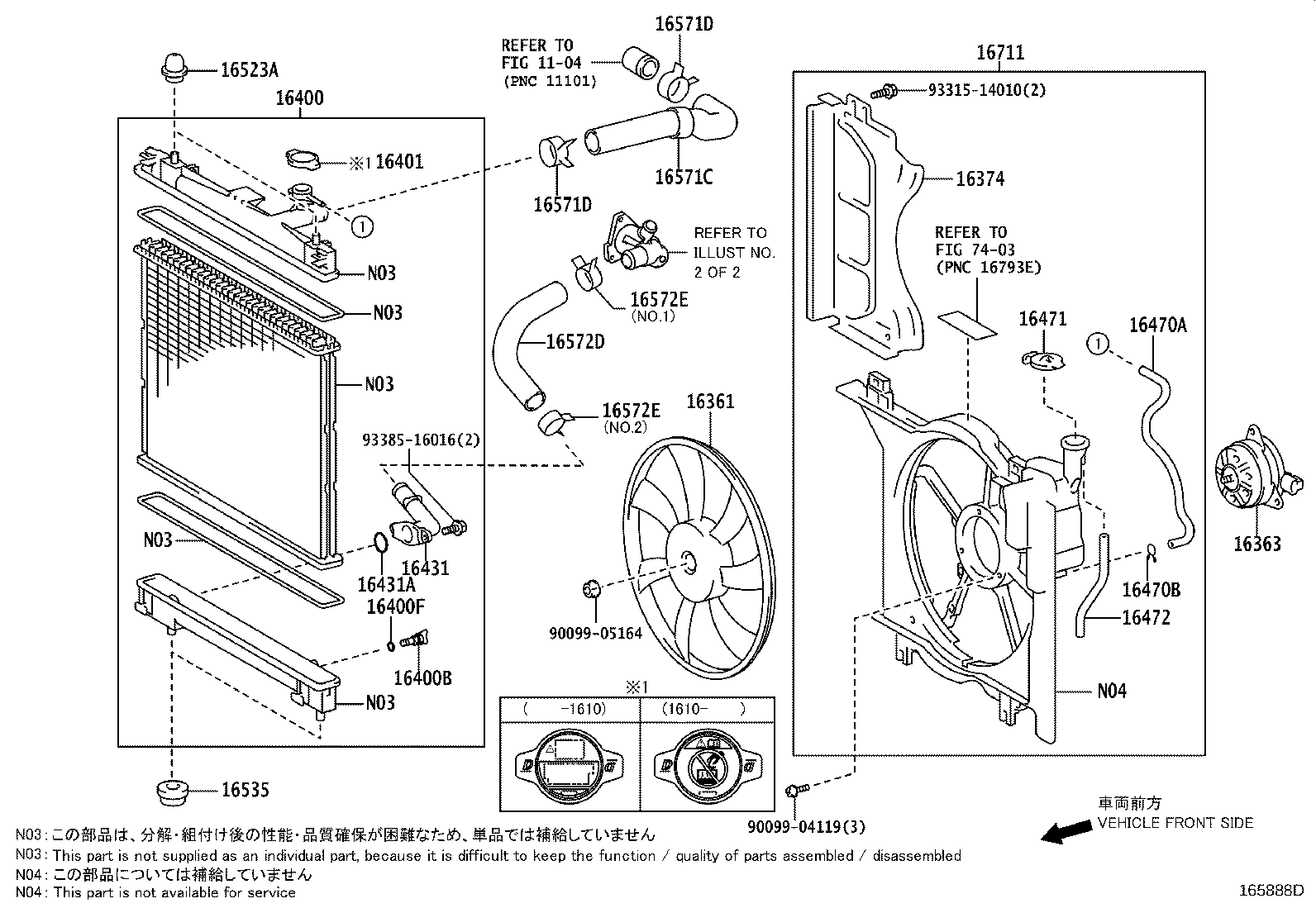

ILLUST NO. 1 OF 2(1503- )2NRFKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-47040 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-47020 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-47070 |
2NRFKE..NRE161 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-47090 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1N#,2NRFKE..NKE165,NRE16#,NZE16# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1N#,2NRFKE..NKE165,NRE16#,NZE16# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36020 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16401-31520 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-47090 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-6A300 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-47070 |
2NRFKE..NRE161 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1N#,2NRFKE..NKE165,NRE16#,NZE16# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
1NRFE,1NZFE,2NRFKE..NRE16#,NZE16# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
2NRFKE..NRE161 *H,L=185 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1N#,2NRFKE..NKE165,NRE16#,NZE16# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1N#,2NRFKE..NKE165,NRE16#,NZE16# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-47080 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-33006 |
1NZFXE,1NRFE,2NRFKE..NKE165,NRE16# |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-33006 |
1NZFXE,1NRFE,2NRFKE..NKE165,NRE16# |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-47120 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-34004 |
1NRFE,1NZFE,2NRFKE..NRE16#,NZE16# NO.2 |
1 | ||
| 90467-33006 |
1NRFE,1NZFE,2NRFKE..NRE16#,NZE16# NO.1 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-34004 |
1NRFE,1NZFE,2NRFKE..NRE16#,NZE16# NO.2 |
1 | ||
| 90467-33006 |
1NRFE,1NZFE,2NRFKE..NRE16#,NZE16# NO.1 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-47080 |
2NRFKE..NRE161 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 93315-14010 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 7403 | ||||

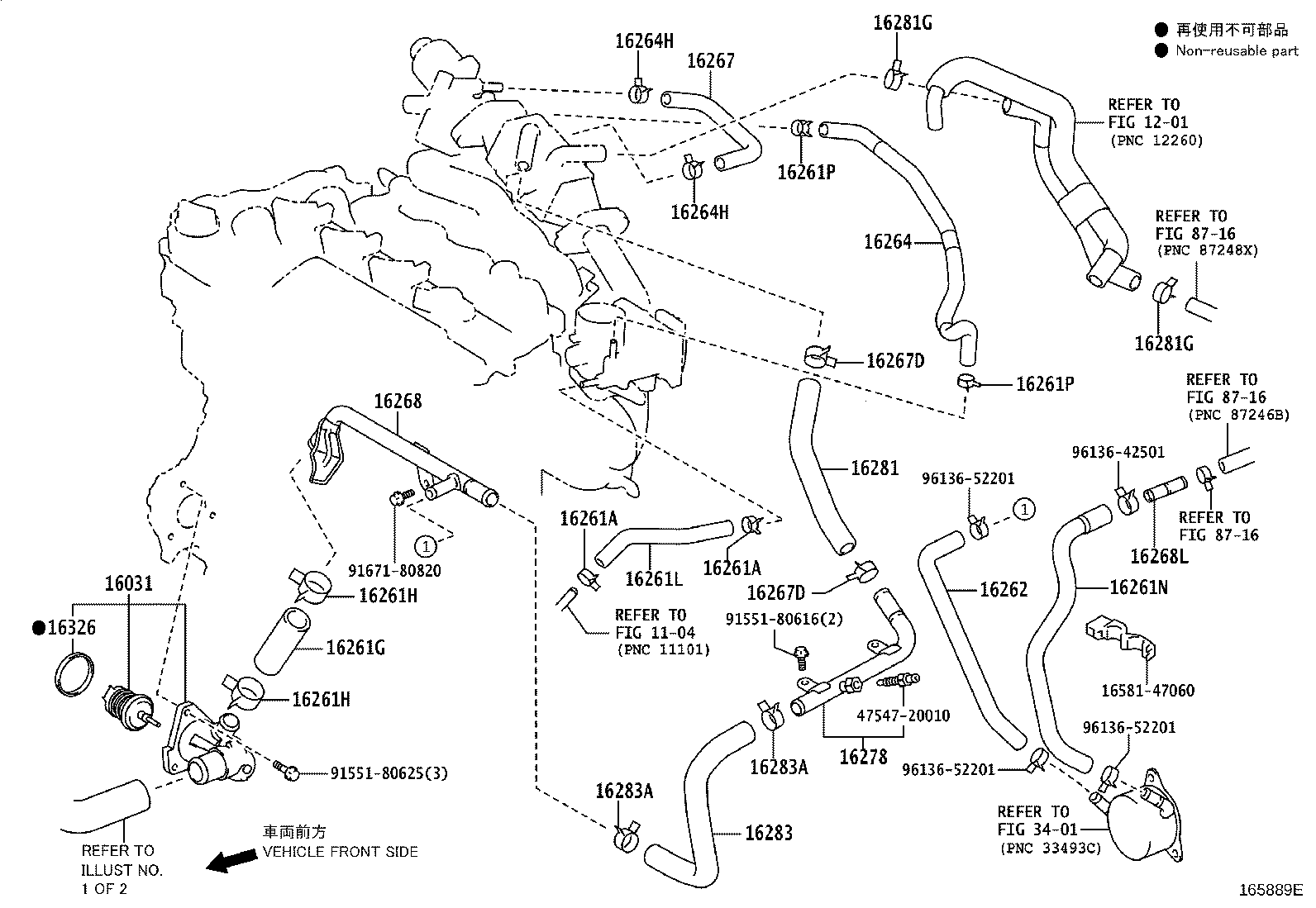

ILLUST NO. 2 OF 2(1503- )2NRFKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-47041 |
2NRFKE..NRE161 |
1 | ||
| 16031-47040 |
2NRFKE..NRE161 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NZ#,2NRFKE..NKE165,NRE161,NZE16# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
1NZ#,2NRFKE..NKE165,NRE161,NZE16# |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-47020 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
1NRFE,2NRFKE..NRE16# |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
1NRFE,2NRFKE..NRE16# |
2 | ||
| 16261L - HOSE, WATER BY-PASS | ||||
| 16261-47100 |
2NRFKE..NRE161 |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16261-47110 |
2NRFKE..NRE161 |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
2NRFKE..NRE161 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
2NRFKE..NRE161 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-47020 |
2NRFKE..NRE161 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-47050 |
2NRFKE..NRE161 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
2NRFKE..NRE161 |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
2NRFKE..NRE161 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-47010 |
2NRFKE..NRE161 |
1 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
2NRFKE..NRE161 |
2 | ||
| 16267D - CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42501 |
2NRFKE..NRE161 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-47080 |
2NRFKE..NRE161 |
1 | ||
| 16268L - PIPE, WATER BY-PASS | ||||
| 16268-47040 |
2NRFKE..NRE161 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16270-47020 |
2NRFKE..NRE161 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-47030 |
2NRFKE..NRE161 |
1 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2NRFKE..NRE161 |
2 | ||
| 16281G - CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-21001 |
2NRFKE..NRE161 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-47030 |
2NRFKE..NRE161 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
2NRFKE..NRE161 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-42501 |
2NRFKE..NRE161 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47010 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 16326-47020 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| Common parts | ||||
| 16581-47060 | ||||
| 47547-20010 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91671-80820 | ||||
| 96136-42501 | ||||
| 96136-52201 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1201 | ||||
| 3401 | ||||
| 8716 | ||||
