NRE161-AEXNB (2015)

Toyota Corolla Axio/Fielder

Production Mar 2015 - Oct 2017
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1503- )2NRFKE

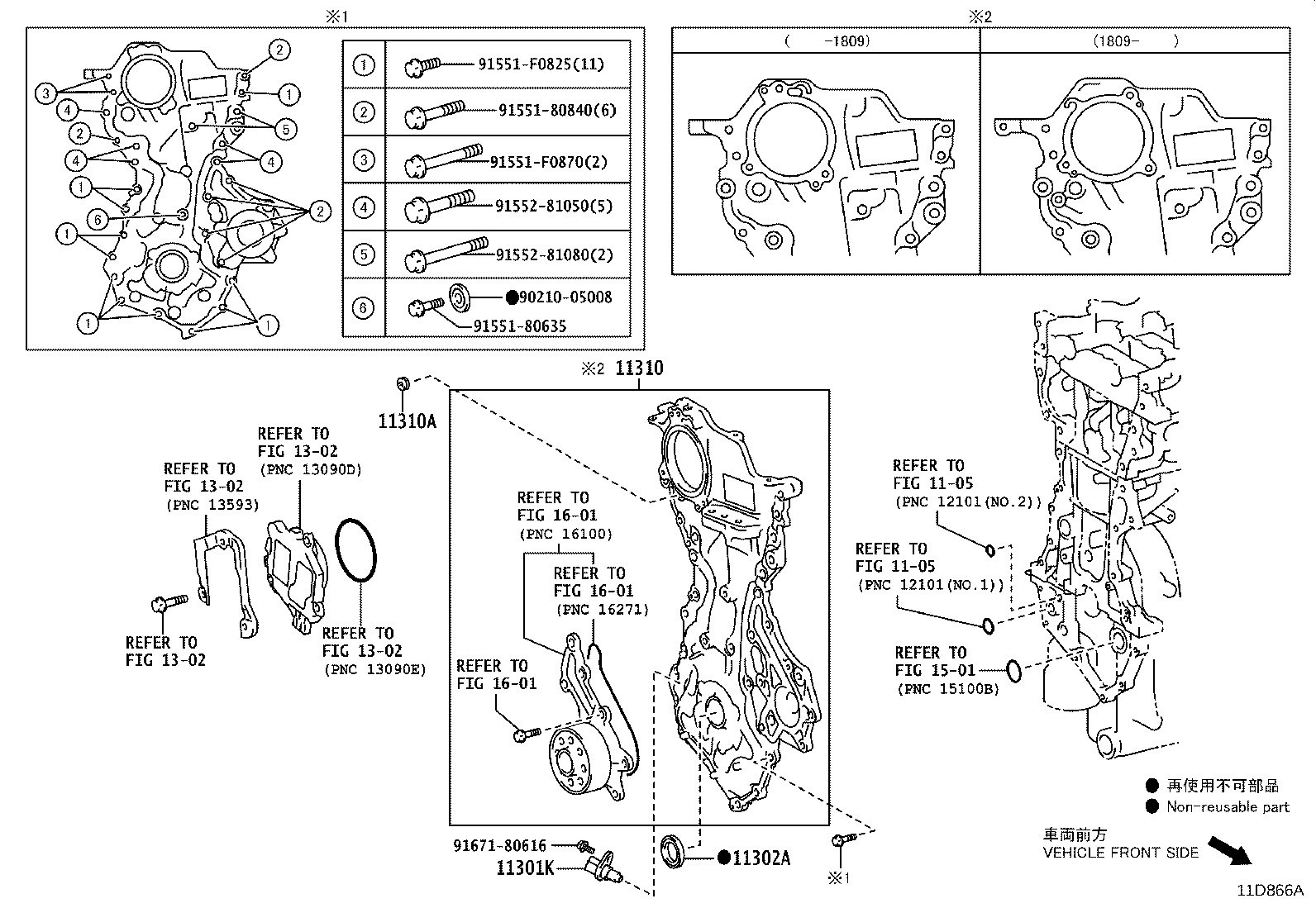

Click highlighted areas on diagram

diagram 1105 1105 11301K 11302A 11310 11310A 1302 1302 1302 1302 1501 1601 1601 1601 9021005008 9155180635 9155180840 91551F0825 91551F0870 9155281050 9155281080 9167180616
Part # Description Qty Price
11301K - SENSOR, CRANK POSITION
90919-05079

2NRFKE..NRE161

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-36007

2NRFKE..NRE161

 1
11310 - COVER ASSY, TIMING CHAIN
11310-47090

2NRFKE..NRE161

 1
11310-47091

2NRFKE..NRE161

 1
11310A - PLUG, TAPER SCREW(FOR TIMING CHAIN COVER)
90344-53006

NRE16#

 1
Common parts
90210-05008
91551-80635
91551-80840
91551-F0825
91551-F0870
91552-81050
91552-81080
91671-80616
Linked diagrams
1105
1302
1501
1601
