NRE161-AEXNB (2015)
Toyota Corolla Axio/Fielder

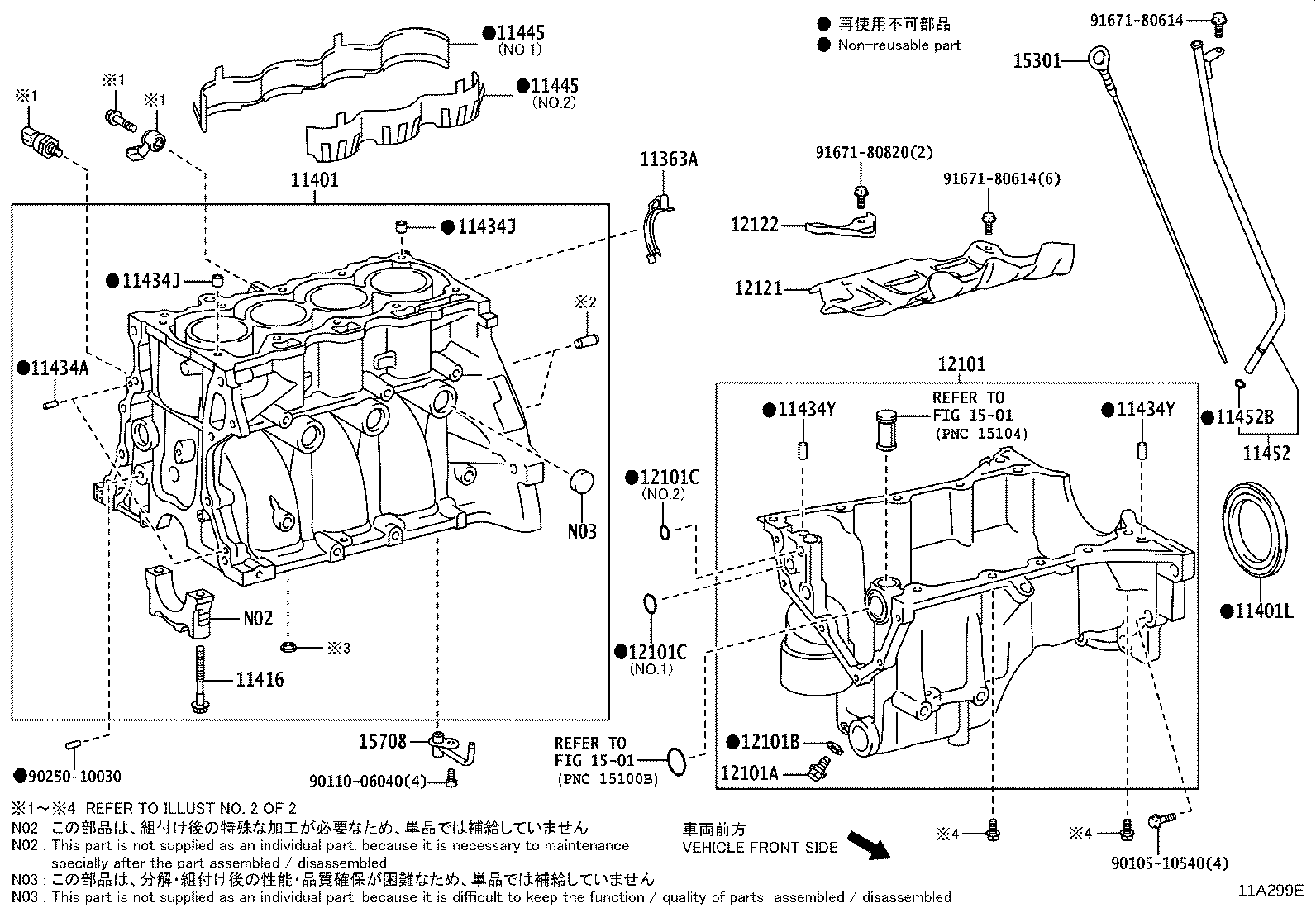

ILLUST NO. 1 OF 2(1503- )2NRFKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11363A - COVER, FLYWHEEL HOUSING SIDE | ||||
| 11363-40010 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-49076 |
2NRFKE..NRE161 |
1 | ||
| 11410-49075 |
2NRFKE..NRE161 |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-78004 |
2NRFKE..NRE161 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02175 |
1NRFE,2NRFKE..NRE16# |
10 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 |
1NRFE,2NRFKE..NRE16# 長さ=12,外径=4.0 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1NRFE,2NRFKE..NRE16# |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-13017 |
1NRFE,2NRFKE..NRE16# |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08120 |
1NZ#,2NRFKE..NKE165,NRE161,NZE16# |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-08120 |
1NZ#,2NRFKE..NKE165,NRE161,NZE16# |
2 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-47030 |
2NRFKE..NRE161 NO.2 |
1 | ||
| 11445-47020 |
2NRFKE..NRE161 NO.1 |
1 | ||
| 11445 - SPACER, CYLINDER BLOCK WATER JACKET | ||||
| 11445-47030 |
2NRFKE..NRE161 NO.2 |
1 | ||
| 11445-47020 |
2NRFKE..NRE161 NO.1 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11409-47012 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96741-19010 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-47160 |
2NRFKE..NRE161 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12032 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1N#,2NRFKE..NKE165,NRE16#,NZE16# |
1 | ||
| 12101C - RING, O(FOR OIL PAN) | ||||
| 90301-19023 |
2NRFKE..NRE161 NO.1 |
1 | ||
| 90301-09031 |
2NRFKE..NRE161 NO.2 |
1 | ||
| 12101C - RING, O(FOR OIL PAN) | ||||
| 90301-19023 |
2NRFKE..NRE161 NO.1 |
1 | ||
| 90301-09031 |
2NRFKE..NRE161 NO.2 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-47030 |
2NRFKE..NRE161 |
1 | ||
| 12122 - PLATE, OIL PAN BAFFLE, NO.2 | ||||
| 12122-47010 |
2NRFKE..NRE161 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-47080 |
2NRFKE..NRE161 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-47080 |
1NRFE,2NRFKE..NRE16# |
4 | ||
| Common parts | ||||
| 90105-10540 | ||||
| 90110-06040 | ||||
| 90250-10030 | ||||
| 91671-80614 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1501 | ||||

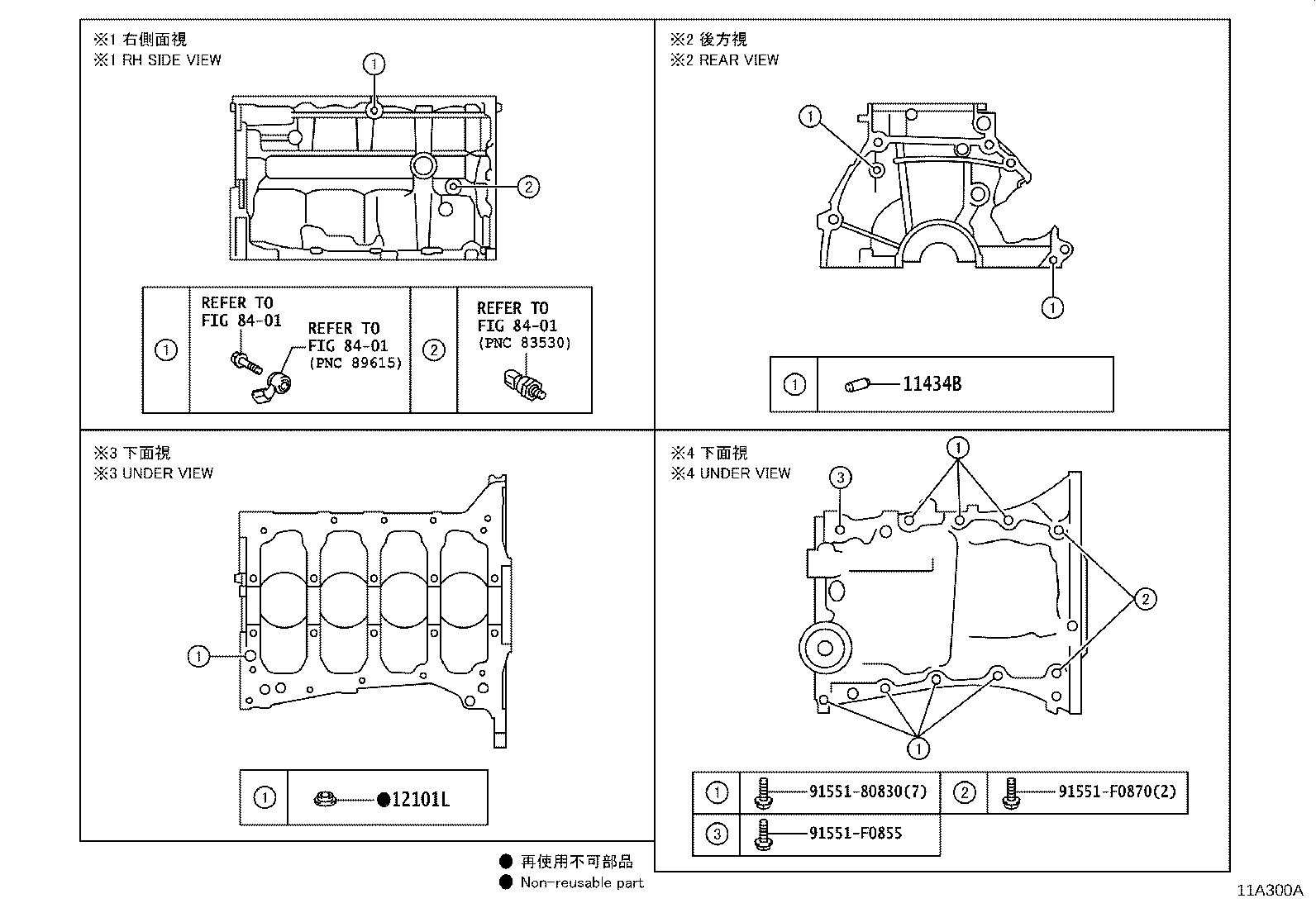

ILLUST NO. 2 OF 2(1503- )2NRFKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET) | ||||
| 90250-10113 |
1NRFE,2NRFKE..NRE16# 長さ=22,外径=10 |
2 | ||
| 12101L - GASKET NO.1(FOR OIL PAN) | ||||
| 90430-12039 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| Common parts | ||||
| 91551-80830 | ||||
| 91551-F0855 | ||||
| 91551-F0870 | ||||
| Linked diagrams | ||||
| 8401 | ||||
