NRE160-AEXNK (2015)
Toyota Corolla Axio/Fielder
Production
Mar 2015
-
Oct 2017
Engine
1NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1503- )1NRFE

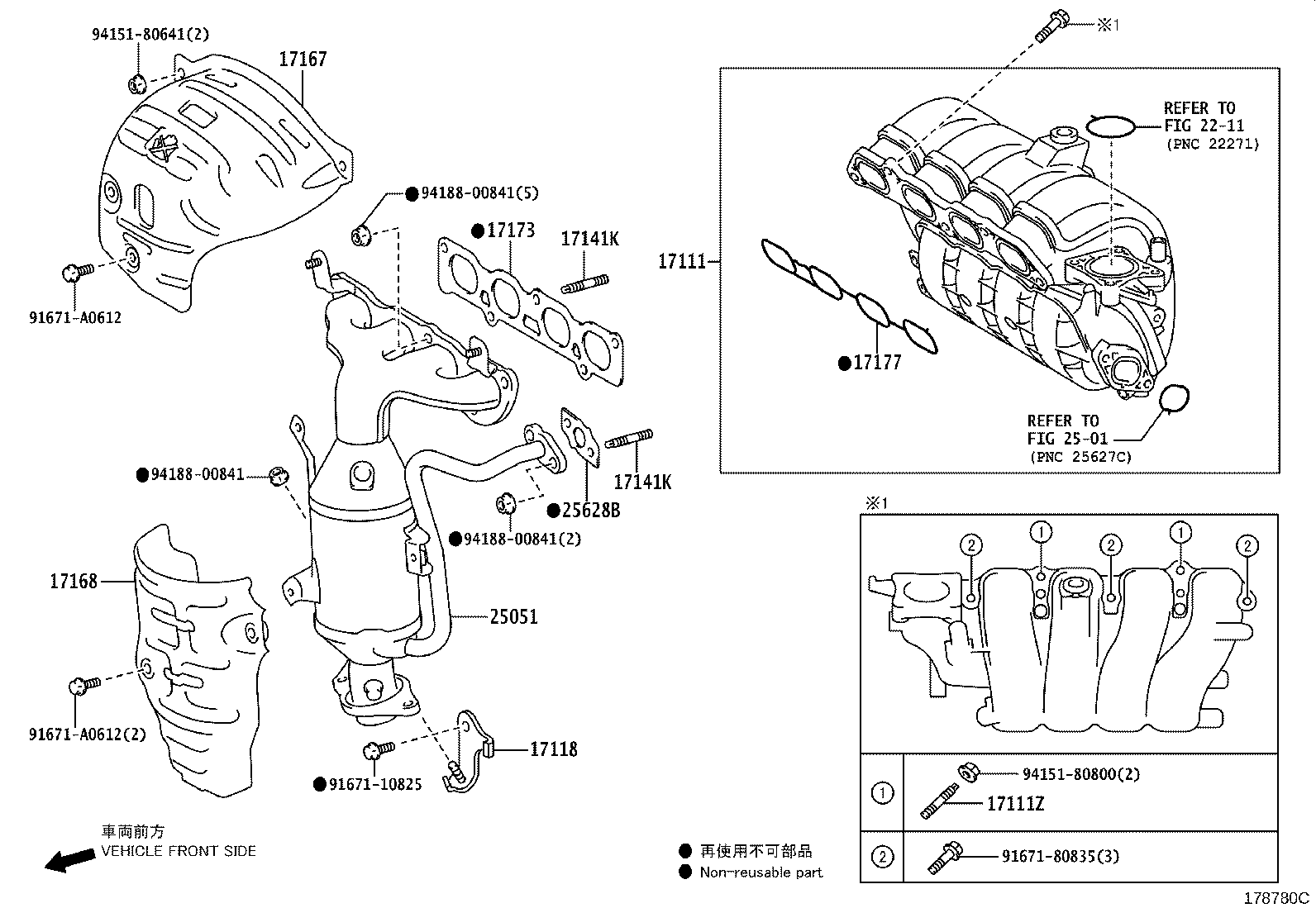

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-47011 |
1NRFE..NRE160 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08060 |
1NRFE,2NRFKE..NRE16# |
2 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-47010 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 17118-47011 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08063 |
1NRFE..NRE160 |
7 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08063 |
1NRFE..NRE160 |
7 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-47011 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-47030 |
1NRFE..NRE160 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-47021 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-47011 |
1NRFE,2NRFKE..NRE16# |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-47120 |
1NRFE..NRE160 |
1 | ||
| 25628B - GASKET, EGR INLET | ||||
| 25628-47010 |
1NRFE..NRE160 |
1 | ||
| Common parts | ||||
| 91671-10825 | ||||
| 91671-80835 | ||||
| 91671-A0612 | ||||
| 94151-80641 | ||||
| 94151-80800 | ||||
| 94188-00841 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 2501 | ||||
