NKE165G-AWXNB (2013)

Toyota Corolla Axio/Fielder

Production Jul 2013 - Mar 2015
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1307- )NKE165

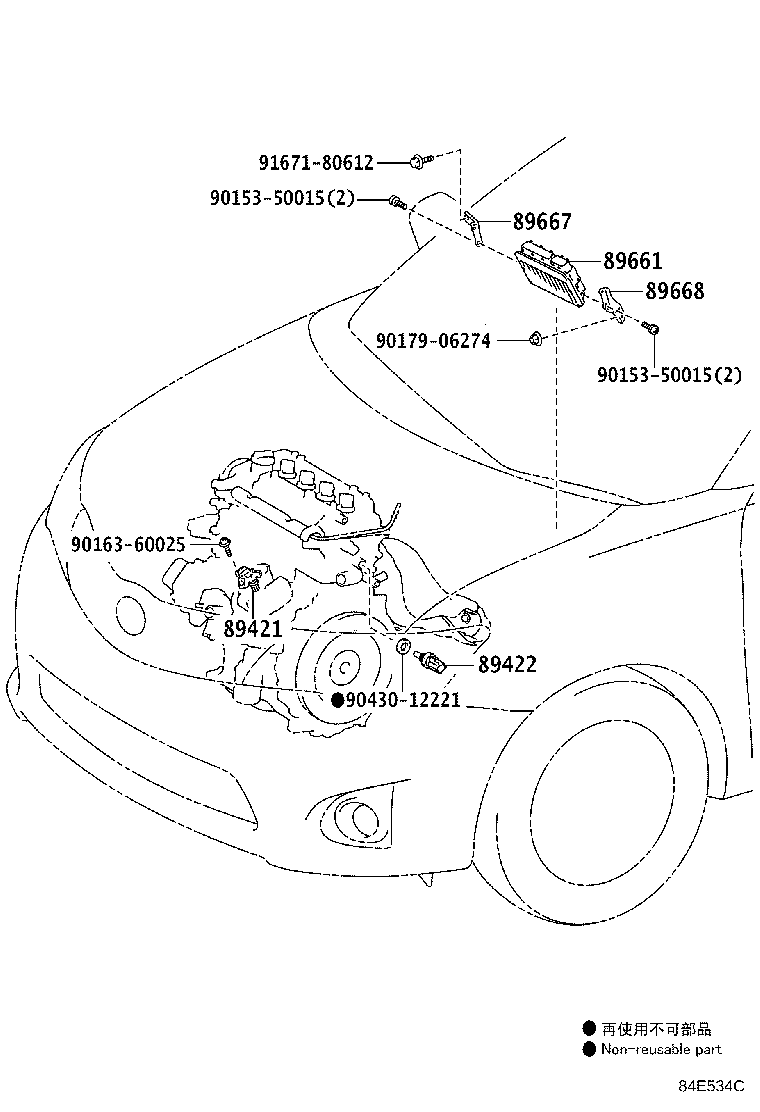

Click highlighted areas on diagram

diagram 89421 89422 89661 89667 89668 9015350015 9015350015 9016360025 9017906274 9043012221 9167180612
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-47010

NKE165

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

NKE165,NRE160,NZE16#,ZRE162

 1
89661 - COMPUTER, ENGINE CONTROL
89661-12Q00

NKE165

FUJITSU TEN

 1
89661-12Q01

NKE165

FUJITSU TEN

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-52340

NKE165,NRE160,NZE16#,ZRE162

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-52350

NKE165,NRE160,NZE16#,ZRE162

 1
Common parts
90153-50015
90163-60025
90179-06274
90430-12221
91671-80612
