NKE165G-AWXNB (2013)
Toyota Corolla Axio/Fielder
(1307- )NKE165

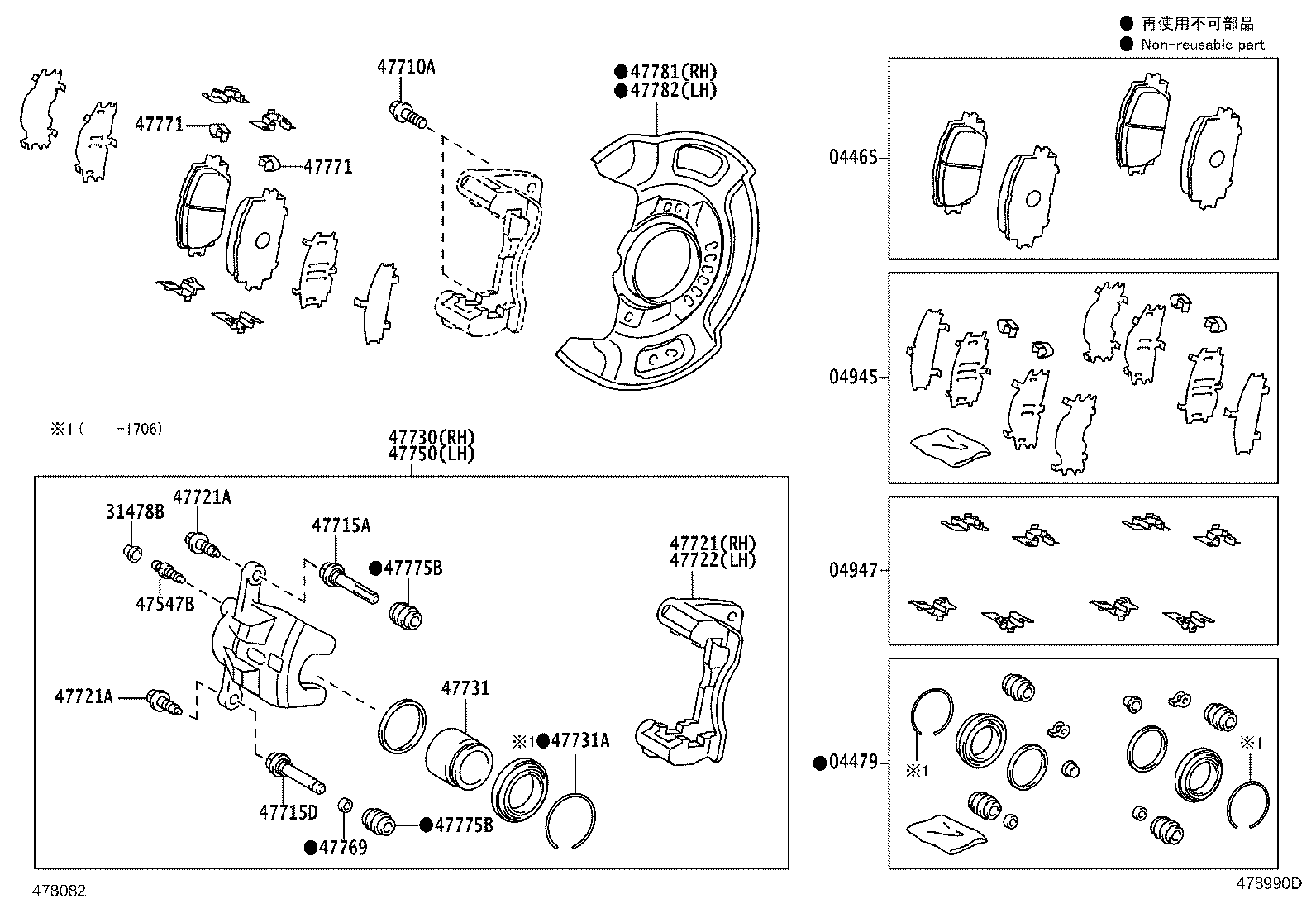

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-52320 |
NKE165 ﾏｰｸ ADVICS PV565H |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-52070 |
NZE161..4D;NKE165,NRE160 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-47020 |
NKE165 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-42050 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-20010 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90105-12208 |
NKE165,NRE160,NZE16#,ZRE162 *12−1.25PX29.5−23 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-52190 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2 | ||||
| 47715-12A10 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-52191 |
NZE161..4D;NKE165,NRE160 |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
NKE165,NRE160,NZE16#,ZRE162 *8−1.00PX23−15 |
4 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90105-08164 |
NKE165,NRE160,NZE16#,ZRE162 *8−1.00PX23−15 |
4 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-52191 |
NZE161..4D;NKE165,NRE160 |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-52280 |
NKE165 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-52280 |
NKE165 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-66001 |
NZE161..4D;NKE165,NRE160 |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-52280 |
NKE165 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-50010 |
NKE165,NRE160,NZE16#,ZRE162 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-52191 |
NKE165,NRE160,NZE16#,ZRE162 |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-52191 |
NKE165,NRE160,NZE16#,ZRE162 |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-52190 |
NKE165,NRE160,NZE16#,ZRE162 |
4 | ||
| 47775B - BOOT, BUSH DUST, NO.1 | ||||
| 47775-52190 |
NKE165,NRE160,NZE16#,ZRE162 |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-52030 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-52030 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
