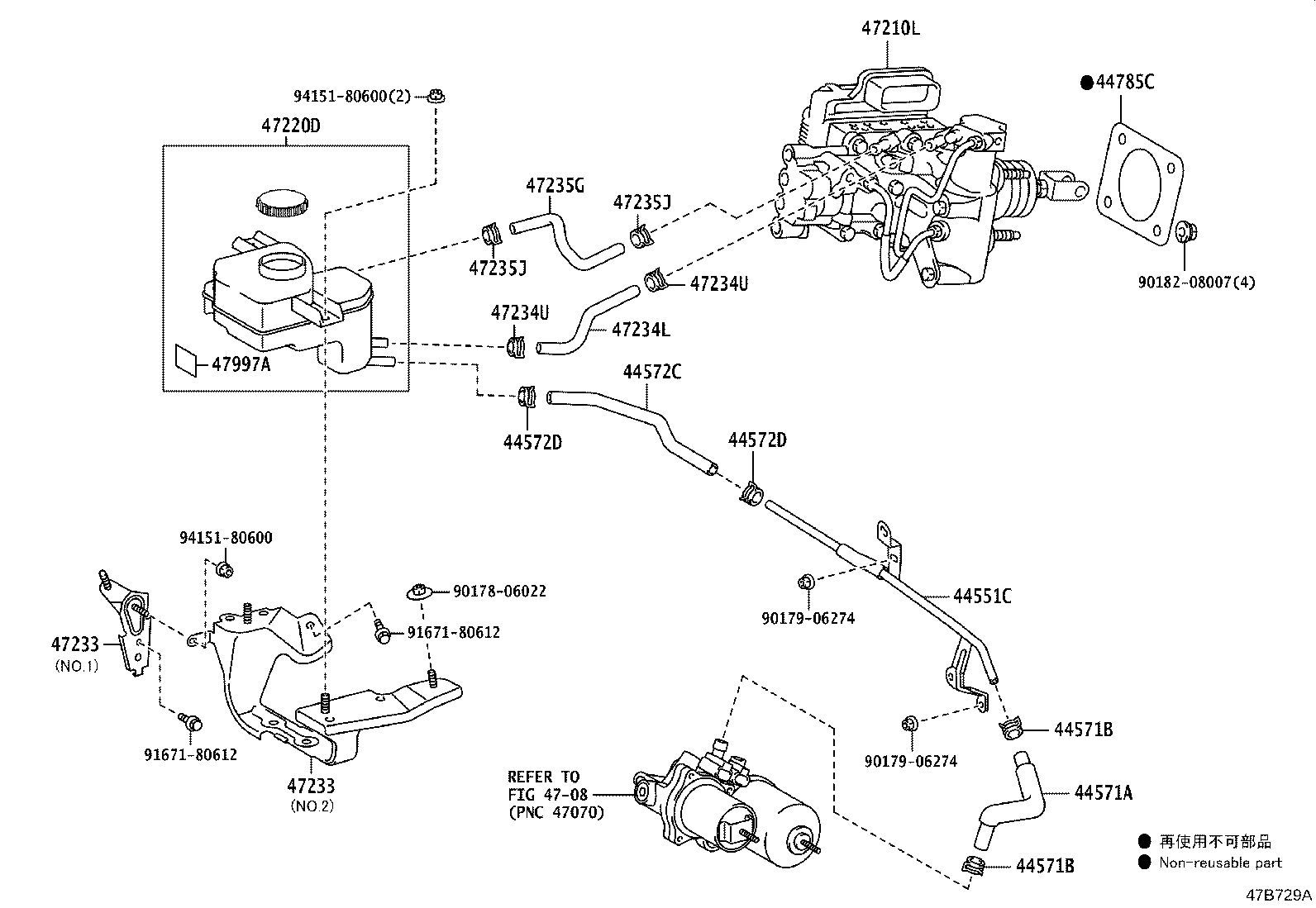

Toyota Corolla axio/fielder NKE165 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
44551C - TUBE, BRAKE ACTUATOR, NO.1
44551-52010	NKE165..HBDG	10/2017 - 08/2019	1
44551-52010	NKE165..HBD	10/2017 - 12/2999	1
44571A - HOSE, BRAKE ACTUATOR, NO.1
44571-52011	NKE165..HBDG	10/2017 - 08/2019	1
44571-52011	NKE165..HBD	10/2017 - 12/2999	1
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96136-41801	NKE165..HBD	10/2017 - 12/2999	2
96136-41801	NKE165..HBDG	10/2017 - 08/2019	2
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96136-41801	NKE165..HBD	10/2017 - 12/2999	2
96136-41801	NKE165..HBDG	10/2017 - 08/2019	2
44572C - HOSE, BRAKE ACTUATOR, NO.2
44572-52010	NKE165..HBDG	10/2017 - 08/2019	1
44572-52010	NKE165..HBD	10/2017 - 12/2999	1
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501	NKE165..HBDG	10/2017 - 08/2019	2
96137-41501	NKE165..HBD	10/2017 - 12/2999	2
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501	NKE165..HBDG	10/2017 - 08/2019	2
96137-41501	NKE165..HBD	10/2017 - 12/2999	2
44785C - GASKET, BRAKE BOOSTER
44785-16020	NKE165..HBDG	10/2017 - 08/2019	1
44785-16020	NKE165..HBD	10/2017 - 12/2999	1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-12630	NKE165..HBDG ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R16,ｱﾙﾐ(ﾌﾞﾗｯｸ塗装)	10/2017 - 08/2019	1
47050-12630	NKE165..HBDG ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−185/55R16,ｱﾙﾐ	10/2017 - 08/2019	1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-12390	NKE165..HBDG	10/2018 - 08/2019	1
47220-12390	NKE165..HBD	10/2018 - 12/2999	1
47220-12310	NKE165	09/2018 - 10/2018	1
47220-52290	NKE165	10/2017 - 09/2018	1
47233 - BRACKET, RESERVOIR
47233-52040	NKE165..HBDG NO.1:ｲﾗｽﾄ参照	10/2017 - 08/2019	1
47233-12090	NKE165..HBD NO.2:ｲﾗｽﾄ参照	10/2017 - 12/2999	1
47233-12090	NKE165..HBDG NO.2:ｲﾗｽﾄ参照	10/2017 - 08/2019	1
47233-52040	NKE165..HBD NO.1:ｲﾗｽﾄ参照	10/2017 - 12/2999	1
47233 - BRACKET, RESERVOIR
47233-52040	NKE165..HBDG NO.1:ｲﾗｽﾄ参照	10/2017 - 08/2019	1
47233-12090	NKE165..HBD NO.2:ｲﾗｽﾄ参照	10/2017 - 12/2999	1
47233-12090	NKE165..HBDG NO.2:ｲﾗｽﾄ参照	10/2017 - 08/2019	1
47233-52040	NKE165..HBD NO.1:ｲﾗｽﾄ参照	10/2017 - 12/2999	1
47234L - HOSE, RESERVOIR, NO.1
47234-52050	NKE165..HBD	10/2017 - 12/2999	1
47234-52050	NKE165..HBDG	10/2017 - 08/2019	1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-41501	NKE165..HBDG	10/2017 - 08/2019	2
96137-41501	NKE165..HBD	10/2017 - 12/2999	2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96137-41501	NKE165..HBDG	10/2017 - 08/2019	2
96137-41501	NKE165..HBD	10/2017 - 12/2999	2
47235G - HOSE, RESERVOIR, NO.2
47235-52050	NKE165..HBD	10/2017 - 12/2999	1
47235-52050	NKE165..HBDG	10/2017 - 08/2019	1
47235J - CLIP(FOR RESERVOIR HOSE NO.2)
96137-41501	NKE165..HBDG	10/2017 - 08/2019	2
96137-41501	NKE165..HBD	10/2017 - 12/2999	2
47235J - CLIP(FOR RESERVOIR HOSE NO.2)
96137-41501	NKE165..HBDG	10/2017 - 08/2019	2
96137-41501	NKE165..HBD	10/2017 - 12/2999	2
47997A - LABEL, ACCUMULATOR CAUTION, NO.1
47997-76010	NKE165..HBDG	10/2017 - 08/2019	1
47997-76010	NKE165..HBD	10/2017 - 12/2999	1
Common parts
90178-06022
90179-06274
90182-08007
91671-80612
94151-80600
Linked diagrams
4708

NKE165G-AWXEB (2017)

(1810- )NKE165
