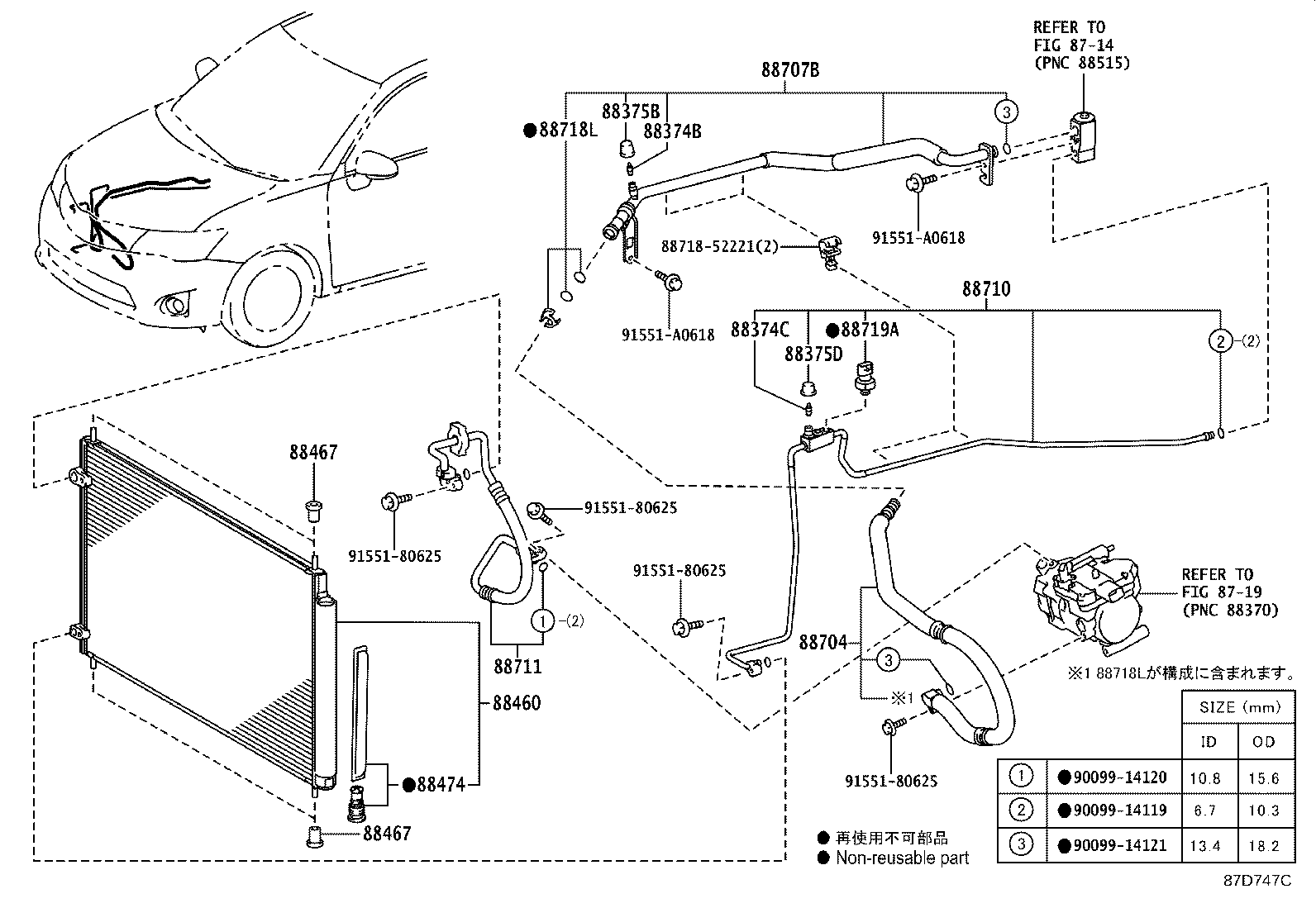

Toyota Corolla axio/fielder NKE165 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	NKE165,NRE160,NZE16#,ZRE162	04/2012 - 03/2015	1
88374C - VALVE, SERVICE, NO.2
88374-30010	NKE165,NRE160,NZE16#,ZRE162	04/2012 - 03/2015	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	NKE165	07/2013 - 03/2015	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	NKE165	07/2013 - 03/2015	1
88460 - CONDENSER ASSY, COOLER
88460-12590	NKE165	07/2013 - 03/2015	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NKE165	07/2013 - 03/2015	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	NKE165	07/2013 - 03/2015	4
88474 - DRYER, COOLER
88474-12020	NKE165	07/2013 - 03/2015	1
88704 - HOSE SUB-ASSY, SUCTION
88704-52260	NKE165	07/2013 - 03/2015	1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52340	NKE165	07/2013 - 03/2015	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-12A10	NKE165	07/2013 - 03/2015	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-12A00	NKE165	07/2013 - 03/2015	1
88718L - CLAMP, PIPING
88718-52280	NKE165,NRE160,NZE16#	04/2012 - 03/2015	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	NKE165,NRE160,NZE16#,ZRE162	04/2012 - 03/2015	1
Common parts
88718-52221
90099-14119
90099-14120
90099-14121
91551-80625
91551-A0618
Linked diagrams
8714
8719

NKE165G-AWXEB (2013)
