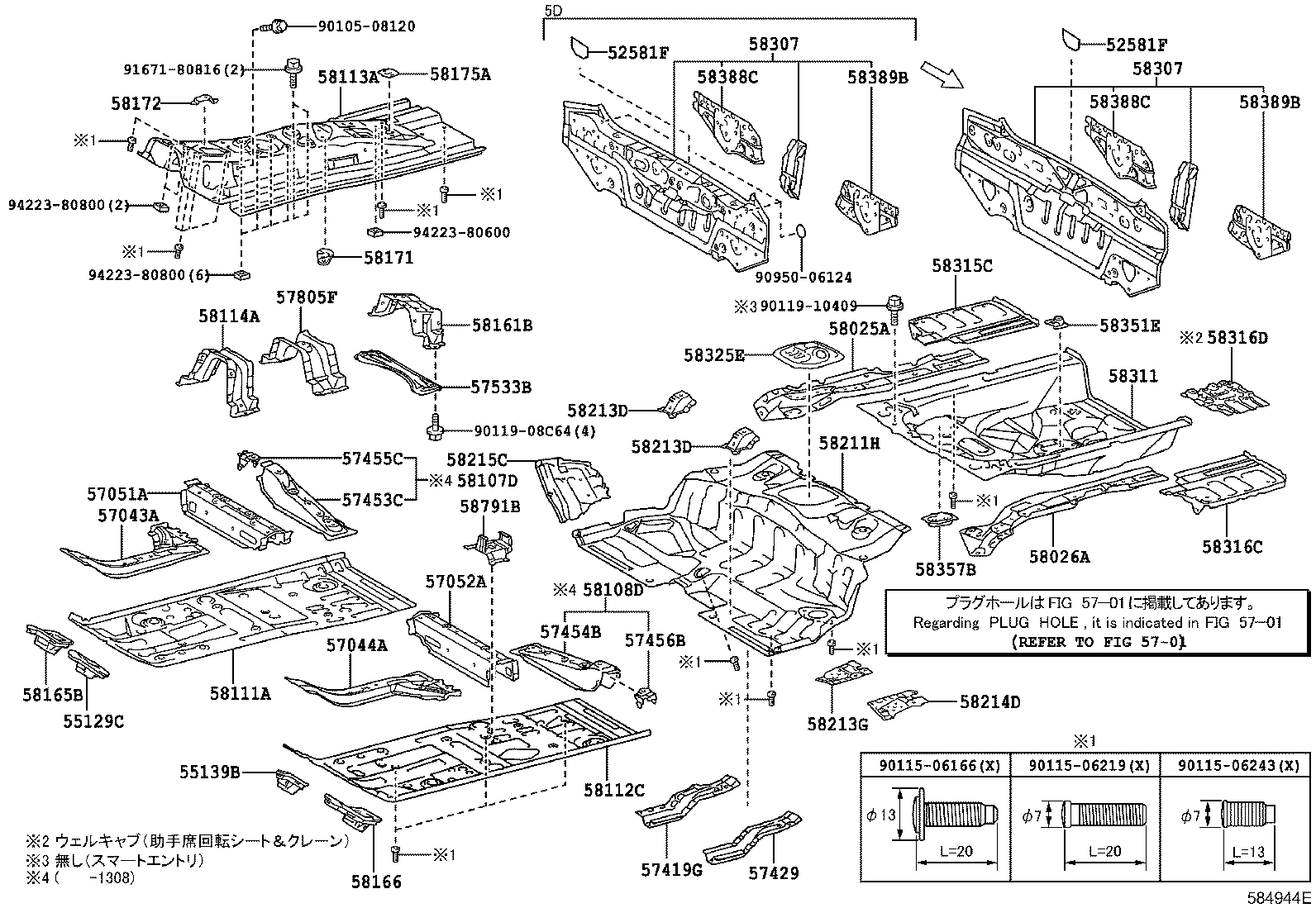

NKE165-AEXEB (2013)
Toyota Corolla Axio/Fielder
(1307- )NKE165
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55129C - COVER, DASH PANEL HOLE | ||||
| 55129-52051 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 55139B - COVER, DASH PANEL HOLE, LH | ||||
| 55139-52021 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH | ||||
| 57051-52010 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH | ||||
| 57052-52010 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 57419G - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH | ||||
| 57419-12040 |
NKE165 |
1 | ||
| 57429 - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | ||||
| 57429-12020 |
NKE165 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-52030 |
NKE165 |
1 | ||
| 57805F - REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 | ||||
| 57805-52131 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58025-12030 |
NKE165,NZE16#..4D..CVT..(G,HBDG,X) ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 58025-12030 |
NKE165,NZE16#..4D..CVT..(G,HBDG,X) ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ) |
1 | ||
| 58025-12050 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58026-12010 |
NKE165,NZE16#..4D..CVT..(G,HBDG,X) ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ) |
1 | ||
| 58026-12010 |
NKE165,NZE16#..4D..CVT..(G,HBDG,X) ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ) |
1 | ||
| 58026-12020 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-52170 |
NKE165 |
1 | ||
| 58111-52281 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58111-52280 |
NKE165 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-52917 |
NKE165 |
1 | ||
| 58112-52926 |
NKE165 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-52071 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58161-52070 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 58165B - COVER, FRONT FLOOR, RH | ||||
| 58165-52011 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58166 - COVER, FRONT FLOOR, LH | ||||
| 58166-52011 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-52090 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 58172 - BRACKET, COMPUTER MOUNTING, NO.3 | ||||
| 58172-52020 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 | ||||
| 58175-52020 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-12942 |
NKE165 |
1 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 57551-52010 |
NKE165 |
2 | ||
| 58213D - REINFORCEMENT, CENTER FLOOR PANEL | ||||
| 57551-52010 |
NKE165 |
2 | ||
| 58213G - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH | ||||
| 57801-52150 |
NKE165 |
1 | ||
| 58214D - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH | ||||
| 57802-52150 |
NKE165 |
1 | ||
| 58215C - REINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH | ||||
| 58215-52100 |
NKE165 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-12B60 |
NKE165..4D |
1 | ||
| 58307-12B61 |
NKE165,NRE160,NZE161..4D |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-12B60 |
NKE165..4D |
1 | ||
| 58307-12B61 |
NKE165,NRE160,NZE161..4D |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-52210 |
NKE165,NRE160,NZE161,ZRE162 |
1 | ||
| 58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH | ||||
| 58315-52170 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-52190 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| C3178-12010 |
NZE16#..4D..CVT..X;NKE165,NZE16#,ZRE162..CVT..(G,HBDG,S) ｳｪﾙｷｬﾌﾞ(助手席回転ｼｰﾄ & ｸﾚｰﾝ) |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-52080 |
NKE165 |
1 | ||
| 58351E - BRACKET, SPARE WHEEL CLAMP | ||||
| 58351-52070 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58357B - BRACKET, ACTUATOR COVER, NO.3 RH | ||||
| 58357-52041 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58388C - PLATE, BODY LOWER BACK REINFORCEMENT, RH | ||||
| 58388-12040 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58388C - PLATE, BODY LOWER BACK REINFORCEMENT, RH | ||||
| 58388-12040 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58389B - PLATE, BODY LOWER BACK REINFORCEMENT, LH | ||||
| 58389-12030 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58389B - PLATE, BODY LOWER BACK REINFORCEMENT, LH | ||||
| 58389-12030 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| 58791B - CARRIER, JACK | ||||
| 58791-52060 |
NKE165,NRE160,NZE16#,ZRE162 |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90115-06166 | ||||
| 90115-06219 | ||||
| 90115-06243 | ||||
| 90119-08C64 | ||||
| 90119-10409 | ||||
| 90950-06124 | ||||
| 91671-80816 | ||||
| 94223-80600 | ||||
| 94223-80800 | ||||
| Linked diagrams | ||||
| 5701 | ||||
