NL50-CGMDX (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

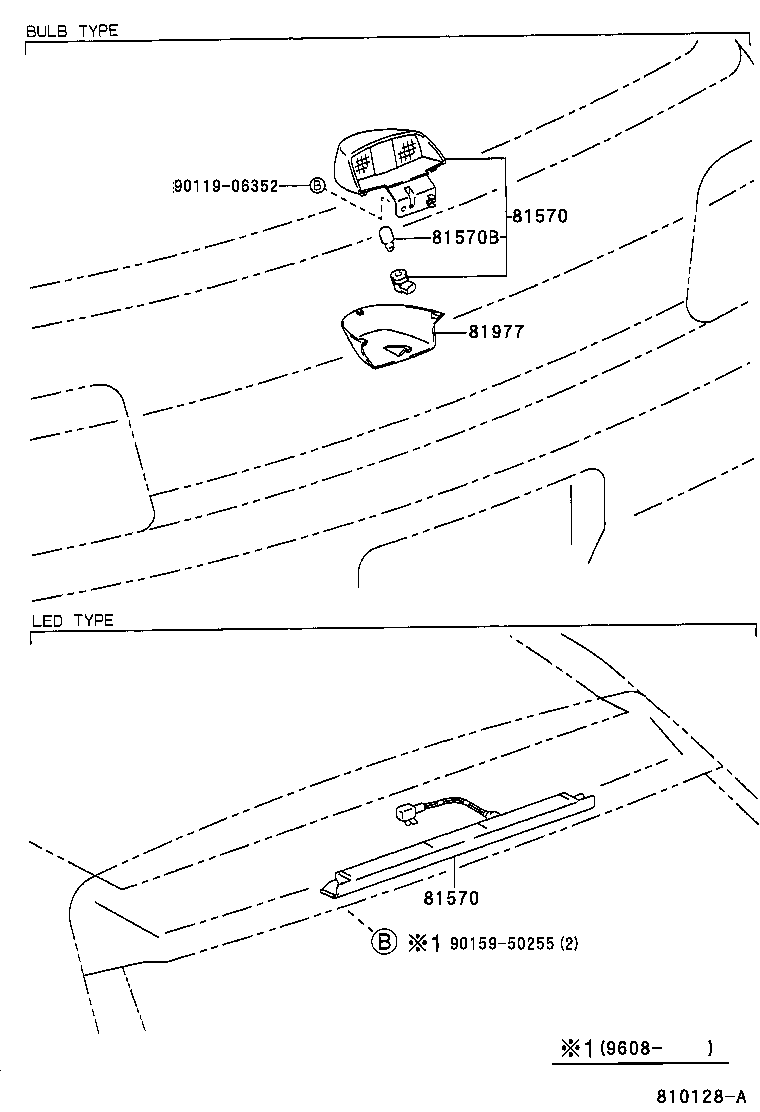

Click highlighted areas on diagram

diagram 81570 81570 81570B 81977 9011906352 9015950255 9166540616
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-16130B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
81570-16130E0

EL5#,NL50

OAK,TRIM4#

 1
81570-16150

EL5#,NL50

LEDｼｷ

 1
81570-16130B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 1
81570 - LAMP ASSY, CENTER STOP
81570-16130B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
81570-16130E0

EL5#,NL50

OAK,TRIM4#

 1
81570-16150

EL5#,NL50

LEDｼｷ

 1
81570-16130B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11039

EL5#,NL50

12V 16W

 1
81977 - COVER, CENTER STOP LAMP
81977-16080B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
81977-16080B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 1
81977-16080E0

EL5#,NL50

OAK,TRIM4#

 1
Common parts
90119-06352
90159-50255
91665-40616
