Toyota Corolla 2 NL50 ALTERNATOR

NL50-CGMDX (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999

Engine 1NT

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

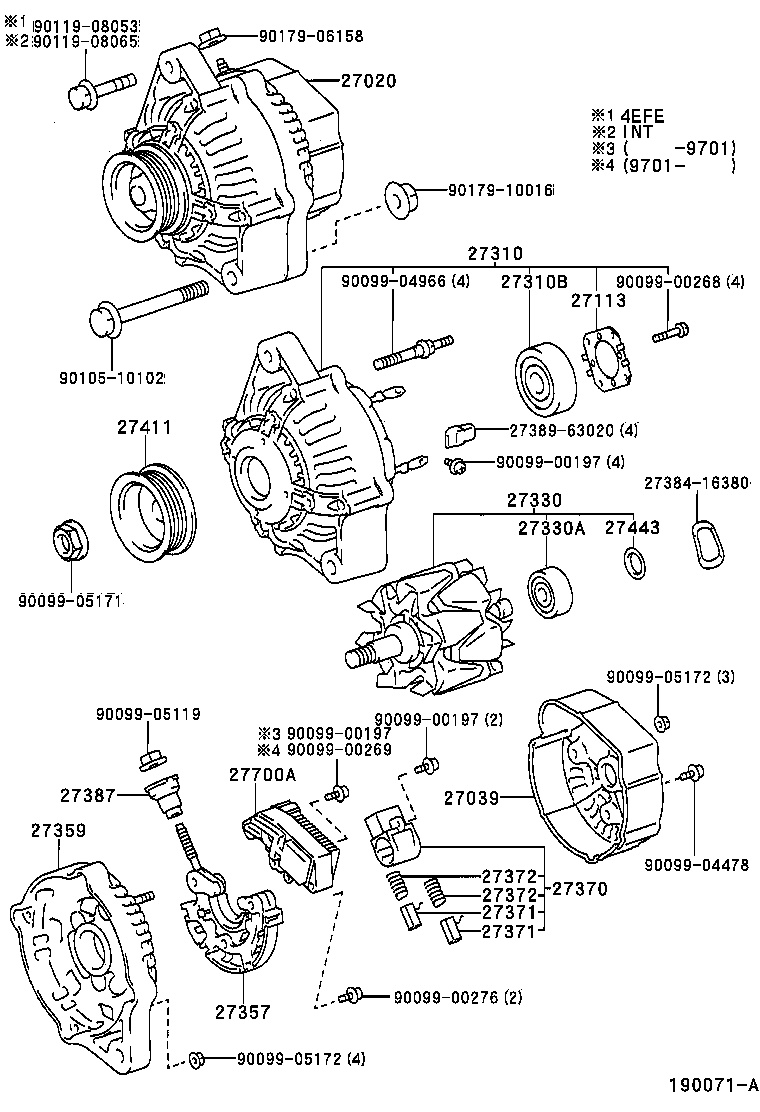

(9409- )4EFE,1NT..3FC,4FC,5F

Click highlighted areas on diagram

12V 70A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-55080	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27060-55100	1NT..NL50 12V 70A	12/1997 - 12/2999	1
27060-55070	1NT..NL50 12V 70A	09/1994 - 12/1997	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	4EFE,1NT..EL51,NL50..3FC,4FC,5F	01/1997 - 12/1997	1
27039-73020	4EFE,1NT..EL51,NL50..3FC,4FC,5F	09/1994 - 01/1997	1
27039-55080	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27039-67100	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72100	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27312-72100	1NT..NL50	09/1994 - 12/1997	1
27312-42010	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-55050	1NT..NL50	09/1994 - 12/1997	1
27310-55090	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27310-55040	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10199	1NT..NL50	09/1994 - 12/1997	1
90099-10199	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
90099-10192	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27330-72101	1NT..NL50	09/1994 - 01/1997	1
27330-76030	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27330-64570	4EFE,1NT..EL51,NL50..3FC,4FC,5F	01/1997 - 12/1997	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1NT..NL50;4EFE,5EFE..EL5#..ATM	09/1994 - 12/1997	1
90099-10216	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
90099-10140	1NT..NL50..5F 12V 80A	12/1997 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	4EFE,1NT..EL51,NL50..3FC,4FC,5F	09/1994 - 01/1997	1
27357-16380	4EFE,1NT..EL51,NL50..3FC,4FC,5F	01/1997 - 12/1997	1
27357-67100	1NT..NL50 12V 70A	12/1997 - 12/2999	1
27357-55080	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16011	1NT..NL50	09/1994 - 01/1996	1
27359-16270	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27359-75160	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27359-16013	1NT..NL50	01/1997 - 12/1997	1
27359-16012	1NT..NL50	01/1996 - 01/1997	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060	1NT..NL50	09/1994 - 11/1996	1
27370-75060	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27370-58320	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	11/1996 - 12/2999	1
27371 - BRUSH, ALTERNATOR
27371-70300	1NT..NL50;4EFE,5EFE..EL5#..3FC,4F,5F	09/1994 - 12/2999	2
27371 - BRUSH, ALTERNATOR
27371-70300	1NT..NL50;4EFE,5EFE..EL5#..3FC,4F,5F	09/1994 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	1NT..NL50;4EFE,5EFE..EL5#..3FC,4F,5F	09/1994 - 12/2999	2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020	1NT..NL50;4EFE,5EFE..EL5#..3FC,4F,5F	09/1994 - 12/2999	2
27387 - INSULATOR, TERMINAL
27387-70170	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	09/1994 - 09/1997	1
27387-42020	1NT..NL50..5F 12V 80A	09/1994 - 08/1997	1
27387-42021	1NT..NL50..5F 12V 80A	08/1997 - 12/2999	1
27387-70171	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	09/1997 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-55040	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27411-55010	1NT..NL50 12V 70A	09/1994 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4EFE,5EFE,1NT..EL5#,NL50	09/1994 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-65010	1NT..NL50	09/1994 - 08/1996	1
27700-35040	1NT..NL50	08/1996 - 12/2999	1
Common parts
27384-16380
27389-63020
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90105-10102
90119-08053
90119-08065
90179-06158
90179-10016
93319-14025

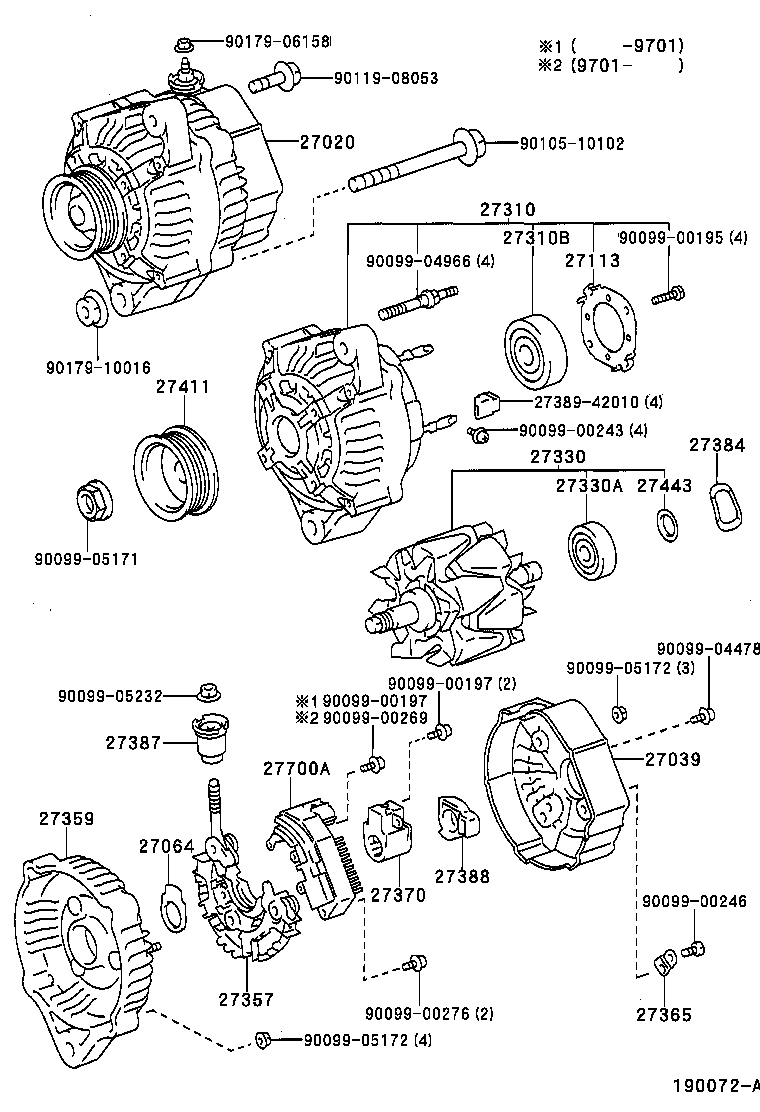

(9409- )1NT..5F

Click highlighted areas on diagram

12V 80A,ｶﾝﾚｲﾁｼﾖｳ

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-55080	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27060-55100	1NT..NL50 12V 70A	12/1997 - 12/2999	1
27060-55070	1NT..NL50 12V 70A	09/1994 - 12/1997	1
27039 - COVER, ALTERNATOR REAR END
27039-16380	4EFE,1NT..EL51,NL50..3FC,4FC,5F	01/1997 - 12/1997	1
27039-73020	4EFE,1NT..EL51,NL50..3FC,4FC,5F	09/1994 - 01/1997	1
27039-55080	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27039-67100	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	1NT..NL50..5F;5EFE..EL53,55..4FC	09/1994 - 12/2999	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72100	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27312-72100	1NT..NL50	09/1994 - 12/1997	1
27312-42010	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-55050	1NT..NL50	09/1994 - 12/1997	1
27310-55090	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27310-55040	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10199	1NT..NL50	09/1994 - 12/1997	1
90099-10199	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
90099-10192	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-67100	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27330-72101	1NT..NL50	09/1994 - 01/1997	1
27330-76030	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27330-64570	4EFE,1NT..EL51,NL50..3FC,4FC,5F	01/1997 - 12/1997	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1NT..NL50;4EFE,5EFE..EL5#..ATM	09/1994 - 12/1997	1
90099-10216	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
90099-10140	1NT..NL50..5F 12V 80A	12/1997 - 12/2999	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	4EFE,1NT..EL51,NL50..3FC,4FC,5F	09/1994 - 01/1997	1
27357-16380	4EFE,1NT..EL51,NL50..3FC,4FC,5F	01/1997 - 12/1997	1
27357-67100	1NT..NL50 12V 70A	12/1997 - 12/2999	1
27357-55080	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16011	1NT..NL50	09/1994 - 01/1996	1
27359-16270	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27359-75160	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	12/1997 - 12/2999	1
27359-16013	1NT..NL50	01/1997 - 12/1997	1
27359-16012	1NT..NL50	01/1996 - 01/1997	1
27365 - PLATE, TERMINAL
27365-55080	1NT..NL50..5F;5EFE..EL53,55..4FC	09/1994 - 12/2999	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060	1NT..NL50	09/1994 - 11/1996	1
27370-75060	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27370-58320	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	11/1996 - 12/2999	1
27384 - WASHER
27384-50030	1NT..NL50..5F;5EFE..EL53,55..4FC	09/1994 - 12/2999	1
27387 - INSULATOR, TERMINAL
27387-70170	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	09/1994 - 09/1997	1
27387-42020	1NT..NL50..5F 12V 80A	09/1994 - 08/1997	1
27387-42021	1NT..NL50..5F 12V 80A	08/1997 - 12/2999	1
27387-70171	4EFE,1NT..EL51,NL50..3FC,4FC,5F 12V 70A	09/1997 - 12/2999	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	1NT..NL50..5F;5EFE..EL53,55..4FC	09/1994 - 12/2999	1
27411 - PULLEY, ALTERNATOR
27411-55040	1NT..NL50..5F 12V 80A	09/1994 - 12/2999	1
27411-55010	1NT..NL50 12V 70A	09/1994 - 12/2999	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4EFE,5EFE,1NT..EL5#,NL50	09/1994 - 12/2999	1
27700A - REGULATOR ASSY, GENERATOR
27700-65010	1NT..NL50	09/1994 - 08/1996	1
27700-35040	1NT..NL50	08/1996 - 12/2999	1
Common parts
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-00269
90099-00276
90099-04478
90099-04966
90099-05171
90099-05172
90099-05232
90105-10102
90119-08053
90179-06158
90179-10016
93319-14025

NL50-CGMDX (1994)

(9409- )4EFE,1NT..3FC,4FC,5F

(9409- )1NT..5F
