NL40-CGMDX (1990)
Toyota Corolla 2

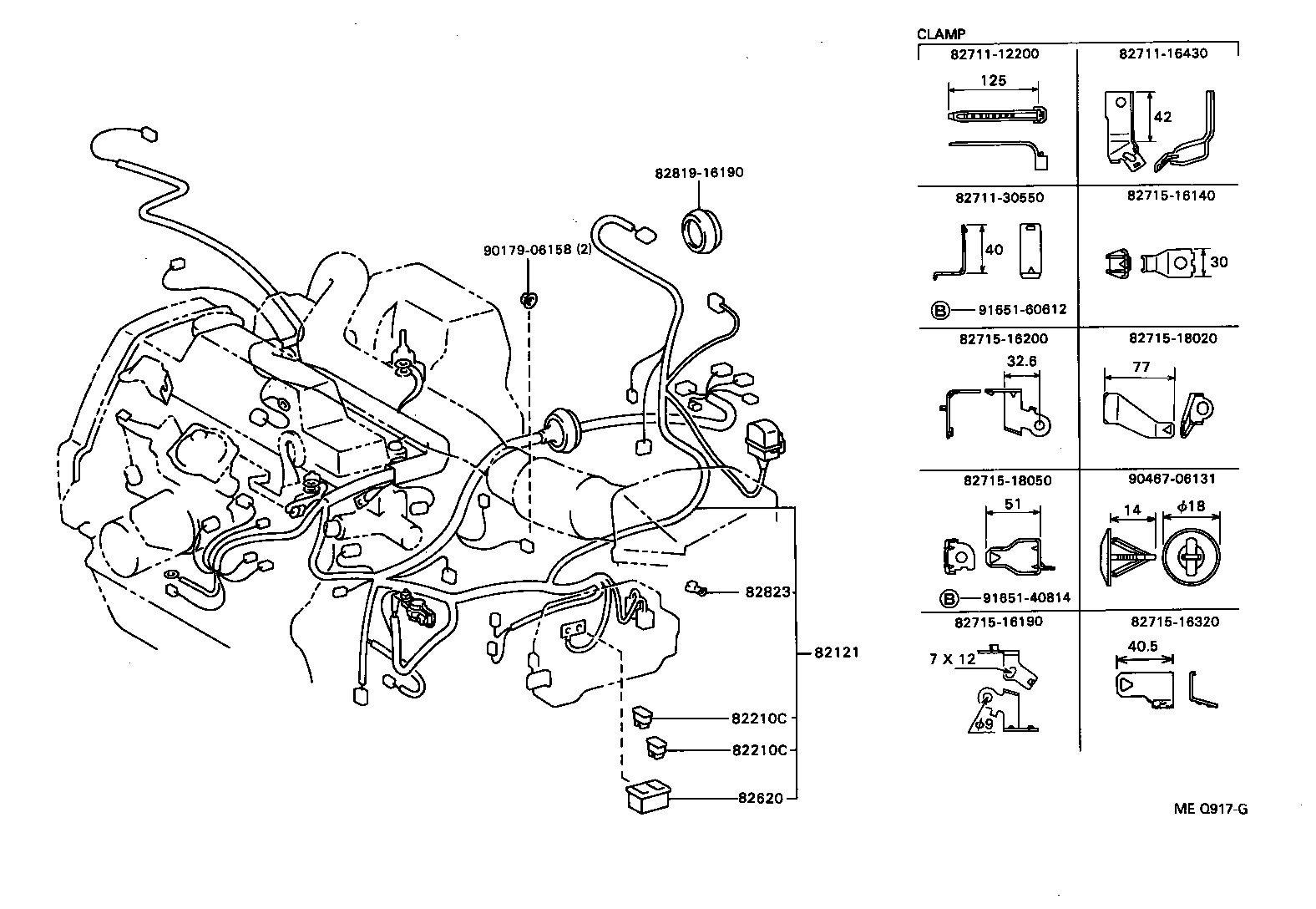

ILLUST NO. 1 OF 6(9009- )NL40
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-16670 |
NL40..5F |
1 | ||
| 82121-16740 |
NL40..5F |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
NL40 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08203 |
NL40;EL4#..ATM 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08190 |
NL40 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08190 |
EL41,43;NL40..5F 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08246 |
NL40;EL4#..MTM 100A,ｵｽ端子,青 |
1 | ||
| 90982-08190 |
NL40 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
NL40..5F 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
NL40 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08203 |
NL40;EL4#..ATM 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08190 |
NL40 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08190 |
EL41,43;NL40..5F 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08246 |
NL40;EL4#..MTM 100A,ｵｽ端子,青 |
1 | ||
| 90982-08190 |
NL40 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
NL40..5F 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-30030 |
EL4#,NL40 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
EL4#,NL40 |
1 | ||
| 82823-22060 |
EL43..5F..EFIS;EL4#,NL40..DSL,EFI |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-16430 | ||||
| 82711-30550 | ||||
| 82715-16140 | ||||
| 82715-16190 | ||||
| 82715-16200 | ||||
| 82715-16320 | ||||
| 82715-18020 | ||||
| 82715-18050 | ||||
| 82819-16190 | ||||
| 90179-06158 | ||||
| 90467-06131 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
ILLUST NO. 4 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-16180 |
EL41,45,NL40..TX,WIN |
1 | ||
| 82151-16181 |
EL41,45,NL40..TX,WIN |
1 | ||
| 82151-16280 |
EL41,45,NL40..LIM,WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-16240 |
EL41,45,NL40..TX,WIN |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-16180 |
EL41,45,NL40..TX,WIN |
1 | ||
| 82151-16181 |
EL41,45,NL40..TX,WIN |
1 | ||
| 82151-16240 |
EL41,45,NL40..TX,WIN |
1 | ||
| 82152-16250 |
EL41,45,NL40..LIM,WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-16740 |
EL41,43,NL40 *66 |
1 | ||
| 82161-16590 |
EL41,43,NL40 *66 |
1 | ||
| 82161-16540 |
EL41,43,NL40 |
1 | ||
| 82161-16730 |
EL41,43,NL40 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16120 |
EL4#,NL40 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-16190 |
EL41,45,NL40..WIN ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82184-16190 |
EL41,NL40..WIN ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82184-16210 |
EL41,NL40..WIN |
1 | ||
| 82184-16210 |
EL41,45,NL40..WIN |
1 | ||
| 82184-16220 |
EL41,NL40..WIN ｱﾘ(LEDﾂｷ ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82184-16200 |
EL41,NL40..WIN ｱﾘ(LEDﾂｷ ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-16240 |
EL41,45,NL40..WIN ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185-16280 |
EL41,45,NL40..WIN |
1 | ||
| 82185-16280 |
EL41,NL40..WIN |
1 | ||
| 82185-16240 |
EL41,NL40..WIN ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185-16270 |
EL41,NL40..WIN ｱﾘ(EDﾂｷ ﾘﾔ ｽﾎﾟｲﾗ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 82185-16290 |
EL41,NL40..WIN ｱﾘ(LEDﾂｷ ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-16070 |
EL4#,NL40 |
1 | ||
| 82187-16070 |
EL4#,NL40..LIM,SR,WIN,ZS |
1 | ||
| 82412 - WIRE, FUEL GAGE | ||||
| 82412-10040 |
NL40 |
1 | ||
| 82412-10060 |
NL40 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16410 |
EL41,43,NL40 |
1 | ||
| 82817-16100 |
EL4#,NL40 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20040 |
EL4#,NL40..DSL,EFI |
1 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 90119-06005 | ||||
ILLUST NO. 2 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1G040 |
NL40..5F *66 |
1 | ||
| 82111-1G030 |
NL40..5F |
1 | ||
| 82111-1G101 |
NL40..5F |
1 | ||
| 82111-1G110 |
NL40..5F *66 |
1 | ||
| 82111-1G112 |
NL40..5F *66 |
1 | ||
| 82111-1G100 |
NL40..5F |
1 | ||
| 82111-1G111 |
NL40..5F *66 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-16090 |
NL40 |
1 | ||
| 82123-16150 |
NL40 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
NL40 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08203 |
NL40;EL4#..ATM 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08190 |
NL40 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08190 |
EL41,43;NL40..5F 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08246 |
NL40;EL4#..MTM 100A,ｵｽ端子,青 |
1 | ||
| 90982-08190 |
NL40 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
NL40..5F 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
EL4#,NL40 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-2B200 |
EL4#,NL40 |
2 | ||
| Common parts | ||||
| 82711-24420 | ||||
| 82715-16090 | ||||
| 82715-16250 | ||||
| 82715-16290 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 91651-40814 | ||||
| 91651-60816 | ||||
| 91651-B0614 | ||||
| 91656-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
ILLUST NO. 3 OF 6(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-1G530 |
NL40..5F |
1 | ||
| 82131-1G850 |
NL40..5F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 82131-1S270 |
NL40..5F |
1 | ||
| 82131-1S271 |
NL40..5F |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-16011 |
EL41,43,NL40..MTM |
1 | ||
| 82166-16080 |
EL4#,NL40..MTM |
1 | ||
| 82166-16010 |
EL41,43,NL40..MTM |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 82711-12740 | ||||
| 82711-16750 | ||||
| 82715-16100 | ||||
| 82715-16120 | ||||
| 82715-16250 | ||||
| 82715-16290 | ||||
| 90119-06005 | ||||
| 90167-50028 | ||||
| 91656-40616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 6(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20080 |
NL40;EL4#..MTM |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-20080 |
NL40;EL4#..MTM |
1 | ||
| Common parts | ||||
| 82991-20080 | ||||
| 82991-20100 | ||||
