NL40-CGMDX (1990)
Toyota Corolla 2

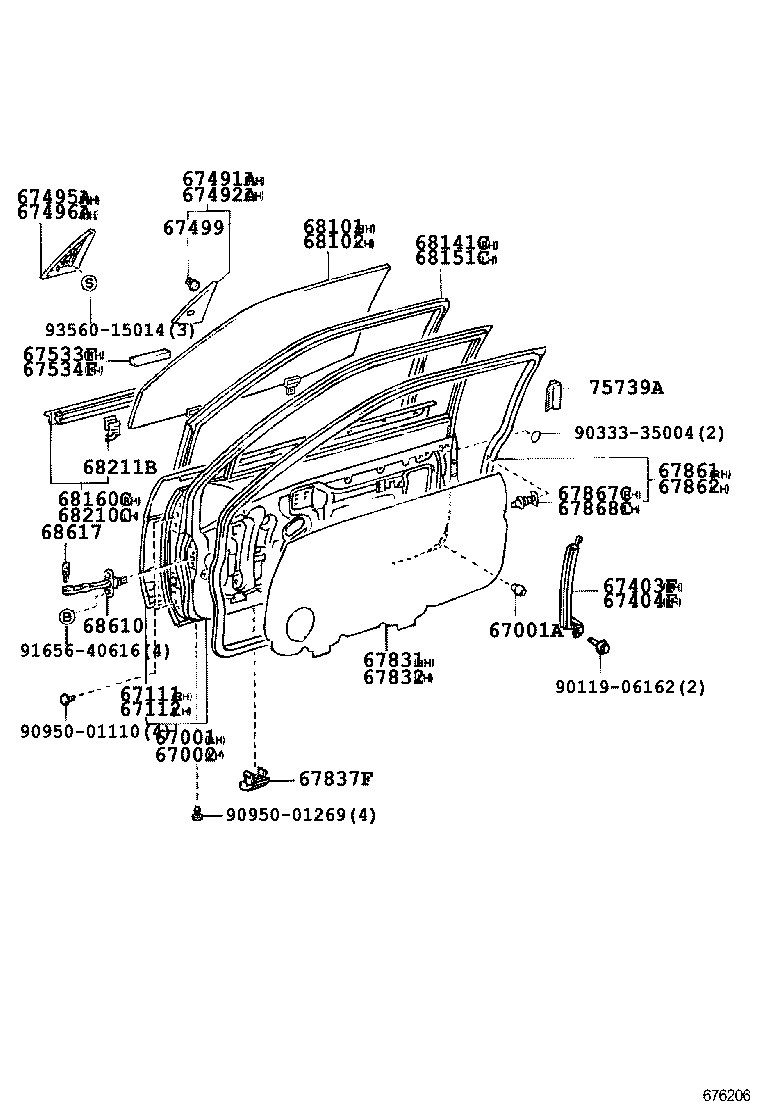

ILLUST NO. 1 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16420 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67001-16400 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67001-16401 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67001-16381 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09031 |
EL4#,NL40 |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16370 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67002-16371 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67002-16390 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67002-16341 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16210 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16190 |
EL41,45,NL40..TX,WIN |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-16080 |
EL4#,NL40 |
1 | ||
| 67403-16081 |
EL4#,NL40 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-16080 |
EL4#,NL40 |
1 | ||
| 67404-16081 |
EL4#,NL40 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16120 |
EL4#,NL40 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16120 |
EL4#,NL40 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-16090 |
EL4#,NL40..LIM,SR,WIN,ZS |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-16090 |
EL4#,NL40..LIM,SR,WIN,ZS |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-16010 |
EL4#,NL40 |
2 | ||
| 67533F - PAD, FRONT DOOR LOWER FRAME GARNISH, RH | ||||
| 67533-16050 |
EL4#,NL40 |
1 | ||
| 67534F - PAD, FRONT DOOR LOWER FRAME GARNISH, LH | ||||
| 67533-16050 |
EL4#,NL40 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-16320 |
EL4#,NL40..DSL,EFI |
1 | ||
| 67831-16370 |
EL41,45,NL40..LIM,WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-16180 |
EL41,45,NL40..LIM,TX,WIN |
1 | ||
| 67832-16180 |
EL41,45,NL40..TX,WIN ｱﾘ(1 ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16250 |
EL41,45,NL40..LIM,WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67832-16190 |
EL41..3FC..TX;EL41,45,NL40..WIN ｱﾘ(ｽﾋﾟ-ｶ) |
1 | ||
| 67832-16190 |
EL4#,NL40..DSL,EFI |
1 | ||
| 67832-16240 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ & 1 ｽﾋﾟ-ｶ) |
1 | ||
| 67837F - SEAL, DOOR DUST PROOF | ||||
| 67837-16030 |
EL4#,NL40 |
4 | ||
| 67837-16030 |
EL4#,NL40 |
4 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16260 |
EL4#,NL40 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16260 |
EL4#,NL40 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-12050 |
EL4#,NL40 |
20 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-12050 |
EL4#,NL40 |
20 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-16010 |
EL41,45,NL40..TX,WIN *TEM,厚さ=3.5,ｸﾘｱ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-16010 |
EL41,45,NL40..TX,WIN *TEM,厚さ=3.5,ｸﾘｱ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-16180 |
EL4#,NL40 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-16010 |
EL4#,NL40 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-16060 |
EL4#,NL40 |
2 | ||
| 68610-16080 |
EL4#,NL40 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-12030 |
EL4#,NL40 |
2 | ||
| 75739A - MOULDING DOOR EDGE | ||||
| 75739-30030 |
EL4#,NL40 |
1 | ||
| Common parts | ||||
| 90119-06162 | ||||
| 90333-35004 | ||||
| 90950-01110 | ||||
| 90950-01269 | ||||
| 91656-40616 | ||||
| 93560-15014 | ||||

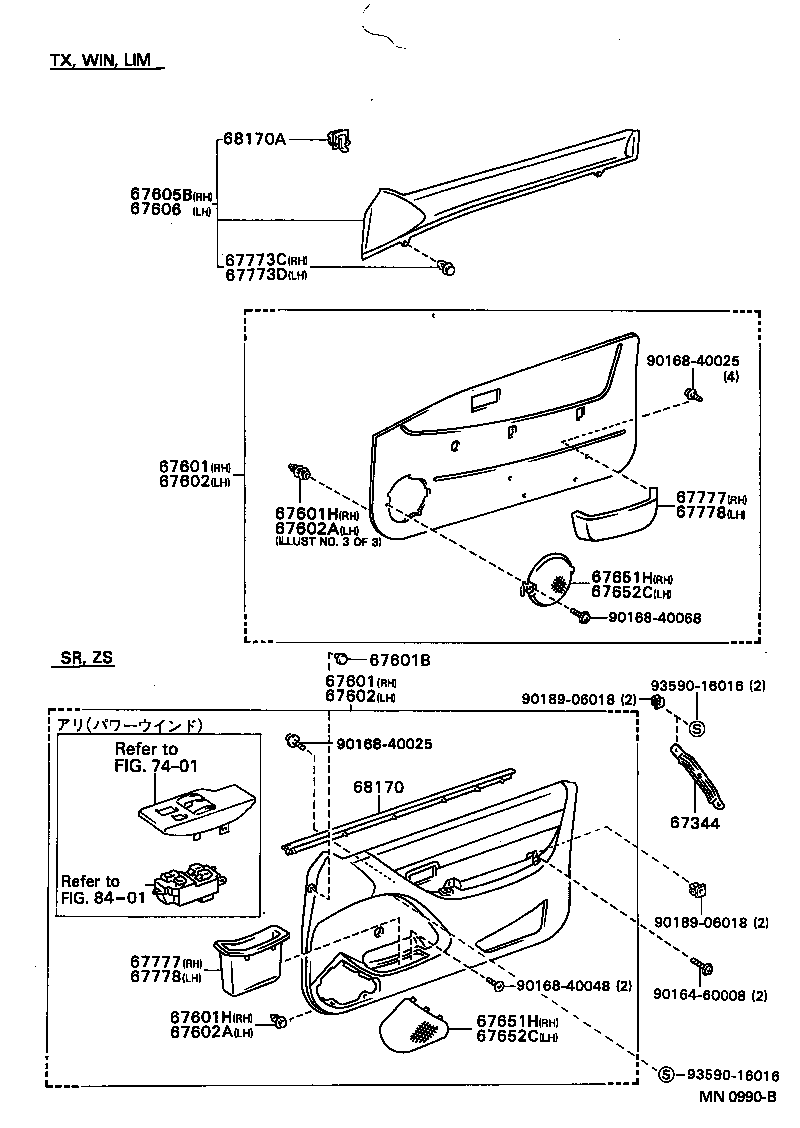

ILLUST NO. 2 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1602004 |
EL41,45,NL40..WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-1602007 |
EL41,45,NL40..WIN SPRUCE,TRIM6# |
1 | ||
| 67650-1602001 |
EL41,45,NL40..WIN BLACK,TRIM2# |
1 | ||
| 67650-16020C1 |
EL41,45,NL40..WIN BLACK,TRIM2# |
1 | ||
| 67650-16020G0 |
EL41,45,NL40..WIN SPRUCE,TRIM6# |
1 | ||
| 67650-16020J1 |
EL41,45,NL40..WIN EISEN BLUE,TRIM8# |
1 | ||
| 67650-16080G0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67650-16080C0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67650-16080J0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67650-1602004 |
EL41,45,NL40..WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67650-1602007 |
EL41,45,NL40..WIN SPRUCE,TRIM6# |
1 | ||
| 67650-1602001 |
EL41,45,NL40..WIN BLACK,TRIM2# |
1 | ||
| 67650-16020C1 |
EL41,45,NL40..WIN BLACK,TRIM2# |
1 | ||
| 67650-16020G0 |
EL41,45,NL40..WIN SPRUCE,TRIM6# |
1 | ||
| 67650-16020J1 |
EL41,45,NL40..WIN EISEN BLUE,TRIM8# |
1 | ||
| 67650-16080G0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67650-16080C0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67650-16080J0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||

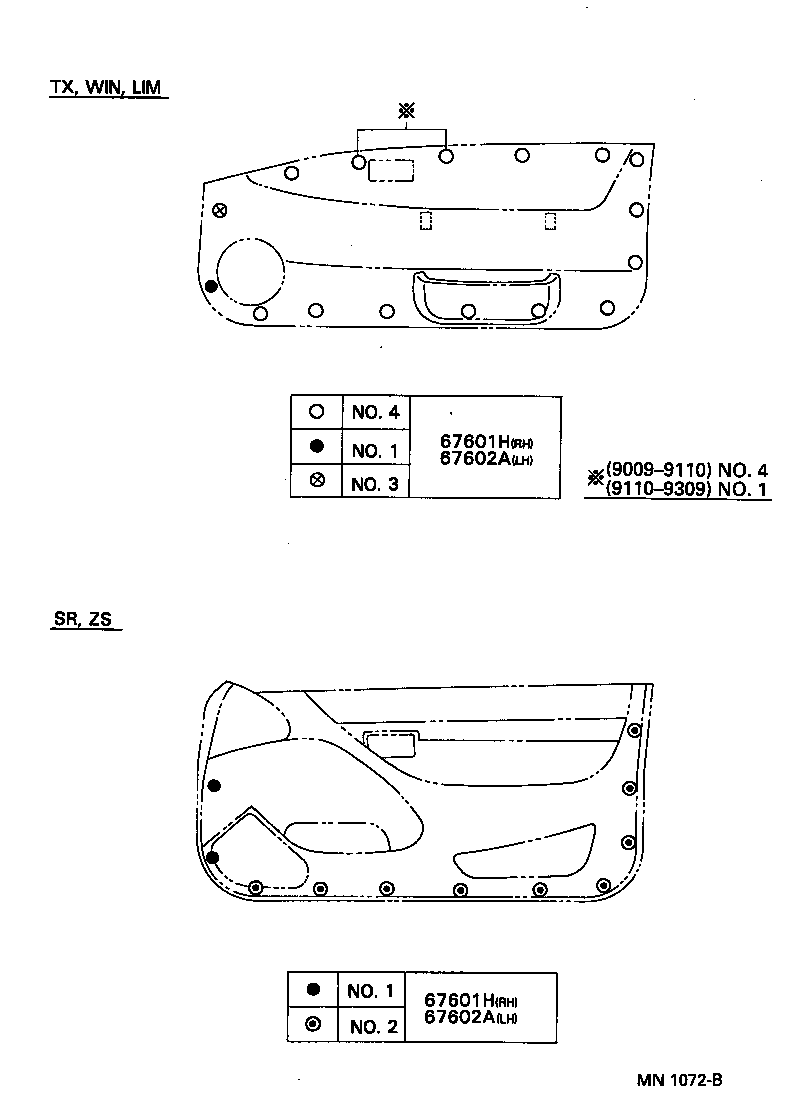

| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67771-16090 |
EL41,45,NL40..LIM,TX,WIN NO.3 |
1 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
14 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
12 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67771-16090 |
EL41,45,NL40..LIM,TX,WIN NO.3 |
1 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
14 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
12 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-16870J0 |
EL41,45,NL40..WIN EISEN BLUE,TRIM8# |
1 | ||
| 67620-1687001 |
EL41,45,NL40..WIN BLACK,TRIM2# |
1 | ||
| 67620-1687004 |
EL41,45,NL40..WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-16870G0 |
EL41,45,NL40..WIN SPRUCE,TRIM6# |
1 | ||
| 67620-1687007 |
EL41,45,NL40..WIN SPRUCE,TRIM6# |
1 | ||
| 67620-16870C0 |
EL41,45,NL40..WIN BLACK,TRIM2# |
1 | ||
| 67620-1G590G0 |
EL41,45,NL40..WIN SPRUCE,SPRUCE,TRIM6# |
1 | ||
| 67620-1G210C0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1G210G0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G590C0 |
EL41,45,NL40..WIN BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1G210J0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67620-1G590J0 |
EL41,45,NL40..WIN EISEN BLUE,EISEN BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-16870J0 |
EL41,45,NL40..WIN EISEN BLUE,TRIM8# |
1 | ||
| 67620-1687001 |
EL41,45,NL40..WIN BLACK,TRIM2# |
1 | ||
| 67620-1687004 |
EL41,45,NL40..WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67620-16870G0 |
EL41,45,NL40..WIN SPRUCE,TRIM6# |
1 | ||
| 67620-1687007 |
EL41,45,NL40..WIN SPRUCE,TRIM6# |
1 | ||
| 67620-16870C0 |
EL41,45,NL40..WIN BLACK,TRIM2# |
1 | ||
| 67620-1G590G0 |
EL41,45,NL40..WIN SPRUCE,SPRUCE,TRIM6# |
1 | ||
| 67620-1G210C0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1G210G0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),SPRUCE,TRIM6# |
1 | ||
| 67620-1G590C0 |
EL41,45,NL40..WIN BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1G210J0 |
EL41,45,NL40..WIN ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),EISEN BLUE,TRIM8# |
1 | ||
| 67620-1G590J0 |
EL41,45,NL40..WIN EISEN BLUE,EISEN BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
12 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
14 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16090 |
EL41,45,NL40..LIM,TX,WIN NO.3 |
1 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
12 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
14 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16090 |
EL41,45,NL40..LIM,TX,WIN NO.3 |
1 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67605B - BASE SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67605-16410C0 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67605-1641001 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67605-1641004 |
EL41,45,NL40..LIM,TX,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67605-1641007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67605-16410J0 |
EL41,45,NL40..LIM,TX,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67605-16410G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67606 - BASE SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67606-1641004 |
EL41,45,NL40..LIM,TX,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67606-16410C0 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67606-16410J0 |
EL41,45,NL40..LIM,TX,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67606-1641001 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67606-16410G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67606-1641007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-1605004 |
EL41,45,NL40..LIM,TX,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-1605001 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67651-16050C0 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67651-1605007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67651-16050J0 |
EL41,45,NL40..LIM,TX,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67651-16050G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67651H - GRILLE, SPEAKER DOOR, RH | ||||
| 67651-1605004 |
EL41,45,NL40..LIM,TX,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-1605001 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67651-16050C0 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67651-1605007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67651-16050J0 |
EL41,45,NL40..LIM,TX,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67651-16050G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-1605007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67651-1605004 |
EL41,45,NL40..LIM,TX,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-16050G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67651-16050C0 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67651-1605001 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67651-16050J0 |
EL41,45,NL40..LIM,TX,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67652C - GRILLE, SPEAKER DOOR, LH | ||||
| 67651-1605007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67651-1605004 |
EL41,45,NL40..LIM,TX,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67651-16050G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67651-16050C0 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67651-1605001 |
EL41,45,NL40..LIM,TX,WIN BLACK,TRIM2# |
1 | ||
| 67651-16050J0 |
EL41,45,NL40..LIM,TX,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-16050 |
EL41,45,NL40..LIM,TX,WIN |
2 | ||
| 67773D - CLIP, DOOR TRIM UPPER RETAINER, NO.2 | ||||
| 67773-16050 |
EL41,45,NL40..LIM,TX,WIN |
2 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1005001 |
EL41,45,NL40..LIM,WIN BLACK,TRIM2# |
1 | ||
| 67777-1005007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67777-10050J0 |
EL41,45,NL40..LIM,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67777-1005014 |
EL41,45,NL40..LIM,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67777-10050G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67777-10050C0 |
EL41,45,NL40..LIM,WIN BLACK,TRIM2# |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-1005001 |
EL41,45,NL40..LIM,WIN BLACK,TRIM2# |
1 | ||
| 67777-1005007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67777-10050J0 |
EL41,45,NL40..LIM,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67777-1005014 |
EL41,45,NL40..LIM,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67777-10050G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67777-10050C0 |
EL41,45,NL40..LIM,WIN BLACK,TRIM2# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1005007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67777-1005014 |
EL41,45,NL40..LIM,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67777-1005001 |
EL41,45,NL40..LIM,WIN BLACK,TRIM2# |
1 | ||
| 67777-10050C0 |
EL41,45,NL40..LIM,WIN BLACK,TRIM2# |
1 | ||
| 67777-10050J0 |
EL41,45,NL40..LIM,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67777-10050G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-1005007 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 67777-1005014 |
EL41,45,NL40..LIM,WIN GRAYISH BLUE,TRIM8# |
1 | ||
| 67777-1005001 |
EL41,45,NL40..LIM,WIN BLACK,TRIM2# |
1 | ||
| 67777-10050C0 |
EL41,45,NL40..LIM,WIN BLACK,TRIM2# |
1 | ||
| 67777-10050J0 |
EL41,45,NL40..LIM,WIN EISEN BLUE,TRIM8# |
1 | ||
| 67777-10050G0 |
EL41,45,NL40..LIM,WIN SPRUCE,TRIM6# |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-16030 |
EL41,45,NL40..LIM,TX,WIN |
16 | ||
| Common parts | ||||
| 90164-60008 | ||||
| 90168-40025 | ||||
| 90168-40048 | ||||
| 90168-40068 | ||||
| 90189-06018 | ||||
| 93590-16016 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67771-16090 |
EL41,45,NL40..LIM,TX,WIN NO.3 |
1 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
14 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
12 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67771-16090 |
EL41,45,NL40..LIM,TX,WIN NO.3 |
1 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
14 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
12 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
12 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
14 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16090 |
EL41,45,NL40..LIM,TX,WIN NO.3 |
1 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
12 | ||
| 67771-16170 |
EL41,45,NL40..LIM,TX,WIN NO.4 |
14 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
3 | ||
| 67771-16090 |
EL41,45,NL40..LIM,TX,WIN NO.3 |
1 | ||
| 67771-16160 |
EL41,45,NL40..LIM,TX,WIN NO.1 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
