Toyota Corolla 2 NL40 MANIFOLD - JDM Part Detective

NL40-CGMDX (1990)

Toyota Corolla 2

Production Sep 1990 - Sep 1994

Engine 1NT

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

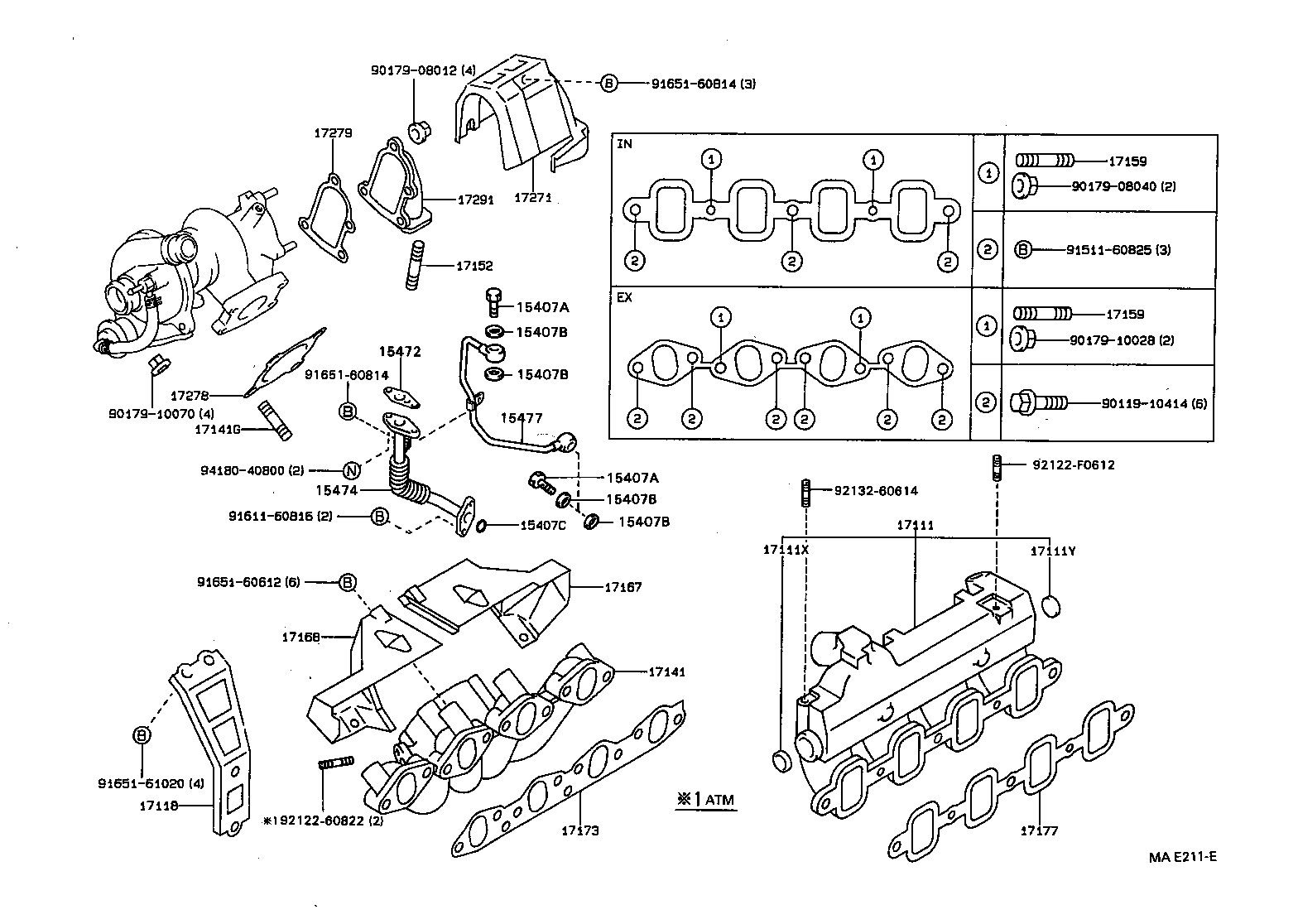

ILLUST NO. 1 OF 2(9009- )1NT

Click highlighted areas on diagram

Part #	Description	Period	Qty
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10006	1NT..NL40	09/1990 - 09/1994	2
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10006	1NT..NL40	09/1990 - 09/1994	2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	1NT..NL40	09/1990 - 09/1994	4
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	1NT..NL40	09/1990 - 09/1994	4
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	1NT..NL40	09/1990 - 09/1994	4
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035	1NT..NL40	09/1990 - 09/1994	4
15407C - RING, O(FOR TURBO OIL PIPE)
90301-23007	1NT..NL40	09/1990 - 09/1994	1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-55010	1NT..NL40	09/1990 - 09/1994	1
15474 - PIPE, TURBO OIL OUTLET
15474-55010	1NT..NL40	09/1990 - 09/1994	1
15477 - PIPE, TURBO OIL INLET
15477-55010	1NT..NL40	09/1990 - 09/1994	1
17111 - MANIFOLD, INTAKE
17101-55040	1NT..NL40..5F	09/1990 - 09/1994	1
17111X - PLUG, TIGHT NO.1(FOR INTAKE MANIFOLD)
96411-42500	1NT..NL40	09/1990 - 09/1994	1
17111Y - PLUG, TIGHT NO.2(FOR INTAKE MANIFOLD)
96411-42800	1NT..NL40	09/1990 - 09/1994	1
17118 - STAY, MANIFOLD
17118-55010	1NT..NL40	09/1990 - 09/1994	1
17141 - MANIFOLD, EXHAUST
17141-55040	1NT..NL40..5F	09/1990 - 09/1994	1
17141G - BOLT, STUD(FOR TURBOCHARGER)
90126-10003	1NT..NL40	08/1992 - 09/1994	4
90116-10087	1NT..NL40	09/1990 - 08/1992	4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10087	1NT..NL40	09/1990 - 08/1992	2
90126-10003	1NT..NL40	08/1992 - 09/1994	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61040	1NT..NL40 EXHAUST	09/1990 - 08/1992	2
92112-61040	1NT..NL40 EXHAUST MANIFOLD	08/1992 - 09/1994	2
92122-60822	1NT..NL40 INTAKE MANIFOLD	08/1992 - 09/1994	2
92122-60822	1NT..NL40 INTAKE	09/1990 - 08/1992	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61040	1NT..NL40 EXHAUST	09/1990 - 08/1992	2
92112-61040	1NT..NL40 EXHAUST MANIFOLD	08/1992 - 09/1994	2
92122-60822	1NT..NL40 INTAKE MANIFOLD	08/1992 - 09/1994	2
92122-60822	1NT..NL40 INTAKE	09/1990 - 08/1992	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-55010	1NT..NL40	09/1990 - 09/1994	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-55030	1NT..NL40	09/1990 - 09/1994	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-55010	1NT..NL40	09/1990 - 09/1994	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-55012	1NT..NL40	09/1990 - 09/1994	1
17271 - INSULATOR, TURBO, NO.1
17271-55011	1NT..NL40	09/1990 - 09/1994	1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-55010	1NT..NL40	09/1990 - 09/1994	1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-55011	1NT..NL40	09/1990 - 09/1994	1
17291 - ELBOW, TURBINE OUTLET
17291-55010	1NT..NL40	09/1990 - 09/1994	1
Common parts
90119-10414
90179-08012
90179-08040
90179-10028
90179-10070
91511-60825
91611-60816
91651-60612
91651-60814
91651-61020
92122-60822
92122-F0612
92132-60614
94180-40800

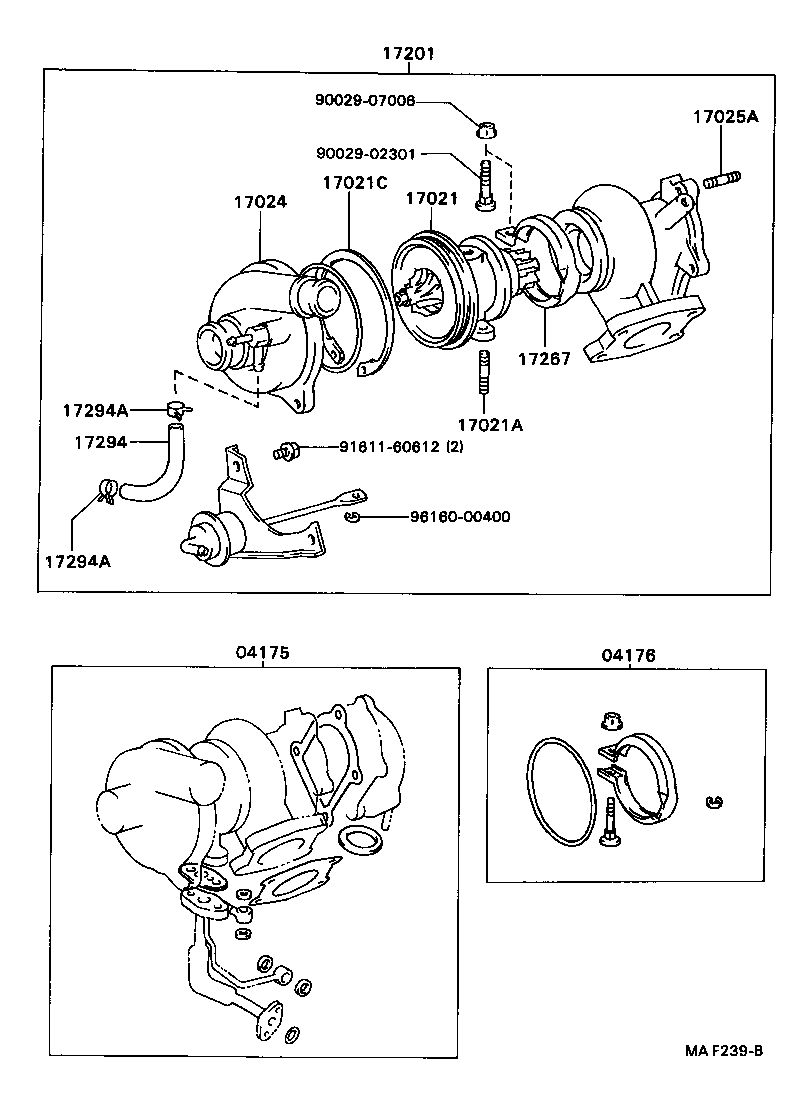

ILLUST NO. 2 OF 2(9009- )1NT

Click highlighted areas on diagram

Part #	Description	Period	Qty
04175 - GASKET KIT, TURBOCHARGER
04175-55020	1NT..NL40	09/1990 - 09/1994	1
04176 - SEAL KIT, TURBOCHARGER
04176-55010	1NT..NL40	09/1990 - 09/1994	1
17021 - HOUSING SUB-ASSY, BEARING
17021-55030	1NT..NL40	09/1990 - 09/1994	1
17021A - BOLT, STUD(FOR BEARING HOUSING)
92112-60822	1NT..NL40	09/1990 - 09/1994	2
17021C - RING, HOLE SNAP(FOR BEARING HOUSING)
90029-52004	1NT..NL40	09/1990 - 09/1994	1
17024 - HOUSING SUB-ASSY, COMPRESSOR
17024-55030	1NT..NL40	09/1990 - 09/1994	1
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-08200	1NT..NL40	09/1990 - 09/1994	4
17201 - TURBOCHARGER SUB-ASSY
17201-55030	1NT..NL40	09/1990 - 09/1994	1
17267 - COUPLING, TURBINE
17267-55030	1NT..NL40	09/1990 - 09/1994	1
17294 - HOSE, ACTUATOR
90029-45001	1NT..NL40	09/1990 - 09/1994	1
17294A - CLIP(FOR ACTUATOR HOSE)
96132-30600	1NT..NL40	09/1990 - 09/1994	2
17294A - CLIP(FOR ACTUATOR HOSE)
96132-30600	1NT..NL40	09/1990 - 09/1994	2
Common parts
90029-02301
90029-07006
91611-60612
96160-00400

NL40-CGMDX (1990)

ILLUST NO. 1 OF 2(9009- )1NT

ILLUST NO. 2 OF 2(9009- )1NT
