NL30-KHPNX (1988)
Toyota Corolla 2
Production
May 1988
-
Sep 1990
Engine
1NT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )5DS

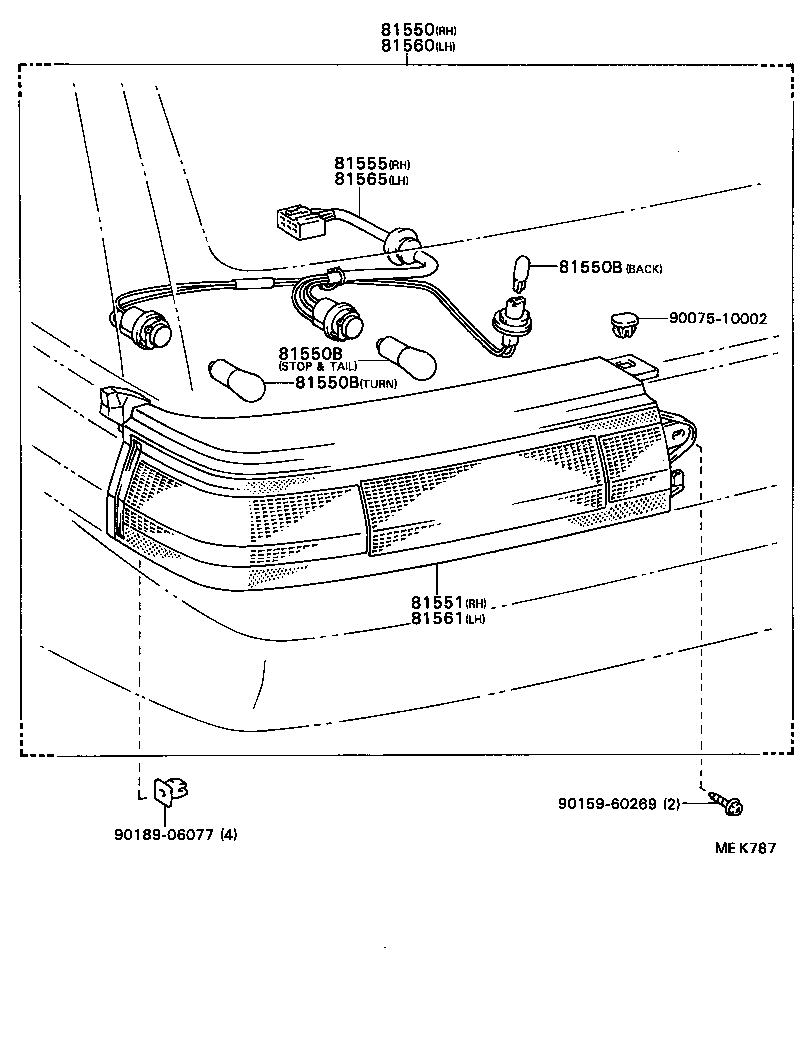

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-16361 |
EL3#,NL30..5DS |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
EL3#,NL30 12V 21/5W,STOP & TAIL |
2 | ||
| 90981-11039 |
EL3#,NL30..5DS 12V 16W,BACK |
2 | ||
| 99132-11210 |
EL3#,NL30 12V 21W,TURN |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
EL3#,NL30 12V 21/5W,STOP & TAIL |
2 | ||
| 90981-11039 |
EL3#,NL30..5DS 12V 16W,BACK |
2 | ||
| 99132-11210 |
EL3#,NL30 12V 21W,TURN |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-21210 |
EL3#,NL30 12V 21/5W,STOP & TAIL |
2 | ||
| 90981-11039 |
EL3#,NL30..5DS 12V 16W,BACK |
2 | ||
| 99132-11210 |
EL3#,NL30 12V 21W,TURN |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-16361 |
EL3#,NL30..5DS |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-16361 |
EL3#,NL30..5DS |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-16381 |
EL3#,NL30..5DS |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-16381 |
EL3#,NL30..5DS |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-16361 |
EL3#,NL30..5DS |
1 | ||
| Common parts | ||||
| 90075-10002 | ||||
| 90159-60269 | ||||
| 90189-06077 | ||||
