NL30-KHPNX (1988)
Toyota Corolla 2
Production
May 1988
-
Sep 1990
Engine
1NT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )CD,GL,LIM,TX,ZX

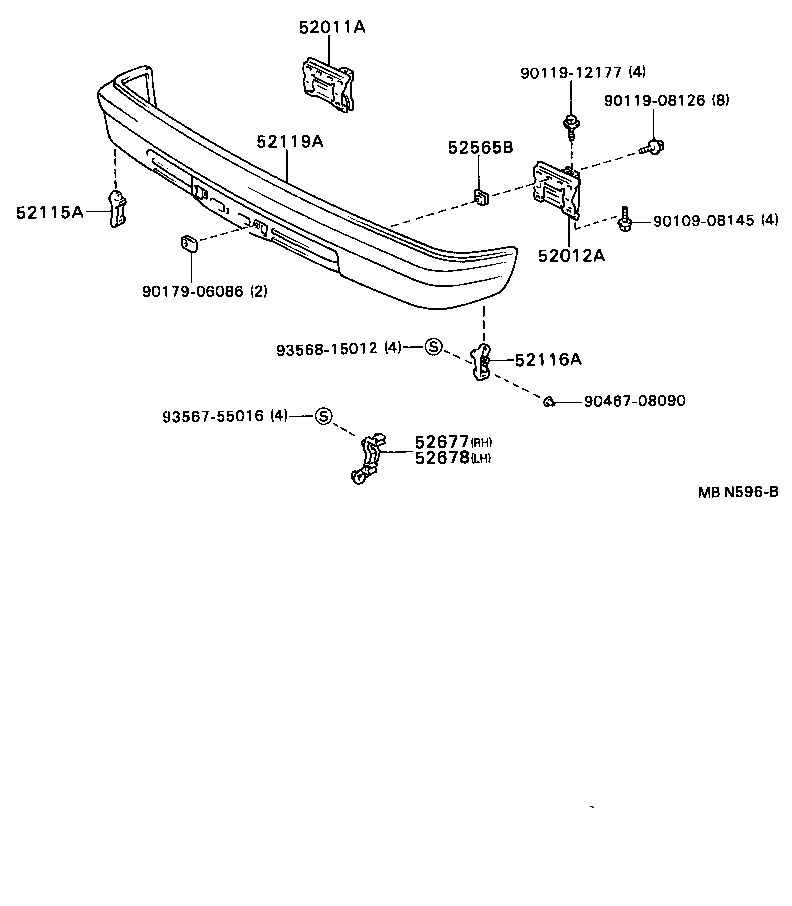

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-16110 |
EL3#,NL30..CD,GL,LIM,TX,ZX |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-16100 |
EL3#,NL30..CD,GL,LIM,TX,ZX |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-16100 |
EL3#,NL30..CD,GL,LIM,TX,ZX |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-16100 |
EL3#,NL30..CD,GL,LIM,TX,ZX |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-16240 |
EL30,NL30..CD,GL,TX |
1 | ||
| 52565B - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-16020 |
EL3#,NL30 |
8 | ||
| 52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH | ||||
| 52677-16040 |
EL3#,NL30..CD,GL,LIM,TX,ZX |
1 | ||
| 52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH | ||||
| 52678-16040 |
EL3#,NL30..CD,GL,LIM,TX,ZX |
1 | ||
| Common parts | ||||
| 90109-08145 | ||||
| 90119-08126 | ||||
| 90119-12177 | ||||
| 90179-06086 | ||||
| 90467-08090 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
