NL30-KHPNX (1988)
Toyota Corolla 2
Production
May 1988
-
Sep 1990
Engine
1NT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8805-8903)EFI ; (8805- )CBR,TD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16190 |
NL30 |
1 | ||
| 44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON | ||||
| 44606-12520 |
EL3#,NL30..CBR,TD |
1 | ||
| 44606-12520 |
EL3#,NL30..CBR,EFI,TD |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16181 |
NL30 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16181 |
NL30 |
1 | ||
| 44621V - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
EL3#,NL30..CBR,TD |
1 | ||
| 44621-28120 |
EL3#,NL30..CBR,EFI,TD |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
EL3#,NL30..CBR,EFI,TD |
1 | ||
| 44628-28120 |
EL3#,NL30..CBR,TD |
1 | ||
| 44635B - KEY, VALVE STOPPER | ||||
| 44635-16160 |
EL3#,NL30..CBR,EFI,TD |
1 | ||
| 44635-16160 |
EL3#,NL30..CBR,TD |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16180 |
EL3#,NL30..CBR,EFI,TD |
1 | ||
| 44642-16180 |
EL3#,NL30..CBR,TD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16010 |
EL3#,NL30 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16010 |
EL3#,NL30 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

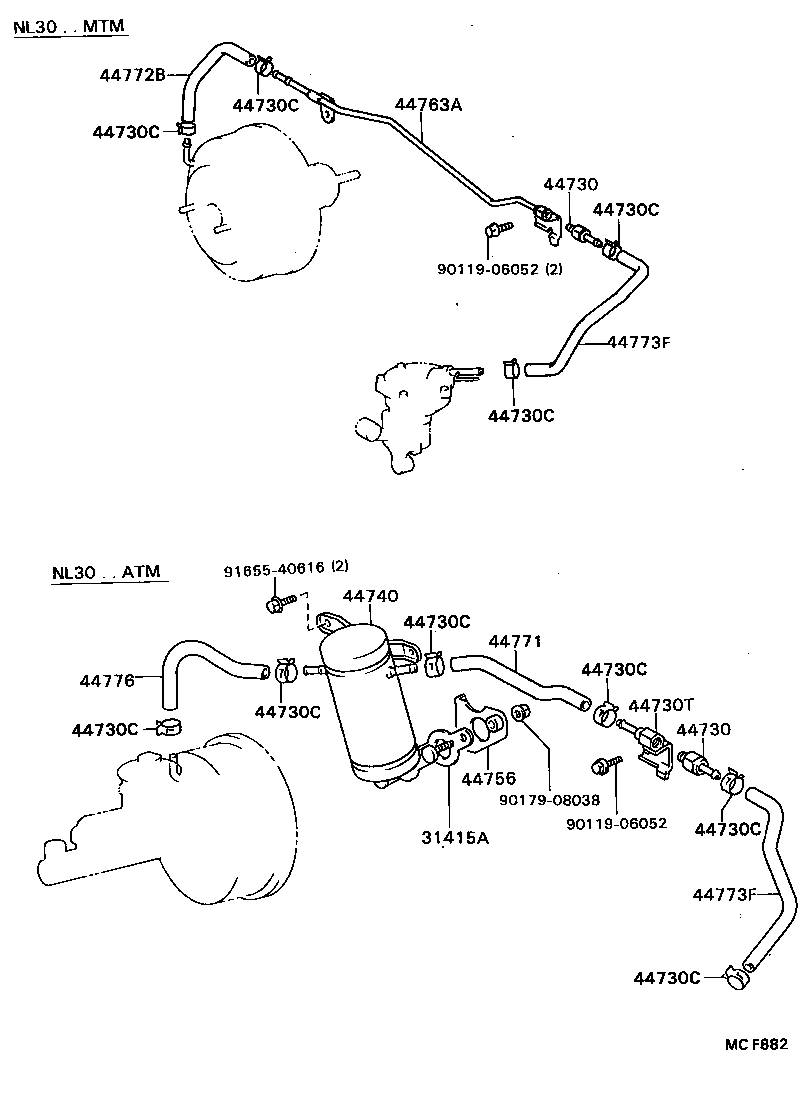

ILLUST NO. 2 OF 2(8805- )NL30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31415A - GASKET, VACUUM RESERVOIR | ||||
| 31415-10010 |
NL30..4FC |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
NL30 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
NL30 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
NL30..4FC |
6 | ||
| 44730T - UNION(FOR VACUUM CHECK VALVE) | ||||
| 90404-52025 |
NL30..4FC |
1 | ||
| 44740 - RESERVOIR ASSY, VACUUM | ||||
| 44740-16012 |
NL30..4FC |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44755-16010 |
NL30..4FC |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-16012 |
NL30..4FC |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-16070 |
NL30 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-16070 |
NL30 |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-16011 |
NL30..4FC |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90179-08038 | ||||
| 91655-40616 | ||||
