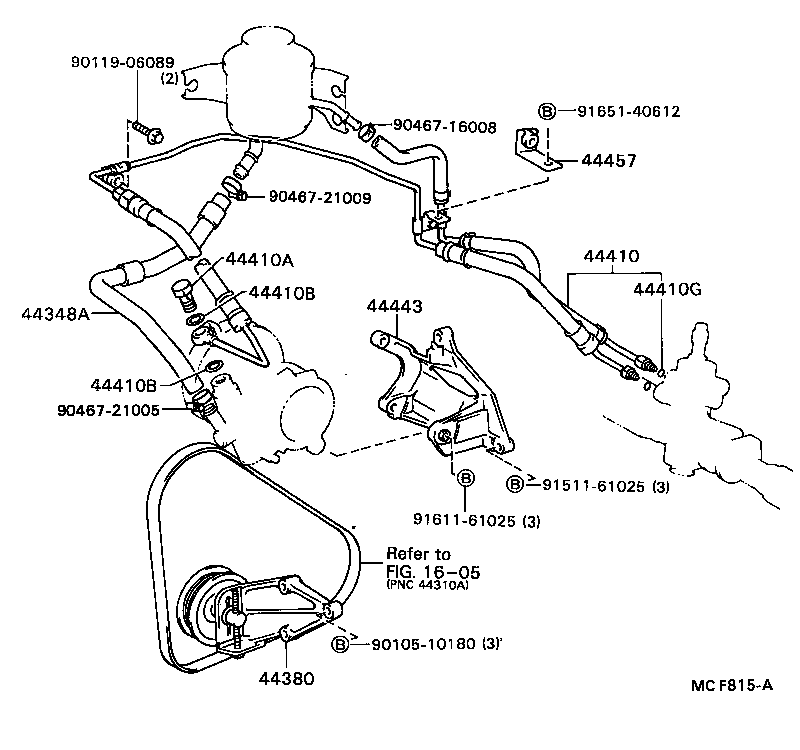

Toyota Corolla 2 NL30 POWER STEERING TUBE

Part #	Description	Period	Qty
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-16020	NL30..GL,TX	05/1988 - 09/1990	1
44380 - PULLEY ASSY, POWER STEERING IDLE W/BRACKET
44380-16010	NL30..GL,TX	05/1988 - 09/1990	1
44410 - TUBE ASSY, PRESSURE FEED
44410-16060	NL30..GL,TX	05/1988 - 09/1990	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008	EL3#,NL30..AR,GL,SRI,TX	05/1988 - 01/1989	1
90401-16008	NL30..GL,TX;EL3#..AR,GL,SRI	01/1989 - 09/1990	1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242	EL3#,NL30..AR,GL,SRI,TX	05/1988 - 01/1989	2
90430-16242	NL30..GL,TX;EL3#..AR,GL,SRI	01/1989 - 09/1990	2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242	EL3#,NL30..AR,GL,SRI,TX	05/1988 - 01/1989	2
90430-16242	NL30..GL,TX;EL3#..AR,GL,SRI	01/1989 - 09/1990	2
44410G - RING, O(FOR PRESSURE FEED TUBE)
90301-07009	NL30..GL,TX;EL3#..AR,GL,SRI	01/1989 - 09/1990	3
90301-07009	EL3#,NL30..AR,GL,SRI,TX	05/1988 - 01/1989	3
44443 - BRACKET, PUMP
44443-16030	NL30..GL,TX	05/1988 - 09/1990	1
Common parts
90105-10180
90119-06089
90467-16008
90467-21005
90467-21009
91511-61025
91611-61025
91651-40612
Linked diagrams
1605

NL30-KHPNX (1988)
