NL30-KHMDX (1986)

Toyota Corolla 2

Production May 1986 - May 1988
Engine 1NT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )NL30

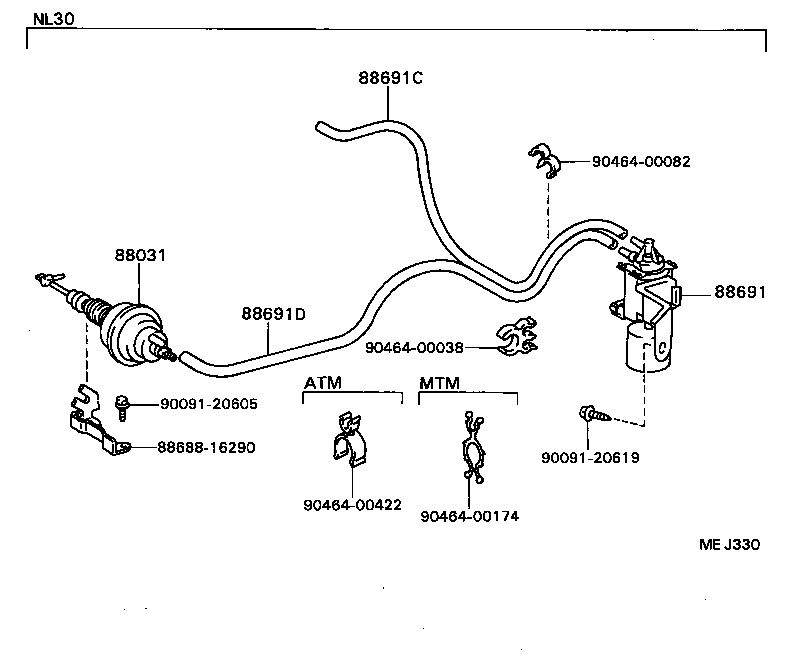

Click highlighted areas on diagram

diagram 88031 8868816290 88691 88691C 88691D 9009120605 9009120619 9046400038 9046400082 9046400174 9046400422
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-16060

NL30

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-10010

EL3#,NL30

 1
88691-16050

EL3#,NL30..CBR,TD

 1
88691-10010

EL3#,NL30..CBR,TD

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10060

NL30

*H,L=450,ﾏｰｸ=#0

 1
90999-92003

NL30

*H,L=450

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-19995

NL30

*H,L=280,ﾏｰｸ=#*

 1
90999-92004

NL30

*H,L=280

 1
Common parts
88688-16290
90091-20605
90091-20619
90464-00038
90464-00082
90464-00174
90464-00422
