NL30-KHMDX (1986)
Toyota Corolla 2
Production
May 1986
-
May 1988
Engine
1NT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8605- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16160 |
NL30 |
1 | ||
| 04443-16190 |
NL30 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
EL3#,NL30 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16180 |
NL30 |
1 | ||
| 44610-16181 |
NL30 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16180 |
NL30 |
1 | ||
| 44610-16181 |
NL30 |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
EL3#,NL30 |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
EL3#,NL30 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16160 |
EL3#,NL30 |
1 | ||
| 44642-16180 |
EL3#,NL30 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-16160 |
EL3#,NL30 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16010 |
EL3#,NL30 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16010 |
EL3#,NL30 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||

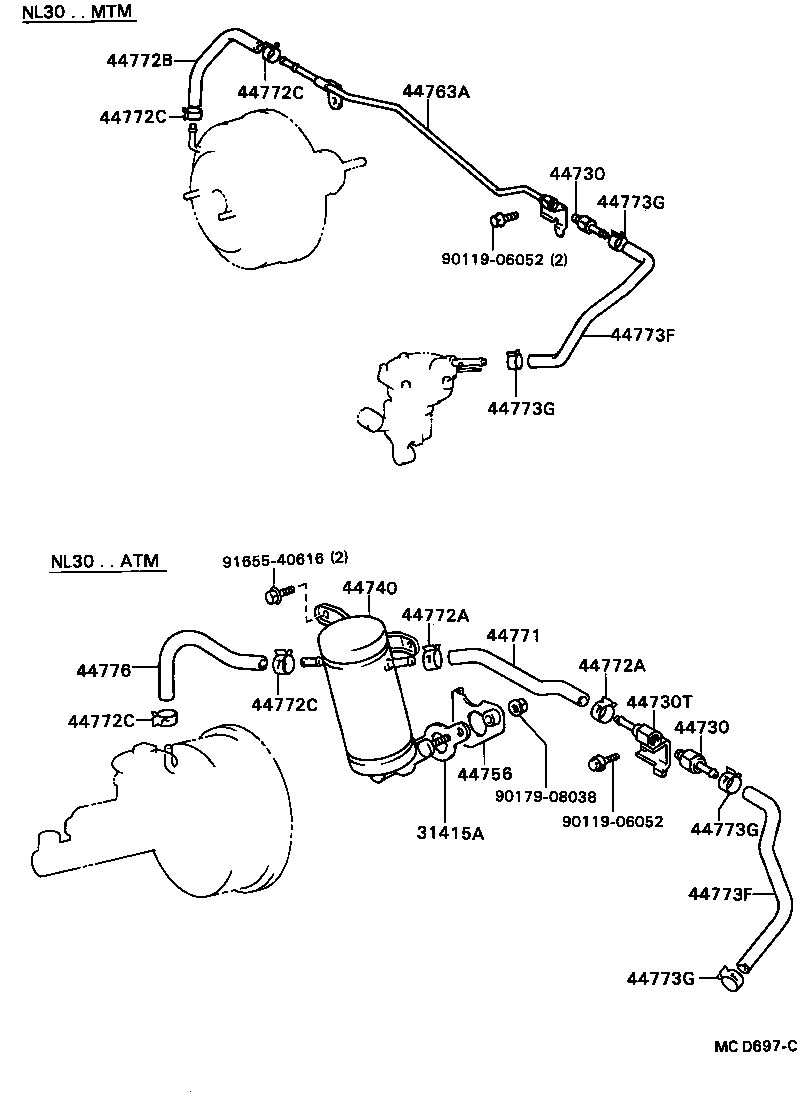

ILLUST NO. 2 OF 2(8605- )NL30
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
NL30 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-60040 |
NL30 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-16020 |
NL30..5F |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-16060 |
NL30..5F |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
EL3#,NL30 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
EL3#,NL30 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
EL3#,NL30 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
EL3#,NL30 |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-16070 |
NL30 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-16070 |
NL30 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
NL30 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
NL30 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
NL30 |
2 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
NL30 |
2 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90179-08038 | ||||
| 91655-40616 | ||||
ILLUST NO. 1 OF 2(8805-8903)EFI ; (8805- )CBR,TD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08038 | ||||
| Linked diagrams | ||||
| 8401 | ||||
