NL30-KHMDX (1986)
Toyota Corolla 2

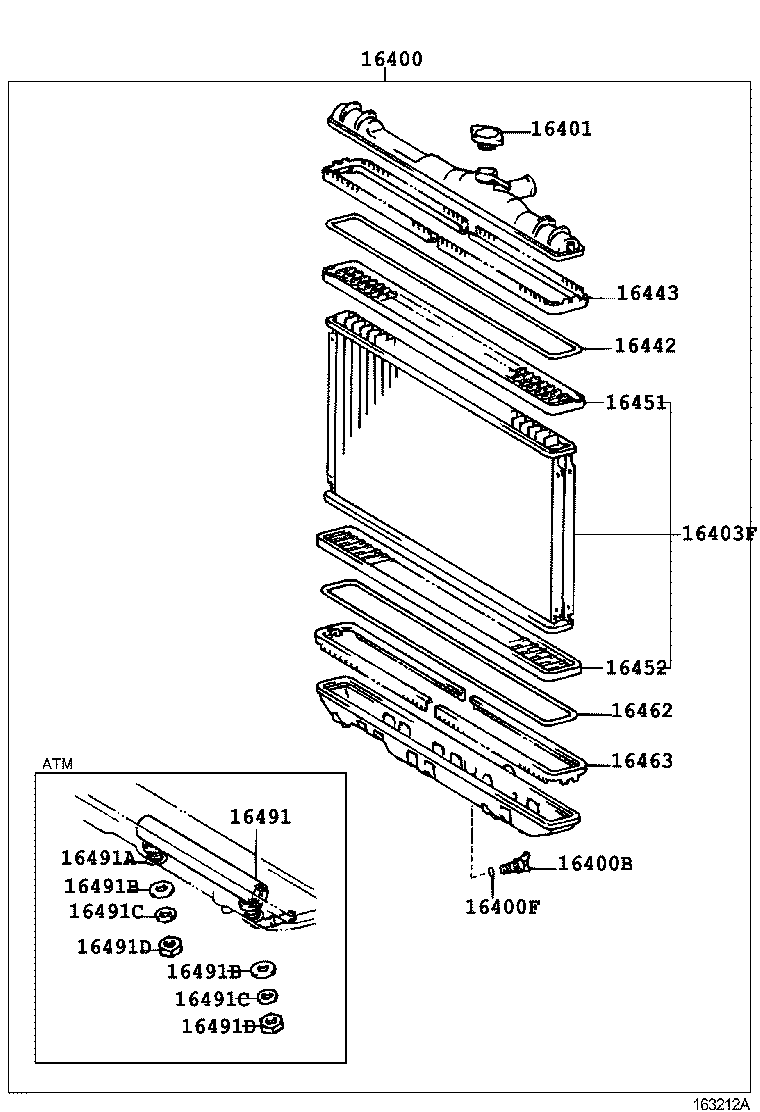

ILLUST NO. 2 OF 2(8605- )1NT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-55011 |
1NT..NL30..5F |
1 | ||
| 16400-55010 |
1NT..NL30..5F |
1 | ||
| 16400-55012 |
1NT..NL30..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1NT..NL30 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
1NT..NL30 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1NT..NL30 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-55010 |
1NT..NL30 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16462-63030 |
1NT..NL30 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16463-15320 |
1NT..NL30 |
2 | ||
| 16451 - PLATE, RADIATOR CORE, UPPER | ||||
| 16452-64070 |
1NT..NL30 |
1 | ||
| 16452 - PLATE, RADIATOR CORE, LOWER | ||||
| 16452-64070 |
1NT..NL30 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-63030 |
1NT..NL30 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16463-15320 |
1NT..NL30 |
2 | ||

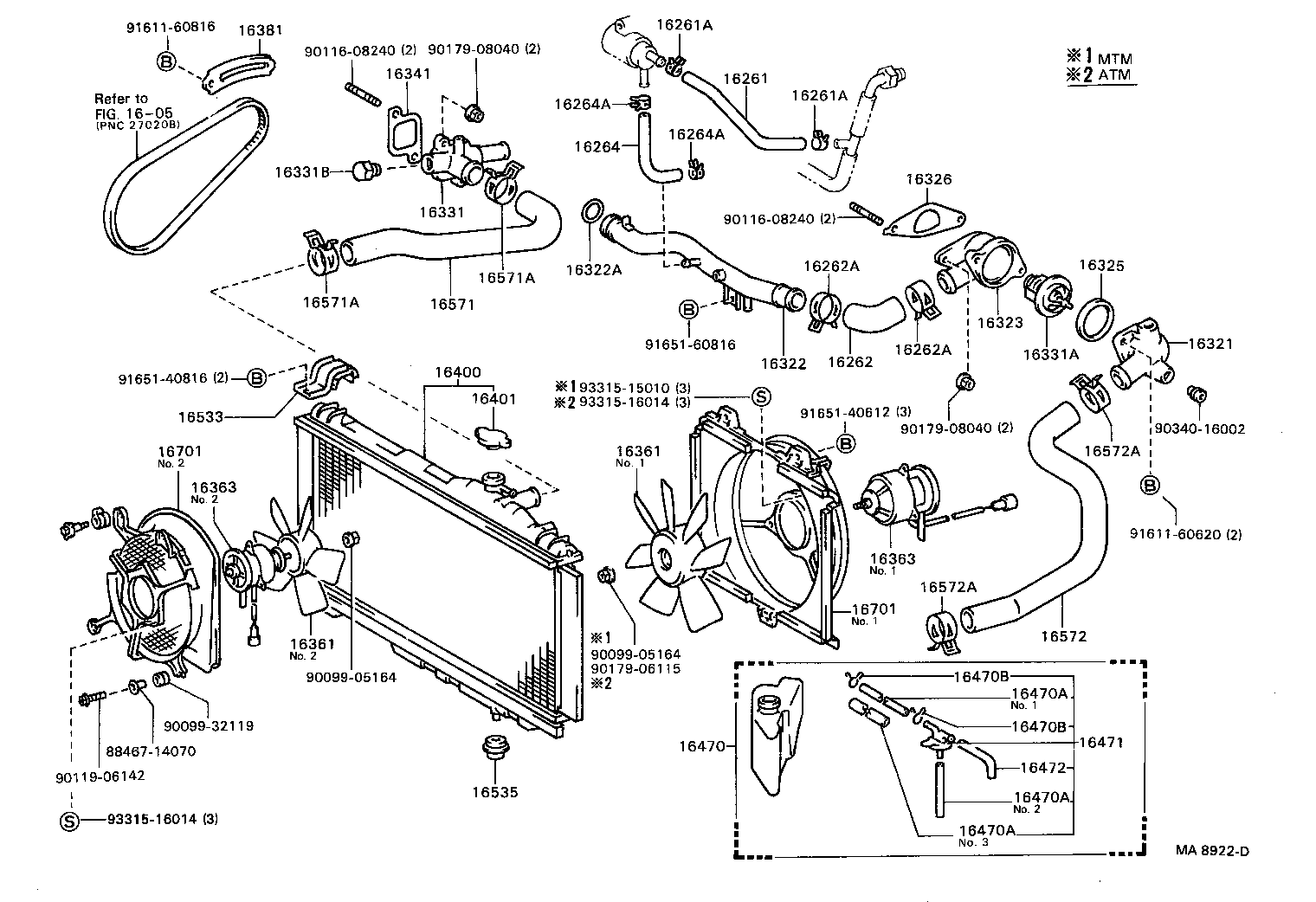

ILLUST NO. 1 OF 2(8605- )1NT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-55010 |
1NT..NL30 |
1 | ||
| 16261-55030 |
1NT..NL30 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1NT..NL30 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
1NT..NL30 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-55010 |
1NT..NL30 |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37001 |
1NT..NL30 |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37001 |
1NT..NL30 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-55010 |
1NT..NL30 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1NT..NL30 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
1NT..NL30 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-55010 |
1NT..NL30 |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-55020 |
1NT..NL30 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96711-35031 |
1NT..NL30 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-55010 |
1NT..NL30 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
1NT..NL30 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-55010 |
1NT..NL30 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-55010 |
1NT..NL30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1NT..NL30 *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53001 |
1NT..NL30..5F |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-55010 |
1NT..NL30 |
1 | ||
| 16361 - FAN | ||||
| 16361-55010 |
1NT..NL30..5F |
1 | ||
| 16361 - FAN | ||||
| 16361-55010 |
1NT..NL30..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-55010 |
1NT..NL30..5F |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-55010 |
1NT..NL30..5F |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-55010 |
1NT..NL30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-55011 |
1NT..NL30..5F |
1 | ||
| 16400-55010 |
1NT..NL30..5F |
1 | ||
| 16400-55012 |
1NT..NL30..5F |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
1NT..NL30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-55010 |
1NT..NL30 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-70070 |
1NT..NL30 NO.3 |
1 | ||
| 90445-12078 |
1NT..NL30 *H,L=300,NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-70070 |
1NT..NL30 NO.3 |
1 | ||
| 90445-12078 |
1NT..NL30 *H,L=300,NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 85338-70070 |
1NT..NL30 NO.3 |
1 | ||
| 90445-12078 |
1NT..NL30 *H,L=300,NO.1,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NT..NL30 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NT..NL30 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-55010 |
1NT..NL30 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-12020 |
1NT..NL30 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-55011 |
1NT..NL30 |
2 | ||
| 16533-55010 |
1NT..NL30 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-55010 |
1NT..NL30 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-55010 |
1NT..NL30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
1NT..NL30 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
1NT..NL30 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-55010 |
1NT..NL30..5F |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
1NT..NL30 RADIATOR SIDE |
1 | ||
| 90467-34003 |
1NT..NL30 INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34001 |
1NT..NL30 RADIATOR SIDE |
1 | ||
| 90467-34003 |
1NT..NL30 INLET SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-55010 |
1NT..NL30..5F |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-55010 |
1NT..NL30..5F |
1 | ||
| Common parts | ||||
| 88467-14070 | ||||
| 90099-05164 | ||||
| 90099-32119 | ||||
| 90116-08240 | ||||
| 90119-06142 | ||||
| 90179-06115 | ||||
| 90179-08040 | ||||
| 90340-16002 | ||||
| 91611-60620 | ||||
| 91611-60816 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 93315-15010 | ||||
| 93315-16014 | ||||
| Linked diagrams | ||||
| 1605 | ||||
