NL30-KHMDX (1986)
Toyota Corolla 2
(8605- )1NT

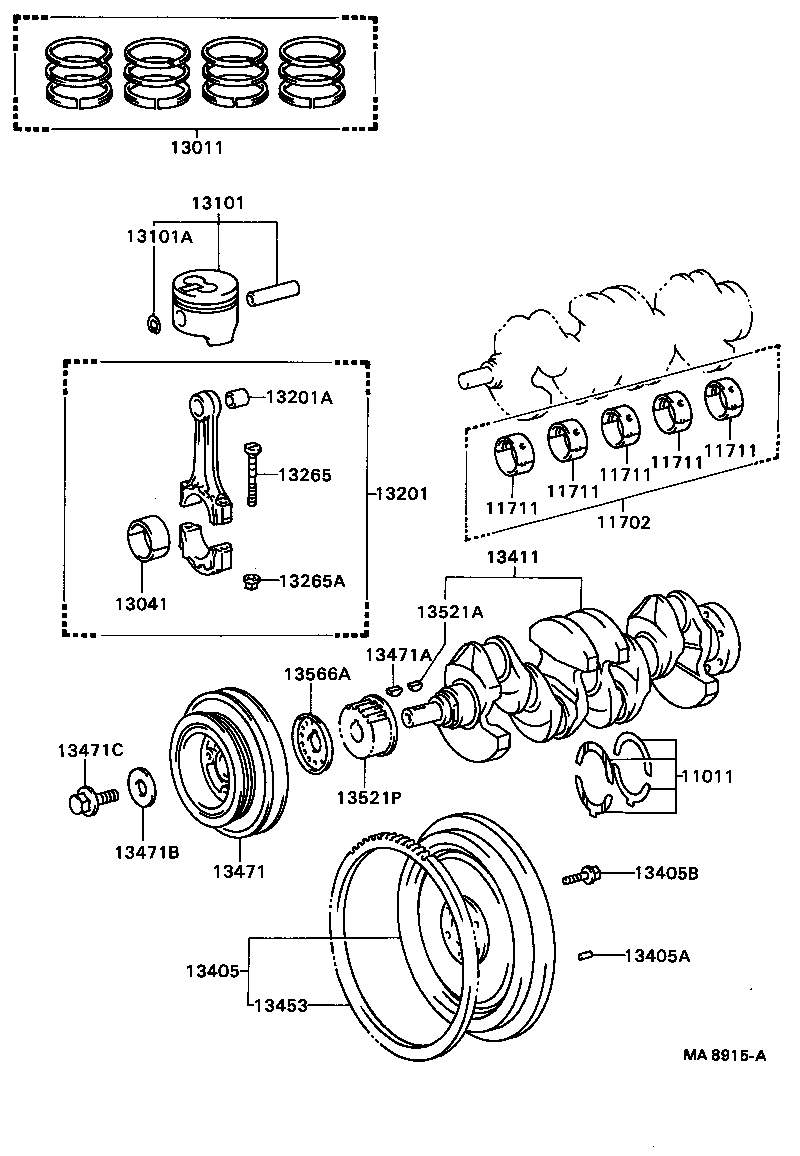

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-22011 |
1NT..NL30 O/S 0.250,O/S 0.25 |
1 | ||
| 11012-22011 |
1NT..NL30 O/S 0.125,O/S 0.125 |
1 | ||
| 11011-22011 |
1NT..NL30 STD,STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-55010 |
1NT..NL30 U/S 0.50,U/S 0.50 |
1 | ||
| 11704-55010 |
1NT..NL30 U/S 0.25,U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5501002 |
1NT..NL30 MARK"2",MARK 2 |
1 | ||
| 11701-5501001 |
1NT..NL30 MARK"1",MARK 1 |
1 | ||
| 11701-5501003 |
1NT..NL30 MARK"3",MARK 3 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5501002 |
1NT..NL30 MARK"2",MARK 2 |
1 | ||
| 11701-5501001 |
1NT..NL30 MARK"1",MARK 1 |
1 | ||
| 11701-5501003 |
1NT..NL30 MARK"3",MARK 3 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5501002 |
1NT..NL30 MARK"2",MARK 2 |
1 | ||
| 11701-5501001 |
1NT..NL30 MARK"1",MARK 1 |
1 | ||
| 11701-5501003 |
1NT..NL30 MARK"3",MARK 3 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5501002 |
1NT..NL30 MARK"2",MARK 2 |
1 | ||
| 11701-5501001 |
1NT..NL30 MARK"1",MARK 1 |
1 | ||
| 11701-5501003 |
1NT..NL30 MARK"3",MARK 3 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5501002 |
1NT..NL30 MARK"2",MARK 2 |
1 | ||
| 11701-5501001 |
1NT..NL30 MARK"1",MARK 1 |
1 | ||
| 11701-5501003 |
1NT..NL30 MARK"3",MARK 3 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-55010 |
1NT..NL30 STD,STD |
1 | ||
| 13013-55010 |
1NT..NL30 O/S 0.50,O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5501003 |
1NT..NL30 MARK"3",MARK 3 |
4 | ||
| 13041-5501001 |
1NT..NL30 MARK"1",MARK 1 |
4 | ||
| 13041-5501002 |
1NT..NL30 MARK"2",MARK 2 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13103-55010 |
1NT..NL30 O/S 0.50,O/S 0.50 |
4 | ||
| 13101-5501003 |
1NT..NL30 STD,STD,MARK 3,MARK3 |
4 | ||
| 13101-55010 |
1NT..NL30 STD,STD |
4 | ||
| 13101-5501001 |
1NT..NL30 STD,STD,MARK 1,MARK1 |
4 | ||
| 13101-5501002 |
1NT..NL30 STD,STD,MARK 2,MARK2 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25003 |
1NT..NL30 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59075 |
1NT..NL30 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73109 |
1NT..NL30 |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-55011 |
1NT..NL30 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-08014 |
1NT..NL30 |
8 | ||
| 90179-08118 |
1NT..NL30 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-55010 |
1NT..NL30..5F |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
1NT..NL30..5F 長さ=18,外径=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10071 |
1NT..NL30..5F |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-55900 |
1NT..NL30 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-55010 |
1NT..NL30..5F |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-55010 |
1NT..NL30 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-10519 |
1NT..NL30 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90201-13019 |
1NT..NL30 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12060 |
1NT..NL30 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
1NT..NL30 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-55010 |
1NT..NL30 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-55010 |
1NT..NL30 |
1 | ||
