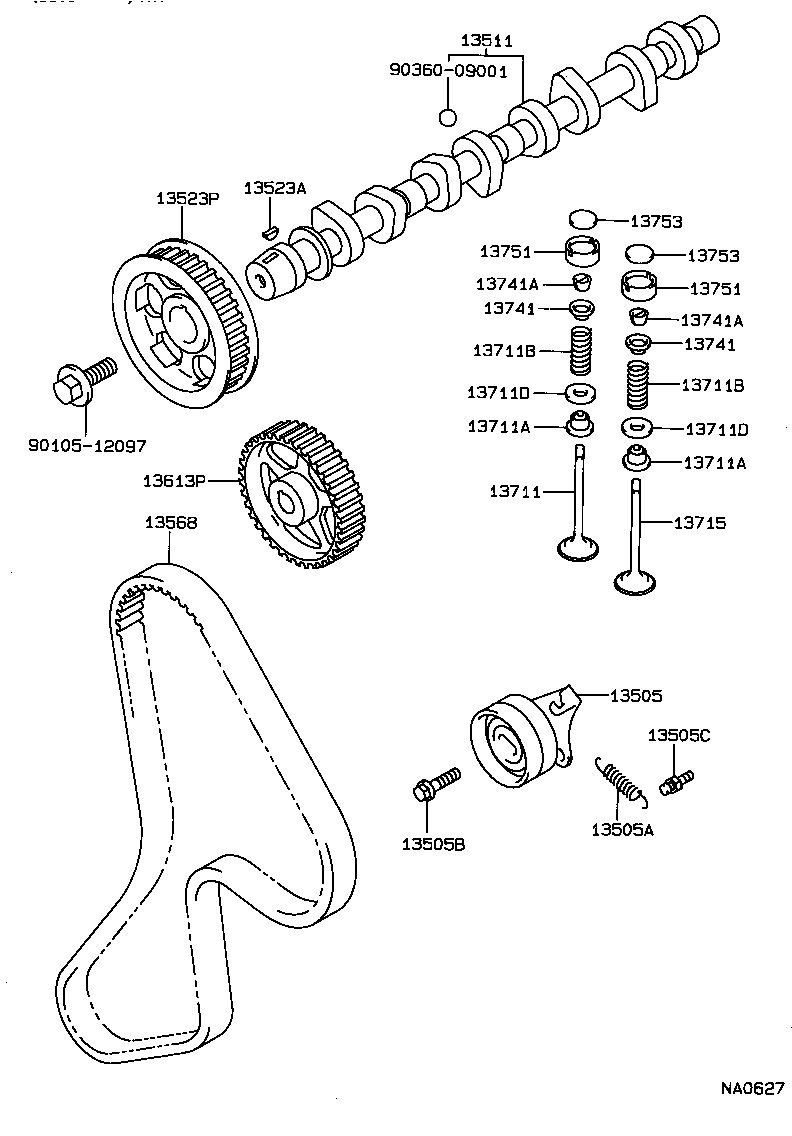

Toyota Corolla 2 NL30 CAMSHAFT & VALVE

Part #	Description	Period	Qty
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-55020	1NT..NL30	05/1988 - 09/1990	1
13505A - SPRING, TENSION(FOR IDLER)
90506-19002	1NT..NL30	05/1988 - 09/1990	1
13505B - BOLT, FLANGE (FOR IDLER)
90119-08449	1NT..NL30	05/1988 - 09/1990	1
13505C - PIN(FOR IDLER SPRING TENSION)
13575-55010	1NT..NL30	05/1988 - 09/1990	1
13511 - CAMSHAFT
13501-55020	1NT..NL30	05/1988 - 09/1990	1
13523A - KEY, WOODRUFF(FOR TIMING GEAR)
90280-05004	1NT..NL30	05/1988 - 09/1990	1
13523P - PULLEY, CAMSHAFT TIMING
13051-64011	1NT..NL30	05/1988 - 09/1990	1
13568 - BELT, TIMING
13568-55010	1NT..NL30	05/1988 - 09/1990	1
13613P - PULLEY, INJECTION PUMP DRIVE
13613-64011	1NT..NL30	05/1988 - 09/1990	1
13711 - VALVE, INTAKE
13711-55010	1NT..NL30	05/1988 - 09/1990	4
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02062	1NT..NL30	05/1988 - 09/1990	8
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02062	1NT..NL30	05/1988 - 09/1990	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-35014	1NT..NL30	05/1988 - 09/1990	8
13711B - SPRING, COMPRESSION(FOR INNER)
90501-35014	1NT..NL30	05/1988 - 09/1990	8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-19008	1NT..NL30	05/1988 - 09/1990	8
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-19008	1NT..NL30	05/1988 - 09/1990	8
13715 - VALVE, EXHAUST
13715-55010	1NT..NL30	05/1988 - 09/1990	4
13741 - RETAINER, VALVE SPRING
13741-10020	1NT..NL30	05/1988 - 09/1990	8
13741 - RETAINER, VALVE SPRING
13741-10020	1NT..NL30	05/1988 - 09/1990	8
13741A - LOCK, VALVE SPRING RETAINER
90913-03021	1NT..NL30	05/1988 - 09/1990	16
13741A - LOCK, VALVE SPRING RETAINER
90913-03021	1NT..NL30	05/1988 - 09/1990	16
13751 - LIFTER, VALVE
13751-55010	1NT..NL30	05/1988 - 09/1990	8
13751 - LIFTER, VALVE
13751-55010	1NT..NL30	05/1988 - 09/1990	8
13753 - SHIM, VALVE ADJUSTING
13753-55030	1NT..NL30 厚さ=2.55	05/1988 - 09/1990	8
13753-55110	1NT..NL30 厚さ=2.75	05/1988 - 09/1990	8
13753-55170	1NT..NL30 厚さ=2.90	05/1988 - 09/1990	8
13753-55230	1NT..NL30 厚さ=3.05	05/1988 - 09/1990	8
13753-55210	1NT..NL30 厚さ=3.00	05/1988 - 09/1990	8
13753-55070	1NT..NL30 厚さ=2.65	05/1988 - 09/1990	8
13753-55050	1NT..NL30 厚さ=2.60	05/1988 - 09/1990	8
13753-55150	1NT..NL30 厚さ=2.85	05/1988 - 09/1990	8
13753-55010	1NT..NL30 厚さ=2.50	05/1988 - 09/1990	8
13753-55270	1NT..NL30 厚さ=3.15	05/1988 - 09/1990	8
13753-55090	1NT..NL30 厚さ=2.70	05/1988 - 09/1990	8
13753-55190	1NT..NL30 厚さ=2.95	05/1988 - 09/1990	8
13753-55130	1NT..NL30 厚さ=2.80	05/1988 - 09/1990	8
13753-55310	1NT..NL30 厚さ=3.25	05/1988 - 09/1990	8
13753-55250	1NT..NL30 厚さ=3.10	05/1988 - 09/1990	8
13753-55330	1NT..NL30 厚さ=3.33	05/1988 - 09/1990	8
13753-55290	1NT..NL30 厚さ=3.20	05/1988 - 09/1990	8
13753 - SHIM, VALVE ADJUSTING
13753-55030	1NT..NL30 厚さ=2.55	05/1988 - 09/1990	8
13753-55110	1NT..NL30 厚さ=2.75	05/1988 - 09/1990	8
13753-55170	1NT..NL30 厚さ=2.90	05/1988 - 09/1990	8
13753-55230	1NT..NL30 厚さ=3.05	05/1988 - 09/1990	8
13753-55210	1NT..NL30 厚さ=3.00	05/1988 - 09/1990	8
13753-55070	1NT..NL30 厚さ=2.65	05/1988 - 09/1990	8
13753-55050	1NT..NL30 厚さ=2.60	05/1988 - 09/1990	8
13753-55150	1NT..NL30 厚さ=2.85	05/1988 - 09/1990	8
13753-55010	1NT..NL30 厚さ=2.50	05/1988 - 09/1990	8
13753-55270	1NT..NL30 厚さ=3.15	05/1988 - 09/1990	8
13753-55090	1NT..NL30 厚さ=2.70	05/1988 - 09/1990	8
13753-55190	1NT..NL30 厚さ=2.95	05/1988 - 09/1990	8
13753-55130	1NT..NL30 厚さ=2.80	05/1988 - 09/1990	8
13753-55310	1NT..NL30 厚さ=3.25	05/1988 - 09/1990	8
13753-55250	1NT..NL30 厚さ=3.10	05/1988 - 09/1990	8
13753-55330	1NT..NL30 厚さ=3.33	05/1988 - 09/1990	8
13753-55290	1NT..NL30 厚さ=3.20	05/1988 - 09/1990	8
Common parts
90105-12097
90360-09001

NL30-KGPNX (1988)

(8805- )1NT
