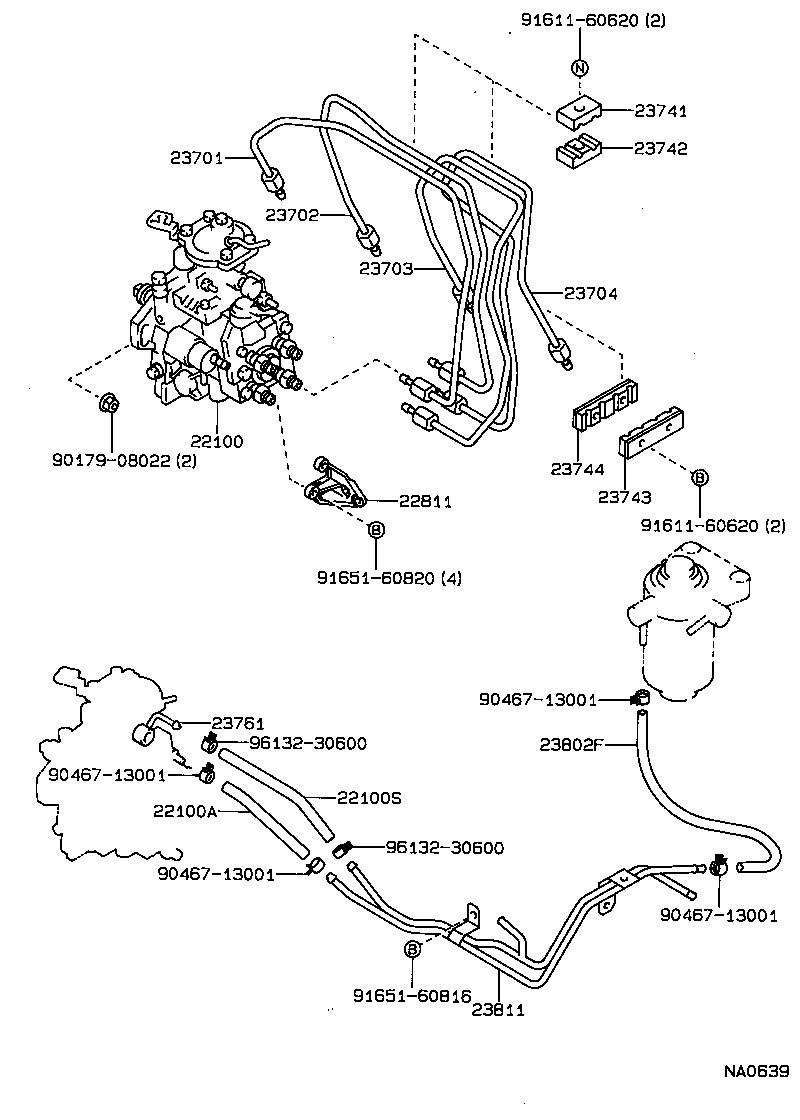

Toyota Corolla 2 NL30 INJECTION PUMP ASSEMBLY

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-55120	1NT..NL30..4FC	05/1988 - 09/1990	1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95333-08010	1NT..NL30 *H,L=100	05/1988 - 09/1990	1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23273-55010	1NT..NL30	05/1988 - 09/1990	1
22811 - STAY, INJECTION PUMP, NO.1
22811-55010	1NT..NL30	05/1988 - 09/1990	1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-55010	1NT..NL30 東海ｺﾞﾑ	10/1988 - 09/1990	1
23701-55020	1NT..NL30 東海ｺﾞﾑ	05/1988 - 10/1988	1
23701-55010	1NT..NL30 SANOU	05/1988 - 09/1990	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-55020	1NT..NL30 東海ｺﾞﾑ	05/1988 - 10/1988	1
23702-55010	1NT..NL30 SANOU	05/1988 - 09/1990	1
23702-55010	1NT..NL30 東海ｺﾞﾑ	10/1988 - 09/1990	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-55020	1NT..NL30 東海ｺﾞﾑ	05/1988 - 10/1988	1
23703-55010	1NT..NL30 SANOU	05/1988 - 09/1990	1
23703-55010	1NT..NL30 東海ｺﾞﾑ	10/1988 - 09/1990	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-55010	1NT..NL30 東海ｺﾞﾑ	10/1988 - 09/1990	1
23704-55020	1NT..NL30 東海ｺﾞﾑ	05/1988 - 10/1988	1
23704-55010	1NT..NL30 SANOU	05/1988 - 09/1990	1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-54010	1NT..NL30	05/1988 - 09/1990	2
23742 - CLAMP, INJECTION PIPE, NO.2
23742-54010	1NT..NL30	05/1988 - 09/1990	2
23743 - CLAMP, INJECTION PIPE, NO.3
23741-64020	1NT..NL30	05/1988 - 09/1990	1
23744 - CLAMP, INJECTION PIPE, NO.4
23742-55010	1NT..NL30	05/1988 - 09/1990	1
23761 - PIPE, NOZZLE LEAKAGE, NO.1
23764-55010	1NT..NL30	05/1988 - 09/1990	1
23802F - HOSE, FUEL
95333-08030	1NT..NL30	05/1988 - 09/1990	1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-55010	1NT..NL30	05/1988 - 09/1990	1
Common parts
90179-08022
90467-13001
91611-60620
91651-60816
91651-60820
96132-30600

NL30-KGPDX (1988)

(8805- )1NT
