Toyota Corolla 2 NL30 WIRING & CLAMP

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-16680	NL30..5F	05/1988 - 09/1990	1
82121 - WIRE, ENGINE
82121-16252	NL30..5F	05/1988 - 09/1990	1
82131 - WIRE, COWL
82131-1G290	NL30..5F..(GL,TX)	05/1988 - 09/1990	1
82210C - FUSIBLE LINK
90982-08203	NL30 80A,ｵｽ端子,黒	05/1988 - 12/1988	2
90982-08203	NL30 80A,ｵｽ端子,黒	12/1989 - 09/1990	2
90982-08188	EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ	05/1988 - 09/1990	1
90982-08253	NL30 80A,ｵｽ端子,黒	12/1988 - 12/1989	2
82210C - FUSIBLE LINK
90982-08203	NL30 80A,ｵｽ端子,黒	05/1988 - 12/1988	2
90982-08203	NL30 80A,ｵｽ端子,黒	12/1989 - 09/1990	2
90982-08188	EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ	05/1988 - 09/1990	1
90982-08253	NL30 80A,ｵｽ端子,黒	12/1988 - 12/1989	2
82210C - FUSIBLE LINK
90982-08203	NL30 80A,ｵｽ端子,黒	05/1988 - 12/1988	2
90982-08203	NL30 80A,ｵｽ端子,黒	12/1989 - 09/1990	2
90982-08188	EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ	05/1988 - 09/1990	1
90982-08253	NL30 80A,ｵｽ端子,黒	12/1988 - 12/1989	2
82625 - TERMINAL, FUSIBLE LINK
82625-12020	NL30..5F	05/1988 - 09/1990	1
82671 - BLOCK, JUNCTION
82660-12130	EL3#,NL30	05/1988 - 09/1990	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-22280	EL3#,NL30	05/1988 - 09/1990	1
82823 - CAP, TERMINAL, NO.1
82823-22050	EL3#,NL30 ALTERNATOR	05/1988 - 09/1990	1
82823-20030	EL3#;NL30..5F STARTER	05/1988 - 02/1989	1
82823 - CAP, TERMINAL, NO.1
82823-22050	EL3#,NL30 ALTERNATOR	05/1988 - 09/1990	1
82823-20030	EL3#;NL30..5F STARTER	05/1988 - 02/1989	1
Common parts
90105-10122
90119-06005
90119-06053
90179-08146
91651-40612
91656-40616
Linked diagrams
8201
8401

Part #	Description	Period	Qty
82161 - WIRE, FLOOR
82161-16120	EL30,NL30..3DS	05/1988 - 09/1990	1
82171 - WIRE, ROOF, NO.1
82171-16060	EL3#,NL30	05/1988 - 09/1990	1
82184 - WIRE, BACK DOOR, NO.1
82184-16120	EL31,NL30..3DS;EL30..3DS..(GL,LIM)	05/1988 - 08/1988	1
82184-16120	EL30..3DS..(GL,LIM);EL31,NL30..3DS..(CBR,EFI,TD)	08/1988 - 09/1990	1
82185 - WIRE, BACK DOOR, NO.2
82185-16120	EL31,NL30..3DS;EL30..3DS..(GL,LIM)	05/1988 - 09/1990	1
82187 - WIRE, REAR WINDOW, NO.2
82187-16040	EL31,NL30..3DS;EL30..3DS..(GL,LIM)	05/1988 - 09/1990	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-16100	EL3#,NL30	05/1988 - 09/1990	1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-16190	EL31,NL30..3DS;EL30..3DS..(GL,LIM)	05/1988 - 09/1990	1
Common parts
82819-16110
90119-06049
90119-06067

Part #	Description	Period	Qty	Price
Common parts
82711-10250
82711-10290
82711-12200
82711-14110
82711-16370
82711-16420
82711-16430
82711-16450
82711-16460
82711-16480
82711-16490
82711-20610
82711-22300
82711-22540
82711-24010
82711-24070
82711-30550
82711-30660

NL30-KGMDX (1988)

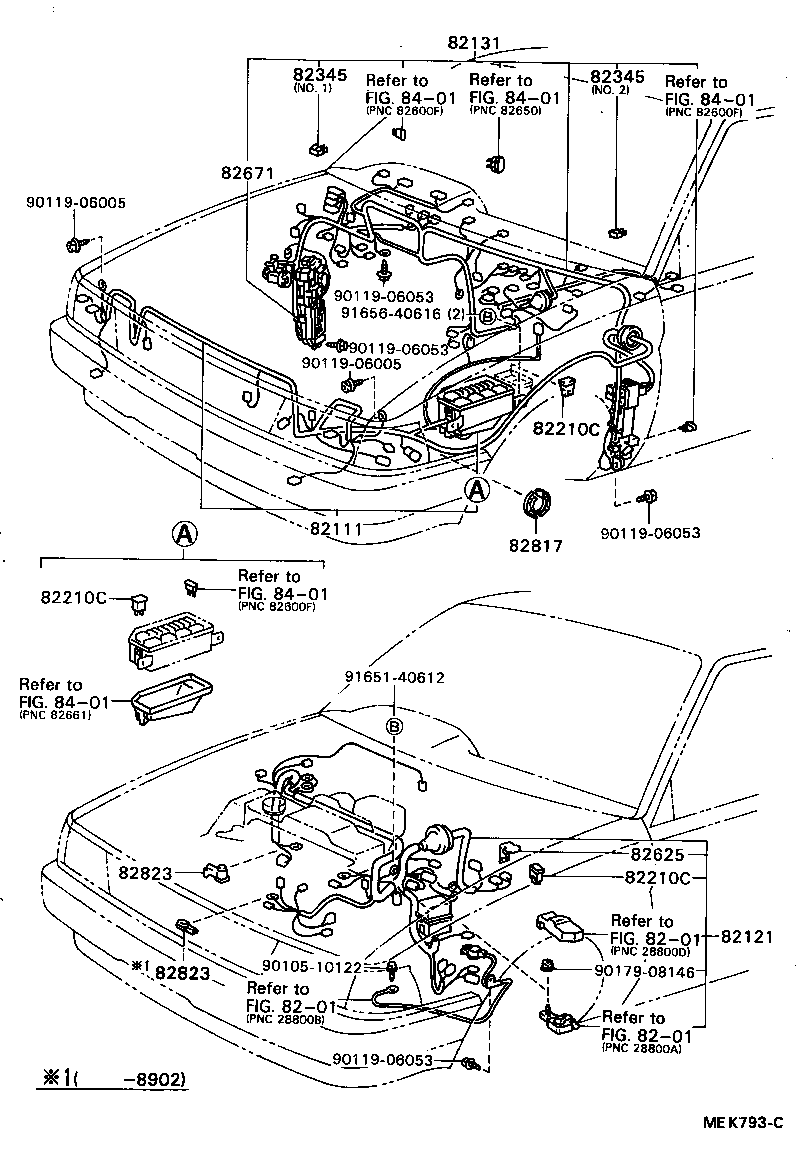

ILLUST NO. 1 OF 3(8805- )NL30

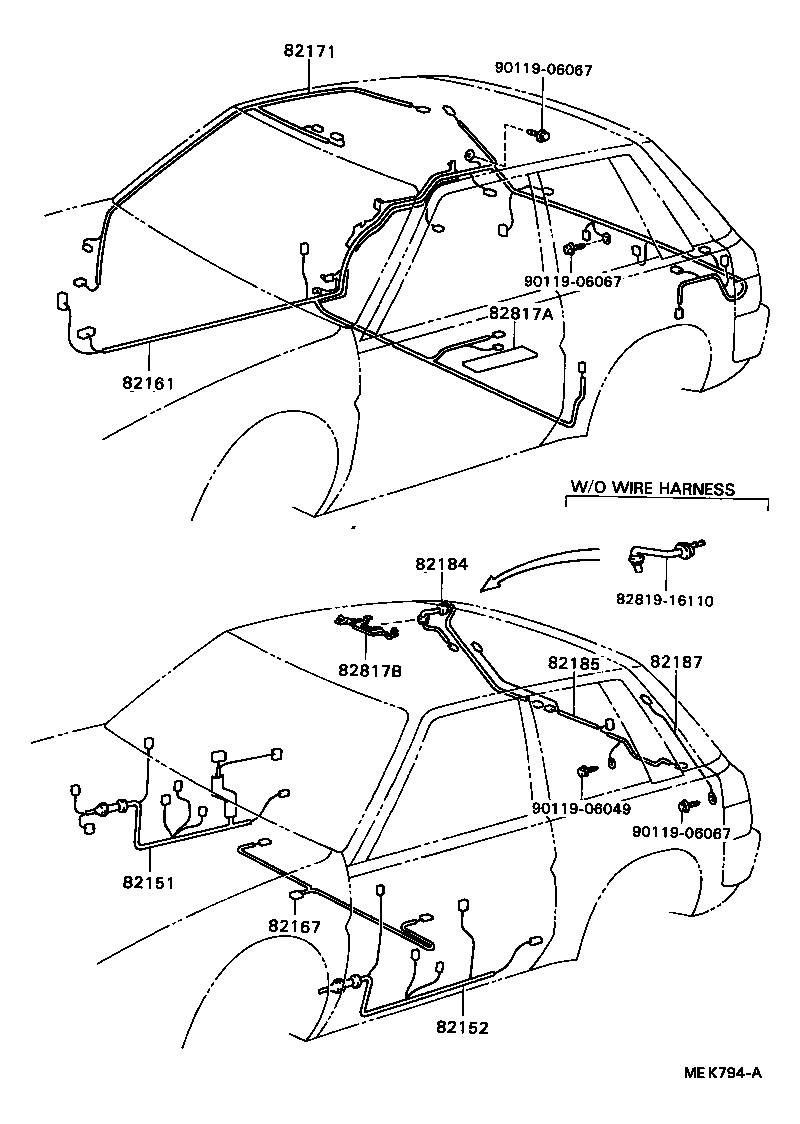

ILLUST NO. 2 OF 3(8805- )3DS

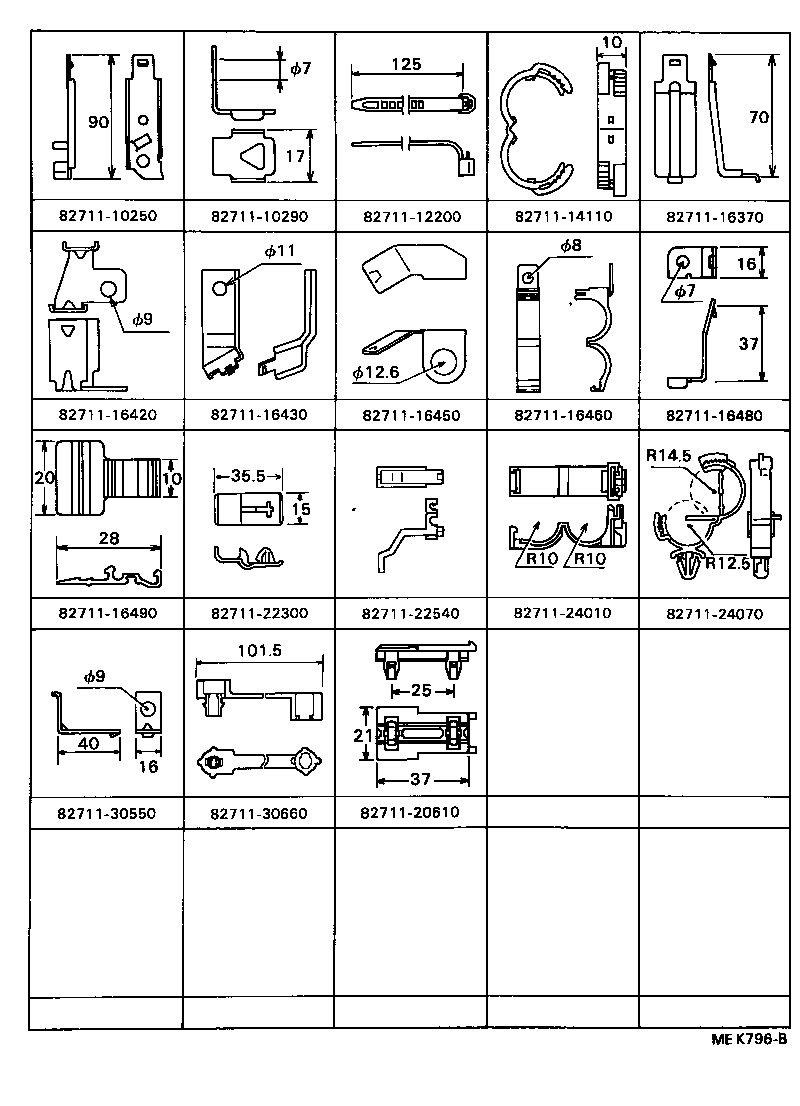

ILLUST NO. 3 OF 3(8805- )
