EL55-CGPSK (1994)
Toyota Corolla 2
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )

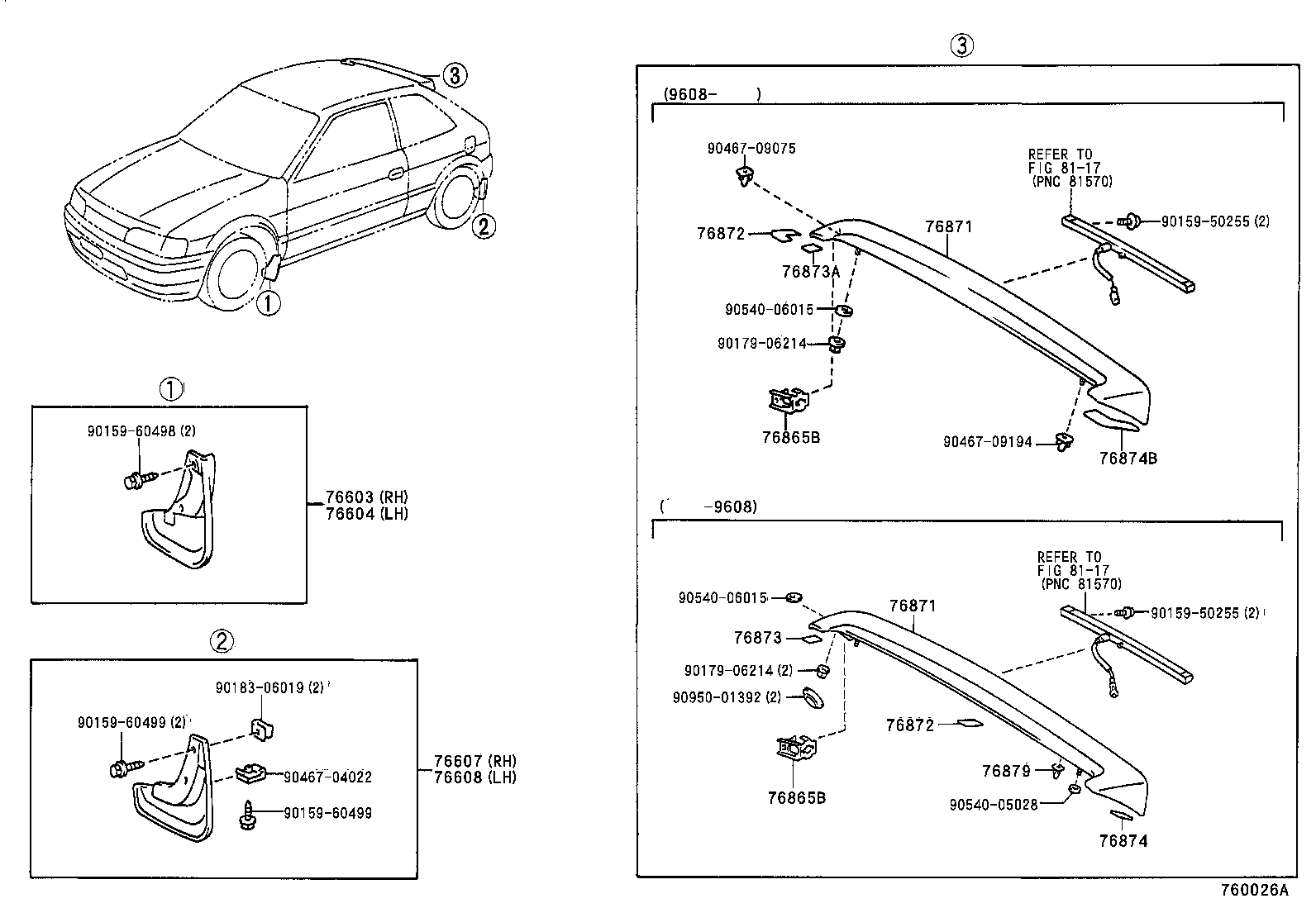

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-19265 |
EL5#,NL50 |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-19265 |
EL5#,NL50 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-19525 |
EL5#,NL50 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-19525 |
EL5#,NL50 |
1 | ||
| 76865B - RETAINER, REAR SPOILER | ||||
| 76865-16030 |
EL5#,NL50 |
1 | ||
| 76865B - RETAINER, REAR SPOILER | ||||
| 76865-16030 |
EL5#,NL50 |
1 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-16906 |
EL5#,NL50 |
1 | ||
| 76871-16901 |
EL5#,NL50 |
1 | ||
| 76871 - SPOILER, REAR | ||||
| 76871-16906 |
EL5#,NL50 |
1 | ||
| 76871-16901 |
EL5#,NL50 |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-16050 |
EL5#,NL50 |
2 | ||
| 76872-16080 |
EL5#,NL50 |
1 | ||
| 76872 - PROTECTOR, REAR SPOILER, NO.1 | ||||
| 76872-16050 |
EL5#,NL50 |
2 | ||
| 76872-16080 |
EL5#,NL50 |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-16070 |
EL5#,NL50 |
2 | ||
| 76873A - PROTECTOR, REAR SPOILER, RH | ||||
| 76873-16090 |
EL5#,NL50 |
1 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-16060 |
EL5#,NL50 |
2 | ||
| 76874B - PROTECTOR, REAR SPOILER, LH | ||||
| 76874-16070 |
EL5#,NL50 |
1 | ||
| 76879 - CLIP, REAR SPOILER, NO.1 | ||||
| 90467-09075 |
EL5#,NL50 |
3 | ||
| Common parts | ||||
| 90159-50255 | ||||
| 90159-60498 | ||||
| 90159-60499 | ||||
| 90179-06214 | ||||
| 90183-06019 | ||||
| 90467-04022 | ||||
| 90467-09075 | ||||
| 90467-09194 | ||||
| 90540-05028 | ||||
| 90540-06015 | ||||
| 90950-01392 | ||||
| Linked diagrams | ||||
| 8117 | ||||
