EL55-CGPSK (1994)
Toyota Corolla 2

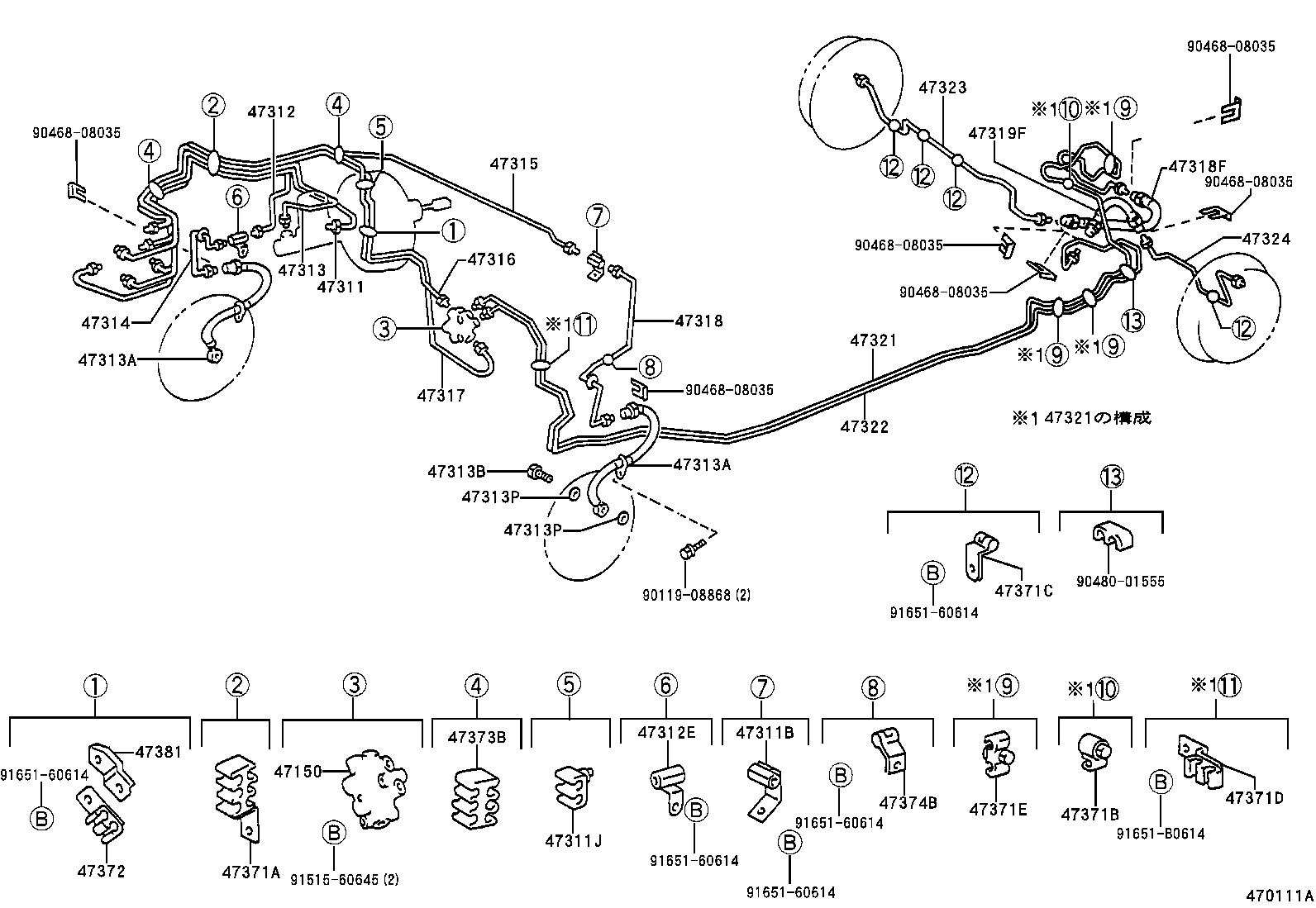

ILLUST NO. 1 OF 2(9409- )EL55
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12050 |
EL55 |
1 | ||
| 47150-20250 |
EL55 ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-10180 |
EL5# |
1 | ||
| 47311-16230 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47311-16170 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10259 |
EL5#,NL50 |
1 | ||
| 90904-12060 |
EL5#,NL50..ATM ｱﾘ(ABS) |
1 | ||
| 90412-10168 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47311J - GROMMET, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90949-01972 |
EL5#,NL50 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-16140 |
EL5#,NL50 |
1 | ||
| 47312-16150 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47312-16200 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10169 |
EL5#,NL50 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-16220 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47313-16170 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47313-16140 |
EL5#,NL50 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02814 |
EL5#,NL50 左側 |
1 | ||
| 90947-02813 |
EL5#,NL50 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02814 |
EL5#,NL50 左側 |
1 | ||
| 90947-02813 |
EL5#,NL50 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
EL5#,NL50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EL5#,NL50 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EL5#,NL50 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-10230 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47314-16090 |
EL5#,NL50 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-16120 |
EL5#,NL50 |
1 | ||
| 47315-16190 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47315-16140 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-16040 |
EL5#,NL50 |
1 | ||
| 47316-16090 |
EL5#,NL50 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-16040 |
EL5#,NL50 |
1 | ||
| 47317-16090 |
EL5#,NL50 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-16030 |
EL5#,NL50 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02796 |
EL55 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02797 |
EL55 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-16130 |
EL55 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-16120 |
EL55 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-16190 |
EL55 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-16180 |
EL55 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90461-06221 |
EL5#,NL50 |
1 | ||
| 47371-16060 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-10100 |
EL5#,NL50 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10763 |
EL55 |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-30010 |
EL5#,NL50 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-10050 |
EL55 |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-10738 |
EL5#,NL50 |
1 | ||
| 47371-10150 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01969 |
EL5#,NL50 ｱﾘ(ABS) |
2 | ||
| 90949-01207 |
EL5#,NL50 |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90461-06221 |
EL5#,NL50 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-10040 |
EL5#,NL50 |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90480-01555 | ||||
| 91515-60645 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||
ILLUST NO. 2 OF 2(9409- )
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-16070 |
EL5#,NL50 |
1 | ||
| 44510-10060 |
EL5#,NL50 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16080 |
EL5#,NL50 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16080 |
EL5#,NL50 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-16080 |
EL5#,NL50 |
3 | ||
| 44549 - BAND, BRAKE ACTUATOR | ||||
| 44549-16010 |
EL5#,NL50 |
1 | ||
| 44568 - NUT, BRAKE ACTUATOR | ||||
| 44568-16010 |
EL5#,NL50 |
3 | ||
| 44568 - NUT, BRAKE ACTUATOR | ||||
| 44568-16010 |
EL5#,NL50 |
3 | ||
| 44568 - NUT, BRAKE ACTUATOR | ||||
| 44568-16010 |
EL5#,NL50 |
3 | ||
| 44569 - WASHER, BRAKE ACTUATOR | ||||
| 44569-16010 |
EL5#,NL50 |
3 | ||
| 44569 - WASHER, BRAKE ACTUATOR | ||||
| 44569-16010 |
EL5#,NL50 |
3 | ||
| 44569 - WASHER, BRAKE ACTUATOR | ||||
| 44569-16010 |
EL5#,NL50 |
3 | ||
| 44577 - BRACKET, BRAKE ACTUATOR MOUNT | ||||
| 44577-16080 |
EL5#,NL50 |
1 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-16080 |
EL5#,NL50 |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-16080 |
EL5#,NL50 |
3 | ||
| 44578 - BOLT, BRAKE ACTUATOR CUSHION | ||||
| 44578-16080 |
EL5#,NL50 |
3 | ||
| 44579 - BOLT, BRAKE ACTUATOR BRACKET | ||||
| 44579-16080 |
EL5#,NL50 |
2 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-16010 |
EL5#,NL50 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44590-10010 |
EL5#,NL50 |
1 | ||
| 44593-16020 |
EL5#,NL50 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44590-10010 |
EL5#,NL50 |
1 | ||
| 44593-16020 |
EL5#,NL50 |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-08189 | ||||
| 91651-60610 | ||||
| 94511-00800 | ||||

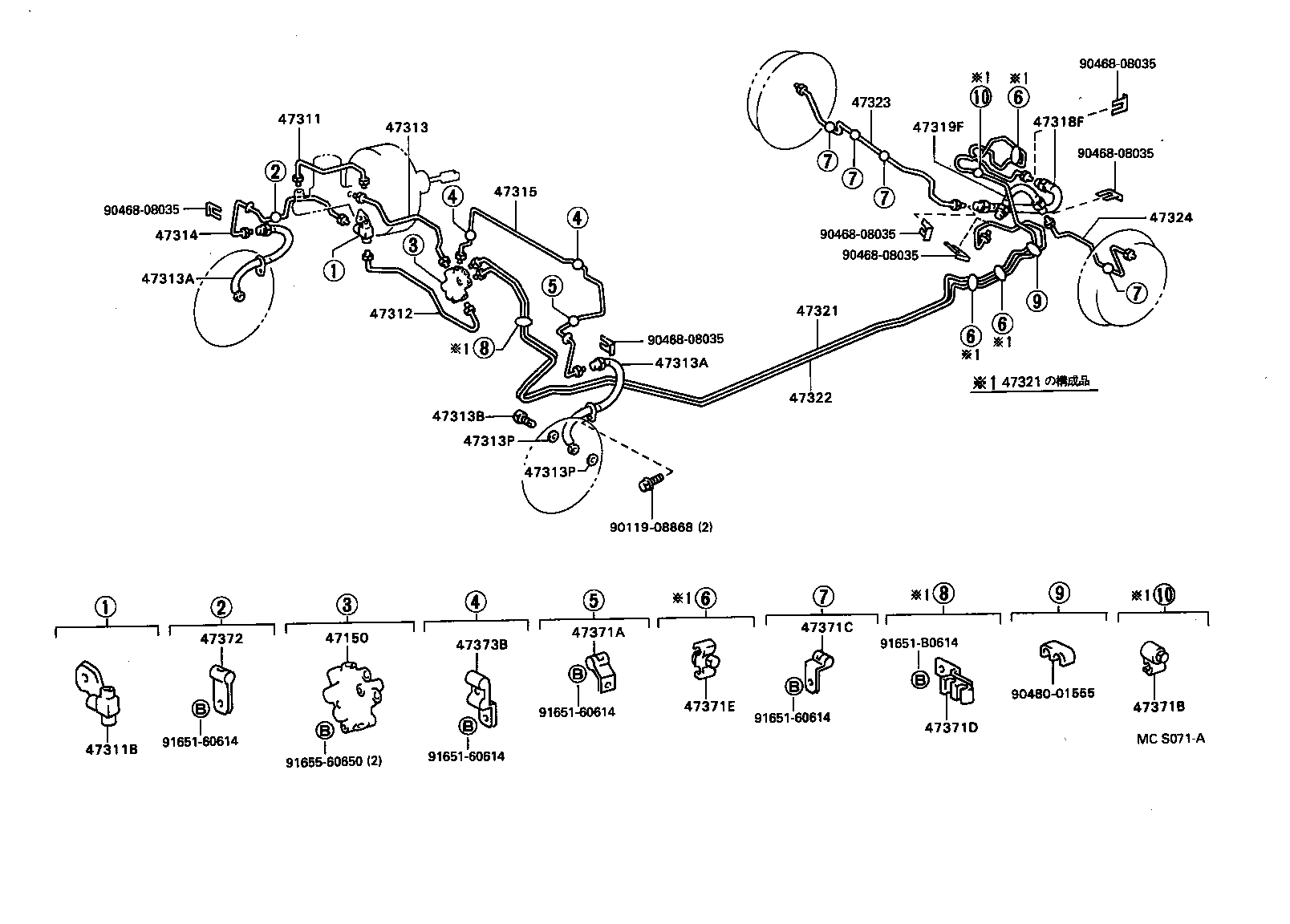

(9409-9608)EL55
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12050 |
EL55 |
1 | ||
| 47150-20250 |
EL55 ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-10180 |
EL5# |
1 | ||
| 47311-16230 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47311-16170 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10259 |
EL5#,NL50 |
1 | ||
| 90904-12060 |
EL5#,NL50..ATM ｱﾘ(ABS) |
1 | ||
| 90412-10168 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-16140 |
EL5#,NL50 |
1 | ||
| 47312-16150 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47312-16200 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-16220 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47313-16170 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47313-16140 |
EL5#,NL50 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02814 |
EL5#,NL50 左側 |
1 | ||
| 90947-02813 |
EL5#,NL50 右側 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02814 |
EL5#,NL50 左側 |
1 | ||
| 90947-02813 |
EL5#,NL50 右側 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
EL5#,NL50 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EL5#,NL50 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EL5#,NL50 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-10230 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47314-16090 |
EL5#,NL50 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-16120 |
EL5#,NL50 |
1 | ||
| 47315-16190 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47315-16140 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02796 |
EL55 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02797 |
EL55 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-16130 |
EL55 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-16130 |
EL55 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-16120 |
EL55 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-16190 |
EL55 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-16180 |
EL55 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90461-06221 |
EL5#,NL50 |
1 | ||
| 47371-16060 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-10100 |
EL5#,NL50 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-10763 |
EL55 |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-30010 |
EL5#,NL50 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-10050 |
EL55 |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90461-10738 |
EL5#,NL50 |
1 | ||
| 47371-10150 |
EL5#,NL50 ｱﾘ(ABS) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01969 |
EL5#,NL50 ｱﾘ(ABS) |
2 | ||
| 90949-01207 |
EL5#,NL50 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90480-01555 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||
| 91655-60650 | ||||
