EL55-CGPSK (1994)
Toyota Corolla 2
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )5EFE..EL55

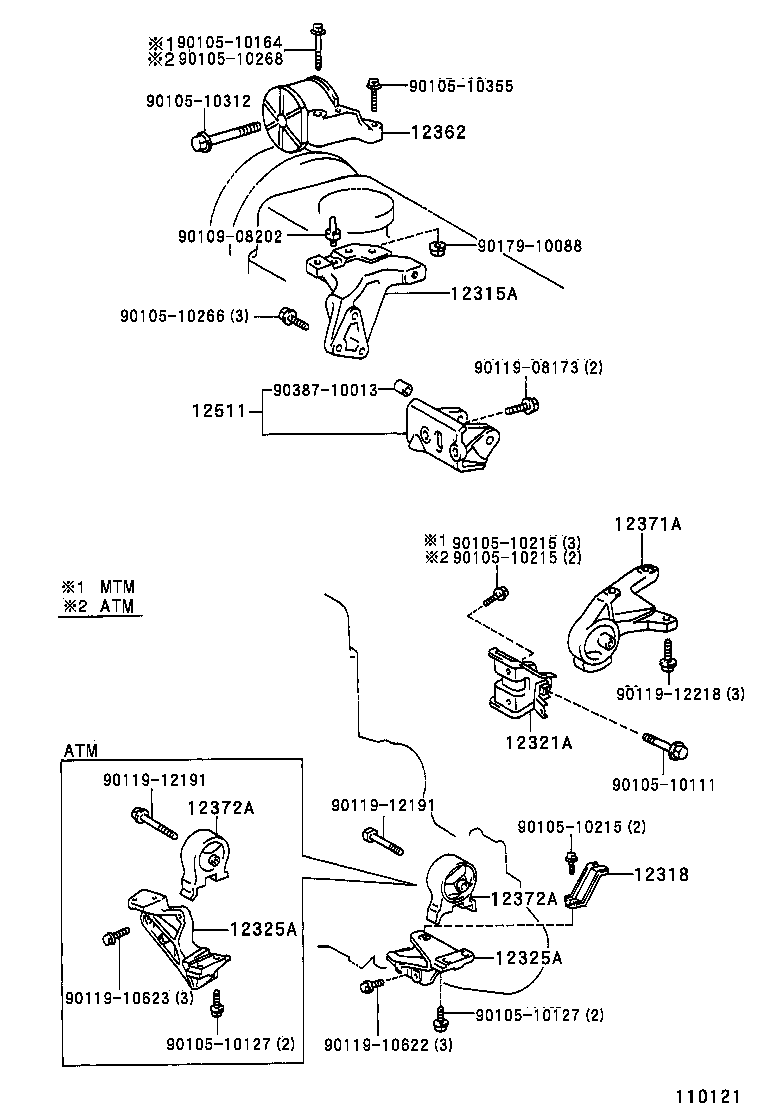

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-11040 |
4EFE,5EFE..EL5# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-11160 |
5EFE..EL55..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-11100 |
5EFE..EL55..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-11100 |
5EFE..EL55..4FC |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-11140 |
5EFE..EL53;5EFE..EL55..4FC |
1 | ||
| 12362-11300 |
5EFE..EL55..4FC;4EFE,5EFE..EL51,53 |
1 | ||
| 12362-11140 |
5EFE..EL55..4FC;4EFE,5EFE..EL51,53 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-11400 |
5EFE..EL55..4FC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-11210 |
5EFE..EL55..4FC |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-11210 |
5EFE..EL55..4FC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-11020 |
4EFE,5EFE..EL5# |
1 | ||
| Common parts | ||||
| 90105-10111 | ||||
| 90105-10127 | ||||
| 90105-10164 | ||||
| 90105-10215 | ||||
| 90105-10266 | ||||
| 90105-10268 | ||||
| 90105-10312 | ||||
| 90105-10355 | ||||
| 90109-08202 | ||||
| 90119-08173 | ||||
| 90119-10622 | ||||
| 90119-10623 | ||||
| 90119-12191 | ||||
| 90119-12218 | ||||
| 90179-10088 | ||||
| 90387-10013 | ||||
