EL55-CGPDK (1994)
Toyota Corolla 2

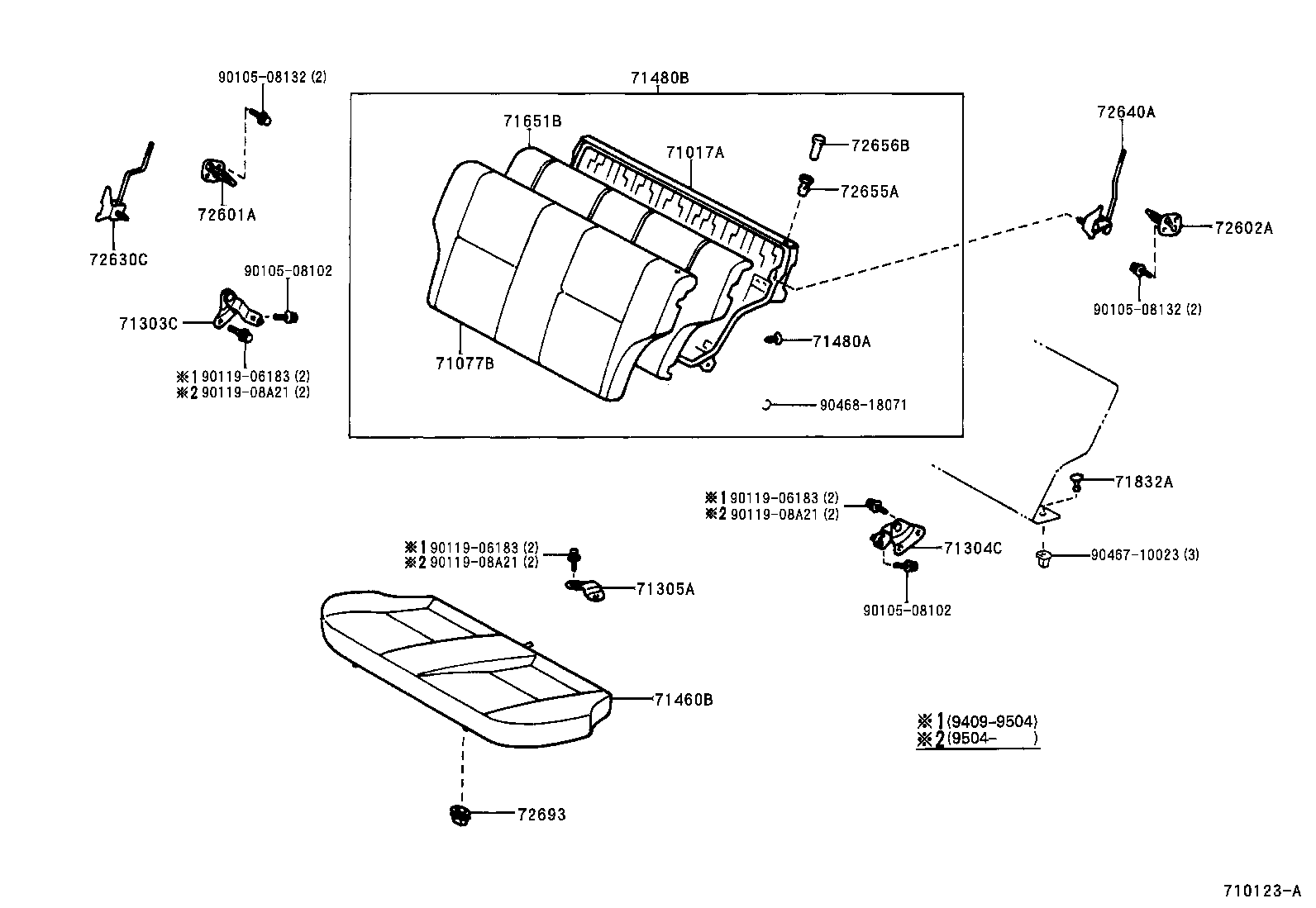

(9409-9712)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-16260 |
EL5#,NL50 |
1 | ||
| 71017-16180 |
EL5#,NL50 |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1G850B0 |
EL51,55..WIN ｽ-ﾊﾟ- ｳｲﾝﾃﾞｲ,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S070E0 |
EL51,55,NL50..WIN OAK,TRIM4# |
1 | ||
| 71077-1G690B0 |
EL51,55,NL50..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S080E0 |
EL51,55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71077-1S080B0 |
EL51,55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71077-1S070B0 |
EL51,55,NL50..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1G880B0 |
EL51,55,NL50..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-16060 |
EL5#,NL50 |
1 | ||
| 71303-16050 |
EL5#,NL50 |
1 | ||
| 71303-16070 |
EL5#,NL50 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-16010 |
EL5#,NL50 |
1 | ||
| 71304-16040 |
EL5#,NL50 |
1 | ||
| 71304-16050 |
EL5#,NL50 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71343-16090 |
EL5#,NL50 |
1 | ||
| 71343-16070 |
EL5#,NL50 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1G090B0 |
EL55..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G160B0 |
EL55..WIN ｽ-ﾊﾟ- ｳｲﾝﾃﾞｲ,BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G370B0 |
EL55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1G260B0 |
EL55..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G360B0 |
EL55..WIN SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1G370E0 |
EL55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71460-1G360E0 |
EL55..WIN OAK,TRIM4# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-07049C0 |
EL5#,NL50 BLACK,TRIM1#,4# |
5 | ||
| 90467-07049E2 |
EL5#,NL50 OAK,TRIM44 |
5 | ||
| 90467-07049B3 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
5 | ||
| 90467-07049P0 |
EL5#,NL50 SHADOW GRAY,TRIM18 |
5 | ||
| 90467-07049C0 |
EL5#,NL50 BLACK,TRIM1# |
5 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1S150E0 |
EL51,55,NL50..WIN ***,OAK,TRIM4# |
1 | ||
| 71480-1G840B0 |
EL51,55,NL50..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1S160B0 |
EL51,55..WIN ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1S070B0 |
EL51,55,NL50..WIN ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1S160E0 |
EL51,55..WIN ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71480-1S150B0 |
EL51,55,NL50..WIN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-16380 |
EL5#,NL50 |
1 | ||
| 71651-16340 |
EL5#,NL50 |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0702622 |
EL5#,NL50 BLACK,TRIM1#,4# |
3 | ||
| 90467-0702622 |
EL5#,NL50 BLACK,TRIM1# |
3 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-16070 |
EL5#,NL50 |
1 | ||
| 72601-16100 |
EL5#,NL50 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-16070 |
EL5#,NL50 |
1 | ||
| 72601-16100 |
EL5#,NL50 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-16220 |
EL5#,NL50 |
1 | ||
| 72630-16100 |
EL5#,NL50 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-16080 |
EL5#,NL50 |
1 | ||
| 72640-16150 |
EL5#,NL50 |
1 | ||
| 72655A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20050P0 |
EL5#,NL50 SHADOW GRAY,TRIM1# |
2 | ||
| 72646-20050E1 |
EL5#,NL50 OAK,TRIM4# |
2 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-20010E1 |
EL5#,NL50 OAK,TRIM4# |
2 | ||
| 72656-20010P0 |
EL5#,NL50 SHADOW GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20040 |
EL5#,NL50 |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08132 | ||||
| 90119-06183 | ||||
| 90119-08A21 | ||||
| 90467-10023 | ||||
| 90468-18071 | ||||

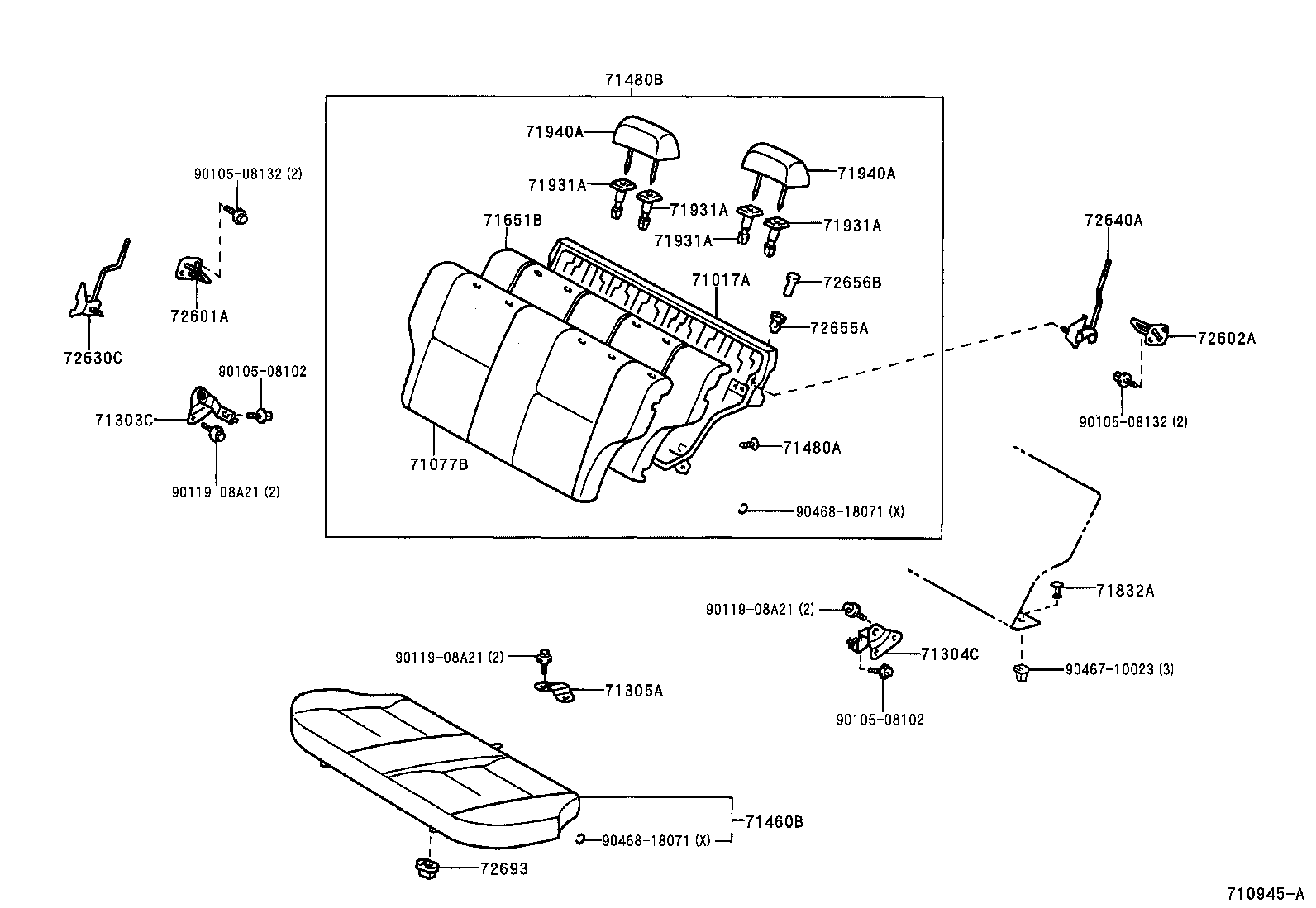

(9712- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017A - FRAME SUB-ASSY, REAR SEAT BACK | ||||
| 71017-16260 |
EL5#,NL50 |
1 | ||
| 71017-16180 |
EL5#,NL50 |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-1G850B0 |
EL51,55..WIN ｽ-ﾊﾟ- ｳｲﾝﾃﾞｲ,BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S070E0 |
EL51,55,NL50..WIN OAK,TRIM4# |
1 | ||
| 71077-1G690B0 |
EL51,55,NL50..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1S080E0 |
EL51,55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71077-1S080B0 |
EL51,55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,GRAY,TRIM1# |
1 | ||
| 71077-1S070B0 |
EL51,55,NL50..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71077-1G880B0 |
EL51,55,NL50..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-16060 |
EL5#,NL50 |
1 | ||
| 71303-16050 |
EL5#,NL50 |
1 | ||
| 71303-16070 |
EL5#,NL50 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-16010 |
EL5#,NL50 |
1 | ||
| 71304-16040 |
EL5#,NL50 |
1 | ||
| 71304-16050 |
EL5#,NL50 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71343-16090 |
EL5#,NL50 |
1 | ||
| 71343-16070 |
EL5#,NL50 |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1G090B0 |
EL55..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G160B0 |
EL55..WIN ｽ-ﾊﾟ- ｳｲﾝﾃﾞｲ,BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G370B0 |
EL55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1G260B0 |
EL55..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71460-1G360B0 |
EL55..WIN SHADOW GRAY,TRIM1# |
1 | ||
| 71460-1G370E0 |
EL55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71460-1G360E0 |
EL55..WIN OAK,TRIM4# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-07049C0 |
EL5#,NL50 BLACK,TRIM1#,4# |
5 | ||
| 90467-07049E2 |
EL5#,NL50 OAK,TRIM44 |
5 | ||
| 90467-07049B3 |
EL5#,NL50 BLUISH GRAY,TRIM1# |
5 | ||
| 90467-07049P0 |
EL5#,NL50 SHADOW GRAY,TRIM18 |
5 | ||
| 90467-07049C0 |
EL5#,NL50 BLACK,TRIM1# |
5 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-1S150E0 |
EL51,55,NL50..WIN ***,OAK,TRIM4# |
1 | ||
| 71480-1G840B0 |
EL51,55,NL50..WIN BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1S160B0 |
EL51,55..WIN ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,SHADOW GRAY,TRIM1# |
1 | ||
| 71480-1S070B0 |
EL51,55,NL50..WIN ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71480-1S160E0 |
EL51,55..WIN ***,ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
1 | ||
| 71480-1S150B0 |
EL51,55,NL50..WIN ***,SHADOW GRAY,TRIM1# |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71651-16380 |
EL5#,NL50 |
1 | ||
| 71651-16340 |
EL5#,NL50 |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0702622 |
EL5#,NL50 BLACK,TRIM1#,4# |
3 | ||
| 90467-0702622 |
EL5#,NL50 BLACK,TRIM1# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010E1 |
EL5#..TIA,WIN ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E0 |
EL5#..TIA,WIN ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010E1 |
EL5#..TIA,WIN ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E0 |
EL5#..TIA,WIN ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010E1 |
EL5#..TIA,WIN ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E0 |
EL5#..TIA,WIN ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010E1 |
EL5#..TIA,WIN ﾛｯｸ付,OAK,TRIM4# |
2 | ||
| 71930-44010B0 |
EL5#,NL50 ﾛｯｸ付,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E6 |
EL5#,NL50 ﾛｯｸ無,MD.OAK,TRIM4# |
2 | ||
| 71931-32020B2 |
EL5#,NL50 ﾛｯｸ無,BLUE GRAY,TRIM1# |
2 | ||
| 71931-32020E0 |
EL5#..TIA,WIN ﾛｯｸ無,OAK,TRIM4# |
2 | ||
| 71930-44010E3 |
EL5#,NL50 ﾛｯｸ付,MD.OAK,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-16040E1 |
EL51,55,NL50..WIN MD.OAK,TRIM4# |
2 | ||
| 71940-16040B1 |
EL51,55,NL50..WIN BLUE GRAY,TRIM1# |
2 | ||
| 71940-16050E0 |
EL51,55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
2 | ||
| 71940-16050B0 |
EL51,55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-16040E1 |
EL51,55,NL50..WIN MD.OAK,TRIM4# |
2 | ||
| 71940-16040B1 |
EL51,55,NL50..WIN BLUE GRAY,TRIM1# |
2 | ||
| 71940-16050E0 |
EL51,55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,OAK,TRIM4# |
2 | ||
| 71940-16050B0 |
EL51,55..WIN ｴｸｽﾄﾗ ﾊﾟﾂｹ-ｼﾞ-*104,BLUISH GRAY,TRIM1# |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-16070 |
EL5#,NL50 |
1 | ||
| 72601-16100 |
EL5#,NL50 |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-16070 |
EL5#,NL50 |
1 | ||
| 72601-16100 |
EL5#,NL50 |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-16220 |
EL5#,NL50 |
1 | ||
| 72630-16100 |
EL5#,NL50 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-16080 |
EL5#,NL50 |
1 | ||
| 72640-16150 |
EL5#,NL50 |
1 | ||
| 72655A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-20050P0 |
EL5#,NL50 SHADOW GRAY,TRIM1# |
2 | ||
| 72646-20050E1 |
EL5#,NL50 OAK,TRIM4# |
2 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-20010E1 |
EL5#,NL50 OAK,TRIM4# |
2 | ||
| 72656-20010P0 |
EL5#,NL50 SHADOW GRAY,TRIM1# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20040 |
EL5#,NL50 |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08132 | ||||
| 90119-08A21 | ||||
| 90467-10023 | ||||
| 90468-18071 | ||||
