EL55-CGPDK (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

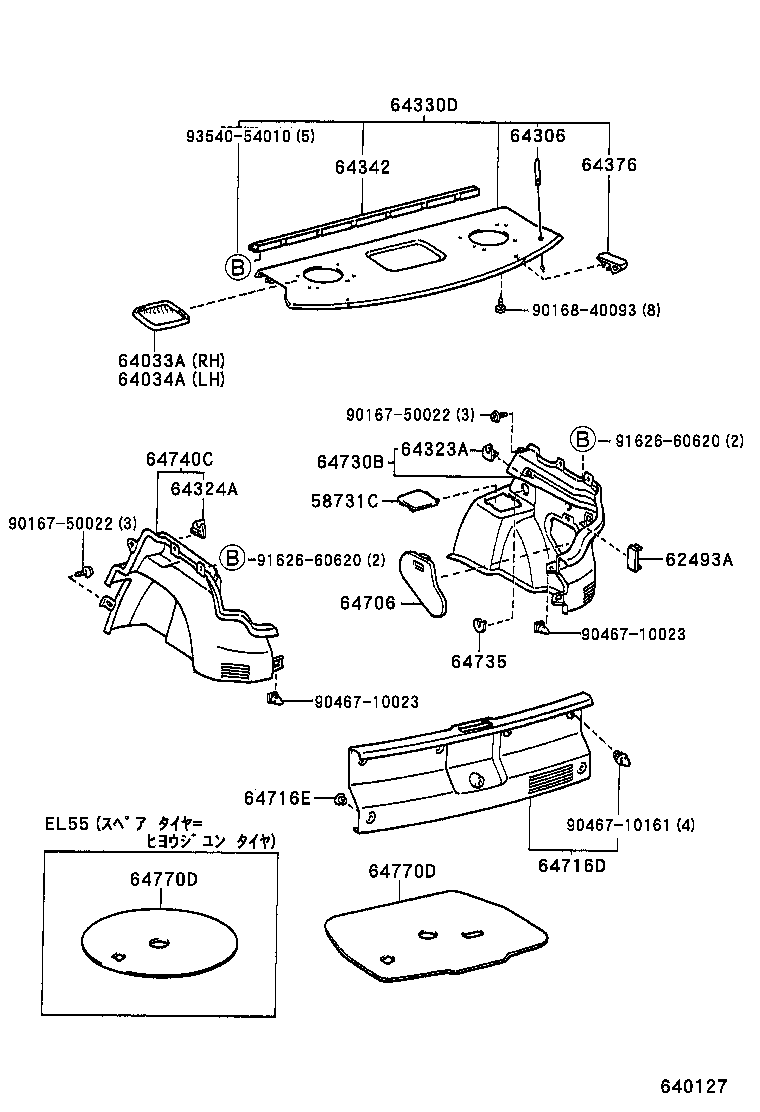

Click highlighted areas on diagram

diagram 58731C 62493A 64033A 64034A 64306 64323A 64324A 64330D 64342 64376 64706 64716D 64716E 64730B 64735 64740C 64770D 64770D 9016750022 9016750022 9016840093 9046710023 9046710023 9046710161 9162660620 9162660620 9354054010
Part # Description Qty Price
58731C - CAP, REAR ABSORBER
58731-16080B1

EL55

SHADOW GRAY,TRIM1#

 2
58731-16080E0

EL55

OAK,TRIM4#

 2
58731-16080B0

EL55

BLUISH GRAY,TRIM1#

 2
62493A - COVER, REAR ROOM LAMP OPENING
62493-16040B0

EL51,55,NL50..WIN

BLUISH GRAY,TRIM1#

 1
62493-16040E0

EL51,55,NL50..WIN

OAK,TRIM4#

 1
62493-16040B1

EL51,55,NL50..WIN

SHADOW GRAY,TRIM1#

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-16060

EL5#,NL50

 2
64323A - CLAMP, PACKAGE TRAY TRIM, RH
64323-2006122

EL5#,NL50

BLACK,TRIM1#,4#

 1
64323-2006122

EL5#,NL50

BLACK,TRIM1#

 1
64324A - CLAMP, PACKAGE TRAY TRIM, LH
64324-2005122

EL5#,NL50

BLACK,TRIM1#

 1
64324-2005122

EL5#,NL50

BLACK,TRIM1#,4#

 1
64330D - PANEL ASSY, PACKAGE TRAY TRIM
64330-16520B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
64330-16520B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 1
64330-16540B1

EL5#,NL50

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),SHADOW GRAY,TRIM1#

 1
64330-16540E0

EL5#,NL50

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),OAK,TRIM4#

 1
64330-16540B0

EL5#,NL50

ｱﾘ(ｼﾂﾅｲﾂﾞｹ ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟ ﾗﾝﾌﾟ),BLUISH GRAY,TRIM1#

 1
64330-16520E0

EL5#,NL50

OAK,TRIM4#

 1
64376 - SPACER, PACKAGE TRAY TRIM, NO.2
64376-10040

EL5#,NL50

 2
64706 - COVER SUB-ASSY, QUARTER TRIM, JACK
64766-16040B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 1
64766-16040B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
64766-16040E0

EL5#,NL50

OAK,TRIM4#

 1
64716D - COVER, DECK TRIM, REAR
64716-16090B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 1
64716-16090B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
64716-16090E0

EL5#,NL50

OAK,TRIM4#

 1
64716E - CLIP(FOR DECK TRIM REAR COVER)
90467-05091B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 3
90467-05091B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 3
90467-05091E0

EL5#,NL50

OAK,TRIM4#

 3
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-16020B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
64730-16020B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 1
64730-16020E0

EL5#,NL50

OAK,TRIM4#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-16030B0

EL5#,NL50

BLUISH GRAY,TRIM1#

 1
64740-16030B1

EL5#,NL50

SHADOW GRAY,TRIM1#

 1
64740-16030E0

EL5#,NL50

OAK,TRIM4#

 1
64770D - COVER ASSY, SPARE WHEEL
64770-16260

EL55

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
64770-16250

EL55

 1
64770D - COVER ASSY, SPARE WHEEL
64770-16260

EL55

ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ

 1
64770-16250

EL55

 1
Common parts
90167-50022
90168-40093
90467-10023
90467-10161
91626-60620
93540-54010
