Toyota Corolla 2 EL55 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
JP
COROLLA 2
EL55-CGMSK (1994)
8401 - SWITCH & RELAY & COMPUTER

EL55-CGMSK (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

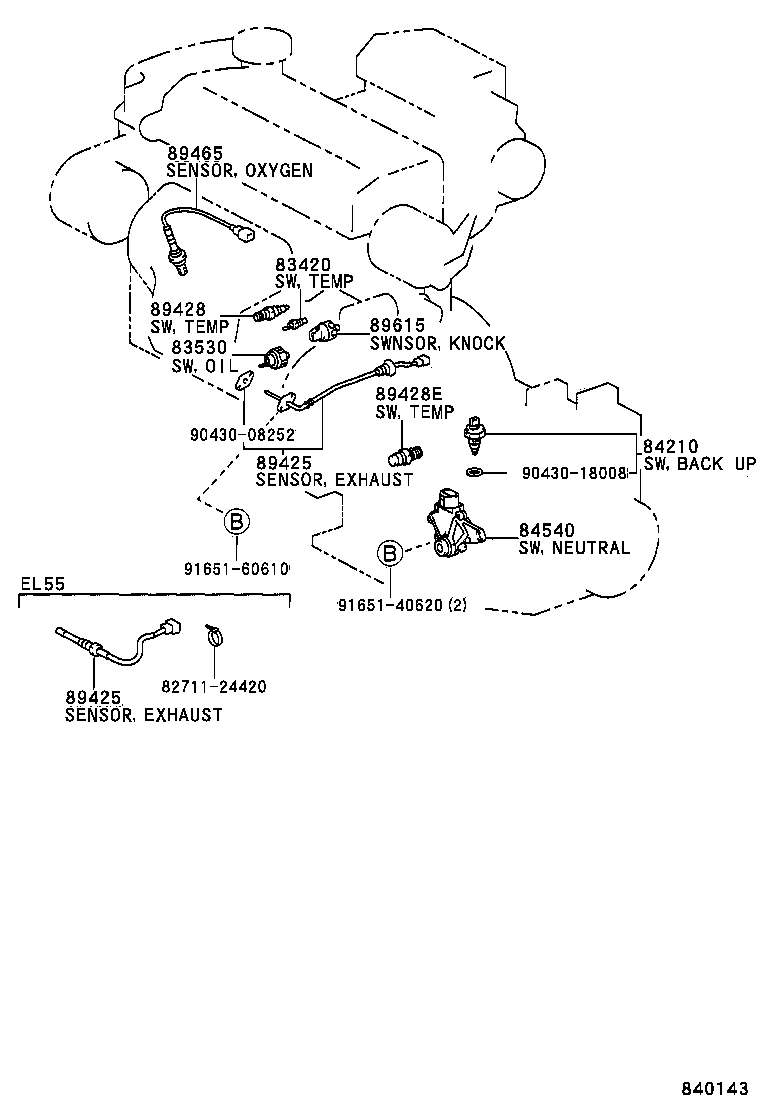

ILLUST NO. 1 OF 7(9409- )EL5#

Click highlighted areas on diagram

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16020	EL5#	09/1994 - 05/1997	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30090	EL5#	11/1994 - 03/1998	1
83530-28020	EL5#	03/1998 - 12/2999	1
83530-14060	EL5#	09/1994 - 11/1994	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	EL5#,NL50..MTM	09/1994 - 12/2999	1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-12280	EL55	09/1994 - 08/1997	1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-12280	EL55	09/1994 - 08/1997	1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-12160	EL5#	09/1994 - 12/2999	1
89465 - SENSOR, OXYGEN
89465-10060	EL5#	12/1997 - 12/2999	1
89465-16040	EL53,55	08/1996 - 12/1997	1
89465-16040	EL5#	09/1994 - 08/1996	1
89615 - SENSOR, KNOCK CONTROL
89615-22030	EL5# MATSUSHITA	09/1994 - 12/2999	1
89615-22040	EL5# NIPPONDENSO	09/1994 - 12/2999	1
Common parts
82711-24420
90430-08252
90430-18008
91651-40620
91651-60610

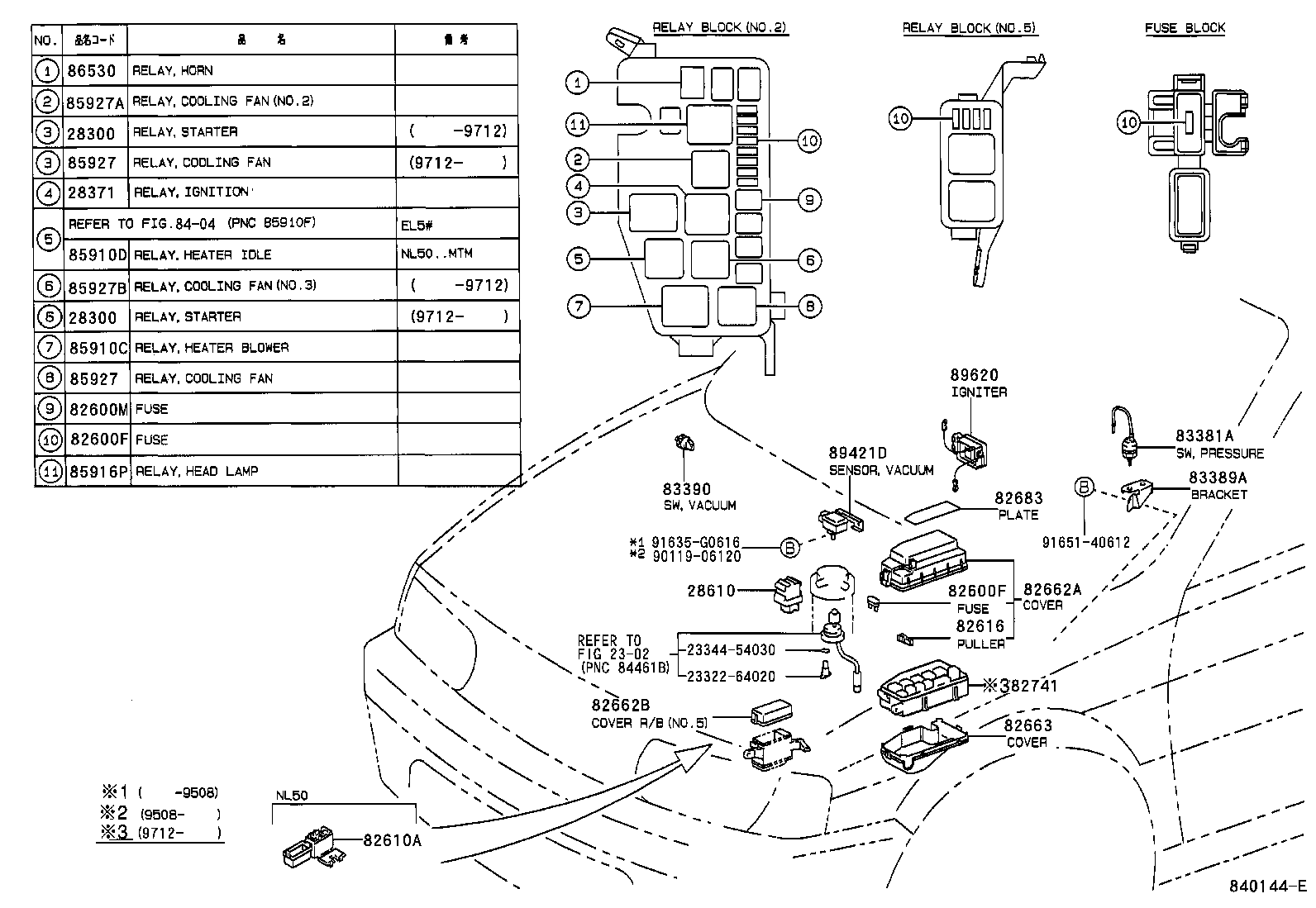

ILLUST NO. 2 OF 7(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-10020	4EFE,5EFE,1NT..EL5#,NL50	09/1994 - 12/2999	1
28300 - RELAY ASSY, STARTER
28300-10020	4EFE,5EFE,1NT..EL5#,NL50	09/1994 - 12/2999	1
28371 - RELAY, IGNITION, NO.1
90987-04002	4EFE,5EFE,1NT..EL5#,NL50	09/1994 - 06/1998	1
85925-17010	4EFE,5EFE,1NT..EL5#,NL50	06/1998 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09009	EL5#,NL50 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/1994 - 12/2999	1
90982-09008	EL5#,NL50 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	09/1994 - 12/2999	1
90982-09007	EL5#,NL50 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	09/1994 - 12/2999	1
90982-09011	EL5#,NL50 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/1994 - 12/2999	1
90982-09010	EL5#,NL50 15A,ﾐﾆﾋｭｰｽﾞ,青	09/1994 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09009	EL5#,NL50 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/1994 - 12/2999	1
90982-09008	EL5#,NL50 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	09/1994 - 12/2999	1
90982-09007	EL5#,NL50 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	09/1994 - 12/2999	1
90982-09011	EL5#,NL50 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/1994 - 12/2999	1
90982-09010	EL5#,NL50 15A,ﾐﾆﾋｭｰｽﾞ,青	09/1994 - 12/2999	1
82600M - FUSE, MEDIUM CURRENT
90982-08280	EL5#,NL50 30A,ﾒｽ端子,桃,YAZAKI	08/1995 - 08/1996	1
90982-10001	EL5#,NL50 30A,ﾋﾟﾝｸ	08/1996 - 12/2999	1
90982-10002	EL5#,NL50 40A,緑	09/1994 - 08/1995	1
90982-08283	EL5# 30A,ﾒｽ端子,桃	08/1995 - 08/1996	1
90982-10001	EL5# 30A,ﾋﾟﾝｸ	09/1994 - 08/1995	3
90982-08284	EL5#,NL50 40A,ﾒｽ端子,緑	08/1995 - 08/1996	1
82616 - PULLER, FUSE
82616-20010	EL5#,NL50	09/1994 - 12/2999	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-16150	EL5#,NL50	09/1994 - 12/2999	1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-16230	EL5#	12/1997 - 12/2999	1
82663 - COVER, RELAY BLOCK, LOWER
82663-16010	EL5#,NL50	09/1994 - 12/2999	1
82683 - PLATE, FUSE BLOCK CAUTION
82683-16122	EL5#,NL50	12/1997 - 12/2999	1
82683-16121	EL5#,NL50	08/1996 - 12/1997	1
82683-16120	EL5#,NL50	09/1994 - 08/1996	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-16011	EL5#,NL50	12/1997 - 12/2999	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	EL5#,NL50	09/1994 - 12/2999	1
85916P - RELAY, HEADLAMP
90987-02006	EL5#,NL50	08/1996 - 12/2999	1
85927 - RELAY, COOLING FAN
90084-98011	EL5#,NL50 BOSCH	09/1994 - 12/2999	1
90987-03003	EL5#,NL50 NIPPON DENSO	09/1994 - 12/2999	1
85927 - RELAY, COOLING FAN
90084-98011	EL5#,NL50 BOSCH	09/1994 - 12/2999	1
90987-03003	EL5#,NL50 NIPPON DENSO	09/1994 - 12/2999	1
85927A - RELAY, COOLING FAN, NO.2
90987-04003	EL5#;NL50..4FC NIPPON DENSO	09/1994 - 12/2999	1
90084-98010	EL5#;NL50..4FC BOSCH	12/1997 - 12/2999	1
90084-98010	NL50..4FC;EL5#..LIM,TIA BOSCH	09/1994 - 12/1997	1
85927B - RELAY, COOLING FAN, NO.3
90987-02009	EL5#,NL50	08/1996 - 12/1997	1
90987-02009	EL5#;NL50..4FC	09/1994 - 08/1996	1
90987-02009	EL5#;NL50..4FC	12/1997 - 12/2999	1
86530 - RELAY ASSY, HORN
86530-20070	EL5#,NL50	09/1994 - 12/2999	1
89620 - IGNITER ASSY
89620-16260	EL53,55	01/1997 - 12/1997	1
89620-12440	EL53,55	12/1995 - 01/1997	1
Common parts
23322-64020
23344-54030
90119-06120
91635-G0616
91651-40612
Linked diagrams
2302
8404

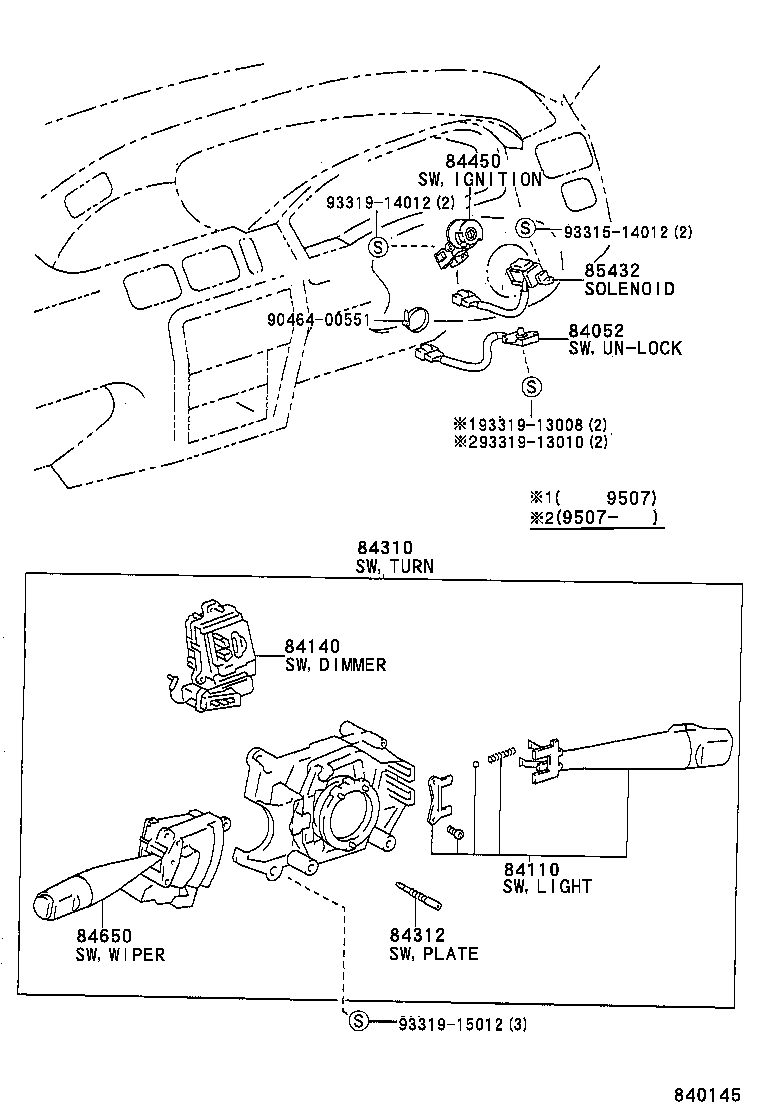

ILLUST NO. 4 OF 7(9409- )

Click highlighted areas on diagram

W/O(ｴｱﾊﾞﾂｸﾞ)

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-12070	EL5#,NL50	12/1997 - 12/2999	1
84052-20030	EL5#,NL50	09/1994 - 12/1997	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80186	EL5#,NL50	09/1994 - 08/1996	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26170	EL5#,NL50	08/1996 - 12/1997	1
84140-20570	EL5#,NL50 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ)	12/1997 - 12/2999	1
84140-10160	EL5#,NL50	09/1994 - 08/1996	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-16660	EL5#..LIM,TIA	09/1994 - 08/1996	1
84310-35600	EL5#..LIM,TIA	08/1996 - 12/1997	1
84310-1G060	EL5#,NL50 ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	12/1997 - 07/1999	1
84312 - PLATE, HORN CONTACT
84312-10040	EL5#,NL50	09/1994 - 08/1996	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-16080	EL5#,NL50	09/1994 - 12/1997	1
84450-12200	EL5#,NL50	12/1997 - 12/2999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-35490	EL5#..LIM,TIA	08/1996 - 12/1997	1
84652-16460	EL5#..LIM,TIA	09/1994 - 08/1996	1
84652-44030	EL5#,NL50 ｱﾘ(ｶﾝｹﾂﾜｲﾊﾟ---ﾌﾛﾝﾄ & ﾘﾔ)	12/1997 - 12/2999	1
Common parts
90464-00551
93315-14012
93319-13008
93319-13010
93319-14012
93319-15012

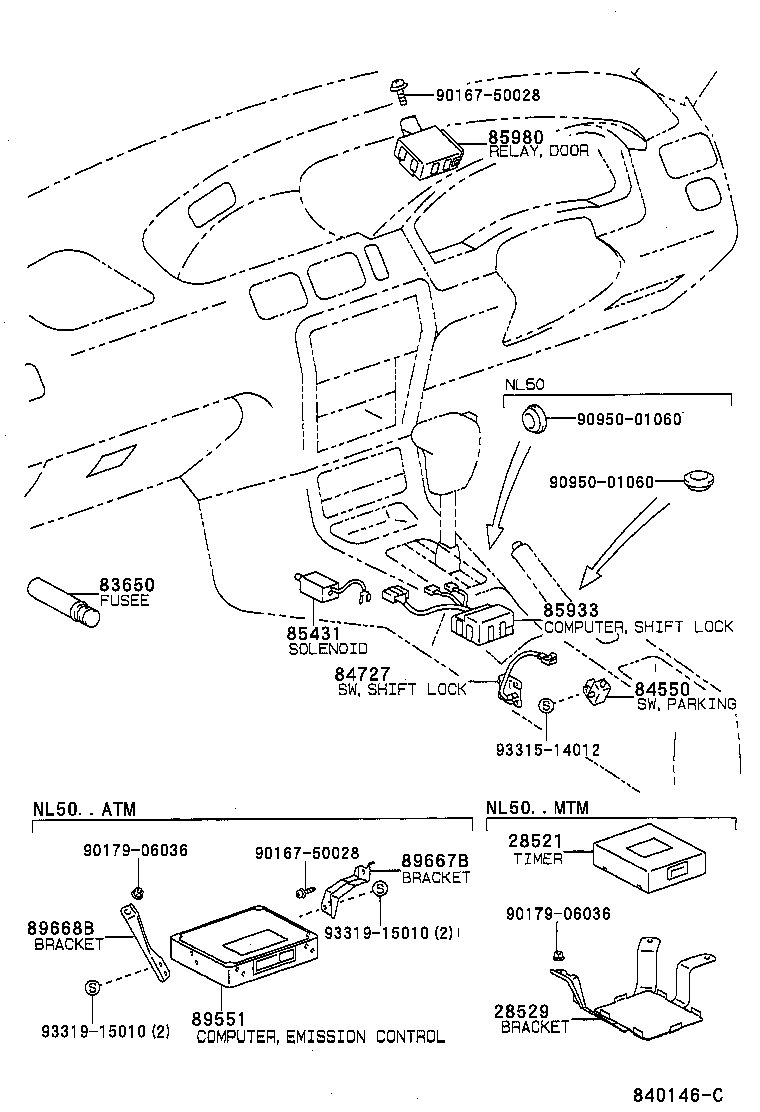

ILLUST NO. 6 OF 7(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83650 - FUSEE
90986-01005	EL5#,NL50	09/1994 - 12/2999	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060	EL5#,NL50	09/1994 - 12/2999	1
85980 - RELAY ASSY, DOOR CONTROL
85980-10030	EL5#..LIM,TIA ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/1996 - 11/1998	1
85980-16041	EL5#..LIM,TIA ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	08/1995 - 08/1996	1
85980-16040	EL5#..LIM,TIA ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	09/1994 - 08/1995	1
85980-16030	EL5#,NL50	09/1994 - 12/2999	1
85980-10030	EL5# ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ)	11/1998 - 12/2999	1
Common parts
90167-50028
90179-06036
90950-01060
93315-14012
93319-15010

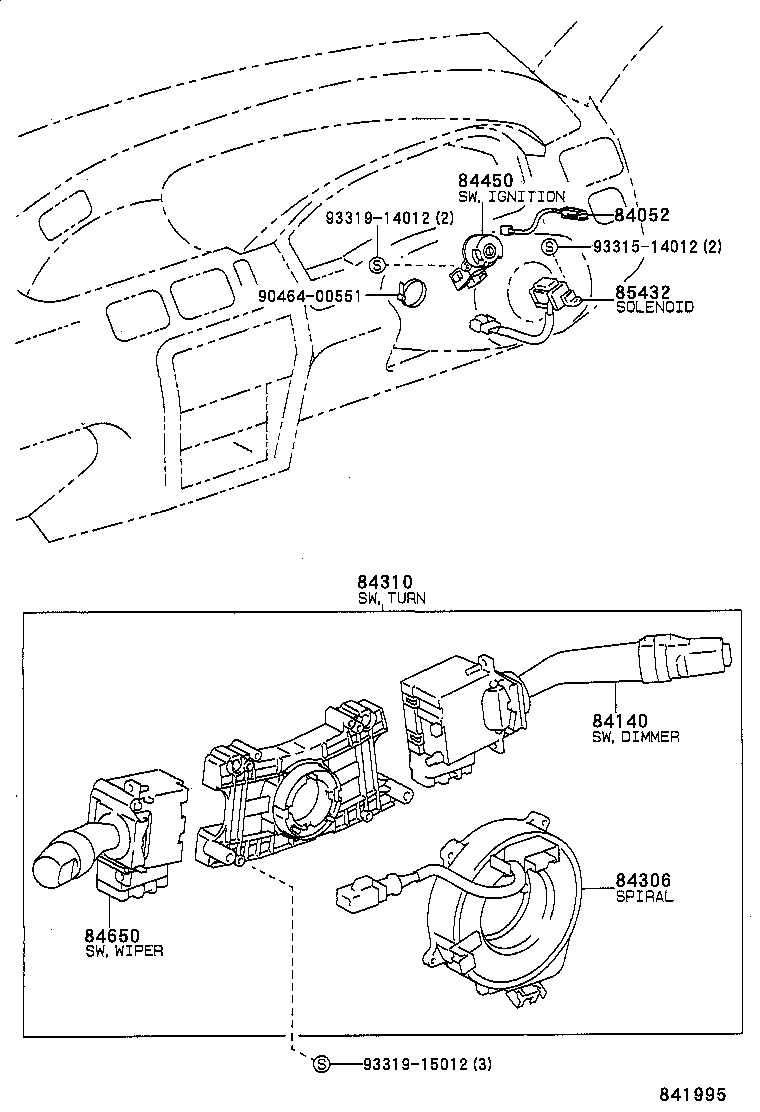

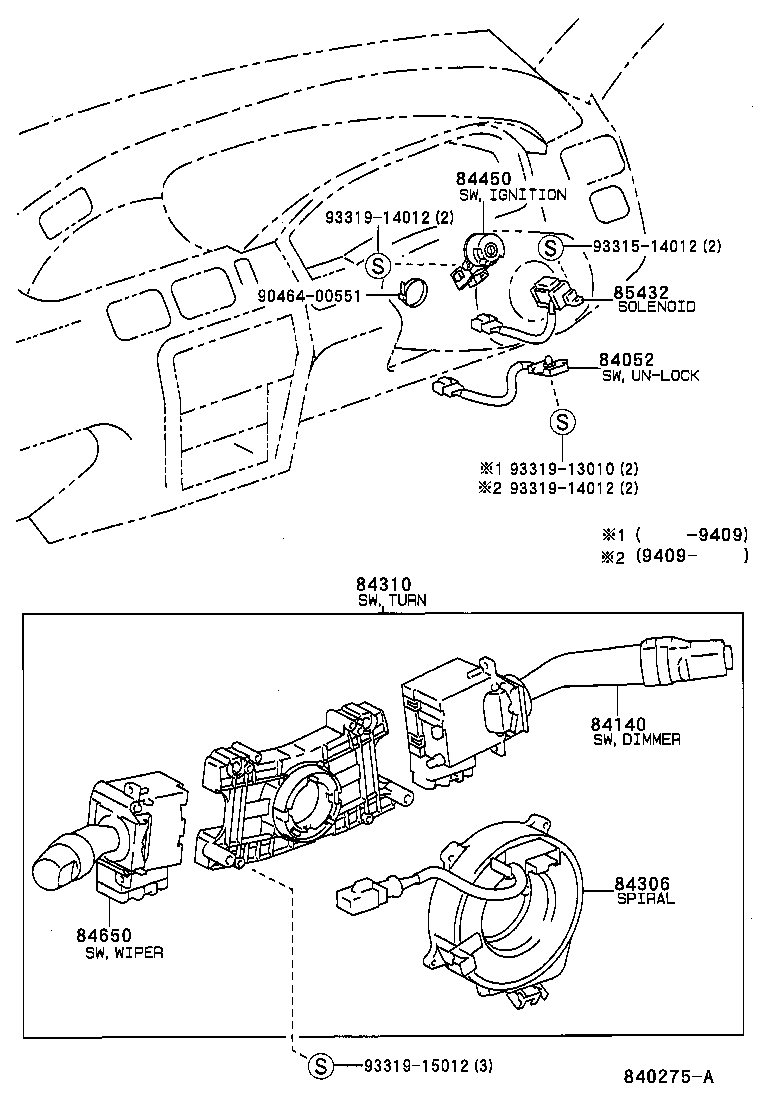

ILLUST NO. 4 OF 7(9608-9712)

Click highlighted areas on diagram

ｱﾘ(ｴｱﾊﾞﾂｸﾞ)

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-12070	EL5#,NL50	12/1997 - 12/2999	1
84052-20030	EL5#,NL50	09/1994 - 12/1997	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26170	EL5#,NL50	08/1996 - 12/1997	1
84140-20570	EL5#,NL50 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ)	12/1997 - 12/2999	1
84140-10160	EL5#,NL50	09/1994 - 08/1996	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-12070	EL5#,NL50	12/1997 - 12/2999	1
84306-35010	EL5#,NL50	08/1996 - 03/1997	1
84306-35011	EL5#,NL50	03/1997 - 12/1997	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-16660	EL5#..LIM,TIA	09/1994 - 08/1996	1
84310-35600	EL5#..LIM,TIA	08/1996 - 12/1997	1
84310-1G060	EL5#,NL50 ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	12/1997 - 07/1999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-16080	EL5#,NL50	09/1994 - 12/1997	1
84450-12200	EL5#,NL50	12/1997 - 12/2999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-35490	EL5#..LIM,TIA	08/1996 - 12/1997	1
84652-16460	EL5#..LIM,TIA	09/1994 - 08/1996	1
84652-44030	EL5#,NL50 ｱﾘ(ｶﾝｹﾂﾜｲﾊﾟ---ﾌﾛﾝﾄ & ﾘﾔ)	12/1997 - 12/2999	1
Common parts
90464-00551
93315-14012
93319-13010
93319-14012
93319-15012

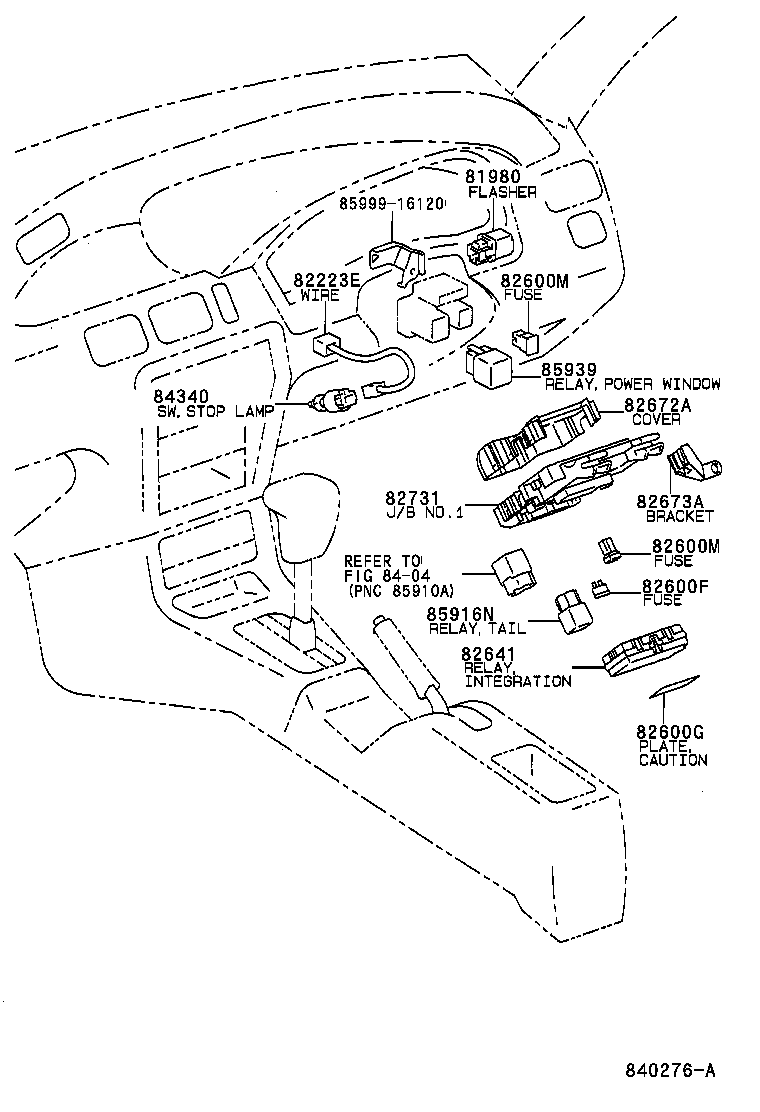

ILLUST NO. 5 OF 7(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81980 - FLASHER ASSY, TURN SIGNAL
81980-02010	EL5#,NL50	09/1994 - 12/1997	1
81980-12110	EL5#,NL50	12/1997 - 03/1998	1
81980-12070	EL5#,NL50 NIPPON DENSO	09/1994 - 12/1997	1
81980-0W010	EL5#,NL50 TRIDON	03/1998 - 07/1999	1
81980-12110	EL5#,NL50 NIPPON DENSO	03/1998 - 07/1999	1
82223E - WIRE, CLUTCH START SWITCH
82223-16030	EL5#,NL50	09/1998 - 12/2999	1
82223-12530	EL5#,NL50	09/1994 - 09/1998	1
82600F - FUSE, FUSE BLOCK
90982-09009	EL5#,NL50 10A,ﾐﾆﾋｭｰｽﾞ,赤	09/1994 - 12/2999	1
90982-09008	EL5#,NL50 7.5A,ﾐﾆﾋｭｰｽﾞ,茶	09/1994 - 12/2999	1
90982-09007	EL5#,NL50 5A,ﾐﾆﾋｭｰｽﾞ,黄褐色	09/1994 - 12/2999	1
90982-09011	EL5#,NL50 20A,ﾐﾆﾋｭｰｽﾞ,黄	09/1994 - 12/2999	1
90982-09010	EL5#,NL50 15A,ﾐﾆﾋｭｰｽﾞ,青	09/1994 - 12/2999	1
82600G - PLATE, CAUTION(FOR FUSE)
82683-16100	EL5#,NL50	09/1994 - 08/1996	1
82683-16101	EL5#,NL50	08/1996 - 12/2999	1
82600M - FUSE, MEDIUM CURRENT
90982-08280	EL5#,NL50 30A,ﾒｽ端子,桃,YAZAKI	08/1995 - 08/1996	1
90982-10001	EL5#,NL50 30A,ﾋﾟﾝｸ	08/1996 - 12/2999	1
90982-10002	EL5#,NL50 40A,緑	09/1994 - 08/1995	1
90982-08283	EL5# 30A,ﾒｽ端子,桃	08/1995 - 08/1996	1
90982-10001	EL5# 30A,ﾋﾟﾝｸ	09/1994 - 08/1995	3
90982-08284	EL5#,NL50 40A,ﾒｽ端子,緑	08/1995 - 08/1996	1
82600M - FUSE, MEDIUM CURRENT
90982-08280	EL5#,NL50 30A,ﾒｽ端子,桃,YAZAKI	08/1995 - 08/1996	1
90982-10001	EL5#,NL50 30A,ﾋﾟﾝｸ	08/1996 - 12/2999	1
90982-10002	EL5#,NL50 40A,緑	09/1994 - 08/1995	1
90982-08283	EL5# 30A,ﾒｽ端子,桃	08/1995 - 08/1996	1
90982-10001	EL5# 30A,ﾋﾟﾝｸ	09/1994 - 08/1995	3
90982-08284	EL5#,NL50 40A,ﾒｽ端子,緑	08/1995 - 08/1996	1
82641 - RELAY, INTEGRATION NO.1
82641-16020	EL53,55..TIA	09/1994 - 12/2999	1
82672A - COVER, JUNCTION BLOCK
82674-16010	EL5#,NL50	09/1994 - 12/2999	1
82673A - BRACKET, JUNCTION BLOCK
82673-16010	EL5#,NL50	09/1994 - 12/2999	1
82731 - BLOCK, DRIVER SIDE JUNCTION
82731-16010	EL5#,NL50	09/1994 - 08/1996	1
82731-16080	EL5#,NL50	08/1996 - 12/2999	1
84340 - SWITCH ASSY, STOP LAMP
84340-32050	EL5#,NL50	09/1994 - 12/2999	1
85916N - RELAY, TAIL LAMP
90987-02009	EL5#,NL50	08/1996 - 12/2999	1
85939 - RELAY, POWER WINDOW
90987-02004	EL5#,NL50	12/1997 - 12/2999	1
90987-02002	EL5#,NL50 MARUKO	09/1994 - 12/1997	1
90987-02004	EL5#,NL50 NIPPON DENSO	09/1994 - 12/1997	1
Common parts
85999-16120
Linked diagrams
8404

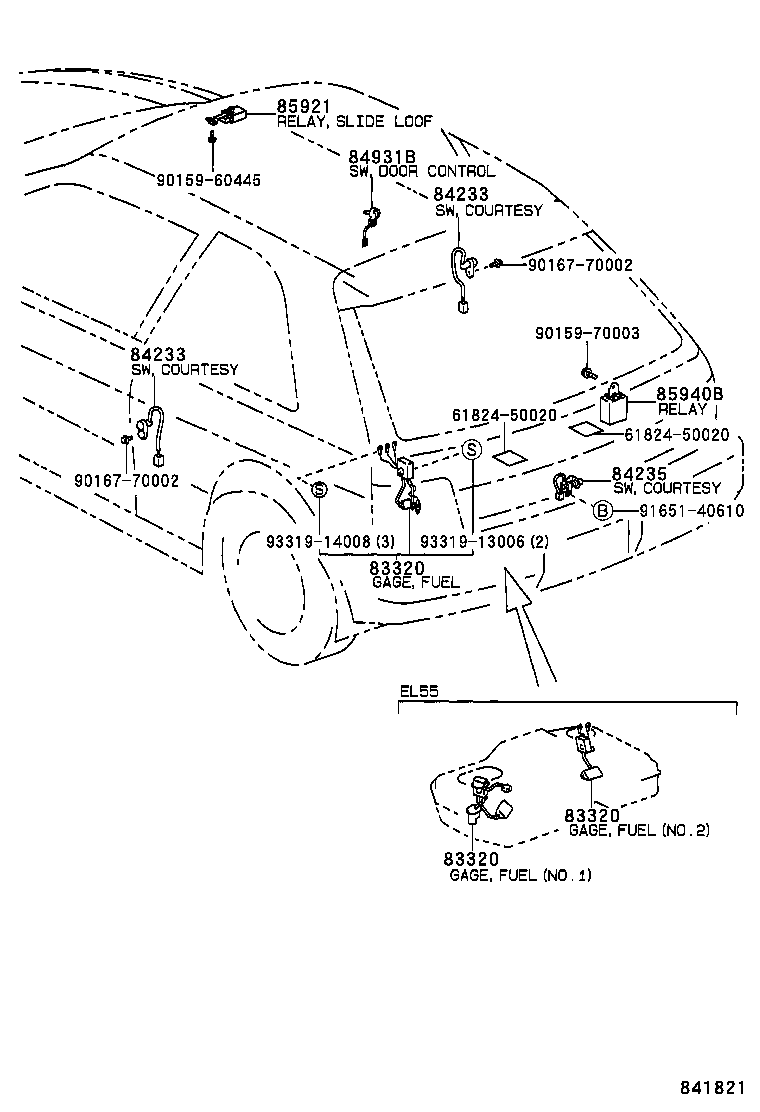

ILLUST NO. 7 OF 7(9409- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80185	EL55 NO.2	09/1994 - 12/2999	1
83320-80184	EL55 NO.1	09/1994 - 12/2999	1
83320 - GAGE ASSY, FUEL SENDER
83320-80185	EL55 NO.2	09/1994 - 12/2999	1
83320-80184	EL55 NO.1	09/1994 - 12/2999	1
83320 - GAGE ASSY, FUEL SENDER
83320-80185	EL55 NO.2	09/1994 - 12/2999	1
83320-80184	EL55 NO.1	09/1994 - 12/2999	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-12080	EL5#,NL50	09/1994 - 12/2999	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-12080	EL5#,NL50	09/1994 - 12/2999	2
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84231-16070	EL5#,NL50	09/1994 - 12/2999	1
84931B - SWITCH, DOOR CONTROL
84931-16040	EL5#,NL50	09/1994 - 12/2999	1
85921 - RELAY, SLIDING ROOF CONTROL
85921-20110	EL5#..LIM,TIA	09/1994 - 12/2999	1
85940B - RELAY ASSY, REAR WIPER
85940-16050	EL5#,NL50	09/1994 - 08/1996	1
85940-16080	EL5#,NL50	08/1996 - 12/2999	1
Common parts
61824-50020
90159-60445
90159-70003
90167-70002
91651-40610
93319-13006
93319-14008

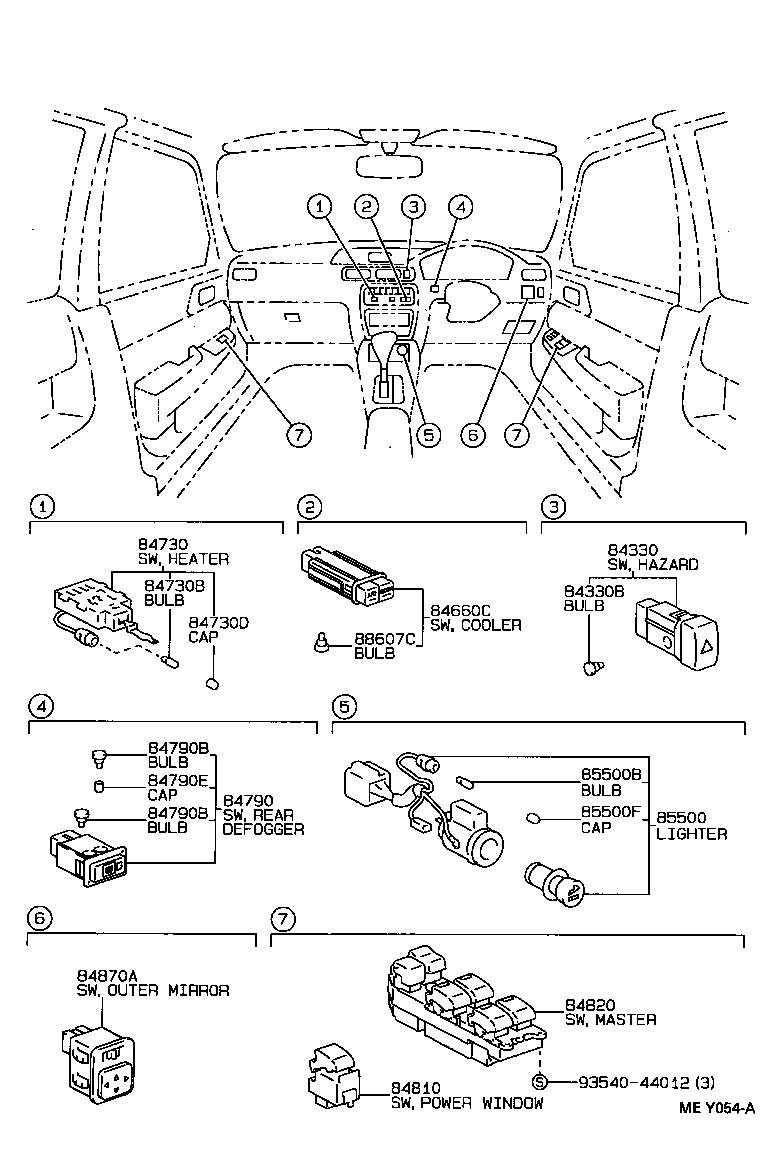

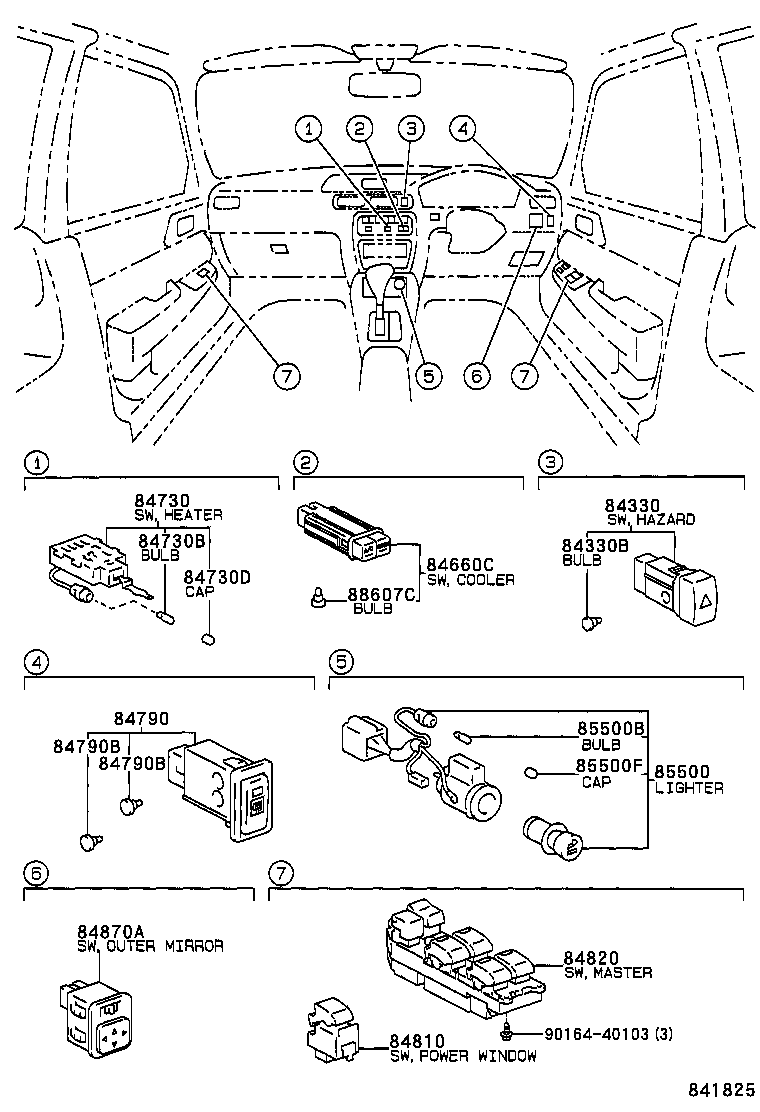

ILLUST NO. 3 OF 7(9712- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-16060	EL5#,NL50	12/1997 - 12/2999	1
84332-16050	EL5#,NL50	09/1994 - 08/1996	1
84332-16051	EL5#,NL50	08/1996 - 12/1997	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860	EL5#,NL50 14V 0.91W	12/1997 - 12/2999	1
84999-10350	EL5#,NL50 14V 1.54W	09/1994 - 12/1997	1
84660C - SWITCH, COOLER
84660-10120	EL5#,NL50 ｱﾘ(ECON)	08/1996 - 12/2999	1
84660-16130	EL5#,NL50 ｱﾘ(ECON)	09/1994 - 08/1996	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-16151	EL5#..LIM,TIA ｱﾘ(ﾒ-ｶｵﾌﾟｼﾖﾝｵ-ﾄｴｱｺﾝ)	09/1994 - 12/2999	1
84732-16190	EL5#,NL50	09/1994 - 08/1996	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	EL5#,NL50 14V 1.4W	09/1994 - 08/1996	1
90981-11014	EL5#..LIM,TIA 14V 1.4W	08/1996 - 12/2999	1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10710	EL5#,NL50	09/1994 - 08/1996	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-16110	EL5#,NL50	09/1994 - 12/1997	1
84790-16160	EL5#,NL50	12/1997 - 12/2999	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	EL5#,NL50 14V 0.84W	09/1994 - 12/1997	2
84999-10310	EL5#,NL50 14V 0.91W	12/1997 - 12/2999	2
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	EL5#,NL50 14V 0.84W	09/1994 - 12/1997	2
84999-10310	EL5#,NL50 14V 0.91W	12/1997 - 12/2999	2
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-32070	EL5#,NL50	09/1994 - 12/2999	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-16090	EL5#,NL50	12/1997 - 12/2999	1
84820-10050	EL5#,NL50	09/1994 - 12/1997	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-16040	EL53,55..TIA	09/1994 - 12/2999	1
85500 - LIGHTER ASSY, CIGARETTE
85500-16200	EL5#,NL50	09/1994 - 12/2999	1
85500B - BULB, CIGARETTE LIGHTER
90981-11014	EL5#,NL50 14V 1.4W	09/1994 - 12/2999	1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10390	EL5#,NL50	09/1994 - 12/2999	1
88607C - LAMP SUB-ASSY, INDICATOR
88607-20060	EL5#,NL50 ｱﾘ(ECON)	09/1994 - 08/1996	1
88607-10030	EL5#,NL50 14V 1.12W,ｱﾘ(ECON)	08/1996 - 12/2999	1
Common parts
90164-40103

ILLUST NO. 4 OF 7(9712- )

Click highlighted areas on diagram

ｱﾘ(ｴｱﾊﾞﾂｸﾞ)

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-12070	EL5#,NL50	12/1997 - 12/2999	1
84052-20030	EL5#,NL50	09/1994 - 12/1997	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-26170	EL5#,NL50	08/1996 - 12/1997	1
84140-20570	EL5#,NL50 ｱﾘ(ｶﾝｹﾂﾘﾔﾜｲﾊﾟ)	12/1997 - 12/2999	1
84140-10160	EL5#,NL50	09/1994 - 08/1996	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-12070	EL5#,NL50	12/1997 - 12/2999	1
84306-35010	EL5#,NL50	08/1996 - 03/1997	1
84306-35011	EL5#,NL50	03/1997 - 12/1997	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-16660	EL5#..LIM,TIA	09/1994 - 08/1996	1
84310-35600	EL5#..LIM,TIA	08/1996 - 12/1997	1
84310-1G060	EL5#,NL50 ｱﾘ(ｼﾞｶﾝﾁﾖｳｾｲｼｷｶﾝｹﾂﾜｲﾊﾟ)	12/1997 - 07/1999	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-16080	EL5#,NL50	09/1994 - 12/1997	1
84450-12200	EL5#,NL50	12/1997 - 12/2999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-35490	EL5#..LIM,TIA	08/1996 - 12/1997	1
84652-16460	EL5#..LIM,TIA	09/1994 - 08/1996	1
84652-44030	EL5#,NL50 ｱﾘ(ｶﾝｹﾂﾜｲﾊﾟ---ﾌﾛﾝﾄ & ﾘﾔ)	12/1997 - 12/2999	1
Common parts
90464-00551
93315-14012
93319-14012
93319-15012

ILLUST NO. 3 OF 7(9409-9712)

Click highlighted areas on diagram

Part #	Description	Period	Qty
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-16060	EL5#,NL50	12/1997 - 12/2999	1
84332-16050	EL5#,NL50	09/1994 - 08/1996	1
84332-16051	EL5#,NL50	08/1996 - 12/1997	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10860	EL5#,NL50 14V 0.91W	12/1997 - 12/2999	1
84999-10350	EL5#,NL50 14V 1.54W	09/1994 - 12/1997	1
84660C - SWITCH, COOLER
84660-10120	EL5#,NL50 ｱﾘ(ECON)	08/1996 - 12/2999	1
84660-16130	EL5#,NL50 ｱﾘ(ECON)	09/1994 - 08/1996	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-16151	EL5#..LIM,TIA ｱﾘ(ﾒ-ｶｵﾌﾟｼﾖﾝｵ-ﾄｴｱｺﾝ)	09/1994 - 12/2999	1
84732-16190	EL5#,NL50	09/1994 - 08/1996	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	EL5#,NL50 14V 1.4W	09/1994 - 08/1996	1
90981-11014	EL5#..LIM,TIA 14V 1.4W	08/1996 - 12/2999	1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10710	EL5#,NL50	09/1994 - 08/1996	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-16110	EL5#,NL50	09/1994 - 12/1997	1
84790-16160	EL5#,NL50	12/1997 - 12/2999	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	EL5#,NL50 14V 0.84W	09/1994 - 12/1997	2
84999-10310	EL5#,NL50 14V 0.91W	12/1997 - 12/2999	2
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	EL5#,NL50 14V 0.84W	09/1994 - 12/1997	2
84999-10310	EL5#,NL50 14V 0.91W	12/1997 - 12/2999	2
84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84998-10650	EL5#,NL50	09/1994 - 12/1997	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-32070	EL5#,NL50	09/1994 - 12/2999	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-16090	EL5#,NL50	12/1997 - 12/2999	1
84820-10050	EL5#,NL50	09/1994 - 12/1997	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-16040	EL53,55..TIA	09/1994 - 12/2999	1
85500 - LIGHTER ASSY, CIGARETTE
85500-16200	EL5#,NL50	09/1994 - 12/2999	1
85500B - BULB, CIGARETTE LIGHTER
90981-11014	EL5#,NL50 14V 1.4W	09/1994 - 12/2999	1
85500F - CAP, CIGARETTE LIGHTER BULB
84998-10390	EL5#,NL50	09/1994 - 12/2999	1
88607C - LAMP SUB-ASSY, INDICATOR
88607-20060	EL5#,NL50 ｱﾘ(ECON)	09/1994 - 08/1996	1
88607-10030	EL5#,NL50 14V 1.12W,ｱﾘ(ECON)	08/1996 - 12/2999	1
Common parts
93540-44012

EL55-CGMSK (1994)

ILLUST NO. 1 OF 7(9409- )EL5#

ILLUST NO. 2 OF 7(9409- )

ILLUST NO. 4 OF 7(9409- )

ILLUST NO. 6 OF 7(9409- )

ILLUST NO. 4 OF 7(9608-9712)

ILLUST NO. 5 OF 7(9409- )

ILLUST NO. 7 OF 7(9409- )

ILLUST NO. 3 OF 7(9712- )

ILLUST NO. 4 OF 7(9712- )

ILLUST NO. 3 OF 7(9409-9712)

Part Price Details
