EL55-CGMSK (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999

Engine 5EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9409- )

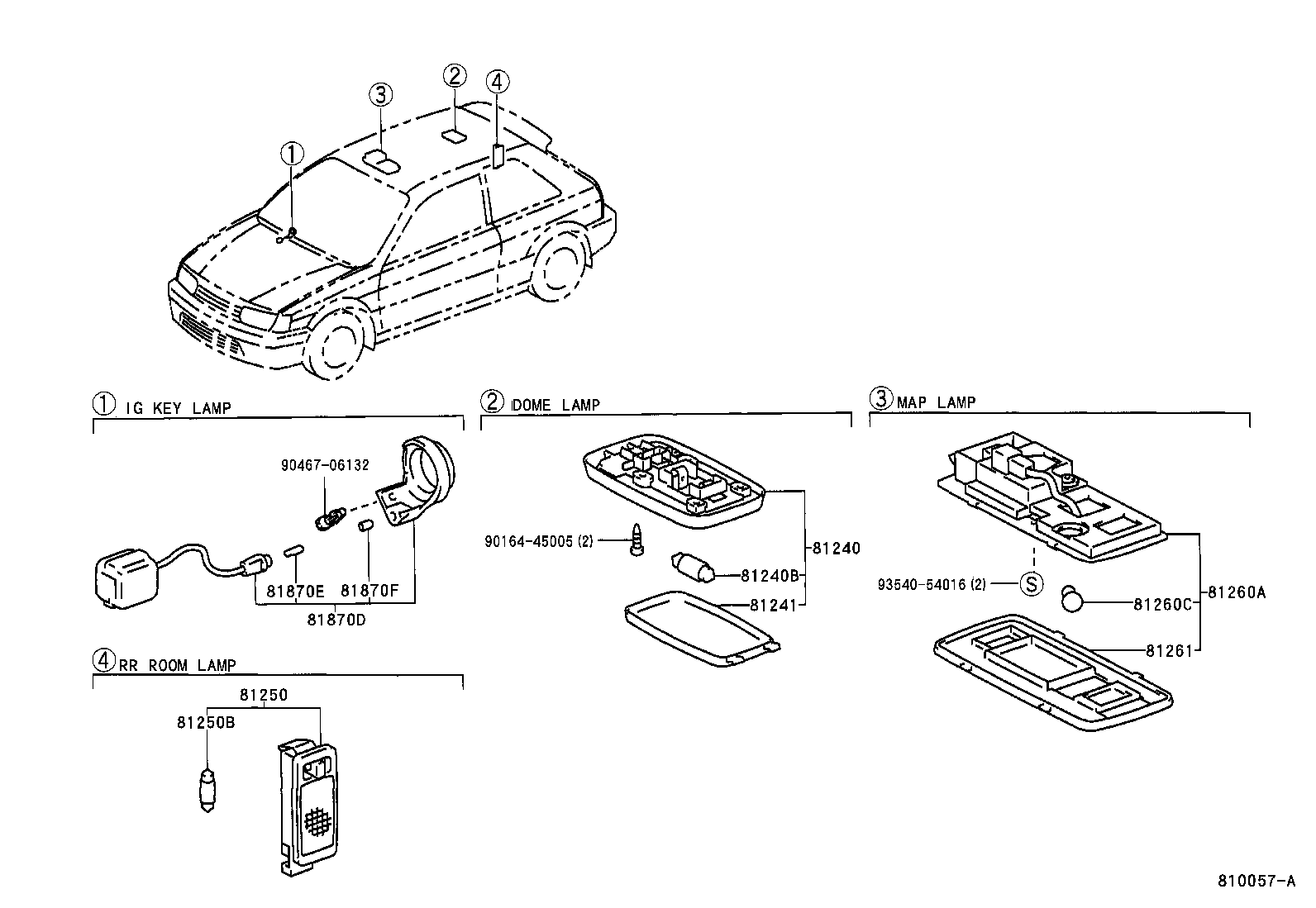

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81240 - LAMP ASSY, ROOM, NO.1
81240-12060E0	EL5#,NL50 MD.OAK,TRIM4#	12/1997 - 12/2999	1
81240-12060B1	EL5#,NL50 LT.BLUISH GRAY,TRIM1#	09/1994 - 12/2999	1
81240B - BULB, ROOM LAMP, NO.1
90981-14011	EL5#,NL50 12V 8W	09/1994 - 12/2999	1
81241 - LENS, ROOM LAMP, NO.1
81241-12020	EL5#,NL50	09/1994 - 12/2999	1
81250 - LAMP ASSY, ROOM, NO.2
81250-16040	EL5#..LIM,TIA	09/1994 - 12/2999	1
81250B - BULB, ROOM LAMP, NO.2
90981-11016	EL5#..LIM,TIA 12V 5W	09/1994 - 12/2999	1
81260A - LAMP ASSY, MAP
81260-20160E3	EL5#..LIM,TIA MD.OAK,TRIM4#	12/1997 - 12/2999	1
81260-20160B0	EL5#..LIM,TIA LT.BLUISH GRAY,TRIM1#	09/1994 - 12/2999	1
81260C - BULB(FOR MAP LAMP)
90981-12014	EL5#..LIM,TIA 12V 10W	09/1994 - 12/2999	1
81261 - LENS AND COVER, MAP LAMP
81261-20160B1	EL5#..LIM,TIA LT.BLUISH GRAY,TRIM1#	09/1994 - 12/2999	1
81261-20160E2	EL5#..LIM,TIA MD.OAK,TRIM4#	12/1997 - 12/2999	1
81870D - LAMP ASSY, KEY CYLINDER
81870-32051	EL53,55..TIA	09/1994 - 12/2999	1
81870E - BULB, KEY CYLINDER LAMP
90981-11018	EL53,55..TIA 12V 1.2W ｿｹｯﾄ無し	09/1994 - 12/2999	1
81870F - CAP, KEY CYLINDER LAMP BULB
84998-10070	EL53,55..TIA	09/1994 - 12/1997	1
Common parts
90164-45005
90467-06132
93540-54016
