EL55-CGMSK (1994)
Toyota Corolla 2
Production
Sep 1994
-
Jul 1999
Engine
5EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )EL55

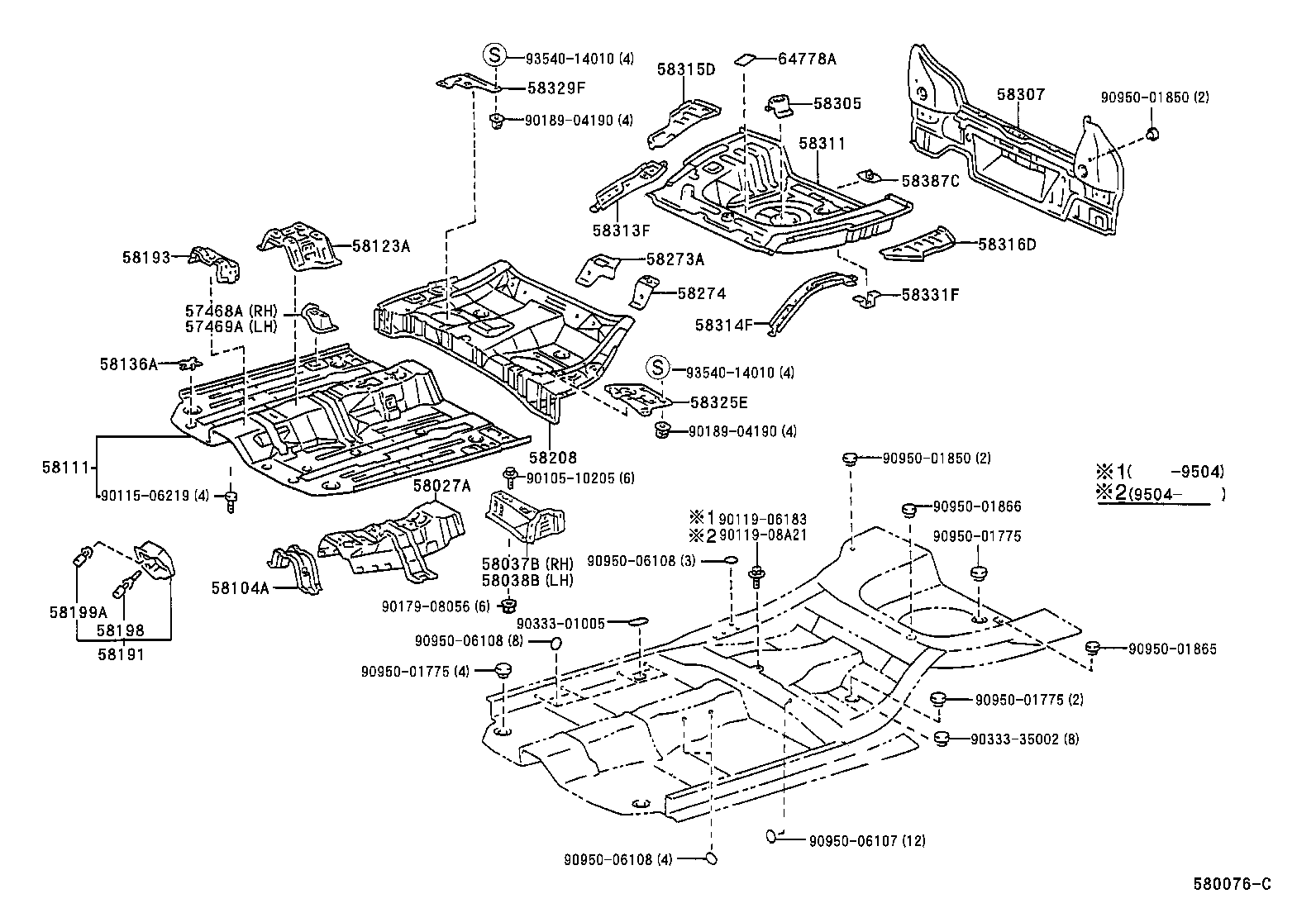

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-10030 |
EL5#,NL50 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-10030 |
EL5#,NL50 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-16081 |
EL55 |
1 | ||
| 58037B - REINFORCE, CENTER PILLAR TO FLOOR, RH | ||||
| 58037-16020 |
EL55 |
1 | ||
| 58038B - REINFORCE, CENTER PILLAR TO FLOOR, LH | ||||
| 58038-16020 |
EL55 |
1 | ||
| 58104A - BRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT | ||||
| 58277-10020 |
EL55 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-16901 |
EL55 |
2 | ||
| 58111-16901 |
EL55 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-10050 |
EL5#,NL50 |
1 | ||
| 58123-16050 |
EL5#,NL50 ｱﾘ(*80) |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12030 |
EL5#,NL50 |
2 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-16070 |
EL55;EL51,53..LIM,TIA |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-16060 |
EL5#,NL50 |
1 | ||
| 58193-16040 |
EL5#,NL50 |
1 | ||
| 58198 - CLIP, FOOTREST | ||||
| 58198-16030 |
EL55;EL51,53..LIM,TIA |
1 | ||
| 58199A - CLIP, FOOTREST, NO.2 | ||||
| 58199-16020 |
EL55;EL51,53..LIM,TIA |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-16100 |
EL55 |
1 | ||
| 58211-16081 |
EL55 |
1 | ||
| 58273A - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, RH | ||||
| 58273-16040 |
EL55 |
1 | ||
| 58273-10031 |
EL55 |
1 | ||
| 58274 - REINFORCEMENT, BELT ANCHOR TO CENTER FLOOR, NO.1 | ||||
| 58274-10010 |
EL55 |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-10030 |
EL55 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-16400 |
EL5#,NL50 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-10201 |
EL55 |
1 | ||
| 58311-10200 |
EL55 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-10030 |
EL55 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-10030 |
EL55 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-16060 |
EL5#,NL50 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-16080 |
EL5#,NL50 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-10040 |
EL55 |
1 | ||
| 58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2 | ||||
| 58329-10010 |
EL55 |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10011 |
EL55 |
5 | ||
| 58387C - PLATE, REAR FLOOR FINISH | ||||
| 58387-10010 |
EL5#,NL50 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-16030 |
EL55 |
3 | ||
| 64778-10020 |
EL55 ｽﾍﾟｱﾀｲﾔ = ﾋﾖｳｼﾞﾕﾝﾀｲﾔ |
2 | ||
| 64778-16020 |
EL55 |
3 | ||
| Common parts | ||||
| 90105-10205 | ||||
| 90115-06219 | ||||
| 90119-06183 | ||||
| 90119-08A21 | ||||
| 90179-08056 | ||||
| 90189-04190 | ||||
| 90333-01005 | ||||
| 90333-35002 | ||||
| 90950-01775 | ||||
| 90950-01850 | ||||
| 90950-01865 | ||||
| 90950-01866 | ||||
| 90950-06107 | ||||
| 90950-06108 | ||||
| 93540-14010 | ||||
