EL53-CGMSK (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999
Engine 5EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )EL5#

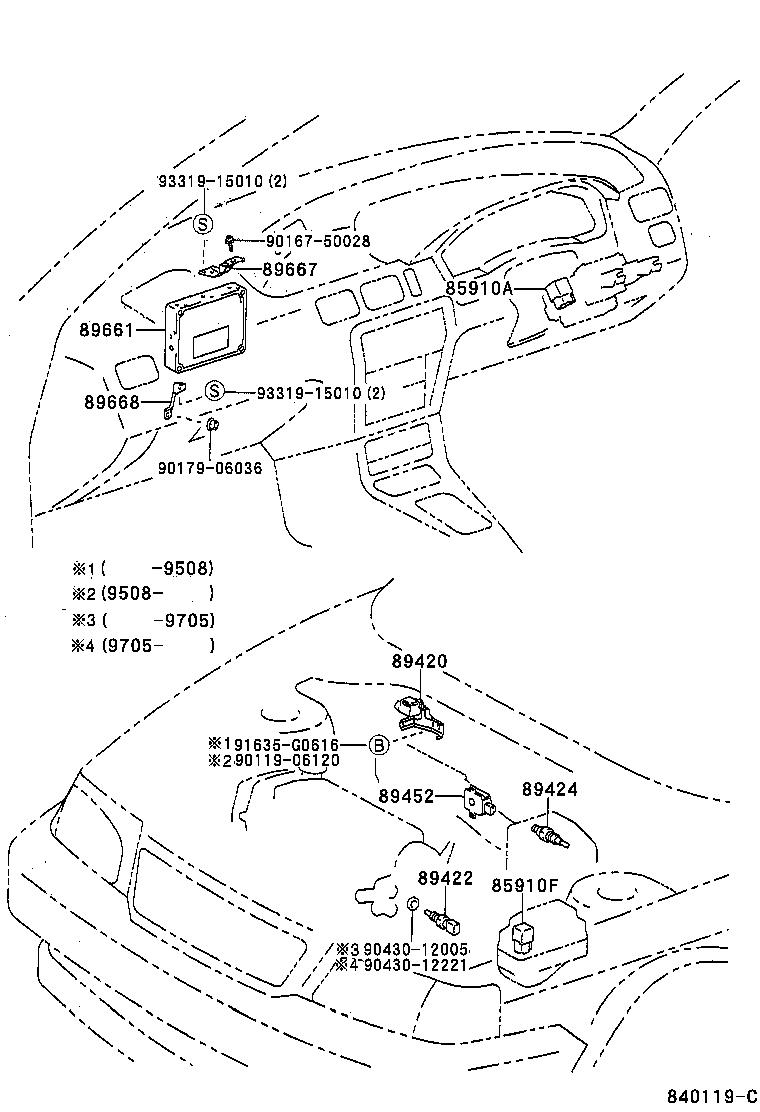

Click highlighted areas on diagram

diagram 85910A 85910F 89420 89422 89424 89452 89661 89667 89668 9011906120 9016750028 9017906036 9043012005 9043012221 91635G0616 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02009

EL5#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02009

EL5#

 1
89420 - SENSOR ASSY, VACUUM
89420-16050

EL5#

 1
89420-16080

EL5#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-22030

EL5#

ﾏｰｸ 89422−22030 *369

 1
89422-20010

EL5#

 1
89422-16010

EL5#

ﾏｰｸ 89422−16010 *369

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

EL5#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-16020

EL5#

 1
89452-16020

EL53,55

 1
89452-10040

EL5#

 1
89452-20130

EL5#

 1
89661 - COMPUTER, ENGINE CONTROL
89661-16300

EL53..5F

 1
89661-16600

EL53,55

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-16050

EL5#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-16110

EL5#

 1
89668-16060

EL5#

 1
Common parts
90119-06120
90167-50028
90179-06036
90430-12005
90430-12221
91635-G0616
93319-15010
