EL51-CGKDK (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )4EFE,5EFE..MTM

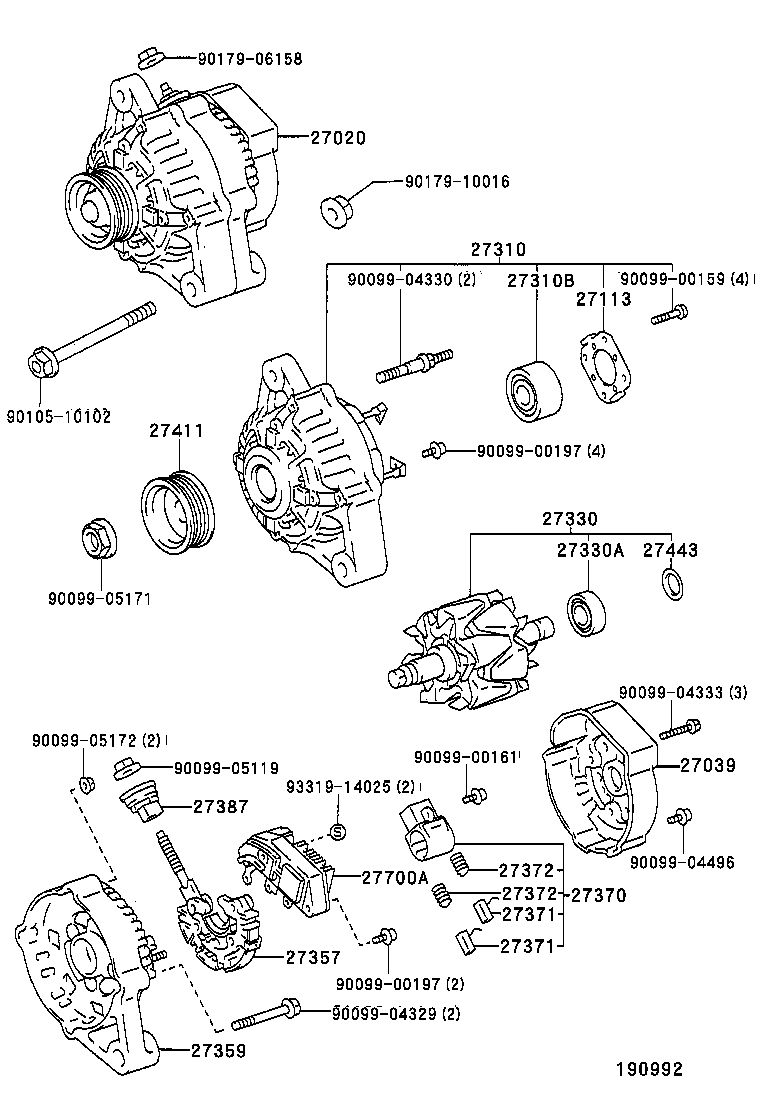

Click highlighted areas on diagram

12V 60A

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27371 27372 27372 27387 27411 27443 27700A 9009900159 9009900161 9009900197 9009900197 9009904329 9009904330 9009904333 9009904496 9009905119 9009905171 9009905172 9010510102 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-11250

4EFE,5EFE..EL5#..MTM

12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-11190

4EFE,5EFE..EL5#..MTM

 1
27039-11180

4EFE,5EFE..EL5#..MTM

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72120

4EFE,5EFE..EL5#..MTM

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-11160

4EFE,5EFE..EL5#..MTM

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10198

4EFE,5EFE..EL5#..MTM

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-11160

4EFE,5EFE..EL5#..MTM

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154

4EFE,5EFE..EL5#..MTM

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-11180

4EFE,5EFE..EL5#..MTM

 1
27357-11170

4EFE,5EFE..EL5#..MTM

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72151

4EFE,5EFE..EL5#..MTM

 1
27359-72150

4EFE,5EFE..EL5#..MTM

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-54450

4EFE,5EFE..EL5#..MTM

 1
27370-54450

4EFE,5EFE..EL5#..3FC,4F,5F

 1
27370-58320

4EFE,5EFE..EL5#..MTM

 1
27371 - BRUSH, ALTERNATOR
27371-70300

1NT..NL50;4EFE,5EFE..EL5#..3FC,4F,5F

 2
27371 - BRUSH, ALTERNATOR
27371-70300

1NT..NL50;4EFE,5EFE..EL5#..3FC,4F,5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1NT..NL50;4EFE,5EFE..EL5#..3FC,4F,5F

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

1NT..NL50;4EFE,5EFE..EL5#..3FC,4F,5F

 2
27387 - INSULATOR, TERMINAL
27387-10080

4EFE,5EFE..EL5#..MTM

 1
27387-10081

4EFE,5EFE..EL5#..MTM

 1
27411 - PULLEY, ALTERNATOR
27411-11160

4EFE,5EFE..EL5#..MTM

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4EFE,5EFE,1NT..EL5#,NL50

 1
27700A - REGULATOR ASSY, GENERATOR
27700-11060

4EFE,5EFE..EL5#..MTM

 1
Common parts
90099-00159
90099-00161
90099-00197
90099-04329
90099-04330
90099-04333
90099-04496
90099-05119
90099-05171
90099-05172
90105-10102
90179-06158
90179-10016
93319-14025
