EL51-CGHNK (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

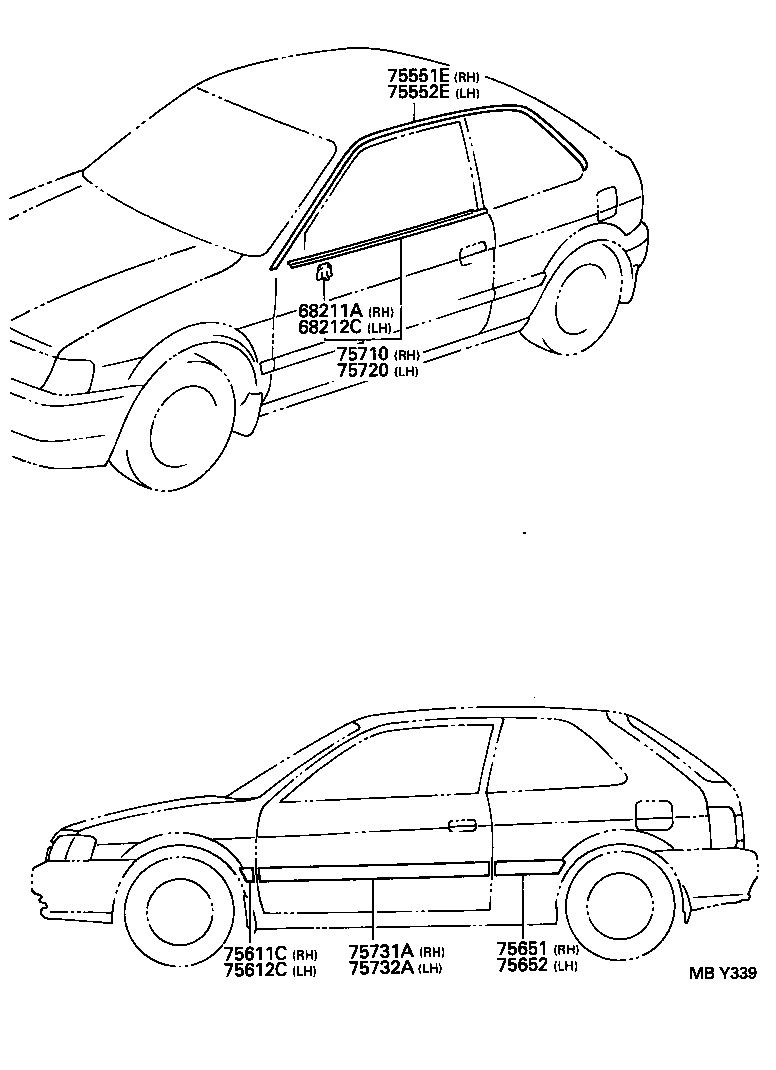

Click highlighted areas on diagram

diagram 68211A 68212C 75551E 75552E 75611C 75612C 75651 75652 75710 75720 75731A 75732A
Part # Description Qty Price
68211A - CLIP, DOOR BELT MOULDING
68212-16010

EL5#,NL50

 7
68212C - CLIP, DOOR BELT MOULDING
68212-16010

EL5#,NL50

 7
75551E - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-16181

EL5#,NL50

 1
75551-16180

EL5#,NL50

 1
75552E - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-16180

EL5#,NL50

 1
75552-16181

EL5#,NL50

 1
75611C - MOULDING, FRONT FENDER, OUTSIDE RH
75611-16410B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,3L3 ,6N7 ,8K0

 1
75611-16470B2

EL5#

DK.GRAY ME,205 ,3E5 ,8L3

 1
75611-16410B2

EL5#..LIM,TIA

GRAY,040 ,1A0 ,8K1

 1
75611-16470B1

EL5#..LIM,TIA

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75611-16410B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6P6 ,8L3

 1
75611-16410B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6N7 ,6P6 ,8K0 ,8L3

 1
75611-16470B2

EL5#..LIM,TIA

DK.GRAY ME,205 ,3E5 ,8L3

 1
75611-16470B1

EL5#

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75612C - MOULDING, FRONT FENDER, OUTSIDE LH
75612-16460B1

EL5#

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75612-16430B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,3L3 ,6N7 ,8K0

 1
75612-16460B2

EL5#

DK.GRAY MM,205 ,3E5 ,8L3

 1
75612-16430B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6P6 ,8L3

 1
75612-16430B2

EL5#..LIM,TIA

GRAY,040 ,1A0 ,8K1

 1
75612-16460B1

EL5#..LIM,TIA

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75612-16460B2

EL5#..LIM,TIA

DK.GRAY MM,205 ,3E5 ,8L3

 1
75612-16430B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6N7 ,6P6 ,8K0 ,8L3

 1
75651 - MOULDING, QUARTER, OUTSIDE RH
75651-16420B1

EL5#..LIM,TIA

GRAY,040 ,1A0 ,8K1

 1
75651-16420B2

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6P6 ,8L3

 1
75651-16420B2

EL5#..LIM,TIA

BLACK,205 ,3E5 ,3L3 ,6N7 ,8K0

 1
75651-16430B1

EL5#

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75651-16430B2

EL5#

DK.GRAY MM,205 ,3E5 ,8L3

 1
75651-16420B2

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6N7 ,6P6 ,8K0 ,8L3

 1
75651-16430B2

EL5#..LIM,TIA

DK.GRAY MM,205 ,3E5 ,8L3

 1
75651-16430B1

EL5#..LIM,TIA

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75652 - MOULDING, QUARTER, OUTSIDE LH
75652-16400B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,3L3 ,6N7 ,8K0

 1
75652-16400B2

EL5#..LIM,TIA

GRAY,040 ,1A0 ,8K1

 1
75652-16420B1

EL5#..LIM,TIA

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75652-16420B2

EL5#

DK.GRAY MM,205 ,3E5 ,8L3

 1
75652-16420B2

EL5#..LIM,TIA

DK.GRAY MM,205 ,3E5 ,8L3

 1
75652-16400B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6N7 ,6P6 ,8K0 ,8L3

 1
75652-16420B1

EL5#

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75652-16400B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6P6 ,8L3

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-16180

EL5#,NL50

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-16180

EL5#,NL50

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-16750B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6N7 ,6P6 ,8K0 ,8L3

 1
75731-16750B2

EL5#..LIM,TIA

GRAY,040 ,1A0 ,8K1

 1
75731-16780B1

EL5#

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75731-16750B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6P6 ,8L3

 1
75731-16750B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,3L3 ,6N7 ,8K0

 1
75731-16780B1

EL5#..LIM,TIA

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75731-16780B2

EL5#

DK.GRAY MM,205 ,3E5 ,8L3

 1
75731-16780B2

EL5#..LIM,TIA

DK.GRAY MM,205 ,3E5 ,8L3

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-16760B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6P6 ,8L3

 1
75732-16790B2

EL5#..LIM,TIA

DK.GRAY MM,205 ,3E5 ,8L3

 1
75732-16760B2

EL5#..LIM,TIA

GRAY,040 ,1A0 ,8K1

 1
75732-16760B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,6N7 ,6P6 ,8K0 ,8L3

 1
75732-16790B1

EL5#..LIM,TIA

GRAY MM,040 ,1A0 ,574 ,6P6

 1
75732-16790B2

EL5#

DK.GRAY MM,205 ,3E5 ,8L3

 1
75732-16760B1

EL5#..LIM,TIA

BLACK,205 ,3E5 ,3L3 ,6N7 ,8K0

 1
75732-16790B1

EL5#

GRAY MM,040 ,1A0 ,574 ,6P6

 1
