EL51-CGHDK (1994)

Toyota Corolla 2

Production Sep 1994 - Jul 1999
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9409- )

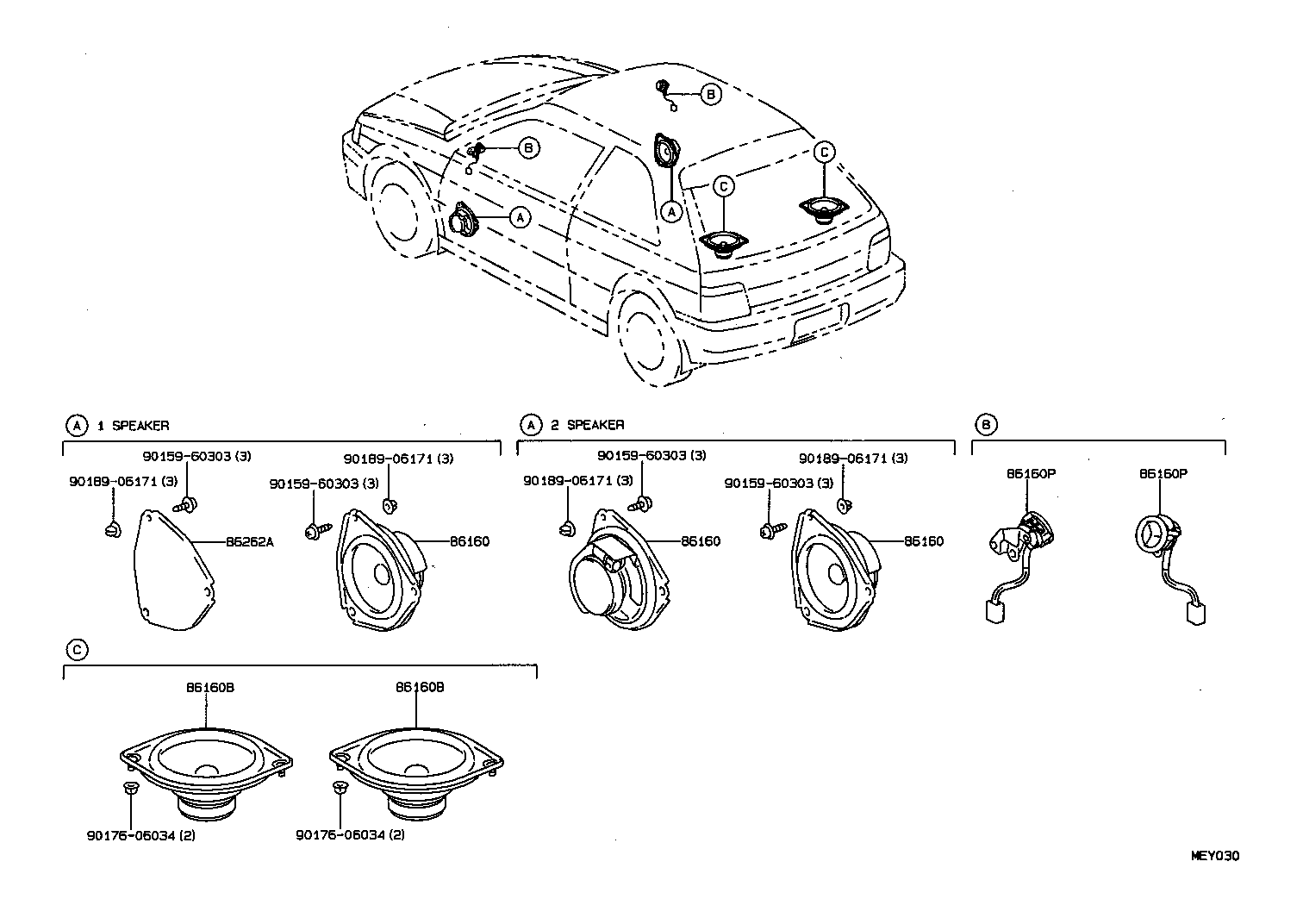

Click highlighted areas on diagram

diagram 86160 86160 86160 86160B 86160B 86160P 86160P 86262A 9015960303 9015960303 9015960303 9015960303 9017606034 9017606034 9018906171 9018906171 9018906171 9018906171
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-16280

EL51,55,NL50..WIN

10W

 1
86160-16280

EL51,55,NL50..LIM,WIN

10W;ｱﾘ(2 ｽﾋﾟ-ｶ)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16280

EL51,55,NL50..WIN

10W

 1
86160-16280

EL51,55,NL50..LIM,WIN

10W;ｱﾘ(2 ｽﾋﾟ-ｶ)

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16280

EL51,55,NL50..WIN

10W

 1
86160-16280

EL51,55,NL50..LIM,WIN

10W;ｱﾘ(2 ｽﾋﾟ-ｶ)

 2
86262A - COVER, SPEAKER, FRONT
86262-16010

EL51,55,NL50..WIN

 1
86262-16030

EL51,55,NL50..WIN

 1
Common parts
90159-60303
90176-06034
90189-06171
