EL51-CGHDK (1994)
Toyota Corolla 2
Production
Sep 1994
-
Jul 1999
Engine
4EFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9409- )3FC

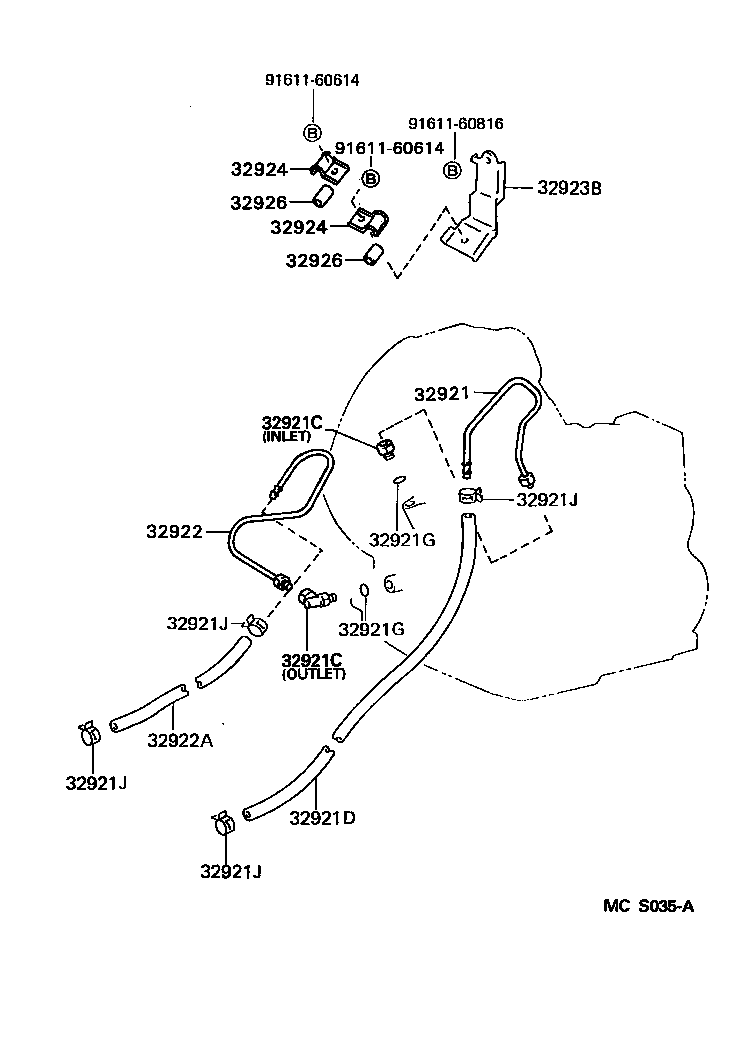

Click highlighted areas on diagram
A132L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-16070 |
EL51..3FC |
1 | ||
| 32921-16170 |
EL51..3FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-12030 |
EL51,53,NL50..ATM ｲﾝﾚｯﾄ |
1 | ||
| 90404-14007 |
EL51,55..ATM ｲﾝﾚｯﾄ |
1 | ||
| 90407-14003 |
EL51..3FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 32901-12030 |
EL51,53,NL50..ATM ｲﾝﾚｯﾄ |
1 | ||
| 90404-14007 |
EL51,55..ATM ｲﾝﾚｯﾄ |
1 | ||
| 90407-14003 |
EL51..3FC ｱｳﾄﾚｯﾄ |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-15054 |
EL51..3FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
EL5#,NL50..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
EL5#,NL50..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
EL5#,NL50..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
EL5#,NL50..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
EL5#,NL50..ATM |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-13039 |
EL5#,NL50..ATM |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-16090 |
EL51..3FC |
1 | ||
| 32922-16130 |
EL51..3FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15045 |
EL51..3FC |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-16031 |
EL51..3FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
EL51..3FC |
2 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 90462-10082 |
EL51..3FC |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
EL5#,NL50..ATM 長さ=30,内径=8 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
EL5#,NL50..ATM 長さ=30,内径=8 |
2 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
