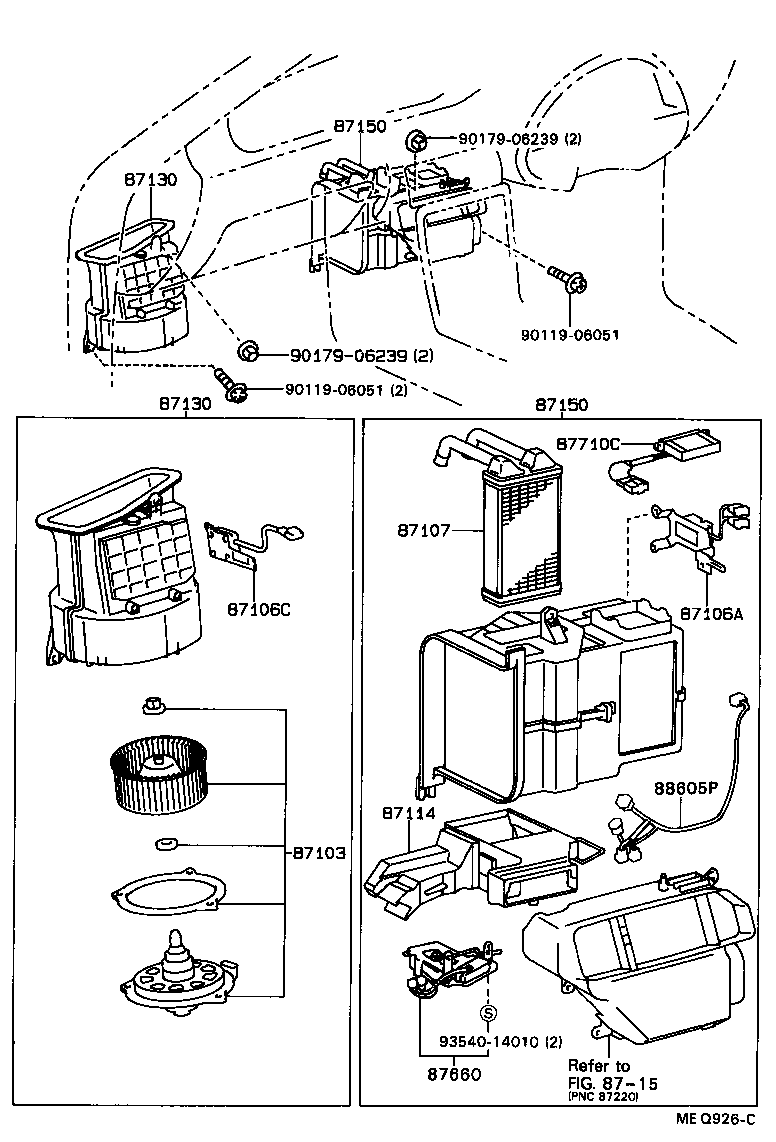

Toyota Corolla 2 EL45 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-17010	EL4#,NL40	09/1990 - 09/1994	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16200	EL4# ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 09/1994	1
87107-16190	EL4#	09/1990 - 09/1994	1
87114 - COVER, HEATER
87114-16050	EL4#,NL40	09/1990 - 09/1994	1
87114-16060	EL4#,NL40 ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 09/1994	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16150	EL4#,NL40..DSL,EFI	09/1990 - 09/1994	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-16150	EL4#,NL40..DSL,EFI	09/1990 - 09/1994	1
87150 - RADIATOR ASSY, HEATER
87150-16270	EL4#..EFI	09/1990 - 09/1994	1
87150-16280	EL4#..EFI ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 09/1994	1
87150 - RADIATOR ASSY, HEATER
87150-16270	EL4#..EFI	09/1990 - 09/1994	1
87150-16280	EL4#..EFI ｶﾝﾚｲﾁｼﾖｳ	09/1990 - 09/1994	1

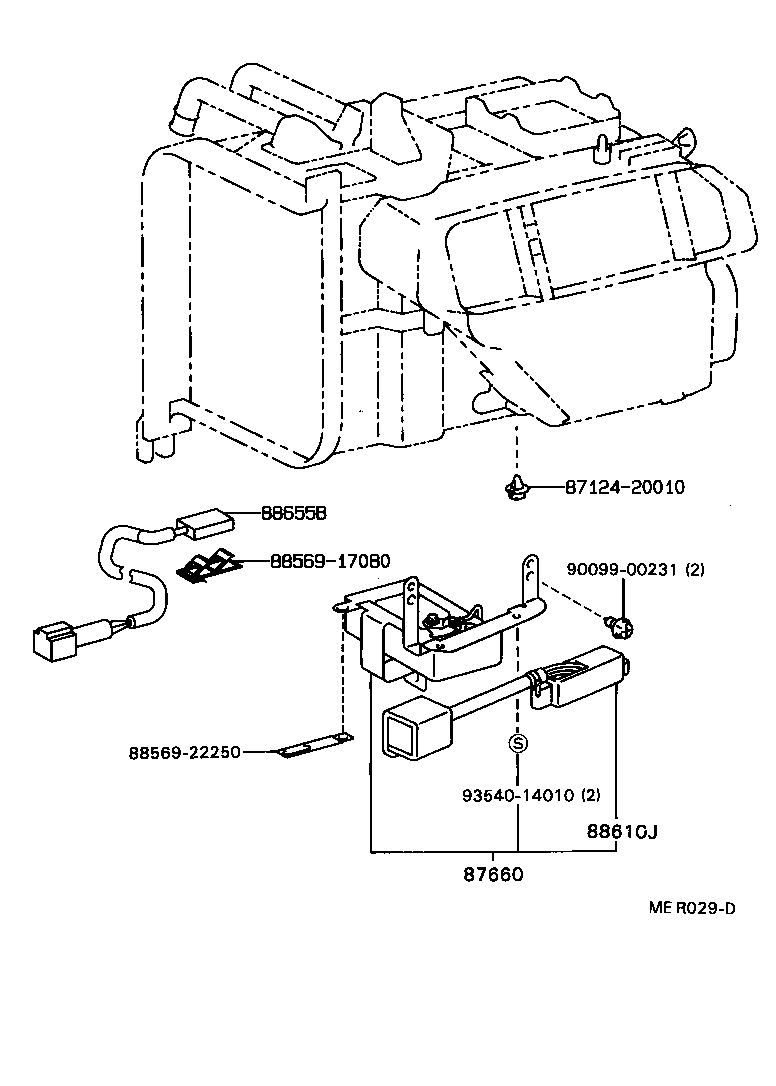

87660 - SERVO ASSY, AIR CONDITIONER
88660-16030	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 08/1992	1
88660-16040	NL40..4FC;EL4#..LIM,WIN,ZS	08/1992 - 09/1994	1
Common parts
90119-06051
90179-06239
93540-14010
Linked diagrams
8715

EL45-CGMDK (1990)
