Toyota Corolla 2 EL45 RADIATOR GRILLE

EL45-CGMDK (1990)

Toyota Corolla 2

Production Sep 1990 - Sep 1994

Engine 5EFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

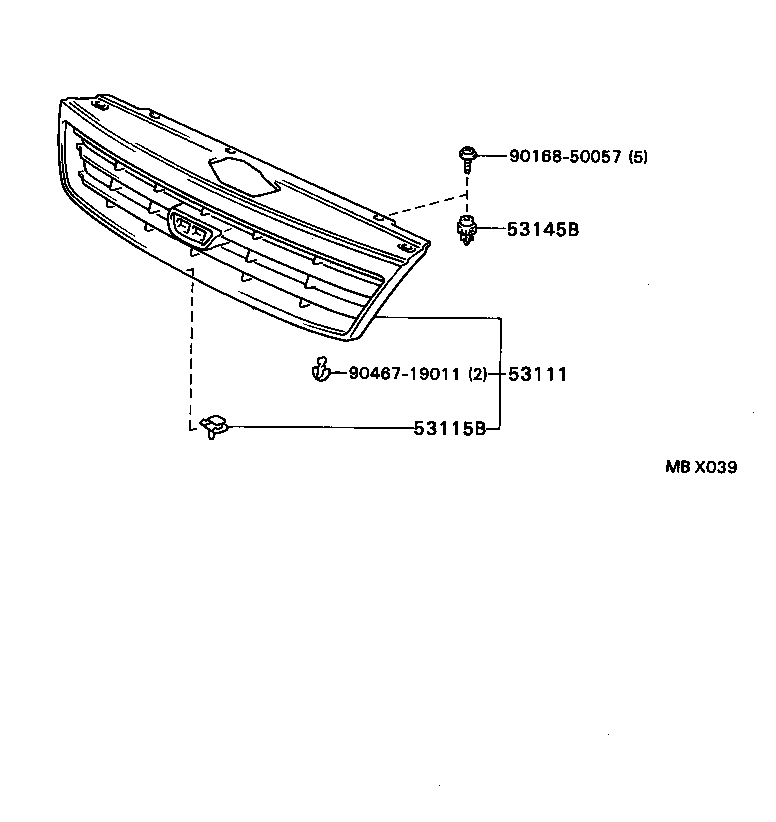

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1628002	EL4#,NL40 SUPER RED,3E5	09/1990 - 08/1992	1
53111-1628009	EL4#,NL40..LIM,SR,WIN,ZS LIGHT YELLOW M M,570	09/1990 - 08/1992	1
53111-1628007	EL4#,NL40..LIM,SR,WIN,ZS GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1628003	EL4#,NL40 BLUE GRAY M,179	09/1990 - 08/1992	1
53111-1628004	EL4#,NL40 DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1628012	EL4#,NL40..LIM,SR,WIN,ZS PURPLE M M,924	09/1990 - 08/1992	1
53111-16380D0	EL4#,NL40 SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16380F0	EL4#,NL40..LIM,SR,WIN,ZS GREENISH YELLOW M.M,569	08/1992 - 09/1994	1
53111-16380A0	EL4#,NL40 SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-16380B0	EL4#,NL40 DK. BL. GRAY ME,183	08/1992 - 09/1994	1
53111-1628008	EL4#,NL40 SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-16380G0	EL4#,NL40..LIM,SR,WIN,ZS LT. GREEN ME,6M9	08/1992 - 09/1994	1
53111-16380K0	EL4#,NL40 PURPLE M.M,924	08/1992 - 09/1994	1
53111-16380G1	EL4#,NL40..LIM,SR,WIN,ZS MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL4#,NL40	09/1990 - 09/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	EL4#,NL40	09/1990 - 09/1994	3
Common parts
90168-50057
90467-19011

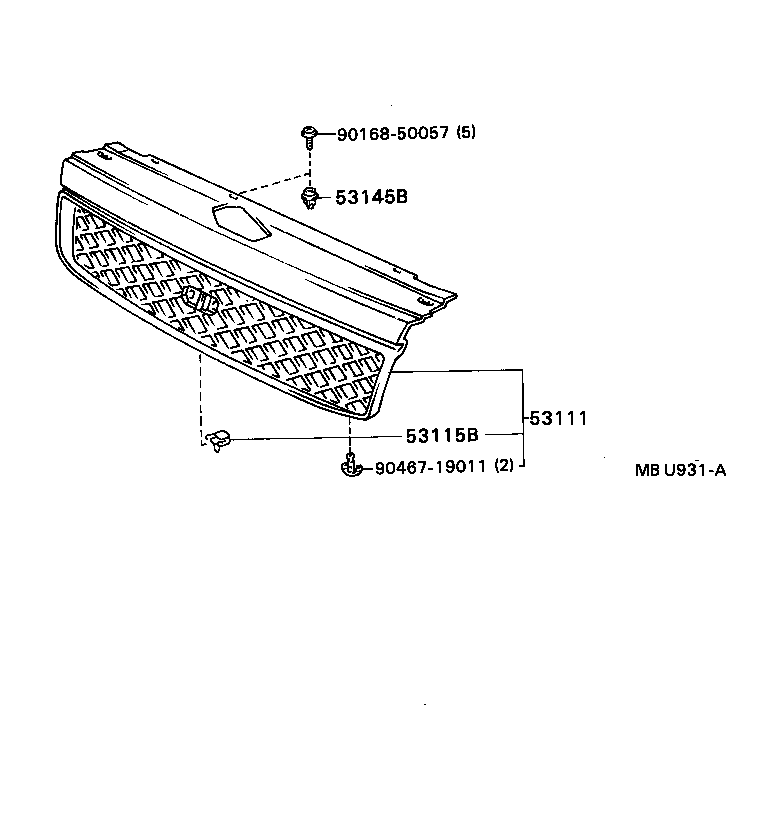

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-1628002	EL4#,NL40 SUPER RED,3E5	09/1990 - 08/1992	1
53111-1628009	EL4#,NL40..LIM,SR,WIN,ZS LIGHT YELLOW M M,570	09/1990 - 08/1992	1
53111-1628007	EL4#,NL40..LIM,SR,WIN,ZS GRAYISH GREEN M M,6L6	09/1990 - 08/1992	1
53111-1628003	EL4#,NL40 BLUE GRAY M,179	09/1990 - 08/1992	1
53111-1628004	EL4#,NL40 DARK BLUE M M,8J1	09/1990 - 08/1992	1
53111-1628012	EL4#,NL40..LIM,SR,WIN,ZS PURPLE M M,924	09/1990 - 08/1992	1
53111-16380D0	EL4#,NL40 SUPER RED 2,3E5	08/1992 - 09/1994	1
53111-16380F0	EL4#,NL40..LIM,SR,WIN,ZS GREENISH YELLOW M.M,569	08/1992 - 09/1994	1
53111-16380A0	EL4#,NL40 SUPER WHITE 2,040	08/1992 - 09/1994	1
53111-16380B0	EL4#,NL40 DK. BL. GRAY ME,183	08/1992 - 09/1994	1
53111-1628008	EL4#,NL40 SUPER WHITE 2,040	09/1990 - 08/1992	1
53111-16380G0	EL4#,NL40..LIM,SR,WIN,ZS LT. GREEN ME,6M9	08/1992 - 09/1994	1
53111-16380K0	EL4#,NL40 PURPLE M.M,924	08/1992 - 09/1994	1
53111-16380G1	EL4#,NL40..LIM,SR,WIN,ZS MI. GR. GREEN MCGR,6N1	08/1992 - 09/1994	1
53115B - BRACKET, RADIATOR GRILLE
53115-16010	EL4#,NL40	09/1990 - 09/1994	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	EL4#,NL40	09/1990 - 09/1994	3
Common parts
90168-50057
90467-19011
