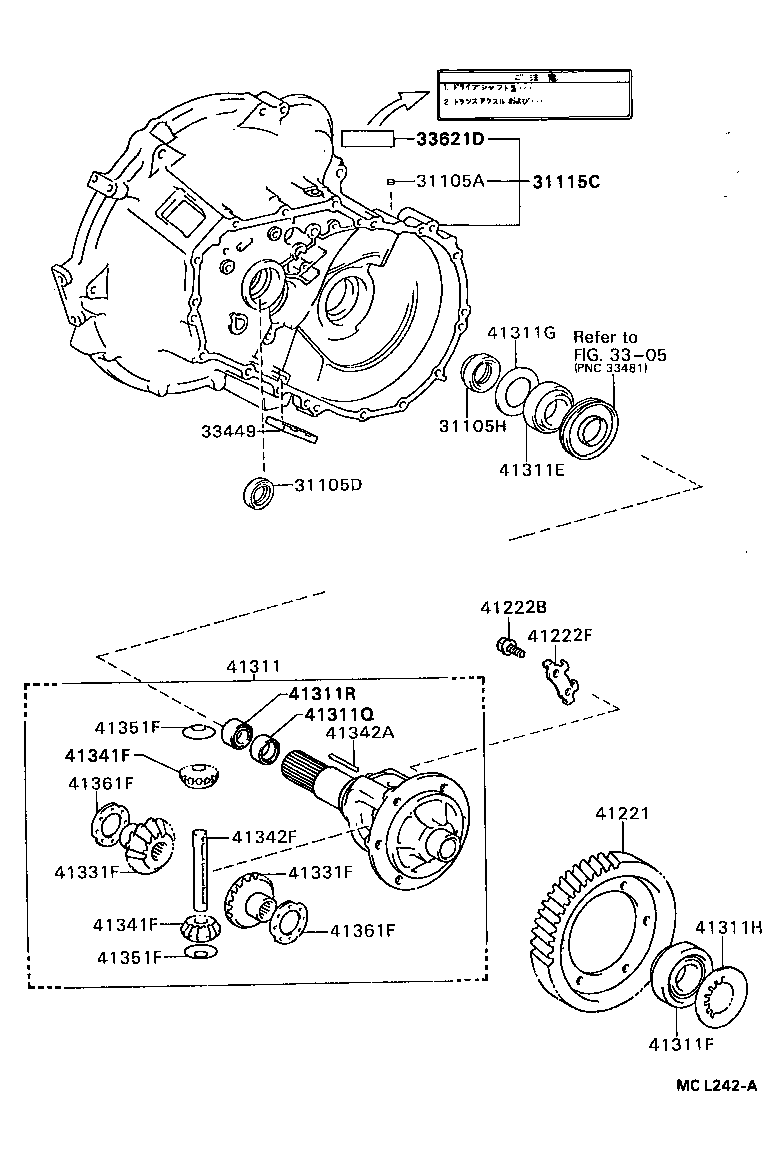

Toyota Corolla 2 EL45 FRONT AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002	EL4#,NL40..MTM	09/1990 - 09/1994	1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016	EL4#,NL40..MTM	07/1991 - 09/1994	1
90311-25016	EL4#..MTM	09/1990 - 07/1991	1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-54004	EL45..5F	09/1990 - 09/1994	1
31115C - CASE, FRONT TRANSAXLE(MTM)
31105-16050	EL45..5F	09/1990 - 05/1994	1
31105-16080	EL45..5F	05/1994 - 09/1994	1
33449 - MAGNET, TRANSMISSION
33449-12020	EL4#,NL40..MTM	09/1990 - 09/1994	1
33621D - LABEL, TRANSAXLE OIL INFORMATION
33621-16060	EL45	09/1990 - 09/1994	1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-12180	EL45..5F	09/1990 - 01/1991	1
41221-12330	EL45..5F	01/1991 - 09/1994	1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90101-11353	EL45;EL41,43,NL40..ATM	09/1990 - 09/1994	8
41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41222-12040	EL45..5F	09/1990 - 09/1994	4
41311 - CASE, FRONT DIFFERENTIAL
41301-16040	EL45..5F	09/1990 - 09/1994	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-55045	EL45	09/1990 - 09/1994	1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010	EL4#,NL40..4F,4FC,5F	09/1990 - 09/1994	1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-58001	EL45 厚さ=1.90	09/1990 - 09/1994	1
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41051	EL4#,NL40..MTM 厚さ=2.35,ﾏｰｸ F	09/1990 - 09/1994	1
90201-41050	EL4#,NL40..MTM 厚さ=2.30,ﾏｰｸ E	09/1990 - 09/1994	1
90201-41053	EL4#,NL40..MTM 厚さ=2.45,ﾏｰｸ H	09/1990 - 09/1994	1
90201-41048	EL4#,NL40..MTM 厚さ=2.20,ﾏｰｸ C	09/1990 - 09/1994	1
90201-41055	EL4#,NL40..MTM 厚さ=2.55,ﾏｰｸ K	09/1990 - 09/1994	1
90201-41052	EL4#,NL40..MTM 厚さ=2.40,ﾏｰｸ G	09/1990 - 09/1994	1
90201-41047	EL4#,NL40..MTM 厚さ=2.15,ﾏｰｸ B	09/1990 - 09/1994	1
90201-41057	EL4#,NL40..MTM 厚さ=2.65,ﾏｰｸ M	09/1990 - 09/1994	1
90201-41054	EL4#,NL40..MTM 厚さ=2.50,ﾏｰｸ J	09/1990 - 09/1994	1
90201-41046	EL4#,NL40..MTM 厚さ=2.10,ﾏｰｸ A	09/1990 - 09/1994	1
90201-41062	EL4#,NL40..MTM 厚さ=2.90,ﾏｰｸ S	09/1990 - 09/1994	1
90201-41058	EL4#,NL40..MTM 厚さ=2.70,ﾏｰｸ N	09/1990 - 09/1994	1
90201-41056	EL4#,NL40..MTM 厚さ=2.60,ﾏｰｸ L	09/1990 - 09/1994	1
90201-41063	EL4#,NL40..MTM 厚さ=2.95,ﾏｰｸ T	09/1990 - 09/1994	1
90201-41061	EL4#,NL40..MTM 厚さ=2.85,ﾏｰｸ R	09/1990 - 09/1994	1
90201-41060	EL4#,NL40..MTM 厚さ=2.80,ﾏｰｸ Q	09/1990 - 09/1994	1
90201-41059	EL4#,NL40..MTM 厚さ=2.75,ﾏｰｸ P	09/1990 - 09/1994	1
90201-41049	EL4#,NL40..MTM 厚さ=2.25,ﾏｰｸ D	09/1990 - 09/1994	1
90201-41064	EL4#,NL40..MTM 厚さ=3.00,ﾏｰｸ U	09/1990 - 09/1994	1
41311Q - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE)
90364-33010	EL45	09/1990 - 09/1994	1
41311R - SEAL, OIL (FOR FRONT DIFFERENTIAL CASE)
90316-33001	EL45	09/1990 - 09/1994	1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011	EL45;EL41,43,NL40..ATM	09/1990 - 09/1994	2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-12011	EL45;EL41,43,NL40..ATM	09/1990 - 09/1994	2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030	EL45;EL41,43,NL40..ATM	09/1990 - 09/1994	2
41341F - PINION, FRONT DIFFERENTIAL
41341-12030	EL45;EL41,43,NL40..ATM	09/1990 - 09/1994	2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058	EL45;EL41,43,NL40..ATM	09/1990 - 09/1994	1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-12140	EL45;EL41,43,NL40..ATM	09/1991 - 09/1994	1
41342-12020	EL45;EL41,43,NL40..ATM	09/1990 - 09/1991	1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020	EL45;EL41,43,NL40..ATM	09/1990 - 09/1994	2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-12020	EL45;EL41,43,NL40..ATM	09/1990 - 09/1994	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030	EL41,45..3FC,5F 厚さ=1.10,ﾏｰｸ 03	09/1990 - 09/1994	2
41361-22040	EL41,45..3FC,5F 厚さ=1.20,ﾏｰｸ 04	09/1990 - 09/1994	2
41361-22020	EL41,45..3FC,5F 厚さ=1.00,ﾏｰｸ 02	09/1990 - 09/1994	2
41361-22150	EL41,45..3FC,5F 厚さ=1.05,ﾏｰｸ 15	09/1990 - 09/1994	2
41361-22140	EL41,45..3FC,5F 厚さ=0.95,ﾏｰｸ 14	09/1990 - 09/1994	2
41361-22160	EL41,45..3FC,5F 厚さ=1.15,ﾏｰｸ 16	09/1990 - 09/1994	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-22030	EL41,45..3FC,5F 厚さ=1.10,ﾏｰｸ 03	09/1990 - 09/1994	2
41361-22040	EL41,45..3FC,5F 厚さ=1.20,ﾏｰｸ 04	09/1990 - 09/1994	2
41361-22020	EL41,45..3FC,5F 厚さ=1.00,ﾏｰｸ 02	09/1990 - 09/1994	2
41361-22150	EL41,45..3FC,5F 厚さ=1.05,ﾏｰｸ 15	09/1990 - 09/1994	2
41361-22140	EL41,45..3FC,5F 厚さ=0.95,ﾏｰｸ 14	09/1990 - 09/1994	2
41361-22160	EL41,45..3FC,5F 厚さ=1.15,ﾏｰｸ 16	09/1990 - 09/1994	2
Linked diagrams
3305

EL45-CGMDK (1990)

(9009- )EL45..5F
