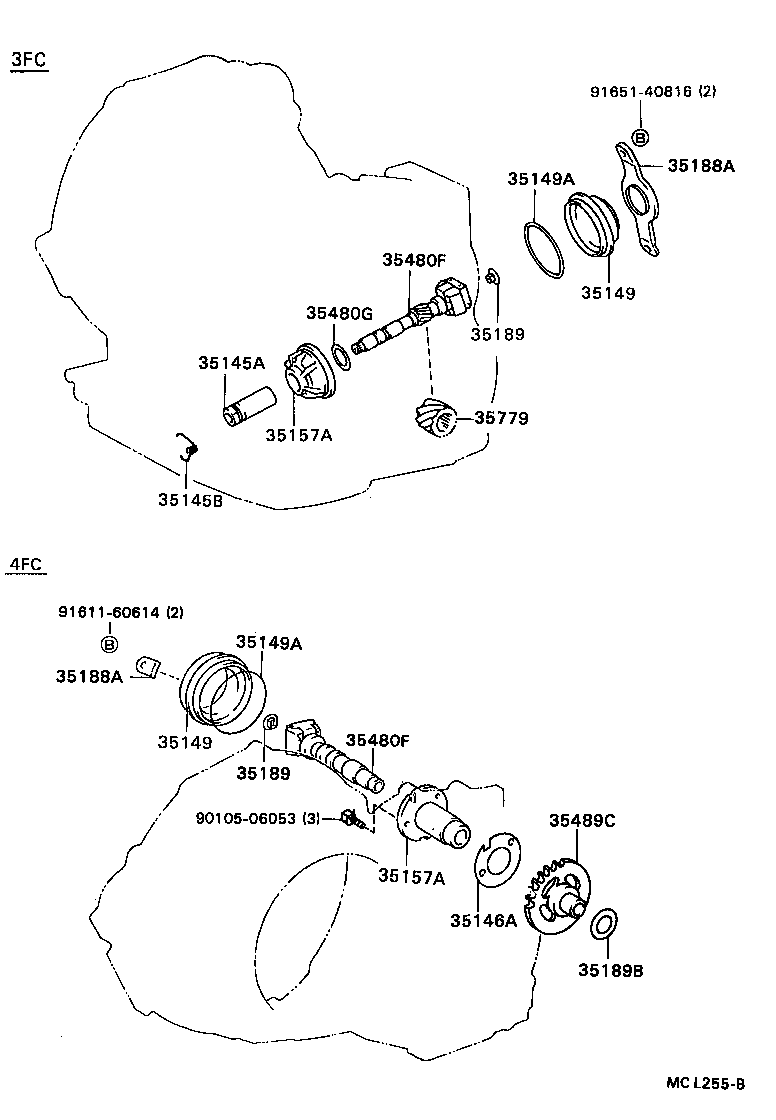

EL43-CGPVH (1990)
Toyota Corolla 2
(9009-9208)ATM ; (9208- )ATM..DSL,EFI
A132,A132L,A242L,A244L,A244F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35146A - GASKET, GOVERNOR BODY | ||||
| 35146-20010 |
EL43,45,NL40..4FC |
1 | ||
| 35146-20010 |
EL43,45,NL40..4FC..(DSL,EFI) |
1 | ||
| 35149 - COVER, GOVERNOR | ||||
| 35149-20010 |
EL43,45,NL40..4FC..(DSL,EFI) |
1 | ||
| 35149-20010 |
EL43,45,NL40..4FC |
1 | ||
| 35149 - COVER, GOVERNOR | ||||
| 35149-20010 |
EL43,45,NL40..4FC..(DSL,EFI) |
1 | ||
| 35149-20010 |
EL43,45,NL40..4FC |
1 | ||
| 35149A - RING, O (FOR GOVERNOR COVER) | ||||
| 90301-68001 |
EL43,45,NL40..4FC |
1 | ||
| 90301-68001 |
EL43,45,NL40..4FC..(DSL,EFI) |
1 | ||
| 35149A - RING, O (FOR GOVERNOR COVER) | ||||
| 90301-68001 |
EL43,45,NL40..4FC |
1 | ||
| 90301-68001 |
EL43,45,NL40..4FC..(DSL,EFI) |
1 | ||
| 35157A - ADAPTER, GOVERNOR BODY | ||||
| 35157-20031 |
EL43,45,NL40..4FC |
1 | ||
| 35157-20031 |
EL43,45,NL40..4FC..(DSL,EFI) |
1 | ||
| 35157A - ADAPTER, GOVERNOR BODY | ||||
| 35157-20031 |
EL43,45,NL40..4FC |
1 | ||
| 35157-20031 |
EL43,45,NL40..4FC..(DSL,EFI) |
1 | ||
| 35188A - BRACKET, GOVERNOR COVER | ||||
| 35188-20010 |
EL43,45,NL40..4FC |
2 | ||
| 35188-20010 |
EL43,45,NL40..4FC..(DSL,EFI) |
2 | ||
| 35188A - BRACKET, GOVERNOR COVER | ||||
| 35188-20010 |
EL43,45,NL40..4FC |
2 | ||
| 35188-20010 |
EL43,45,NL40..4FC..(DSL,EFI) |
2 | ||
| 35189 - WASHER, GOVERNOR THRUST, NO.1 | ||||
| 35189-32011 |
EL4#,NL40..ATM |
1 | ||
| 35189-32011 |
EL4#,NL40..ATM..(DSL,EFI) |
1 | ||
| 35189 - WASHER, GOVERNOR THRUST, NO.1 | ||||
| 35189-32011 |
EL4#,NL40..ATM |
1 | ||
| 35189-32011 |
EL4#,NL40..ATM..(DSL,EFI) |
1 | ||
| 35189B - WASHER, GOVERNOR THRUST, NO.2 | ||||
| 35189-12010 |
EL43,45,NL40..4FC |
1 | ||
| 35480F - BODY ASSY, GOVERNOR | ||||
| 35480-20021 |
EL45..4FC;EL43..4FC..EFIS |
1 | ||
| 35480-12030 |
EL43..4FC..EFI |
1 | ||
| 35480F - BODY ASSY, GOVERNOR | ||||
| 35480-20021 |
EL45..4FC;EL43..4FC..EFIS |
1 | ||
| 35480-12030 |
EL43..4FC..EFI |
1 | ||
| 35489C - GEAR, GOVERNOR DRIVEN | ||||
| 35489-12010 |
EL43,45,NL40..4FC |
1 | ||
| Common parts | ||||
| 90105-06053 | ||||
| 91611-60614 | ||||
| 91651-40816 | ||||

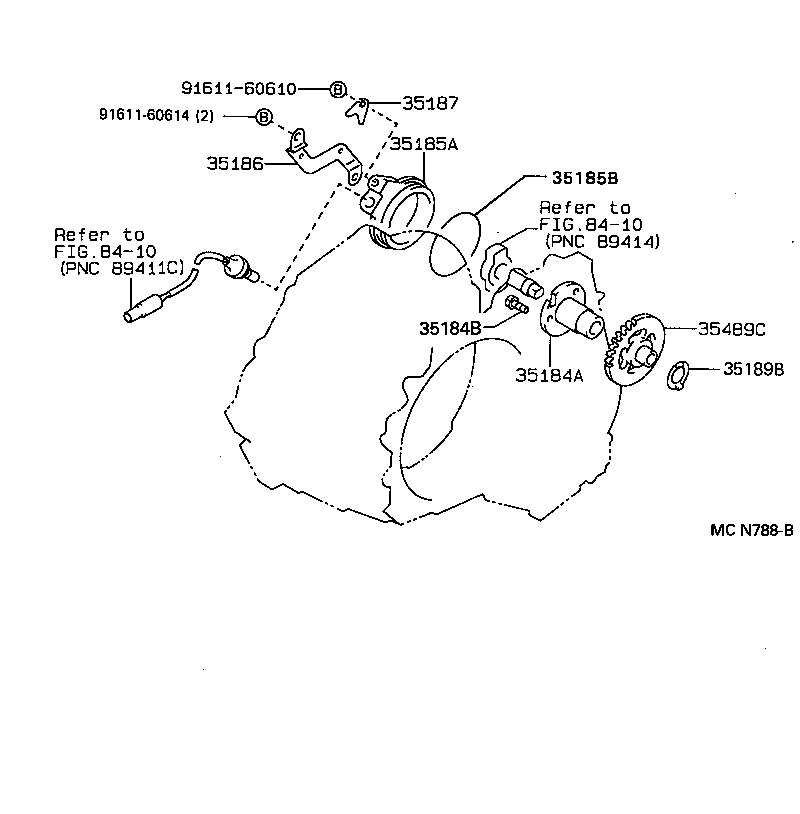

(9208- )4FC..EFIS
A244E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35184A - ADAPTER, SENSOR ROTOR | ||||
| 35184-12010 |
EL43..4FC..EFIS |
1 | ||
| 35184B - BOLT(FOR SENSOR ROTOR ADAPTER) | ||||
| 90105-06053 |
EL43..4FC..EFIS |
3 | ||
| 35185A - COVER, SPEED SENSOR | ||||
| 35185-12010 |
EL43..4FC..EFIS |
1 | ||
| 35185B - RING, O (FOR SPEED SENSOR COVER) | ||||
| 90301-68001 |
EL43..4FC..EFIS |
1 | ||
| 35186 - BRACKET, SPEED SENSOR COVER | ||||
| 35186-12010 |
EL43..4FC..EFIS |
1 | ||
| 35187 - PLATE, SPEED SENSOR LOCK | ||||
| 35187-12010 |
EL43..4FC..EFIS |
1 | ||
| 35189B - WASHER, GOVERNOR THRUST, NO.2 | ||||
| 35189-12010 |
EL43,45,NL40..4FC |
1 | ||
| 35489C - GEAR, GOVERNOR DRIVEN | ||||
| 35489-12010 |
EL43,45,NL40..4FC |
1 | ||
| Common parts | ||||
| 91611-60610 | ||||
| 91611-60614 | ||||
| Linked diagrams | ||||
| 8410 | ||||
