COROLLA 2
EL41-CGKRK (1990)
8401 - SWITCH & RELAY & COMPUTER

EL41-CGKRK (1990)

Toyota Corolla 2

Production Sep 1990 - Sep 1994

Engine 4EFE

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

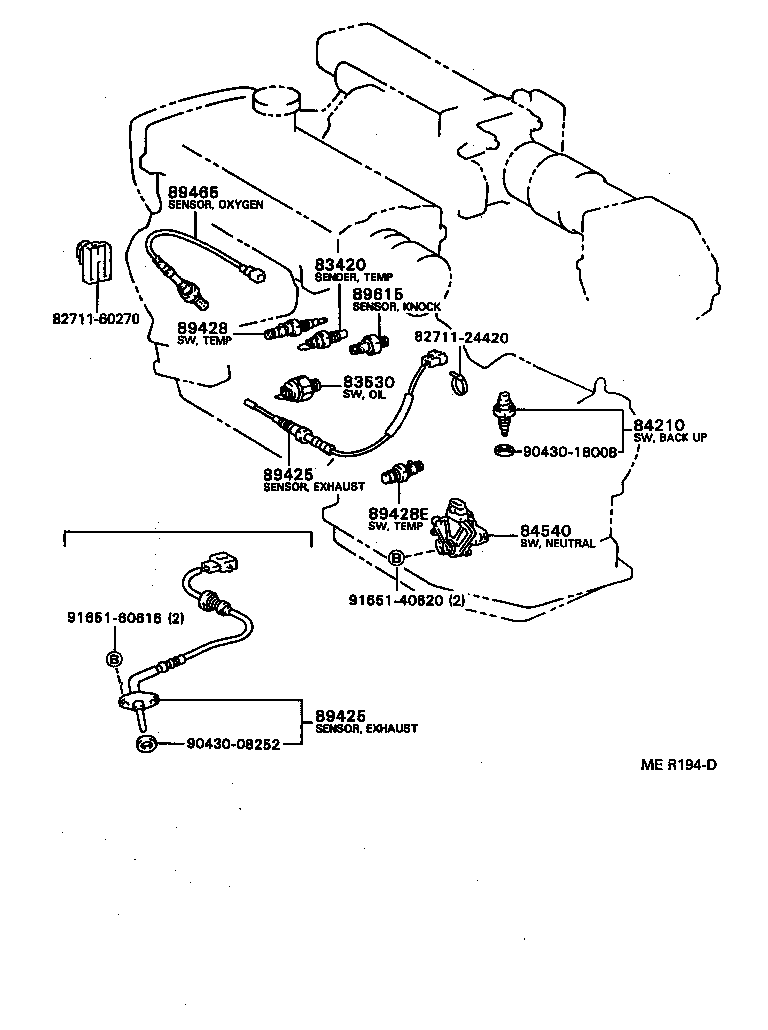

ILLUST NO. 1 OF 7(9009- )EL4#

Click highlighted areas on diagram

Part #	Description	Period	Qty
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-16020	EL4#	08/1992 - 09/1994	1
83420-16020	EL4#,NL40	09/1990 - 08/1992	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14060	EL4#	08/1992 - 09/1994	1
83530-30080	EL4#	09/1990 - 08/1992	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	EL4#,NL40..MTM	09/1990 - 09/1994	1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-32090	EL4#..EFI NIPPONDENSO	09/1991 - 11/1991	1
89425-12250	EL4#..EFI	09/1990 - 05/1991	1
89425-12250	EL4#..EFI MATSUSHITA	05/1991 - 11/1991	1
89425-20190	EL41 NIPPONDENSO	11/1991 - 08/1992	1
89425-12210	EL4#..EFI NIPPONDENSO	05/1991 - 09/1991	1
89425-12280	EL41 MATSUSHITA	11/1991 - 08/1992	1
89425-19495	EL41,43	08/1992 - 09/1994	1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-32090	EL4#..EFI NIPPONDENSO	09/1991 - 11/1991	1
89425-12250	EL4#..EFI	09/1990 - 05/1991	1
89425-12250	EL4#..EFI MATSUSHITA	05/1991 - 11/1991	1
89425-20190	EL41 NIPPONDENSO	11/1991 - 08/1992	1
89425-12210	EL4#..EFI NIPPONDENSO	05/1991 - 09/1991	1
89425-12280	EL41 MATSUSHITA	11/1991 - 08/1992	1
89425-19495	EL41,43	08/1992 - 09/1994	1
89428 - SWITCH, TEMPERATURE DETECT, NO.2
89428-12160	EL4#	08/1992 - 09/1994	1
89428-20060	EL4#	09/1990 - 08/1992	1
89465 - SENSOR, OXYGEN
89465-10020	EL4#	09/1990 - 09/1994	1
Common parts
82711-24420
82711-60270
90430-08252
90430-18008
91651-40620
91651-60616

ILLUST NO. 2 OF 7(9009-9208)

Click highlighted areas on diagram

Part #	Description	Period	Qty

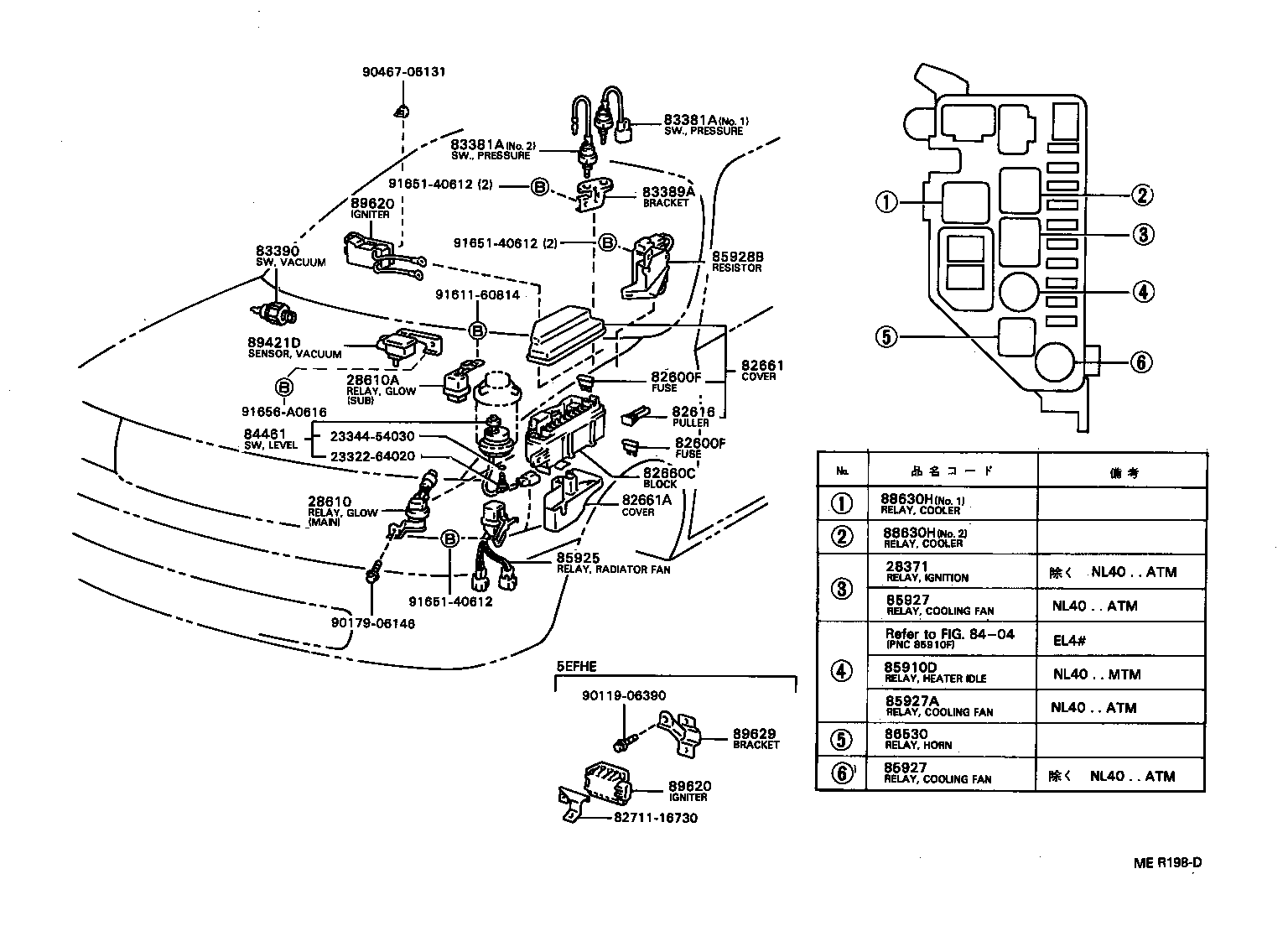

28371 - RELAY, IGNITION, NO.1
90987-04002	1NT..NL40..5F;4EFE,5EF#..EL4#	09/1990 - 09/1994	1
82600F - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	2
90982-07011	EL4#;NL40..5F 30A,緑	09/1990 - 09/1994	2
90982-09004	EL4#,NL40 20A,黄	09/1990 - 09/1994	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	1
90982-09003	EL4# 15A	09/1990 - 09/1994	4
90982-07011	EL43..5F..EFIS;EL4#,NL40..DSL,EFI 30A,緑	08/1992 - 09/1994	1
90982-07011	EL4#,NL40 30A,緑	09/1990 - 08/1992	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	3
90982-09005	EL4#,NL40 7.5A	09/1990 - 09/1994	1
82600F - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	2
90982-07011	EL4#;NL40..5F 30A,緑	09/1990 - 09/1994	2
90982-09004	EL4#,NL40 20A,黄	09/1990 - 09/1994	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	1
90982-09003	EL4# 15A	09/1990 - 09/1994	4
90982-07011	EL43..5F..EFIS;EL4#,NL40..DSL,EFI 30A,緑	08/1992 - 09/1994	1
90982-07011	EL4#,NL40 30A,緑	09/1990 - 08/1992	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	3
90982-09005	EL4#,NL40 7.5A	09/1990 - 09/1994	1
82616 - PULLER, FUSE
82616-12010	EL4#,NL40	09/1990 - 09/1994	1
82660C - BLOCK ASSY, RELAY
82660-10110	EL4#,NL40	09/1990 - 08/1992	1
82660-10130	EL4#,NL40	08/1992 - 09/1994	1
82661 - COVER, RELAY BLOCK, NO.1
82662-16020	EL4#..MTM	09/1990 - 08/1992	1
82662-16080	EL4#..MTM	08/1992 - 09/1994	1
82661A - COVER, RELAY BLOCK, NO.2
82663-10020	EL4#;NL40..5F	09/1990 - 08/1992	1
82663-10040	EL4#	08/1992 - 09/1994	1
85927 - RELAY, COOLING FAN
90987-03001	EL4#	09/1990 - 09/1994	1
85927 - RELAY, COOLING FAN
90987-03001	EL4#	09/1990 - 09/1994	1
86530 - RELAY ASSY, HORN
86530-20070	EL4#,NL40	09/1990 - 09/1994	1
88630H - RELAY ASSY, COOLER
90987-02006	EL4# NO.1	09/1990 - 08/1992	1
90987-04002	EL4# NO.2	09/1990 - 08/1992	1
90987-04002	EL4#;NL40..4FC NO.2	08/1992 - 09/1994	1
90987-02006	EL4#;NL40..4FC NO.1	08/1992 - 09/1994	1
88630H - RELAY ASSY, COOLER
90987-02006	EL4# NO.1	09/1990 - 08/1992	1
90987-04002	EL4# NO.2	09/1990 - 08/1992	1
90987-04002	EL4#;NL40..4FC NO.2	08/1992 - 09/1994	1
90987-02006	EL4#;NL40..4FC NO.1	08/1992 - 09/1994	1
Common parts
23322-64020
23344-54030
82711-16730
90119-06390
90179-06146
90467-06131
91611-60814
91651-40612
91656-A0616
Linked diagrams
8404

ILLUST NO. 3 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82285A - WIRE, ILLUMINATION
82285-16010	EL41..TX	09/1990 - 09/1994	1
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-20210	EL4#,NL40	09/1990 - 09/1994	1
84660C - SWITCH, COOLER
84660-1608004	EL41..TX A/C & ECON,GRAISH BLUE,TRIM8#	09/1990 - 08/1992	1
84660-1609001	EL41,NL40 A/C,BLACK,TRIM2#	09/1990 - 08/1992	1
84660-1609004	EL41,NL40 A/C,GRAISH BLUE,TRIM8#	09/1990 - 08/1992	1
84660-16080J0	EL41..TX A/C & ECON,EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
84660-16090W4	EL41,NL40 A/C,EISEN BLUE,TRIM8#	08/1992 - 09/1994	1
84660-1608001	EL41..TX A/C & ECON,BLACK,TRIM2#	09/1990 - 08/1992	1
84660-16080C0	EL41..TX A/C & ECON,BLACK,TRIM2#	08/1992 - 09/1994	1
84660-1609022	EL41,NL40 A/C,BLACK,TRIM2#	08/1992 - 09/1994	1
84730 - SWITCH ASSY, HEATER BLOWER
84732-16120	EL4#,NL40..DSL,EFI	09/1990 - 09/1994	1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014	EL4#,NL40 14V 1.4W	09/1990 - 09/1994	1
84790 - SWITCH ASSY, REAR WINDOW DEFOGGER
84790-16080	EL4#,NL40	09/1990 - 09/1994	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
84999-10320	EL4#,NL40 14V 0.84W	09/1990 - 09/1994	1
85500 - LIGHTER ASSY, CIGARETTE
85500-50020	EL41..TX	09/1990 - 09/1994	1
85500 - LIGHTER ASSY, CIGARETTE
85500-50020	EL41..TX	09/1990 - 09/1994	1
85533 - LENS, CIGARETTE LIGHTER INDICATOR
85533-16020	EL41..TX	09/1990 - 09/1994	1
88607C - LAMP SUB-ASSY, INDICATOR
88607-10020	EL41,NL40 14V 0.08A	09/1990 - 08/1992	1
88607-10020	EL41,NL40 14V 0.08A	08/1992 - 09/1994	1
88607-20060	EL41..TX 14V 0.08A,14V 0.08A,ｱﾘ(ECON)	08/1992 - 09/1994	1
88607-20060	EL41..TX 14V 0.08A,14V 0.08A,ｱﾘ(ECON)	09/1990 - 08/1992	1

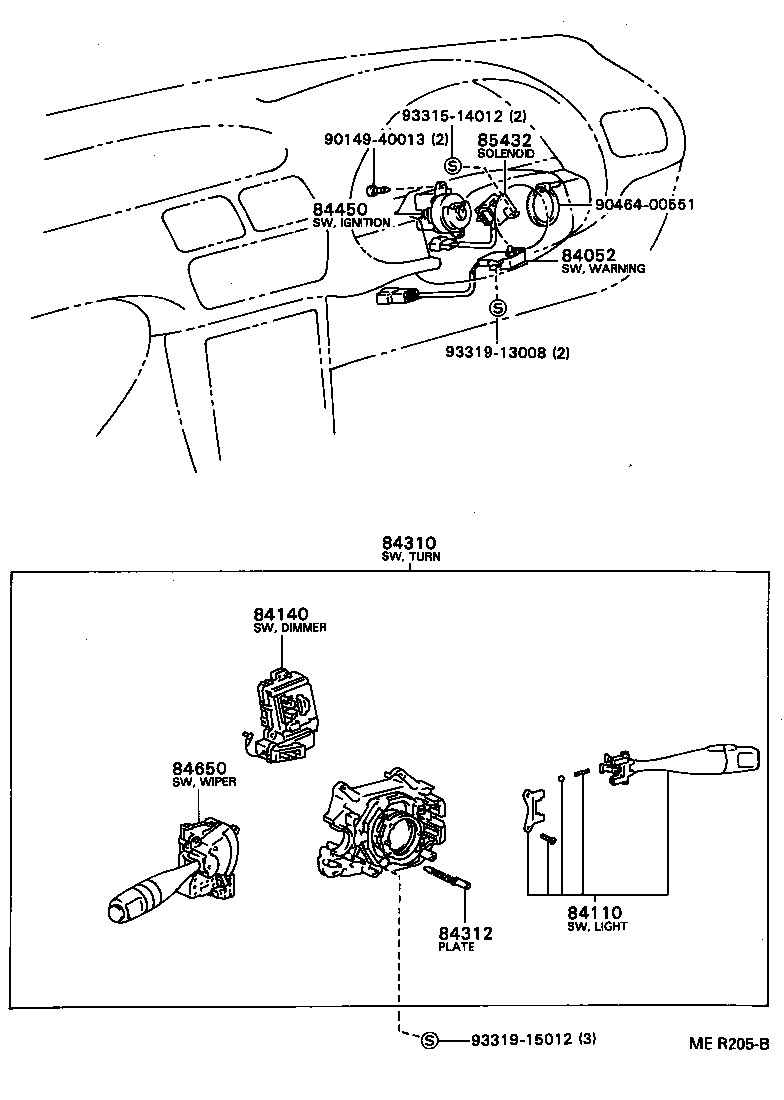

ILLUST NO. 4 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-16020	EL4#,NL40	09/1990 - 09/1994	1
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-80053	EL4#,NL40	09/1990 - 09/1994	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-10160	EL4#,NL40	09/1990 - 09/1994	1
84310 - SWITCH ASSY, TURN SIGNAL
84310-10740	EL41,45,NL40..TX,WIN ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1990 - 08/1992	1
84310-16520	EL41,45,NL40..TX,WIN	09/1990 - 08/1992	1
84310-10740	EL41..TX ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟ)	08/1992 - 09/1994	1
84310-16520	EL41..TX	08/1992 - 09/1994	1
84312 - PLATE, HORN CONTACT
84312-10040	EL4#,NL40	09/1990 - 09/1994	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-10110	EL4#,NL40	09/1990 - 09/1994	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-10510	EL41,45,NL40..TX,WIN	09/1990 - 08/1992	1
84652-10530	EL41,45,NL40..TX,WIN ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1990 - 08/1992	1
84652-10530	EL41..TX ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳﾜｲﾊﾟ)	08/1992 - 09/1994	1
84652-10510	EL41..TX	08/1992 - 09/1994	1
Common parts
90149-40013
90464-00551
93315-14012
93319-13008
93319-15012

ILLUST NO. 5 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty

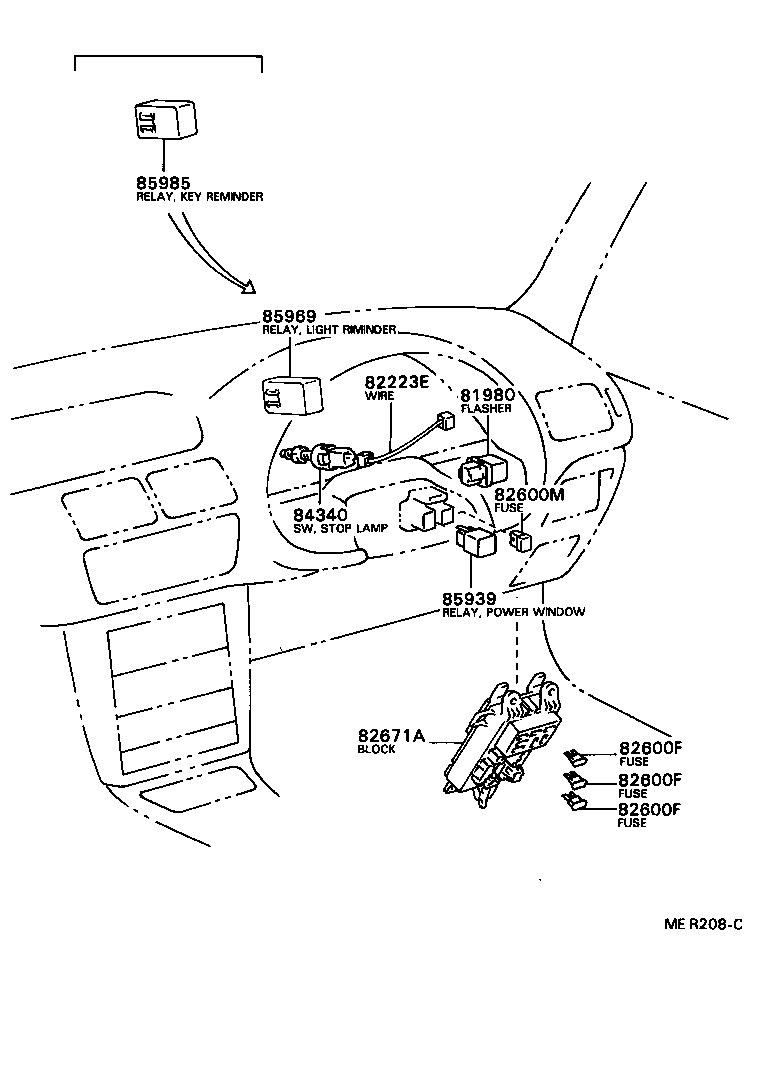

81980 - FLASHER ASSY, TURN SIGNAL
81980-12070	EL4#,NL40	09/1990 - 09/1994	1
82223E - WIRE, CLUTCH START SWITCH
82223-16020	EL4#,NL40	09/1990 - 08/1992	1
82223-12530	EL4#,NL40	08/1992 - 09/1994	1
82600F - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	2
90982-07011	EL4#;NL40..5F 30A,緑	09/1990 - 09/1994	2
90982-09004	EL4#,NL40 20A,黄	09/1990 - 09/1994	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	1
90982-09003	EL4# 15A	09/1990 - 09/1994	4
90982-07011	EL43..5F..EFIS;EL4#,NL40..DSL,EFI 30A,緑	08/1992 - 09/1994	1
90982-07011	EL4#,NL40 30A,緑	09/1990 - 08/1992	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	3
90982-09005	EL4#,NL40 7.5A	09/1990 - 09/1994	1
82600F - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	2
90982-07011	EL4#;NL40..5F 30A,緑	09/1990 - 09/1994	2
90982-09004	EL4#,NL40 20A,黄	09/1990 - 09/1994	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	1
90982-09003	EL4# 15A	09/1990 - 09/1994	4
90982-07011	EL43..5F..EFIS;EL4#,NL40..DSL,EFI 30A,緑	08/1992 - 09/1994	1
90982-07011	EL4#,NL40 30A,緑	09/1990 - 08/1992	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	3
90982-09005	EL4#,NL40 7.5A	09/1990 - 09/1994	1
82600F - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	2
90982-07011	EL4#;NL40..5F 30A,緑	09/1990 - 09/1994	2
90982-09004	EL4#,NL40 20A,黄	09/1990 - 09/1994	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	1
90982-09003	EL4# 15A	09/1990 - 09/1994	4
90982-07011	EL43..5F..EFIS;EL4#,NL40..DSL,EFI 30A,緑	08/1992 - 09/1994	1
90982-07011	EL4#,NL40 30A,緑	09/1990 - 08/1992	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	3
90982-09005	EL4#,NL40 7.5A	09/1990 - 09/1994	1
82600M - FUSE, MEDIUM CURRENT
90982-10001	EL4#,NL40 30A,ﾋﾟﾝｸ	09/1990 - 09/1994	2
82671A - BLOCK, JUNCTION
82671-16061	EL4#,NL40	09/1990 - 09/1994	1
84340 - SWITCH ASSY, STOP LAMP
84340-32050	EL4#,NL40	09/1990 - 09/1994	1
85985 - RELAY, KEY REMINDER
85985-16010	EL41..TX	08/1993 - 09/1994	1
85985-16010	EL41,45,NL40..TX,WIN	08/1992 - 08/1993	1
85985-16010	EL41,45,NL40..LIM,TX,WIN	09/1990 - 08/1992	1

ILLUST NO. 6 OF 7(9009-9208)

Click highlighted areas on diagram

Part #	Description	Period	Qty

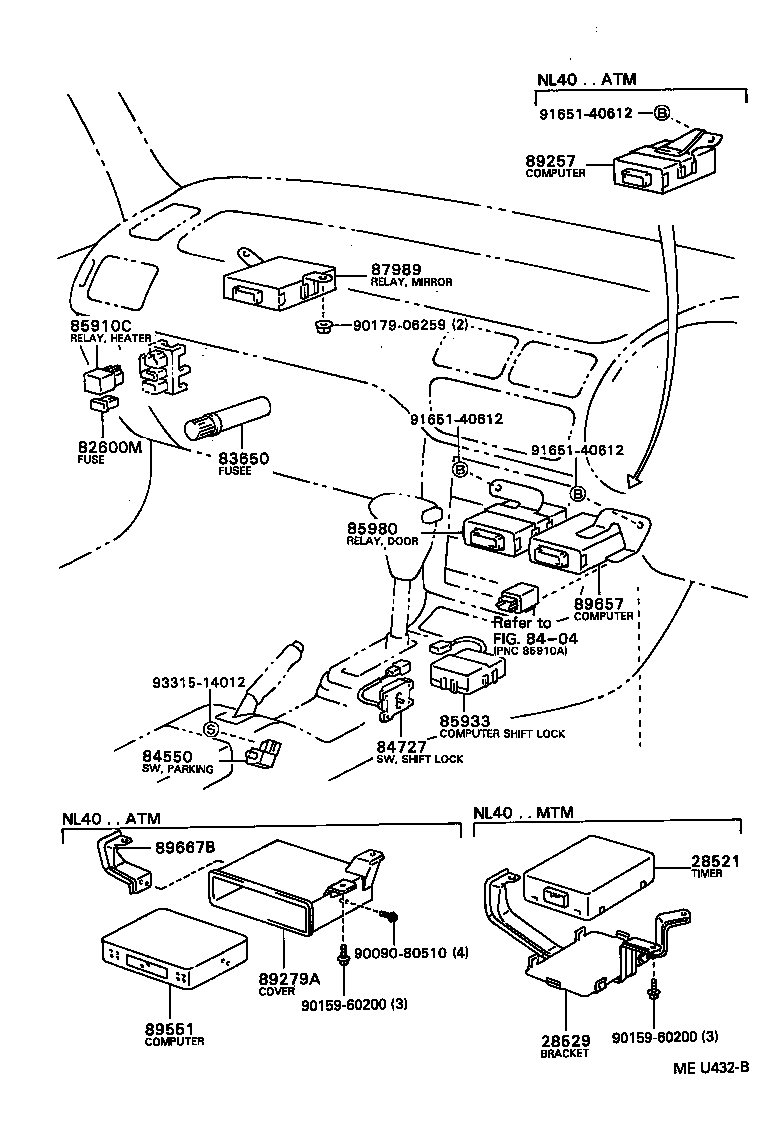

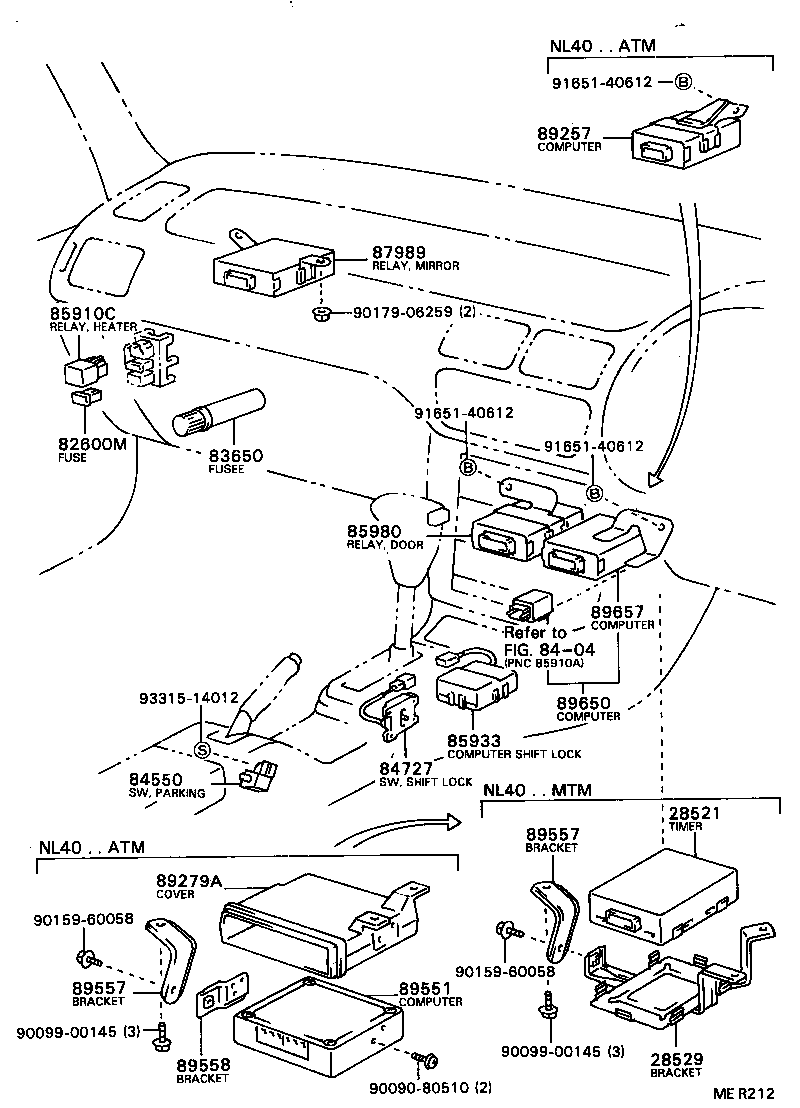

82600M - FUSE, MEDIUM CURRENT
90982-10001	EL4#,NL40 30A,ﾋﾟﾝｸ	09/1990 - 09/1994	2
83650 - FUSEE
90986-01005	EL4#,NL40	09/1990 - 09/1994	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060	EL4#,NL40	09/1990 - 09/1994	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	EL4#,NL40	09/1990 - 09/1994	1
Common parts
90090-80510
90099-00145
90159-60058
90179-06259
91651-40612
93315-14012
Linked diagrams
8404

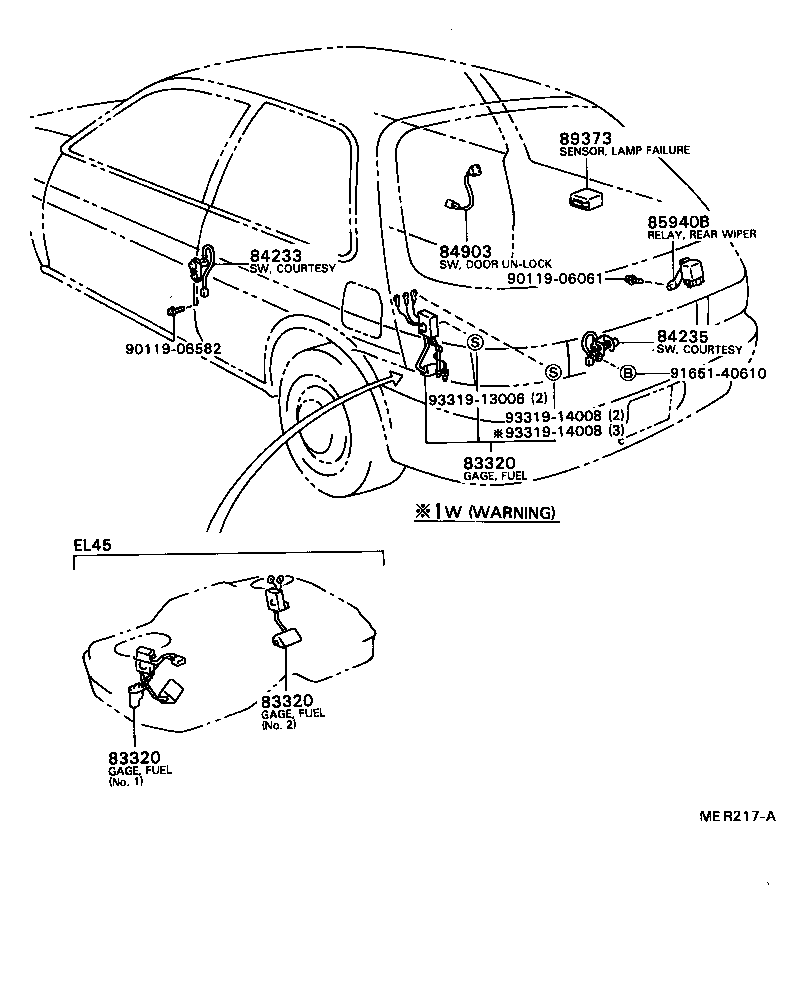

ILLUST NO. 7 OF 7(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-80191	EL41..TX,WIN	09/1990 - 08/1992	1
83320-80191	EL41..TX	08/1992 - 09/1994	1
83320 - GAGE ASSY, FUEL SENDER
83320-80191	EL41..TX,WIN	09/1990 - 08/1992	1
83320-80191	EL41..TX	08/1992 - 09/1994	1
83320 - GAGE ASSY, FUEL SENDER
83320-80191	EL41..TX,WIN	09/1990 - 08/1992	1
83320-80191	EL41..TX	08/1992 - 09/1994	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-32040	EL4#,NL40	09/1990 - 09/1994	2
84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR)
84231-16050	EL4#,NL40	09/1990 - 09/1994	1
85940B - RELAY ASSY, REAR WIPER
85940-16030	EL4#,NL40..DSL,EFI	01/1991 - 09/1994	1
85940-16030	EL4#,NL40	09/1990 - 01/1991	1
Common parts
90119-06061
90119-06582
91651-40610
93319-13006
93319-14008

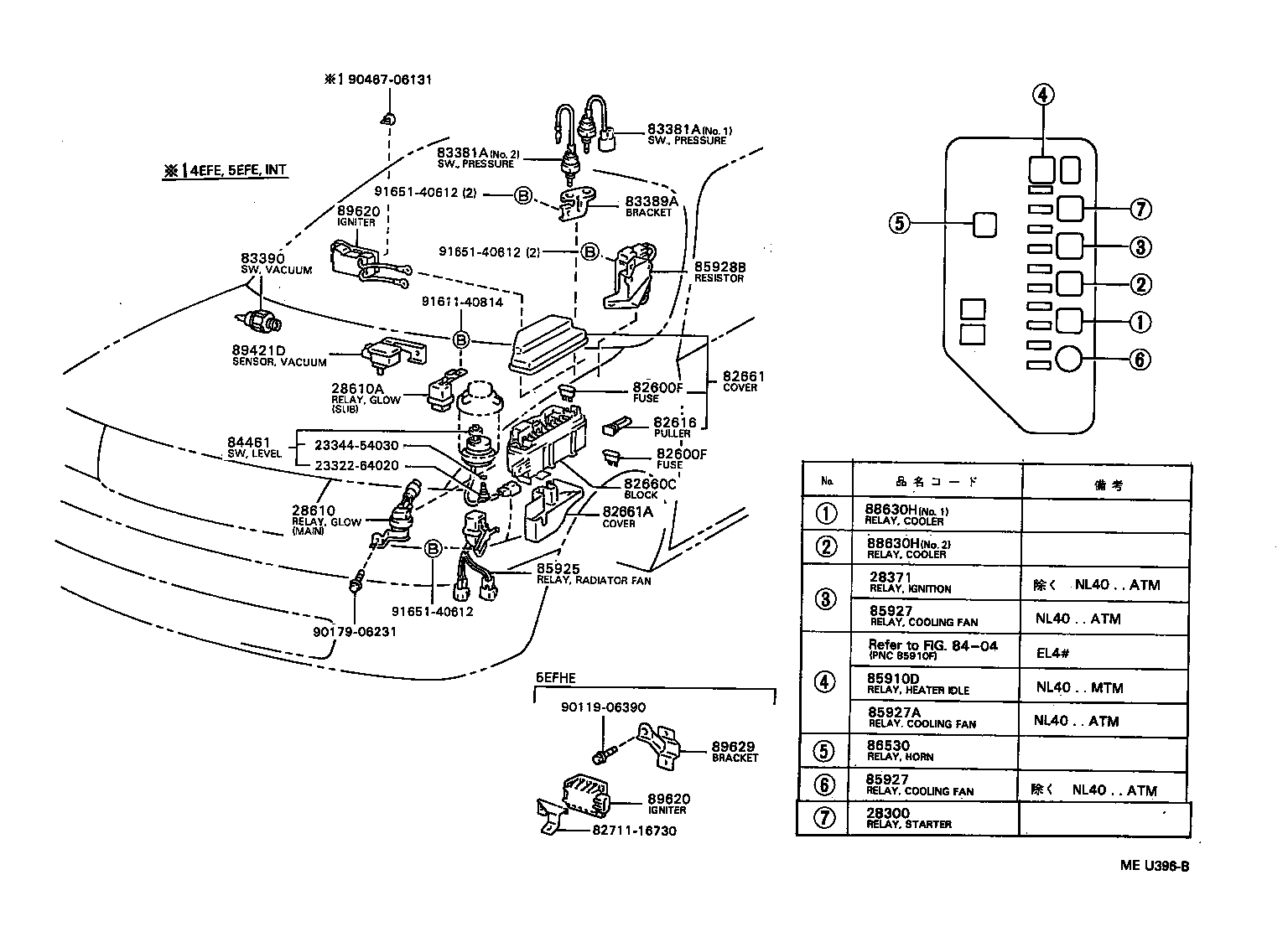

ILLUST NO. 2 OF 7(9208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28341-11010	4EFE,5EF#,1NT..EL4#,NL40..MTM	08/1992 - 09/1994	1
28371 - RELAY, IGNITION, NO.1
90987-04002	1NT..NL40..5F;4EFE,5EF#..EL4#	09/1990 - 09/1994	1
82600F - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	2
90982-07011	EL4#;NL40..5F 30A,緑	09/1990 - 09/1994	2
90982-09004	EL4#,NL40 20A,黄	09/1990 - 09/1994	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	1
90982-09003	EL4# 15A	09/1990 - 09/1994	4
90982-07011	EL43..5F..EFIS;EL4#,NL40..DSL,EFI 30A,緑	08/1992 - 09/1994	1
90982-07011	EL4#,NL40 30A,緑	09/1990 - 08/1992	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	3
90982-09005	EL4#,NL40 7.5A	09/1990 - 09/1994	1
82600F - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	2
90982-07011	EL4#;NL40..5F 30A,緑	09/1990 - 09/1994	2
90982-09004	EL4#,NL40 20A,黄	09/1990 - 09/1994	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	1
90982-09003	EL4# 15A	09/1990 - 09/1994	4
90982-07011	EL43..5F..EFIS;EL4#,NL40..DSL,EFI 30A,緑	08/1992 - 09/1994	1
90982-07011	EL4#,NL40 30A,緑	09/1990 - 08/1992	1
90982-09003	EL4#,NL40 15A	09/1990 - 09/1994	3
90982-09005	EL4#,NL40 7.5A	09/1990 - 09/1994	1
82616 - PULLER, FUSE
82616-12010	EL4#,NL40	09/1990 - 09/1994	1
82660C - BLOCK ASSY, RELAY
82660-10110	EL4#,NL40	09/1990 - 08/1992	1
82660-10130	EL4#,NL40	08/1992 - 09/1994	1
82661 - COVER, RELAY BLOCK, NO.1
82662-16020	EL4#..MTM	09/1990 - 08/1992	1
82662-16080	EL4#..MTM	08/1992 - 09/1994	1
82661A - COVER, RELAY BLOCK, NO.2
82663-10020	EL4#;NL40..5F	09/1990 - 08/1992	1
82663-10040	EL4#	08/1992 - 09/1994	1
85927 - RELAY, COOLING FAN
90987-03001	EL4#	09/1990 - 09/1994	1
85927 - RELAY, COOLING FAN
90987-03001	EL4#	09/1990 - 09/1994	1
86530 - RELAY ASSY, HORN
86530-20070	EL4#,NL40	09/1990 - 09/1994	1
88630H - RELAY ASSY, COOLER
90987-02006	EL4# NO.1	09/1990 - 08/1992	1
90987-04002	EL4# NO.2	09/1990 - 08/1992	1
90987-04002	EL4#;NL40..4FC NO.2	08/1992 - 09/1994	1
90987-02006	EL4#;NL40..4FC NO.1	08/1992 - 09/1994	1
88630H - RELAY ASSY, COOLER
90987-02006	EL4# NO.1	09/1990 - 08/1992	1
90987-04002	EL4# NO.2	09/1990 - 08/1992	1
90987-04002	EL4#;NL40..4FC NO.2	08/1992 - 09/1994	1
90987-02006	EL4#;NL40..4FC NO.1	08/1992 - 09/1994	1
Common parts
23322-64020
23344-54030
82711-16730
90119-06390
90179-06231
90467-06131
91611-40814
91651-40612
Linked diagrams
8404

ILLUST NO. 6 OF 7(9208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82600M - FUSE, MEDIUM CURRENT
90982-10001	EL4#,NL40 30A,ﾋﾟﾝｸ	09/1990 - 09/1994	2
83650 - FUSEE
90986-01005	EL4#,NL40	09/1990 - 09/1994	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-16060	EL4#,NL40	09/1990 - 09/1994	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04002	EL4#,NL40	09/1990 - 09/1994	1
Common parts
90090-80510
90159-60200
90179-06259
91651-40612
93315-14012
Linked diagrams
8404

EL41-CGKRK (1990)

ILLUST NO. 1 OF 7(9009- )EL4#

ILLUST NO. 2 OF 7(9009-9208)

ILLUST NO. 3 OF 7(9009- )

ILLUST NO. 4 OF 7(9009- )

ILLUST NO. 5 OF 7(9009- )

ILLUST NO. 6 OF 7(9009-9208)

ILLUST NO. 7 OF 7(9009- )

ILLUST NO. 2 OF 7(9208- )

ILLUST NO. 6 OF 7(9208- )

Part Price Details
