Toyota Corolla 2 EL41 REAR COMBINATION LAMP

Manufacturers Home
Toyota
JP
COROLLA 2
EL41-CGKRK (1990)
8111 - REAR COMBINATION LAMP

EL41-CGKRK (1990)

Toyota Corolla 2

Production Sep 1990 - Sep 1994

Engine 4EFE

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

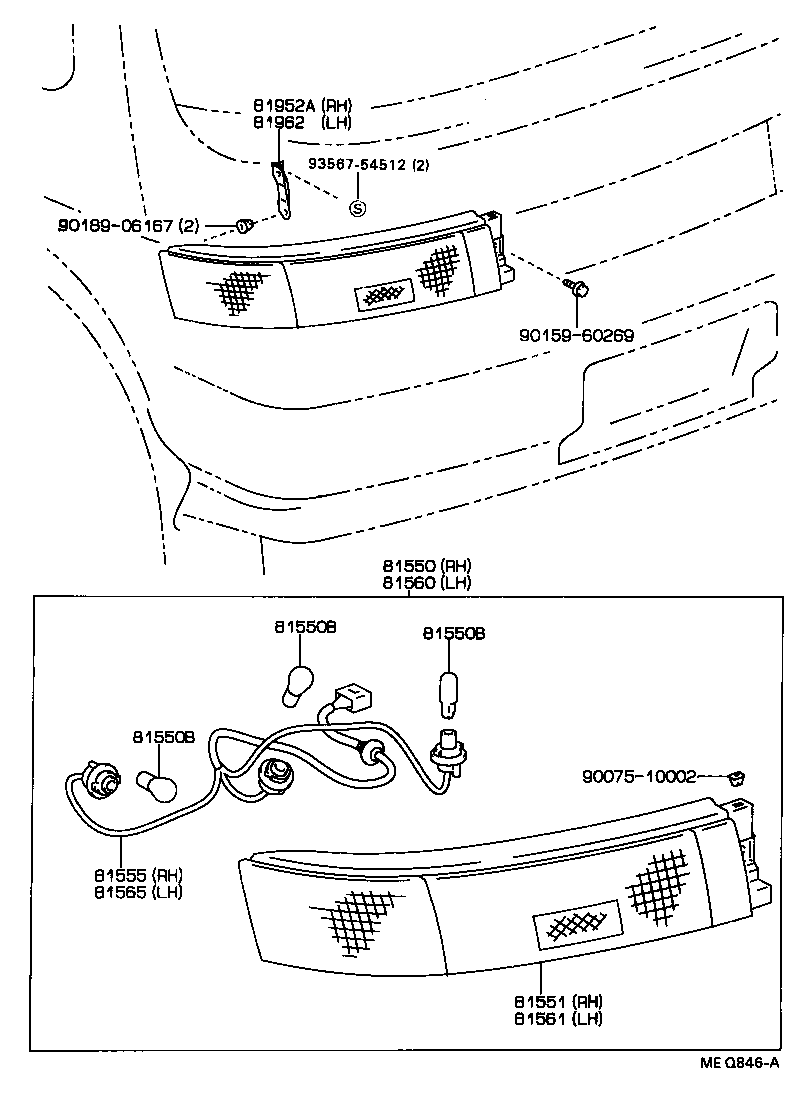

(9009-9208)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-16470	EL4#,NL40	08/1992 - 09/1994	1
81550-16430	EL4#,NL40	09/1990 - 08/1992	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	EL4#,NL40 12V 21W	09/1990 - 09/1994	2
99132-21210	EL4#,NL40 12V 21/5W	09/1990 - 09/1994	2
90981-11039	EL4#,NL40 12V 16W	09/1990 - 09/1994	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	EL4#,NL40 12V 21W	09/1990 - 09/1994	2
99132-21210	EL4#,NL40 12V 21/5W	09/1990 - 09/1994	2
90981-11039	EL4#,NL40 12V 16W	09/1990 - 09/1994	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	EL4#,NL40 12V 21W	09/1990 - 09/1994	2
99132-21210	EL4#,NL40 12V 21/5W	09/1990 - 09/1994	2
90981-11039	EL4#,NL40 12V 16W	09/1990 - 09/1994	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-16470	EL4#,NL40	08/1992 - 09/1994	1
81551-16430	EL4#,NL40	09/1990 - 08/1992	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-16471	EL4#,NL40	02/1994 - 09/1994	1
81555-16470	EL4#,NL40	08/1992 - 02/1994	1
81555-16430	EL4#,NL40	09/1990 - 08/1992	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-16470	EL4#,NL40	09/1990 - 08/1992	1
81560-16510	EL4#,NL40	08/1992 - 09/1994	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-16510	EL4#,NL40	08/1992 - 09/1994	1
81561-16470	EL4#,NL40	09/1990 - 08/1992	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-16470	EL4#,NL40	08/1992 - 02/1994	1
81555-16430	EL4#,NL40	09/1990 - 08/1992	1
81555-16471	EL4#,NL40	02/1994 - 09/1994	1
81952A - COVER, REAR LAMP, RH
61663-16010	EL4#,NL40	09/1990 - 09/1994	1
81962 - COVER, REAR LAMP, LH
61664-16010	EL4#,NL40	09/1990 - 09/1994	1
Common parts
90075-10002
90159-60269
90189-06167
93567-54512

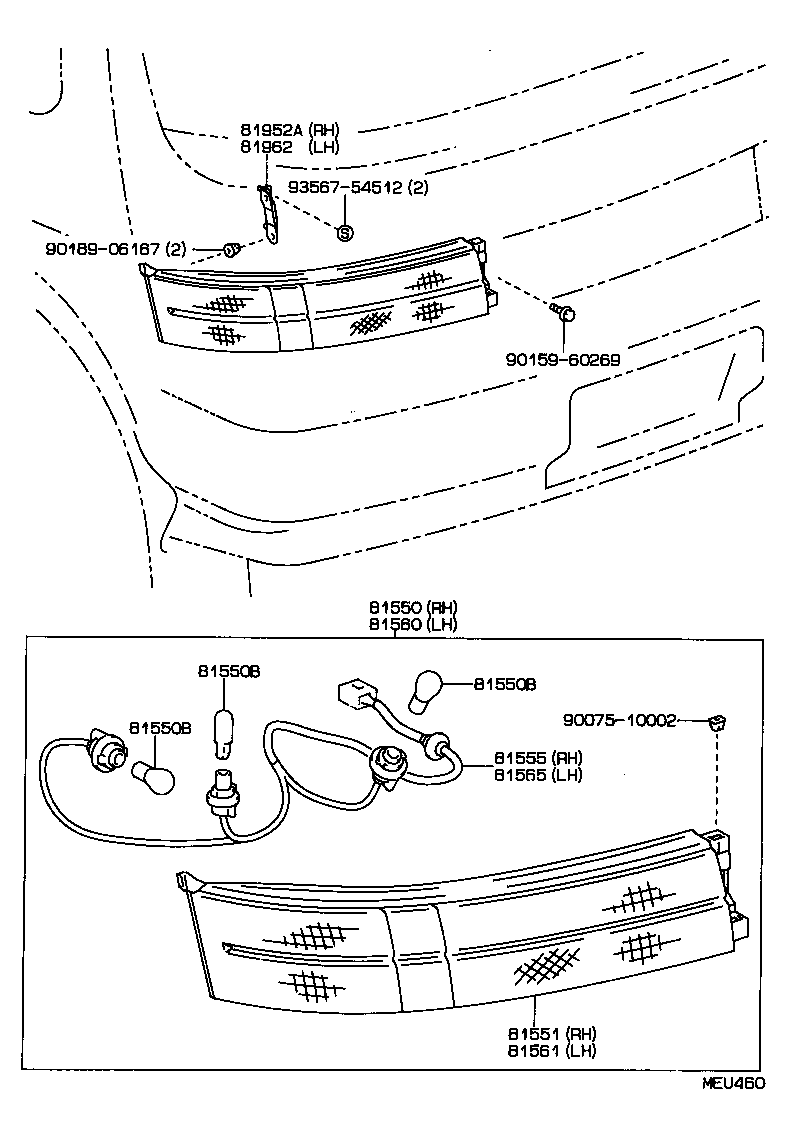

(9208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-16470	EL4#,NL40	08/1992 - 09/1994	1
81550-16430	EL4#,NL40	09/1990 - 08/1992	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	EL4#,NL40 12V 21W	09/1990 - 09/1994	2
99132-21210	EL4#,NL40 12V 21/5W	09/1990 - 09/1994	2
90981-11039	EL4#,NL40 12V 16W	09/1990 - 09/1994	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	EL4#,NL40 12V 21W	09/1990 - 09/1994	2
99132-21210	EL4#,NL40 12V 21/5W	09/1990 - 09/1994	2
90981-11039	EL4#,NL40 12V 16W	09/1990 - 09/1994	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	EL4#,NL40 12V 21W	09/1990 - 09/1994	2
99132-21210	EL4#,NL40 12V 21/5W	09/1990 - 09/1994	2
90981-11039	EL4#,NL40 12V 16W	09/1990 - 09/1994	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-16470	EL4#,NL40	08/1992 - 09/1994	1
81551-16430	EL4#,NL40	09/1990 - 08/1992	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-16471	EL4#,NL40	02/1994 - 09/1994	1
81555-16470	EL4#,NL40	08/1992 - 02/1994	1
81555-16430	EL4#,NL40	09/1990 - 08/1992	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-16470	EL4#,NL40	09/1990 - 08/1992	1
81560-16510	EL4#,NL40	08/1992 - 09/1994	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-16510	EL4#,NL40	08/1992 - 09/1994	1
81561-16470	EL4#,NL40	09/1990 - 08/1992	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-16470	EL4#,NL40	08/1992 - 02/1994	1
81555-16430	EL4#,NL40	09/1990 - 08/1992	1
81555-16471	EL4#,NL40	02/1994 - 09/1994	1
81952A - COVER, REAR LAMP, RH
61663-16010	EL4#,NL40	09/1990 - 09/1994	1
81962 - COVER, REAR LAMP, LH
61664-16010	EL4#,NL40	09/1990 - 09/1994	1
Common parts
90075-10002
90159-60269
90189-06167
93567-54512

EL41-CGKRK (1990)

(9009-9208)

(9208- )
