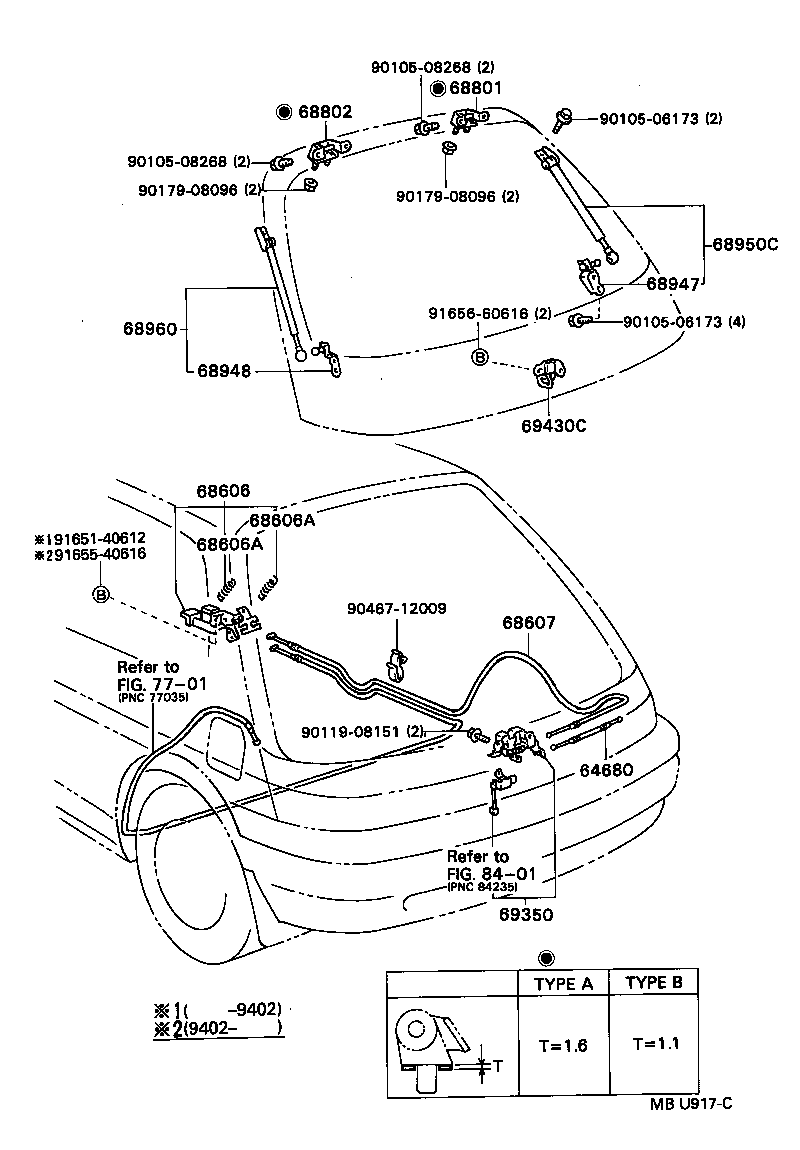

Toyota Corolla 2 EL41 BACK DOOR LOCK & HANDLE

Part #	Description	Period	Qty
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-16060	EL4#,NL40	09/1990 - 09/1994	1
68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN
64606-16040	EL41..TX	09/1990 - 09/1994	1
64606-16050	EL41..TX ｶｽﾀﾑﾊﾟﾂｸ	08/1992 - 09/1994	1
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034	EL41..TX	09/1990 - 09/1994	1
90506-09034	EL41..TX ｶｽﾀﾑﾊﾟﾂｸ	08/1992 - 09/1994	2
68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
90506-09034	EL41..TX	09/1990 - 09/1994	1
90506-09034	EL41..TX ｶｽﾀﾑﾊﾟﾂｸ	08/1992 - 09/1994	2
68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
64607-16230	EL4#,NL40	09/1990 - 09/1994	1
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-16040	EL4#,NL40 ﾀｲﾌﾟ A	09/1990 - 09/1994	1
68801-16050	EL4#,NL40 ﾀｲﾌﾟ B	09/1990 - 09/1994	1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68801-16040	EL4#,NL40 ﾀｲﾌﾟ A	09/1990 - 08/1992	1
68801-16050	EL4#,NL40 TYPE B	08/1992 - 09/1994	1
68801-16040	EL4#,NL40 TYPE A	08/1992 - 09/1994	1
68801-16050	EL4#,NL40 ﾀｲﾌﾟ B	09/1990 - 08/1992	1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-16021	EL4#,NL40	03/1992 - 02/1993	1
68947-16020	EL4#,NL40	09/1990 - 03/1992	1
68947-16022	EL4#,NL40	02/1993 - 09/1994	1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-16020	EL4#,NL40	09/1990 - 03/1992	1
68948-16021	EL4#,NL40	03/1992 - 02/1993	1
68948-16022	EL4#,NL40	02/1993 - 09/1994	1
68950C - STAY ASSY, BACK DOOR, RH
68950-19755	EL41,45,NL40..TX,WIN ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1990 - 03/1992	1
68950-19745	EL41,45,NL40..TX,WIN	09/1990 - 03/1992	1
68950-19756	EL41,45,NL40..TX,WIN ｱﾘ(ﾘﾔﾜｲﾊﾟ)	03/1992 - 08/1992	1
68950-19756	EL41,NL40..TX,WIN ｱﾘ(ﾘﾔｽﾎﾟｲﾗ) OR ｱﾘ(ﾘﾔﾜｲﾊﾟ)	08/1992 - 09/1994	1
68950-19746	EL41,45,NL40..TX,WIN	03/1992 - 08/1992	1
68950-19746	EL41,NL40..TX,WIN	08/1992 - 09/1994	1
68950-19766	EL41,NL40..TX,WIN ｱﾘ(ﾘﾔｽﾎﾟｲﾗ & ﾘﾔﾜｲﾊﾟ)	08/1992 - 09/1994	1
68960 - STAY ASSY, BACK DOOR, LH
68960-19436	EL41,45,NL40..TX,WIN	03/1992 - 08/1992	1
68960-19445	EL41,45,NL40..TX,WIN ｱﾘ(ﾘﾔﾜｲﾊﾟ)	09/1990 - 03/1992	1
68960-19435	EL41,45,NL40..TX,WIN	09/1990 - 03/1992	1
68960-19436	EL41,NL40..TX,WIN	08/1992 - 09/1994	1
68960-19446	EL41,45,NL40..TX,WIN ｱﾘ(ﾘﾔﾜｲﾊﾟ)	03/1992 - 08/1992	1
68960-19446	EL41,NL40..TX,WIN ｱﾘ(ﾘﾔｽﾎﾟｲﾗ) OR ｱﾘ(ﾘﾔﾜｲﾊﾟ)	08/1992 - 09/1994	1
68960-19456	EL41,NL40..TX,WIN ｱﾘ(ﾘﾔｽﾎﾟｲﾗ & ﾘﾔﾜｲﾊﾟ)	08/1992 - 09/1994	1
69350 - LOCK ASSY, BACK DOOR
69350-16130	EL4#,NL40	09/1990 - 09/1994	1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-16180	EL4#,NL40	09/1990 - 09/1994	1
Common parts
90105-06173
90105-08268
90119-08151
90179-08096
90467-12009
91651-40612
91655-40616
91656-60616
Linked diagrams
7701
8401

EL41-CGKRK (1990)

(9009- )
