EL41-CGHRK (1990)
Toyota Corolla 2

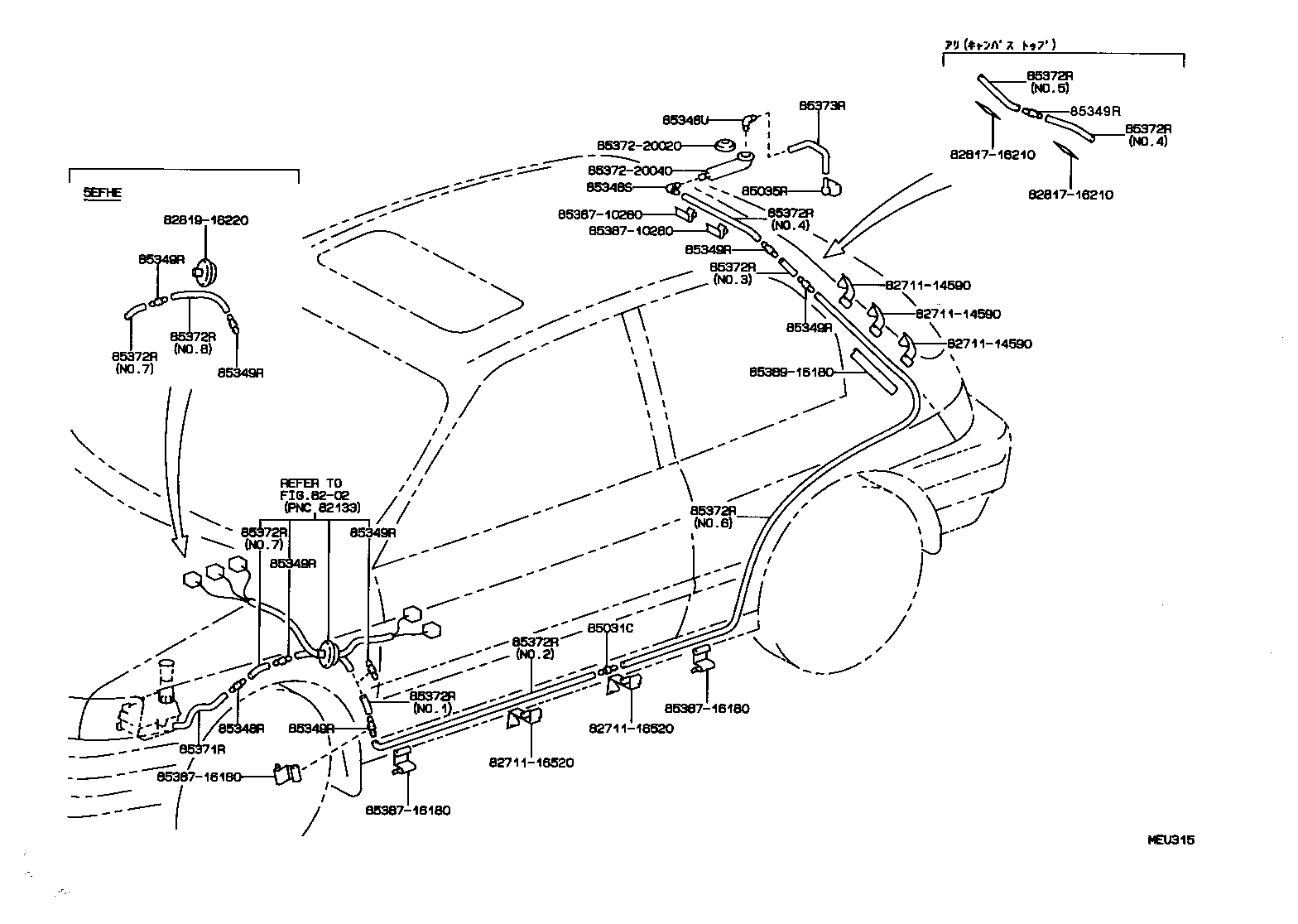

(9009-9208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-90A00 |
EL4#,NL40 |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-16010 |
EL4#,NL40 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
EL4#,NL40 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
EL4#,NL40 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85355-20200 |
EL4#,NL40 |
1 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
EL4#,NL40 |
1 | ||
| 90446-07001 |
EL4#,NL40 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33185 |
EL4#,NL40 長さ=120 |
1 | ||
| Common parts | ||||
| 82711-14590 | ||||
| 82711-16520 | ||||
| 82817-16210 | ||||
| 85372-20020 | ||||
| 85372-20040 | ||||
| 85379-16180 | ||||
| 85387-10280 | ||||
| 85387-16180 | ||||
| 85389-16180 | ||||

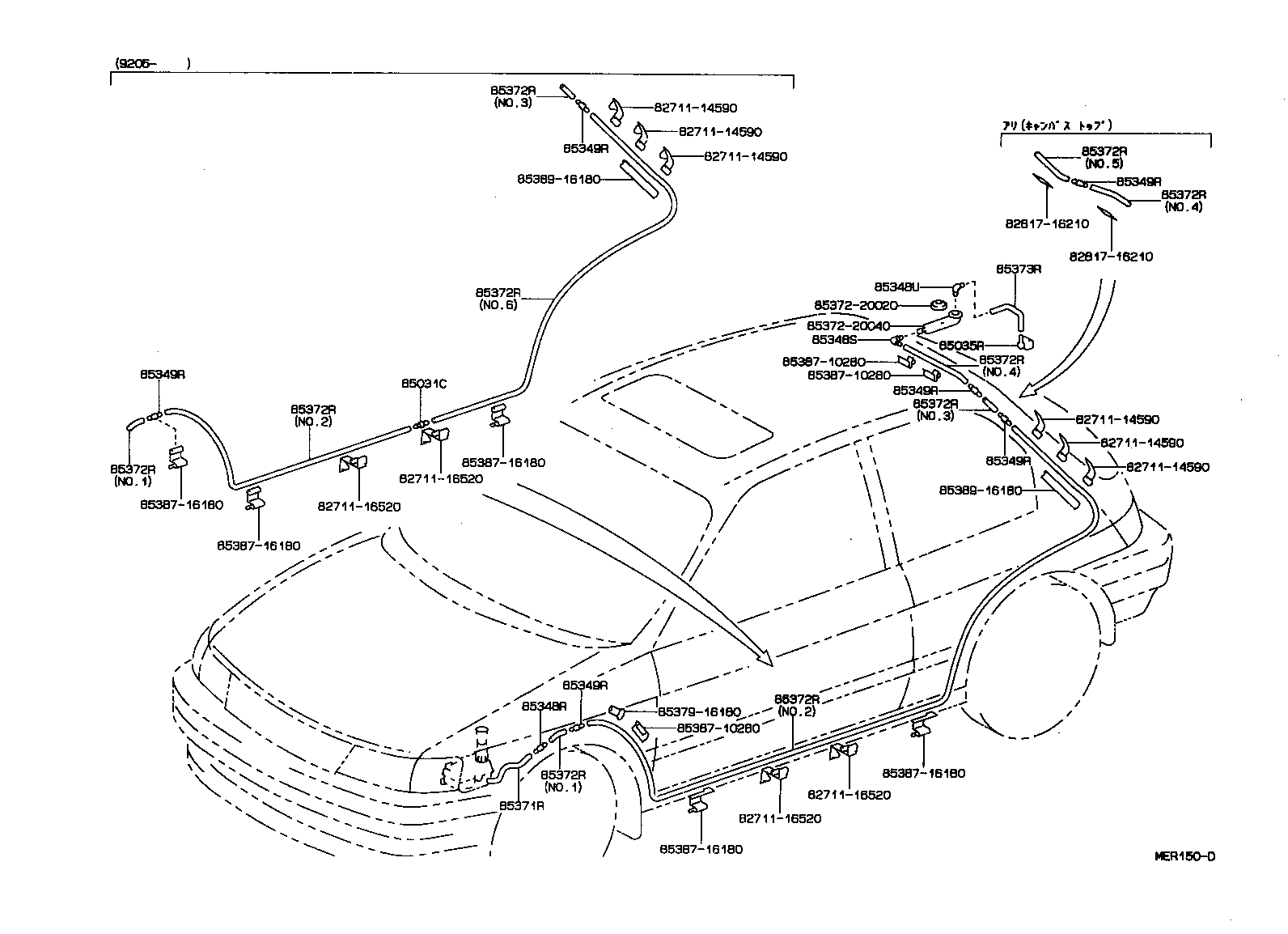

(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031C - VALVE SUB-ASSY, WASHER | ||||
| 85031-90A00 |
EL4#,NL40 |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-16010 |
EL4#,NL40 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
EL4#,NL40 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
EL4#,NL40 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85355-20200 |
EL4#,NL40 |
1 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85349R - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
EL4#,NL40 |
4 | ||
| 85349-89122 |
EL4#,NL40..DSL,EFI |
5 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
EL4#,NL40 |
1 | ||
| 90446-07001 |
EL4#,NL40 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 & NO.3 |
2 | ||
| 90099-59080 |
EL4#,NL40 *H,L=1830,NO.2 |
1 | ||
| 90099-33511 |
EL4#,NL40 長さ=4000,NO.2 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.4 |
1 | ||
| 90099-33080 |
EL4#,NL40 L=1450,NO.1 OR NO.3 OR NO.7 |
3 | ||
| 90099-59058 |
EL4#,NL40 *H,L=1900,NO.6 |
1 | ||
| 90099-59053 |
EL4#,NL40..DSL,EFI 長さ=820,NO.8 |
1 | ||
| 90446-07001 |
EL4#,NL40 NO.2 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33185 |
EL4#,NL40 長さ=120 |
1 | ||
| Common parts | ||||
| 82711-14590 | ||||
| 82711-16520 | ||||
| 82817-16210 | ||||
| 82819-16220 | ||||
| 85372-20020 | ||||
| 85372-20040 | ||||
| 85387-10280 | ||||
| 85387-16180 | ||||
| 85389-16180 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
