Toyota Corolla 2 EL41 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
COROLLA 2
EL41-CGHNK (1990)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

EL41-CGHNK (1990)

Toyota Corolla 2

Production Sep 1990 - Sep 1994

Engine 4EFE

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

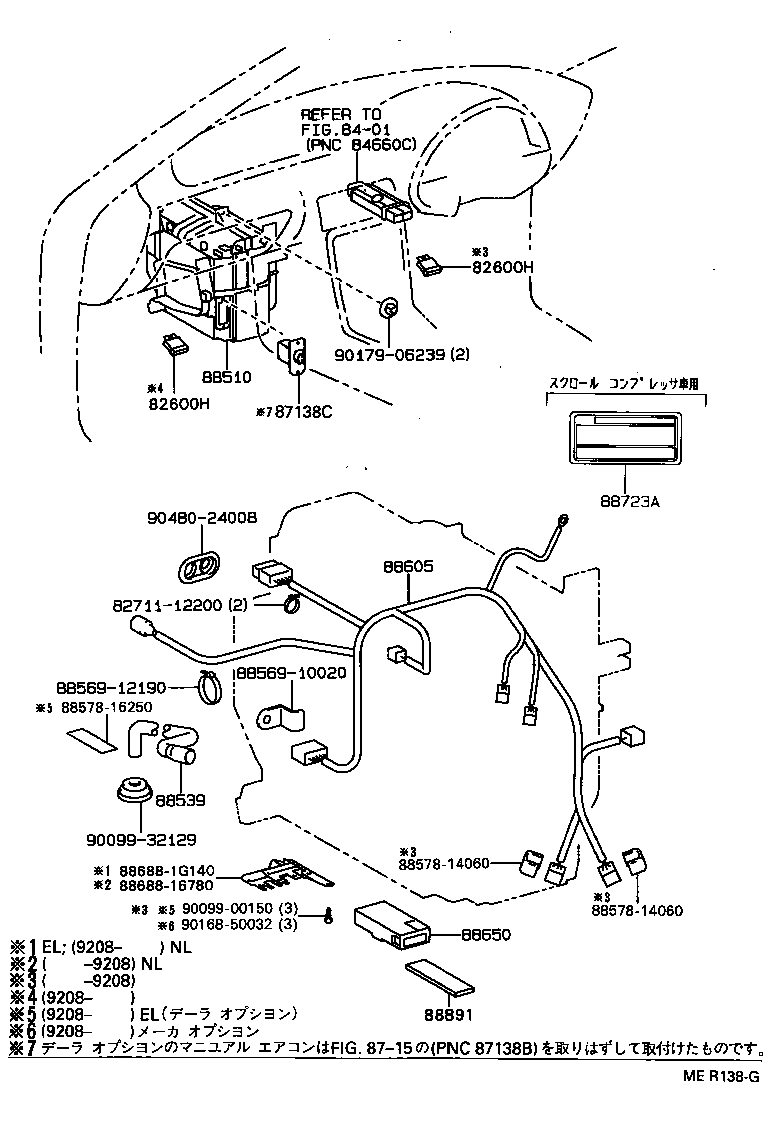

ILLUST NO. 1 OF 3(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82600H - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	1
82600H - FUSE, FUSE BLOCK
90982-09002	EL4#,NL40 10A	09/1990 - 09/1994	1
87138C - RESISTOR, BLOWER
87138-18020	NL40..4FC;EL4#..LIM,SR,WIN,ZS ｵ-ﾄｴｱｺﾝ	09/1990 - 08/1992	1
87138-18020	NL40..4FC;EL4#..LIM,WIN,ZS ｵ-ﾄｴｱｺﾝ	08/1992 - 09/1994	1
88510 - UNIT ASSY, COOLER
88510-10240	EL4#;NL40..4FC	09/1990 - 08/1993	1
88510-16480	EL4#;NL40..4FC	08/1993 - 09/1994	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10090	EL4#;NL40..4FC	09/1990 - 09/1994	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1G360	EL41..LIM,WIN ﾏﾆﾕｱﾙｴｱｺﾝ( SW = A/C)	09/1990 - 08/1992	1
88605-1G380	EL4#..LIM,SR,WIN,ZS ﾏﾆﾕｱﾙｴｱｺﾝ( SW = A/C & ECON)	09/1990 - 08/1992	1
88605-1G390	EL4#..LIM,SR,WIN ｵ-ﾄｴｱｺﾝ	09/1990 - 08/1992	1
88605-1G630	EL41..LIM,WIN ﾏﾆﾕｱﾙｴｱｺﾝ(SW = A/C)	08/1992 - 08/1993	1
88605-1G670	EL41,45..LIM,WIN ｵ-ﾄｴｱｺﾝ	08/1992 - 08/1993	1
88605-1G631	EL41..LIM,WIN ﾏﾆﾕｱﾙｴｱｺﾝ(SW = A/C)	08/1993 - 09/1994	1
88605-1G671	EL41,45..LIM,WIN ｵ-ﾄｴｱｺﾝ	08/1993 - 09/1994	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16660	EL41..3FC..(LIM,WIN)	05/1994 - 09/1994	1
88650-16440	EL4#..LIM,SR,WIN,ZS	09/1990 - 05/1994	1
88650-16440	EL41..3FC..(LIM,WIN)	05/1994 - 09/1994	1
88723A - LABEL, COOLER SERVICE CAUTION
88723-16070	EL41..3FC	05/1994 - 09/1994	1
88891 - PACKING (FOR COOLER)
88578-16190	EL4#;NL40..4FC	09/1990 - 08/1992	1
88578-16190	EL4#..EFI;NL40..4FC	08/1992 - 09/1994	1
Common parts
82711-12200
88569-10020
88569-12190
88578-14060
88578-16250
88688-16780
88688-1G140
90099-00150
90099-32129
90168-50032
90179-06239
90480-24008
Linked diagrams
8401

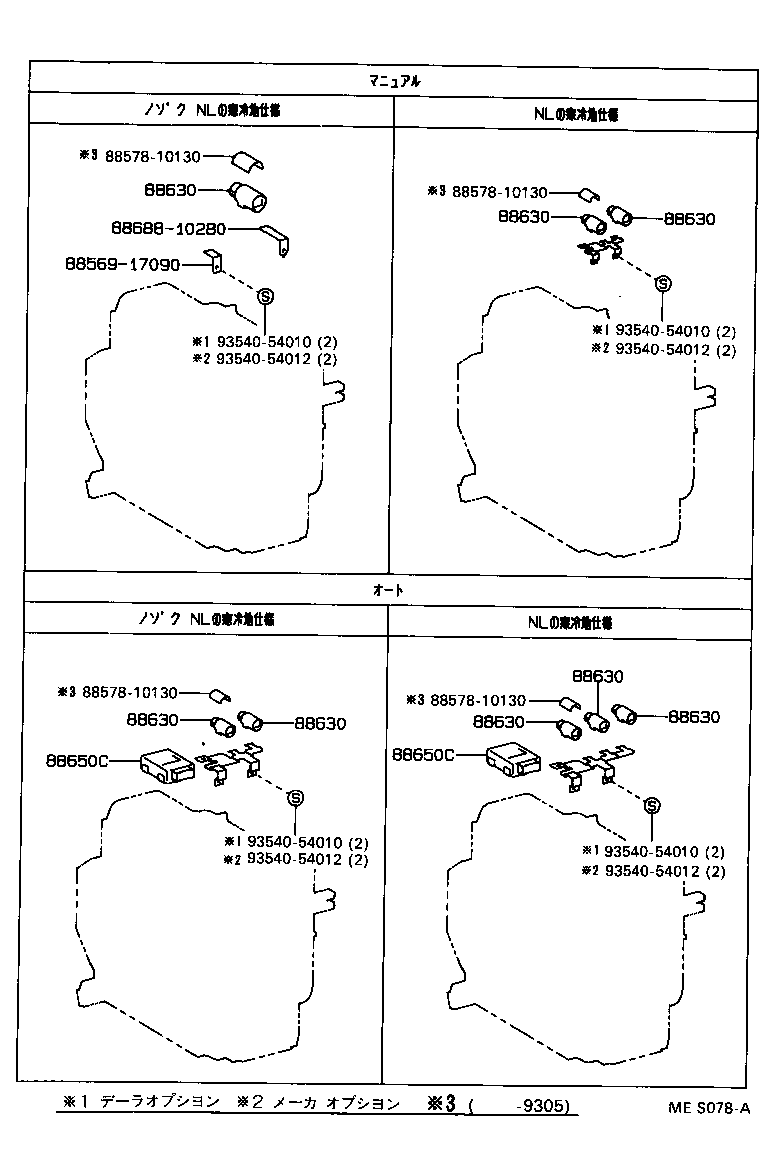

ILLUST NO. 2 OF 3(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88630 - RELAY ASSY, COOLER
88630-95702	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 09/1994	2
88630-95702	EL4#;NL40..4FC	09/1990 - 08/1992	1
88630-95702	NL40..4FC;EL41,45..LIM,TX,WIN	08/1992 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-95702	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 09/1994	2
88630-95702	EL4#;NL40..4FC	09/1990 - 08/1992	1
88630-95702	NL40..4FC;EL41,45..LIM,TX,WIN	08/1992 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-95702	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 09/1994	2
88630-95702	EL4#;NL40..4FC	09/1990 - 08/1992	1
88630-95702	NL40..4FC;EL41,45..LIM,TX,WIN	08/1992 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-95702	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 09/1994	2
88630-95702	EL4#;NL40..4FC	09/1990 - 08/1992	1
88630-95702	NL40..4FC;EL41,45..LIM,TX,WIN	08/1992 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-95702	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 09/1994	2
88630-95702	EL4#;NL40..4FC	09/1990 - 08/1992	1
88630-95702	NL40..4FC;EL41,45..LIM,TX,WIN	08/1992 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-95702	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 09/1994	2
88630-95702	EL4#;NL40..4FC	09/1990 - 08/1992	1
88630-95702	NL40..4FC;EL41,45..LIM,TX,WIN	08/1992 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-95702	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 09/1994	2
88630-95702	EL4#;NL40..4FC	09/1990 - 08/1992	1
88630-95702	NL40..4FC;EL41,45..LIM,TX,WIN	08/1992 - 09/1994	1
88630 - RELAY ASSY, COOLER
88630-95702	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 09/1994	2
88630-95702	EL4#;NL40..4FC	09/1990 - 08/1992	1
88630-95702	NL40..4FC;EL41,45..LIM,TX,WIN	08/1992 - 09/1994	1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-16460	EL4#,NL40..LIM,SR,WIN,ZS	09/1990 - 08/1992	1
88650-16460	NL40..4FC;EL4#..LIM,SR,WIN,ZS	08/1992 - 09/1994	1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-16460	EL4#,NL40..LIM,SR,WIN,ZS	09/1990 - 08/1992	1
88650-16460	NL40..4FC;EL4#..LIM,SR,WIN,ZS	08/1992 - 09/1994	1
Common parts
88569-17090
88578-10130
88688-10280
93540-54010
93540-54012

ILLUST NO. 3 OF 3(9009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-16110	EL4#..EFI;NL40..4FC	08/1993 - 09/1994	1
88501-10100	EL4#;NL40..4FC	09/1990 - 08/1993	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-10010	NL40..4FC;EL4#..LIM,SR,WIN,ZS	09/1990 - 08/1992	1
88502-10010	EL4#;NL40..4FC	08/1992 - 08/1993	1
88502-16150	EL4#;NL40..4FC	08/1993 - 09/1994	1
88510 - UNIT ASSY, COOLER
88510-10240	EL4#;NL40..4FC	09/1990 - 08/1993	1
88510-16480	EL4#;NL40..4FC	08/1993 - 09/1994	1
88515 - VALVE, COOLER EXPANSION
88515-14062	EL4#;NL40..4FC	09/1990 - 08/1993	1
88515-20100	EL4#;NL40..4FC	08/1993 - 09/1994	1
88521E - CASE SUB-ASSY, COOLING UNIT
88502-10020	EL4#;NL40..4FC	09/1990 - 09/1994	1
88625 - THERMISTOR, COOLER, NO.1
88625-24050	EL4#;NL40..4FC	09/1990 - 09/1994	1
88645G - SWITCH, PRESSURE
88645-30320	EL4#;NL40..4FC	09/1990 - 08/1993	1
88648 - WIRING, COOLER, NO.1
88648-10290	EL4#;NL40..4FC	09/1990 - 08/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-10060	EL4#;NL40..4FC	09/1990 - 08/1993	1
88710-16230	EL4#;NL40..4FC	08/1993 - 09/1994	1
Common parts
87116-14010
88578-16280
88578-16290
90099-00968
