EL41-CGHNK (1990)
Toyota Corolla 2

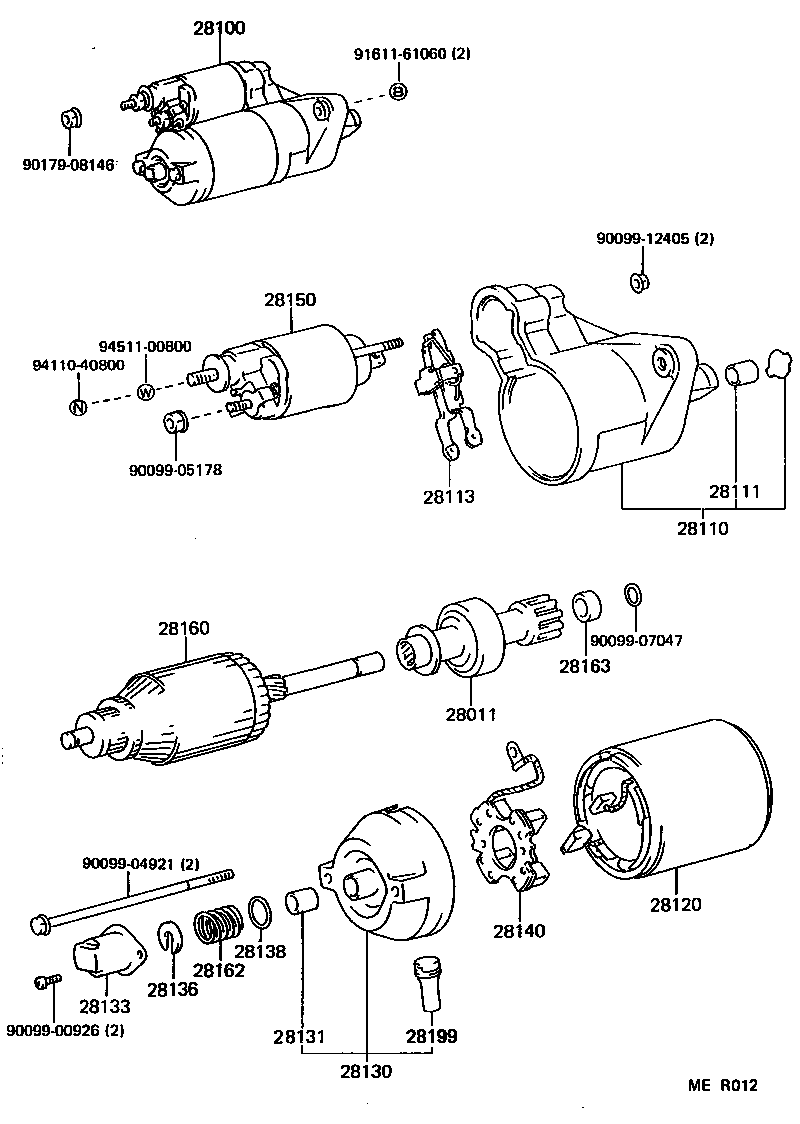

ILLUST NO. 1 OF 2(9009- )4EFE
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28011-10030 |
4EFE..EL41 |
1 | ||
| 28011-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28011-26042 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-10030 |
4EFE..EL41 12V 0.8KW |
1 | ||
| 28100-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-11010 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28110-10030 |
4EFE..EL41 |
1 | ||
| 28110-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110-11010 |
4EFE,5EF#..EL4#..3FC,4F,5F |
1 | ||
| 28110-11020 |
4EFE,5EF#..EL4#..3FC,4F,5F |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
4EFE..EL41 |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
4EFE..EL41 |
1 | ||
| 28113-16070 |
4EFE,5EF#..EL4# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120-15010 |
4EFE..EL41 |
1 | ||
| 28120-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28120-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-10030 |
4EFE..EL41 |
1 | ||
| 28130-11010 |
4EFE,5EF#..EL4# |
1 | ||
| 28130-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 90099-10134 |
4EFE..EL41 |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-15010 |
4EFE..EL41 |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-15010 |
4EFE..EL41 |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-15010 |
4EFE..EL41 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-15010 |
4EFE..EL41 |
1 | ||
| 28140-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28140-26070 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-10021 |
4EFE,5EF#..EL4# |
1 | ||
| 28150-34080 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150-37010 |
4EFE..EL41 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-15010 |
4EFE..EL41 |
1 | ||
| 28160-70021 |
4EFE,5EF#..EL4# |
1 | ||
| 28160-26071 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-15010 |
4EFE..EL41 |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28163-40011 |
4EFE..EL41 |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-10030 |
4EFE..EL41 |
1 | ||
| 28199-46080 |
4EFE,5EF#..EL4# |
1 | ||
| Common parts | ||||
| 90099-00926 | ||||
| 90099-04921 | ||||
| 90099-05178 | ||||
| 90099-07047 | ||||
| 90099-12405 | ||||
| 90179-08146 | ||||
| 91611-61060 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

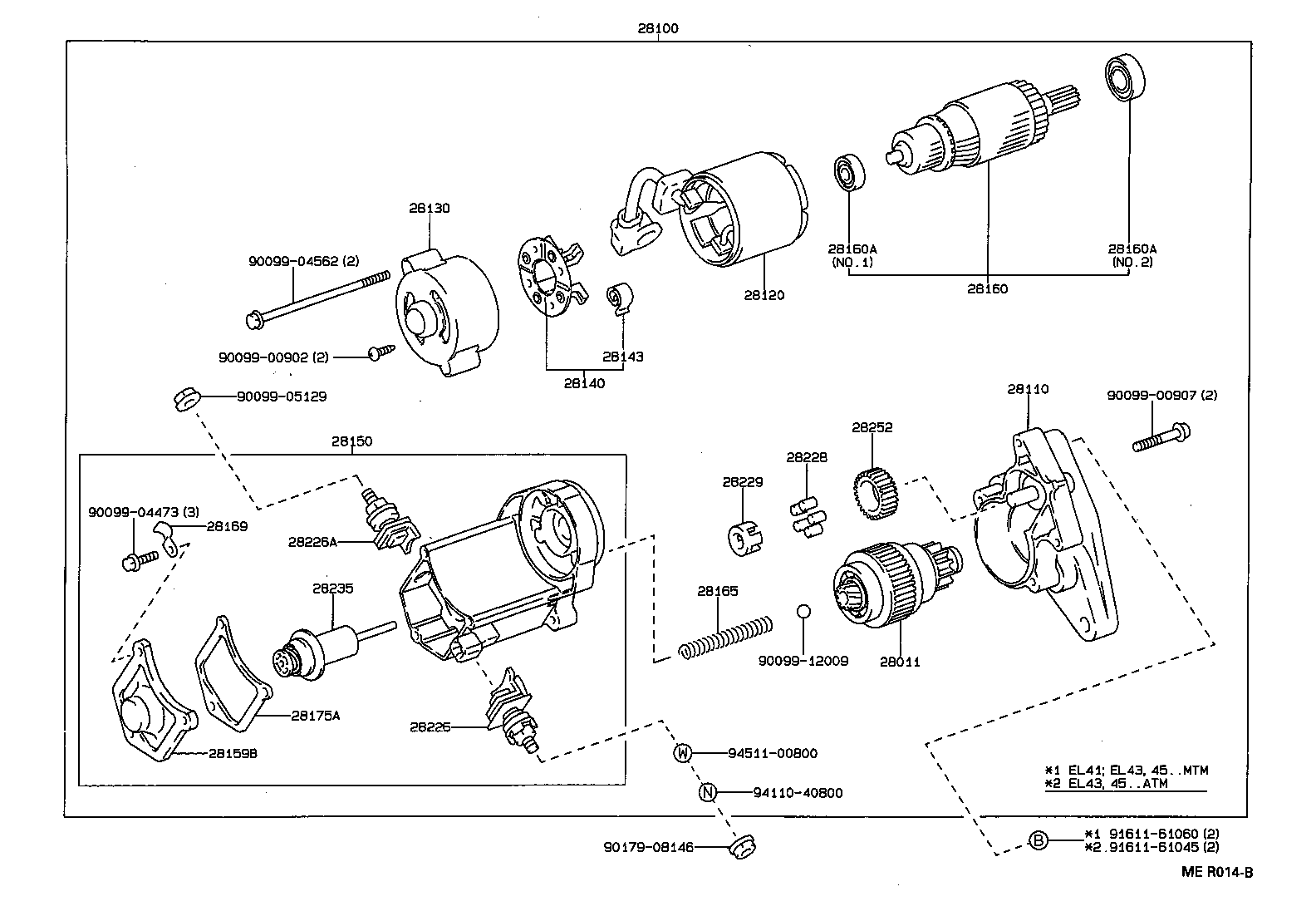

ILLUST NO. 1 OF 2(9009- )4EFE,5EF#
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28011-10030 |
4EFE..EL41 |
1 | ||
| 28011-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28011-26042 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-10030 |
4EFE..EL41 12V 0.8KW |
1 | ||
| 28100-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-11010 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28110-10030 |
4EFE..EL41 |
1 | ||
| 28110-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110-11010 |
4EFE,5EF#..EL4#..3FC,4F,5F |
1 | ||
| 28110-11020 |
4EFE,5EF#..EL4#..3FC,4F,5F |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120-15010 |
4EFE..EL41 |
1 | ||
| 28120-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28120-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-10030 |
4EFE..EL41 |
1 | ||
| 28130-11010 |
4EFE,5EF#..EL4# |
1 | ||
| 28130-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-15010 |
4EFE..EL41 |
1 | ||
| 28140-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28140-26070 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28143-70020 |
4EFE,5EF#..EL4# |
4 | ||
| 90099-17112 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-10021 |
4EFE,5EF#..EL4# |
1 | ||
| 28150-34080 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150-37010 |
4EFE..EL41 |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28159-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-15010 |
4EFE..EL41 |
1 | ||
| 28160-70021 |
4EFE,5EF#..EL4# |
1 | ||
| 28160-26071 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10113 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10113 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 28253-45020 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.1 |
1 | ||
| 90099-10113 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 90099-10113 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ,NO.2 |
1 | ||
| 28253-45020 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28165-26040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28169-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28175-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28226-72080 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28226-72010 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
5 | ||
| 28228-26040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28229-26040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28235-35080 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28254-45020 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90179-08146 | ||||
| 91611-61045 | ||||
| 91611-61060 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||

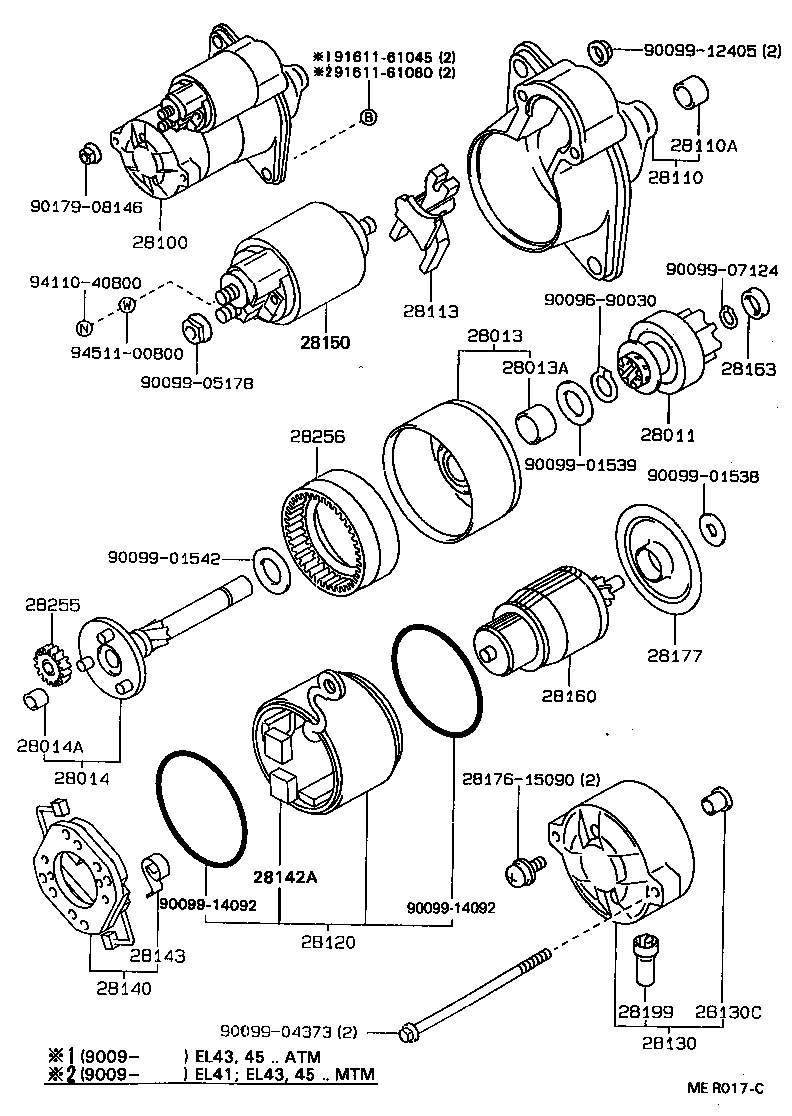

ILLUST NO. 1 OF 2(9009- )5EF# ; (9101- )4EFE
12V 0.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28011-10030 |
4EFE..EL41 |
1 | ||
| 28011-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28011-26042 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28013 - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1 | ||||
| 28013-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2 | ||||
| 90099-10181 |
4EFE,5EF#..EL4# |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28014A - BUSH OR BEARING, PLANET CARRIER SHAFT | ||||
| 90099-10180 |
4EFE,5EF#..EL4# |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-10030 |
4EFE..EL41 12V 0.8KW |
1 | ||
| 28100-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28100-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 1.0KW,ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28100-11010 |
4EFE,5EF#..EL4#..3FC,4F,5F 12V 0.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28110-10030 |
4EFE..EL41 |
1 | ||
| 28110-10040 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28110-11010 |
4EFE,5EF#..EL4#..3FC,4F,5F |
1 | ||
| 28110-11020 |
4EFE,5EF#..EL4#..3FC,4F,5F |
1 | ||
| 28110A - BEARING(FOR STARTER HOUSING) | ||||
| 90099-10171 |
4EFE,5EF#..EL4# |
1 | ||
| 90099-10182 |
4EFE,5EF#..EL4# |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-15011 |
4EFE..EL41 |
1 | ||
| 28113-16070 |
4EFE,5EF#..EL4# |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28120-15010 |
4EFE..EL41 |
1 | ||
| 28120-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28120-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-10030 |
4EFE..EL41 |
1 | ||
| 28130-11010 |
4EFE,5EF#..EL4# |
1 | ||
| 28130-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28130-10040 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28130C - BEARING, STARTER FLANGE | ||||
| 90099-10183 |
4EFE,5EF#..EL4# |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28140-15010 |
4EFE..EL41 |
1 | ||
| 28140-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28140-26070 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28142A - STARTER KIT | ||||
| 28142-70020 |
4EFE,5EF#..EL4# |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
4 | ||
| 28143-70020 |
4EFE,5EF#..EL4# |
4 | ||
| 90099-17112 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-10021 |
4EFE,5EF#..EL4# |
1 | ||
| 28150-34080 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28150-34060 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28150-37010 |
4EFE..EL41 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
4EFE,5EF#..EL4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 28160-15010 |
4EFE..EL41 |
1 | ||
| 28160-70021 |
4EFE,5EF#..EL4# |
1 | ||
| 28160-26071 |
4EFE,5EF#..EL4#..3FC,4F,5F ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28163-40011 |
4EFE..EL41 |
1 | ||
| 28177 - PLATE(FOR STARTER ARMATURE) | ||||
| 28177-70020 |
4EFE,5EF#..EL4# |
1 | ||
| 28199 - COVER, STARTER | ||||
| 28199-10030 |
4EFE..EL41 |
1 | ||
| 28199-46080 |
4EFE,5EF#..EL4# |
1 | ||
| 28255 - GEAR, PLANET | ||||
| 28255-70020 |
4EFE,5EF#..EL4# |
3 | ||
| 28256 - GEAR, STARTER INTERNAL | ||||
| 28256-70020 |
4EFE,5EF#..EL4# |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90096-90030 | ||||
| 90099-01538 | ||||
| 90099-01539 | ||||
| 90099-01542 | ||||
| 90099-04373 | ||||
| 90099-05178 | ||||
| 90099-07124 | ||||
| 90099-12405 | ||||
| 90099-14092 | ||||
| 90179-08146 | ||||
| 91611-61045 | ||||
| 91611-61060 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
